Tube circuitry you can see

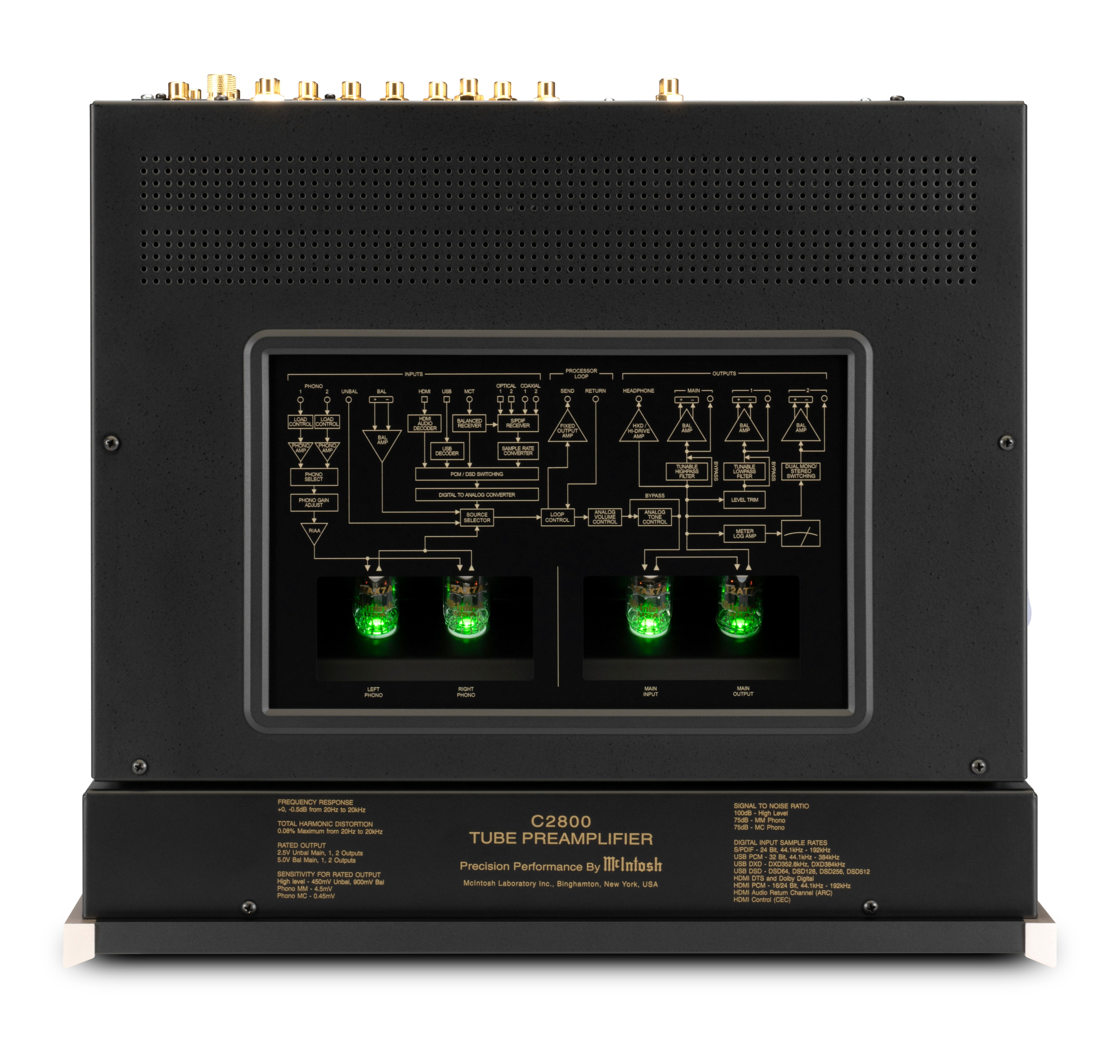

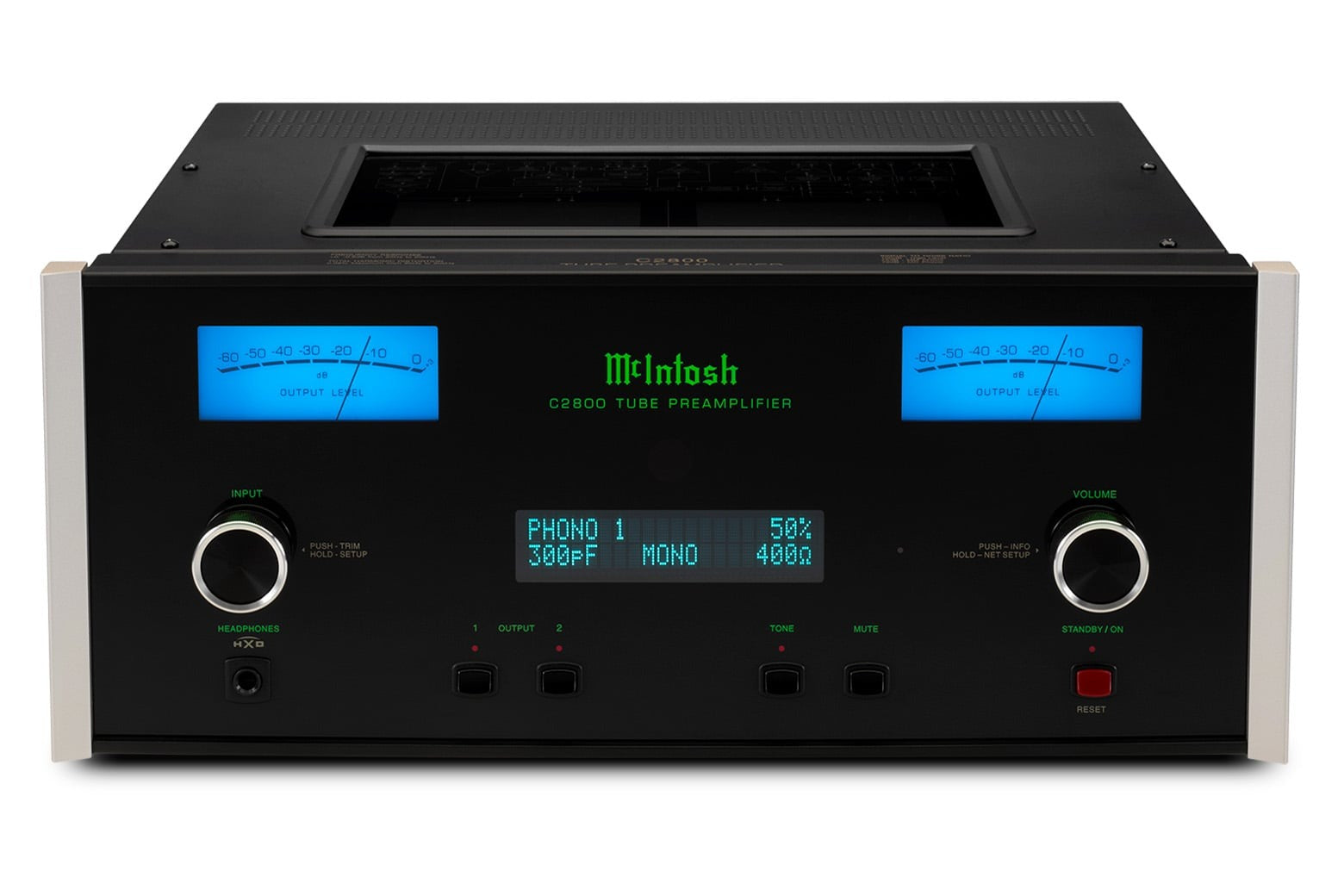

Four vacuum tubes form the C2800’s analog architecture and remain visible beneath the glass top panel.
Swipe or use the previous and next buttons to browse. Select an image to open a magnified view.
The C2800 combines a four-tube analog architecture with the source capacity and system flexibility expected of a modern McIntosh control component.
Talk with Pearl Audio
No appointment or hold begins until Pearl Audio confirms it.

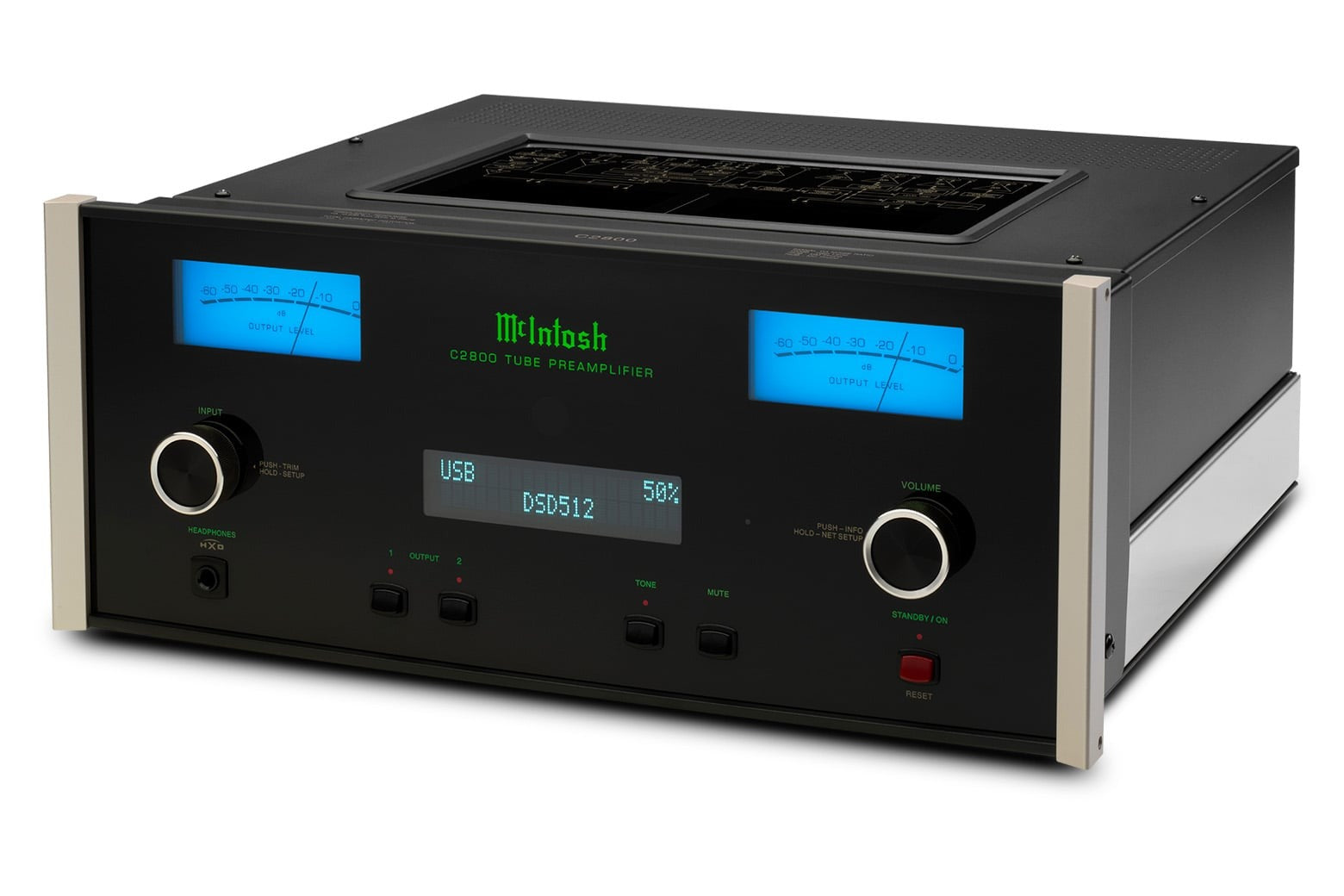

The McIntosh C2800 combines a four-tube analog architecture with the broad source and system flexibility expected of a modern McIntosh control component. Three 12AX7A tubes and one 12AT7 tube are visible beneath the glass top panel, while precision volume control and fully regulated power supplies support quiet, consistent operation.

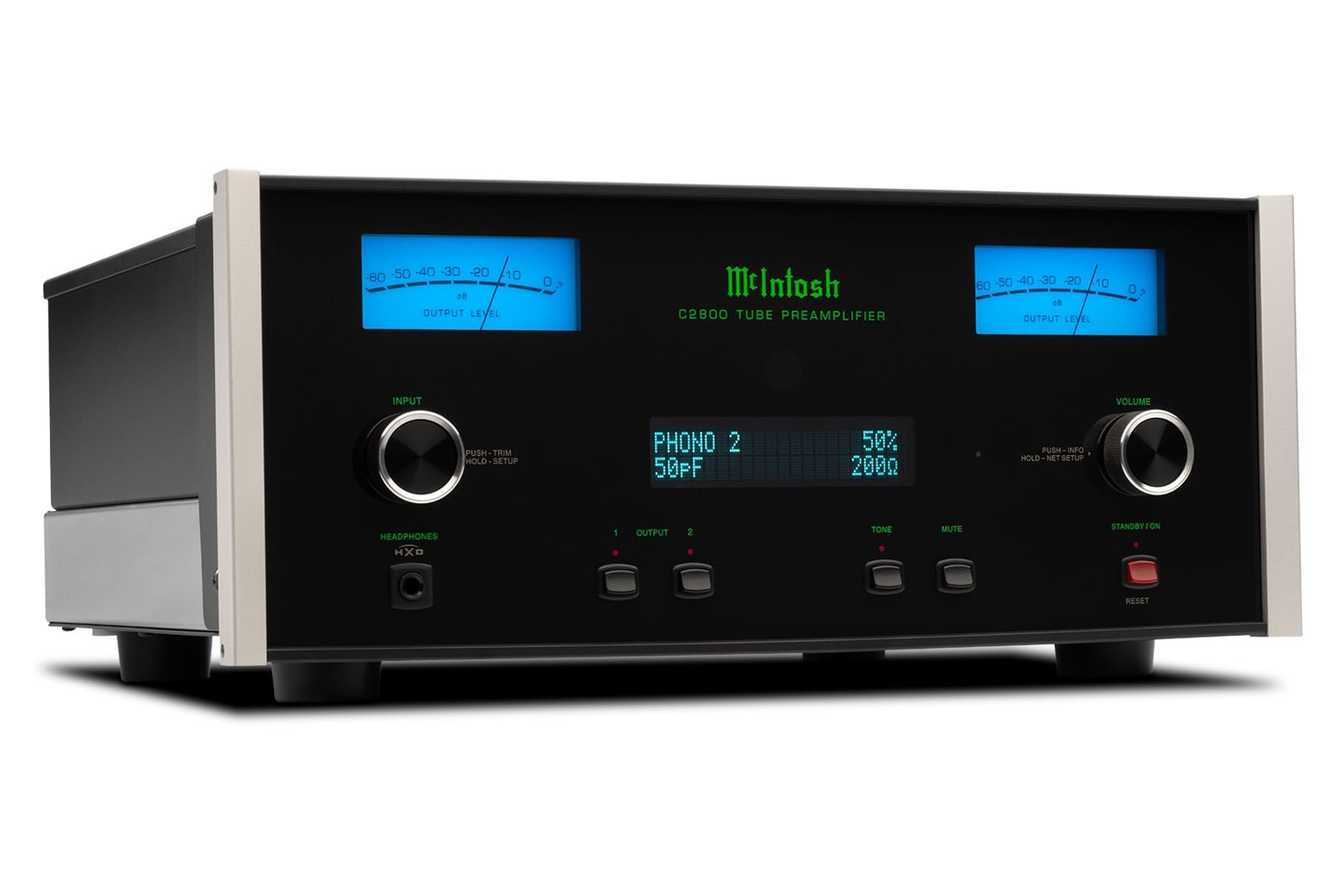

Its sixteen inputs comprise nine analog and seven digital connections. Three balanced and four unbalanced line inputs are joined by two phono inputs, each independently configurable for moving-coil or moving-magnet cartridges. The included DA2 Digital Audio Module adds two coaxial, two optical, USB, MCT, and HDMI ARC inputs, and is designed so the module can be replaced if McIntosh develops a future digital module.

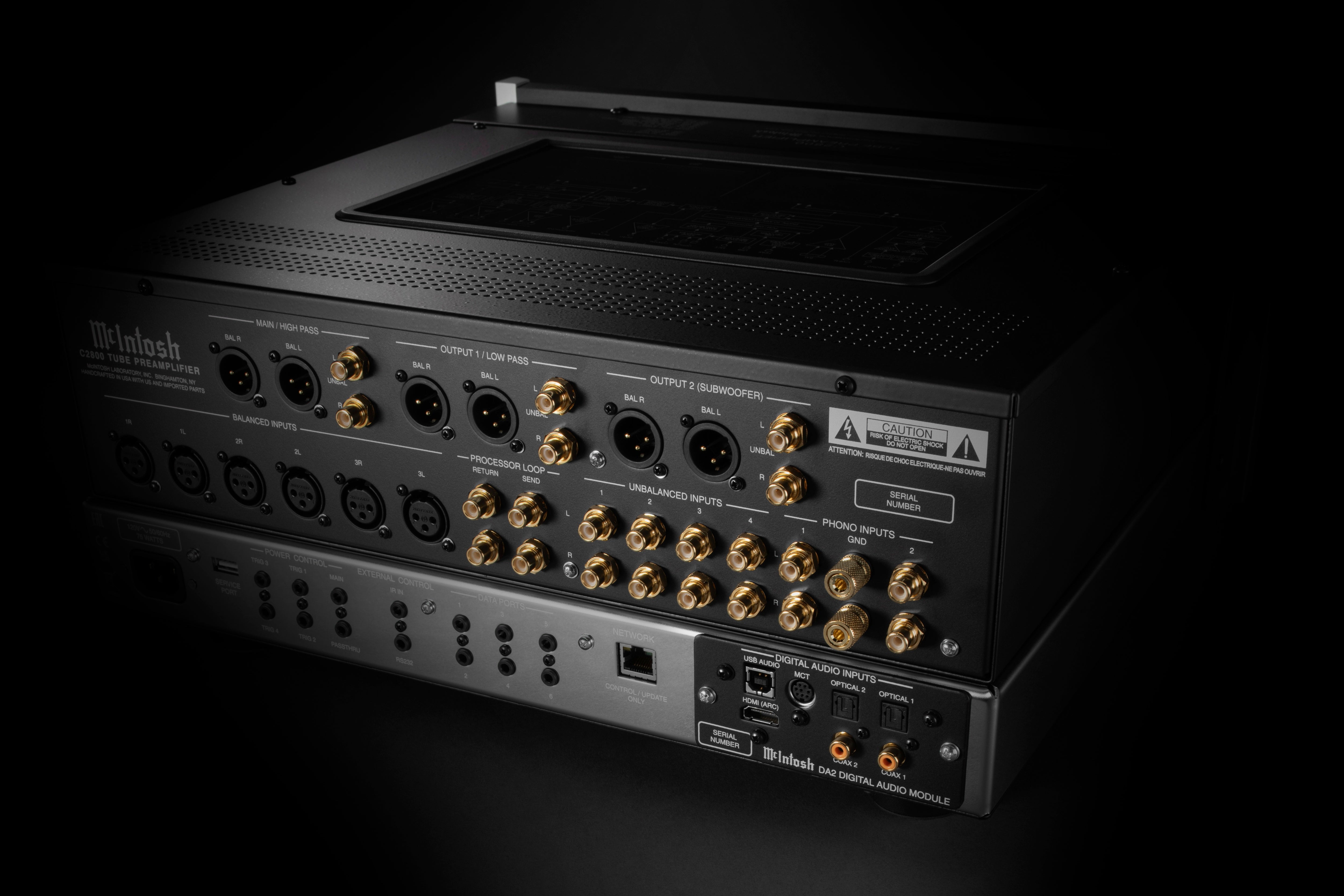

Three stereo sets of variable balanced and unbalanced outputs can operate simultaneously. The Main output and Output 1 include adjustable high-pass and low-pass filtering for bi-amplified systems, while Output 2 can be configured for mono or stereo subwoofer use or for an additional listening area. A Processor Loop provides a convenient connection point for an equalizer, room-correction component, or compatible recording equipment.
The C2800 measures 17 1/2 inches wide, 7 5/8 inches high, and 16 1/2 inches deep, and weighs 28 pounds. Pearl Audio can help configure its phono inputs around your cartridge, plan amplifier and subwoofer connections, integrate television audio through HDMI ARC, and arrange a private in-store audition.
A perspective from Pearl Audio
I have been selling McIntosh tube preamplifiers since the C2200 era, and I owned a C2200 myself. What appeals to me about the C2800 is that the tubes are only the beginning of the story. This is also an unusually capable system controller: two configurable phono inputs, a serious digital section, flexible outputs, and even the return of the Processor Loop. It can anchor a very simple system, but it has enough range to remain useful when the system becomes considerably more ambitious. That is a good preamplifier’s real job—it should make the system easier to enjoy today without putting a ceiling on what you may want to do tomorrow.
Choosing a McIntosh preamplifier
| C22 Mk V | C55 | C2800 | |
|---|---|---|---|
| Architecture | Six-tube vacuum tube | Solid state | Four-tube vacuum tube |
| Pearl shorthand | Tactile, analog-focused | Broad control and solid-state operation | Modern tube system center |
| Inputs | 7 analog | 16 total: 9 analog + 7 digital | 16 total: 9 analog + 7 digital |
| Phono | Dedicated MC + dedicated MM | Two configurable MC/MM | Two configurable MC/MM |
| Distinctive control | Direct knobs, switches, and bypassable tone controls | Eight-band analog EQ, filtering, and subwoofer output | Filtering, subwoofer routing, and Processor Loop |
| THD | 0.08% | 0.005% | 0.08% |
Swipe the table horizontally on a phone.
Product highlights

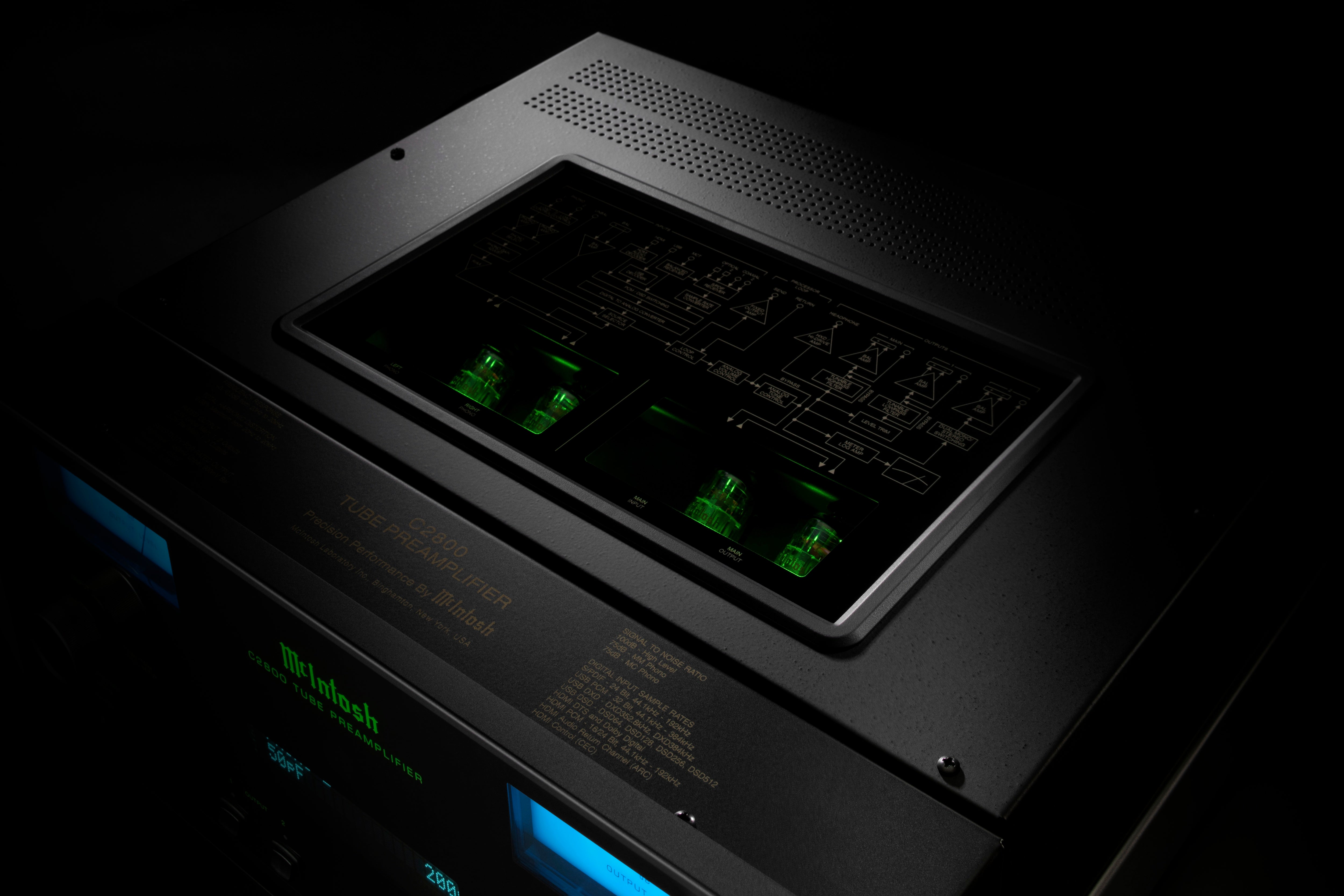

Four vacuum tubes form the C2800’s analog architecture and remain visible beneath the glass top panel.
Each phono input can be configured for a moving-coil or moving-magnet cartridge.
Three output sets, adjustable filtering, subwoofer routing, and a Processor Loop support sophisticated system plans.
