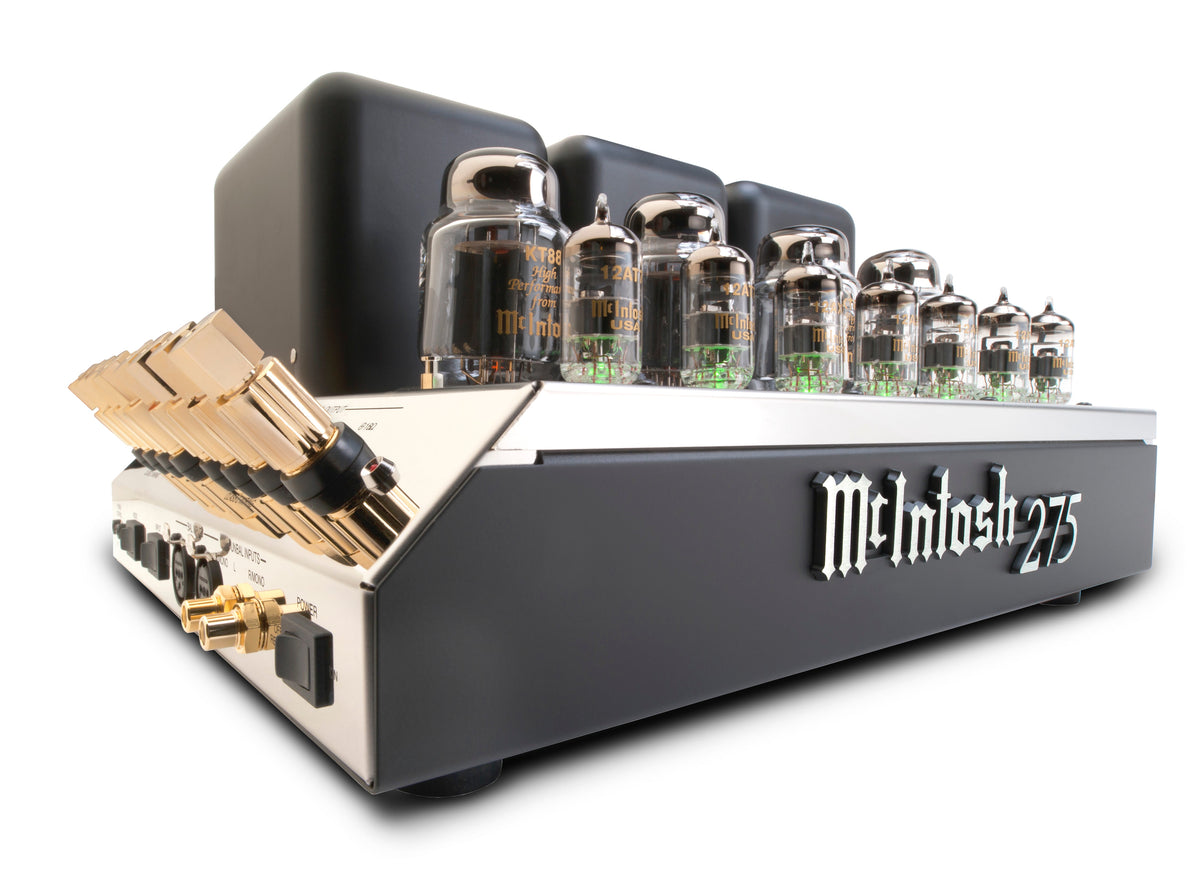

McIntosh MC275 vacuum tube amplifier, low angle

The McIntosh story

Seventy-seven years of American engineering you can see working: the Unity Coupled transformer, the Autoformer, the blue meter and the glass panel, still made in Binghamton.

Founded 1949 in Silver Spring, Maryland (in Binghamton, New York since 1951) by Frank H. McIntosh and Gordon J. Gow · mcintoshlabs.com

McIntosh has designed and handcrafted its electronics in Binghamton, New York, since 1951, on a circuit patented at the company's founding in 1949. This page gathers the company's story, the technologies that carry its name, and the McIntosh components Pearl Audio represents in Portland. Browse all McIntosh at Pearl Audio or arrange an audition.

McIntosh Laboratory was founded in 1949 in Silver Spring, Maryland, by Frank H. McIntosh, a radio engineer who had run a Washington consulting practice, and Gordon J. Gow, the young engineer he had hired in 1946 to help build an amplifier that did not yet exist: one that could deliver real power across the whole audible band with distortion below one percent. Their answer was the Unity Coupled Circuit, patented in 1949 as U.S. Patent 2,477,074, which wound the output transformer into the operating circuit of the tubes with paired plate and cathode windings. The 50W-1 amplifier that carried it was the company's first product, and the AE2 of 1950 its first preamplifier. In 1951 the company moved to the second floor of a building in Binghamton, New York, where Sidney Corderman joined as head of research, engineering and development; the factory McIntosh still occupies at 2 Chambers Street opened in 1956.

The 1950s and 1960s made the McIntosh look. The MC30 and MC60 of 1954 and 1955 established the chrome chassis, the C8 preamplifier showed that industrial design mattered, and the MR55 of 1957 was the first McIntosh tuner. Through the 1960s the company developed the front panel it is known for: a sheet of glass, screen-printed from the back in an ink McIntosh made itself, so the lettering reads gold under room light and glows teal in the dark and never wears off. The stereo tube amplifiers of the decade, the MC225, MC240 and MC275 of 1961, with the C22 preamplifier of 1963, are the designs collectors chase today; the MC275 has been back in production since 1993 and the C22 is in its fifth version. Dave O'Brien spent those years on the road running the McIntosh Performance Clinics, bench-testing customers' amplifiers of every make in dealers' stores, a tradition of measured proof that the company has never given up.

McIntosh's history runs through the music of the period. In 1969 McIntosh amplifiers, by most accounts about twenty MC3500 tube monoblocks, powered Woodstock. On March 23, 1974, the Grateful Dead unveiled the Wall of Sound at the Cow Palace with 48 McIntosh MC2300 solid-state amplifiers delivering 28,800 watts. The MC2300 belonged to the transistor generation McIntosh had begun in 1967 with the MC2505 and MC2105, the first solid-state amplifiers to keep output transformers, which McIntosh called Autoformers, so that the amplifier delivered full power into any loudspeaker impedance; the same amplifiers introduced Sentry Monitor protection, the illuminated output meters and the all-glass front panel. The MC2205 of the late 1970s added Power Guard, the anti-clipping circuit that has been on every McIntosh amplifier since. Frank McIntosh retired in 1977 and Gordon Gow became president; the XRT20 of 1980 brought line-array loudspeakers into the home, and the MCD7000 was the company's first CD player.

Gow died in 1989 and the company was sold to Clarion of Japan in 1990, the year Frank McIntosh also died; the MC275 returned in 1993 as the Gordon Gow Commemorative edition. D&M Holdings bought McIntosh in 2003; Fine Sounds of Milan, parent of Sonus faber and Audio Research, bought it in 2012; a management buyout in 2014 led to the group's renaming as McIntosh Group and its move to New York; Highlander Partners acquired the group in June 2022 and sold it to Bose Corporation in November 2024. Through all of it the company stayed in Binghamton, and since 2001 it has been led by Charlie Randall, an electrical engineer who joined in 1988 and rose through engineering to president. The MC1201 of 2000 brought the Quad Balanced architecture that defines today's big amplifiers; the Reference System of 2005, the MT10 turntable of 2007, the first hybrid integrated amplifier (the MA252 of 2017), the replaceable DA1 and DA2 digital modules, and the 70th-anniversary MC2152 and C70 of 2019 mark the modern era. Frank McIntosh and Gordon Gow were inducted into the Consumer Technology Hall of Fame in 2017.

The McIntosh of 2026 still winds its transformers by hand at 2 Chambers Street, still prints its glass panels in the building, and still tests every component on the bench before it ships. The MA2375 of June 2026, the first McIntosh vacuum-tube integrated amplifier in more than a decade, carries the Unity Coupled transformers of 1949, the Sentry Monitor of 1967 and a tube form of the Power Guard of 1977 in one chassis, which is as good a summary of the company as any. Pearl Audio holds the largest McIntosh inventory in Oregon.

Milestones

  1. 1949 Founded on the Unity Coupled Circuit Frank H. McIntosh and Gordon Gow found McIntosh in Silver Spring, Maryland. U.S. Patent 2,477,074 covers the Unity Coupled Circuit; the 50W-1 is the first product, the AE2 preamplifier follows in 1950.
  2. 1951 Binghamton, New York The company moves to the second floor of 320 Water Street in Binghamton; Sidney Corderman joins as head of research, engineering and development and stays forty years. The factory at 2 Chambers Street, built in eight months in 1956, is still home.
  3. 1954 MC30, MC60 and the chrome chassis The MC30 and MC60 establish the chrome chassis as a McIntosh design element; the C8 preamplifier shows that industrial design matters; the MR55 of 1957 is the first McIntosh tuner.
  4. 1961 MC275 The MC275 stereo tube amplifier arrives with the MC225 and MC240. Discontinued in 1971, it returns in 1993 and has been in production since; today in its sixth generation.McIntosh MC275 Power Amplifier

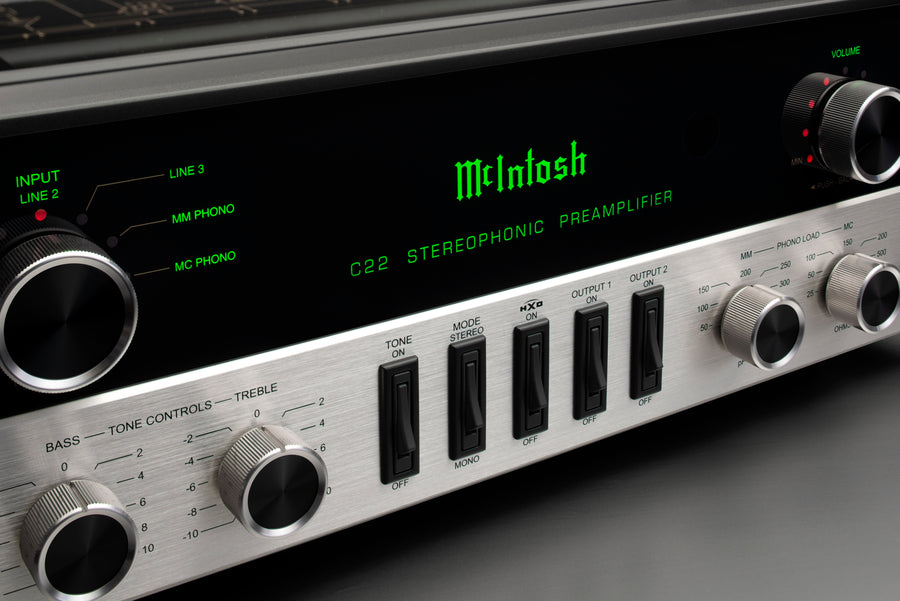

  5. 1963 C22 and the illuminated glass panel The C22 tube preamplifier (1963-1972) pairs with the MC275. Through the 1960s McIntosh develops the back-printed glass front panel: gold lettering by day, teal by night.McIntosh C22 Preamplifier Mk V
  6. 1967 Solid state, with Autoformers The MC2505 and MC2105 are McIntosh's first transistor amplifiers: output Autoformers, Sentry Monitor protection, illuminated output meters and an all-glass front panel, the template for every McIntosh amplifier since.McIntosh MC462 Power Amplifier
  7. 1969 Woodstock McIntosh amplifiers, by most accounts about twenty MC3500 tube monoblocks, power the Woodstock festival.
  8. 1974 The Wall of Sound On March 23 the Grateful Dead unveil the Wall of Sound at the Cow Palace: 48 McIntosh MC2300 amplifiers, 28,800 watts. The MR78 FM tuner of 1972 belongs to the same years.
  9. 1977 Power Guard The MC2205 is the first amplifier with Power Guard, the anti-clipping comparator carried by every McIntosh amplifier since. Frank McIntosh retires; Gordon Gow becomes president.
  10. 1980 XRT20 line array and MC2500 The XRT20 brings line-array loudspeakers into the home and the MC2500 (1980-1990) becomes the big stereo amplifier of the decade; the MCD7000 is the first McIntosh CD player.McIntosh XRT2.1K Floorstanding Loudspeaker
  11. 1993 Gordon Gow Commemorative MC275 After Gow's death in 1989 and the 1990 sale to Clarion, the MC275 returns as a commemorative edition and never leaves the line again.
  12. 1999 50 years: the MC2000 Sidney Corderman comes out of retirement to design the MC2000, a limited-edition vacuum-tube amplifier for the company's fiftieth anniversary.
  13. 2000 Quad Balanced and a new president The MC1201 monoblock introduces the Quad Balanced architecture behind today's MC1.25KW, MC611 and MC462. In 2001 Charlie Randall, an engineer with the company since 1988, becomes president and CEO.McIntosh MC1.25KW Power Amplifier
  14. 2007 MT10 turntable Two years after the Reference System of 2005, McIntosh introduces its first turntable, the MT10, with an illuminated speed meter and McIntosh green platter.McIntosh MT10 Precision Turntable
  15. 2017 Hybrid Drive and the digital module The MA252 is the first McIntosh hybrid integrated amplifier; the DA1 Digital Audio Module makes the digital section replaceable. Frank McIntosh and Gordon Gow enter the Consumer Technology Hall of Fame.McIntosh MA252 Integrated Amplifier
  16. 2019 70th anniversary The MC2152 amplifier and C70 preamplifier mark 70 years; the MC901 puts a tube and a solid-state amplifier on one chassis; the DA2 module arrives. The MC1502 and C22 Mk V carry the anniversary designs forward.
  17. 2024 75 years, and Bose McIntosh marks its 75th anniversary. In November, Highlander Partners (owner since 2022) sells McIntosh Group, parent of McIntosh and Sonus faber, to Bose Corporation. Manufacturing stays in Binghamton.
  18. 2026 MA2375 In June the MA2375 becomes the first McIntosh vacuum-tube integrated amplifier in more than a decade: Unity Coupled transformers, Sentry Monitor and Power Guard SGS in one 75-watt chassis.McIntosh MA2375 Vacuum Tube Integrated Amplifier

From the McIntosh archive

  • Frank H. McIntosh (right) and Gordon J. Gow (left), founders of McIntosh Laboratory, 1949
    Frank H. McIntosh (right) and Gordon J. Gow (left), founders of McIntosh Laboratory, 1949

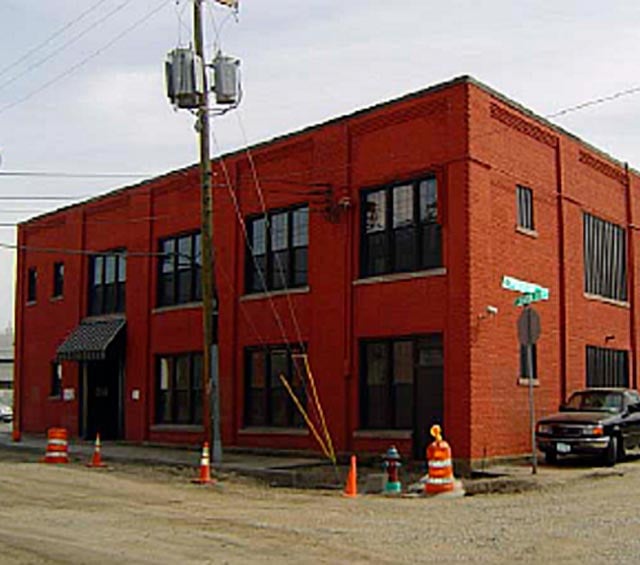

  • McIntosh's first Binghamton home, 1951: the second floor of 320 Water Street
    McIntosh's first Binghamton home, 1951: the second floor of 320 Water Street
  • Sidney Corderman, head of research, engineering and development from 1951, over a forty-year career
    Sidney Corderman, head of research, engineering and development from 1951, over a forty-year career
  • Maurice Painchaud, McIntosh's original controller: finance, production planning and purchasing
    Maurice Painchaud, McIntosh's original controller: finance, production planning and purchasing

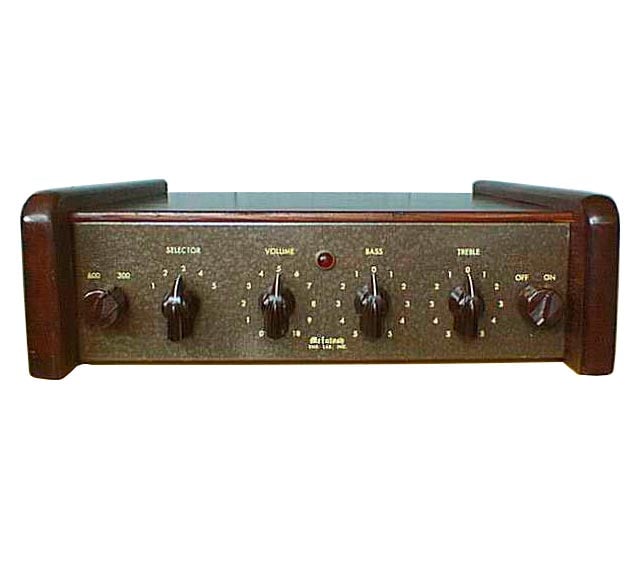

  • The AE2 of 1950, the first McIntosh preamplifier
    The AE2 of 1950, the first McIntosh preamplifier

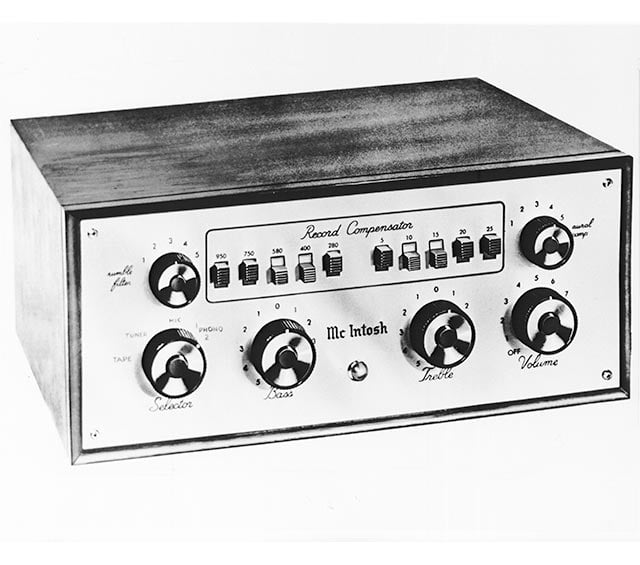

  • The C8 preamplifier: polished brass faceplate, lacquered wood cabinet, and switches for correct LP playback
    The C8 preamplifier: polished brass faceplate, lacquered wood cabinet, and switches for correct LP playback

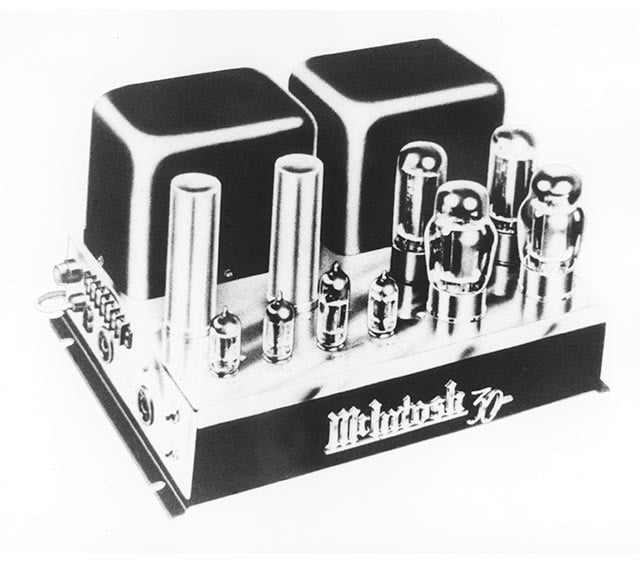

  • The MC30 of 1954, which with the MC60 established the chrome chassis as a McIntosh design element
    The MC30 of 1954, which with the MC60 established the chrome chassis as a McIntosh design element

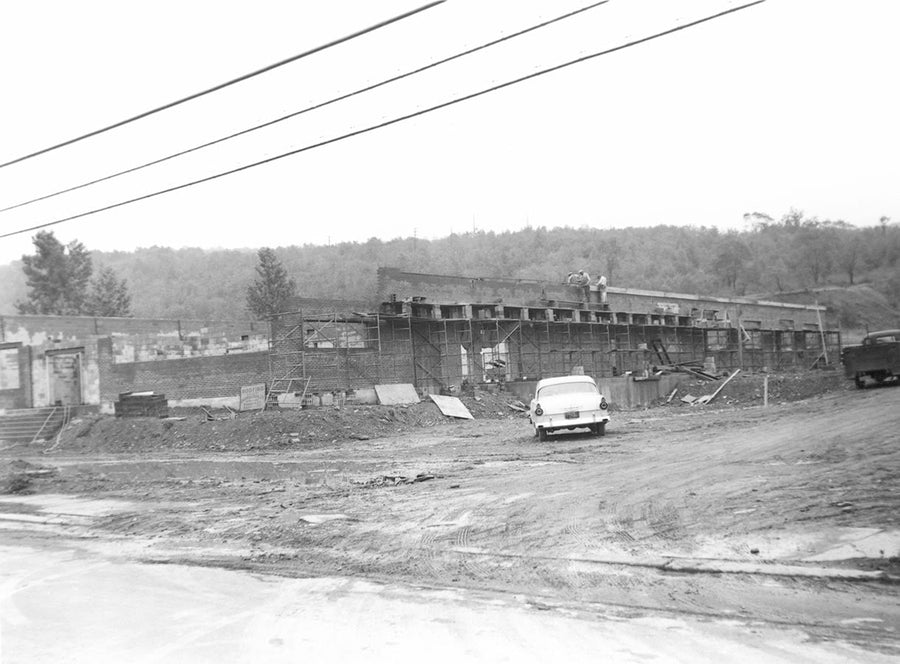

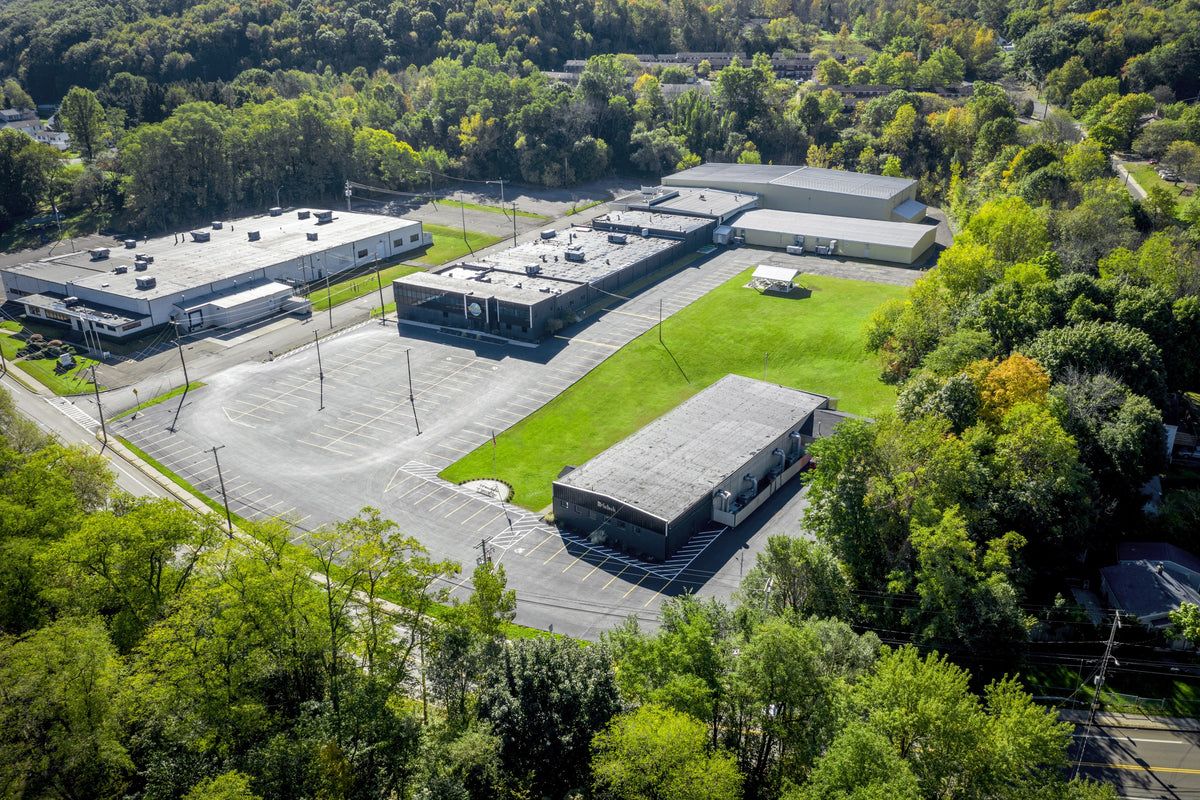

  • The factory at 2 Chambers Street, Binghamton, built in eight months in 1956 and still home
    The factory at 2 Chambers Street, Binghamton, built in eight months in 1956 and still home

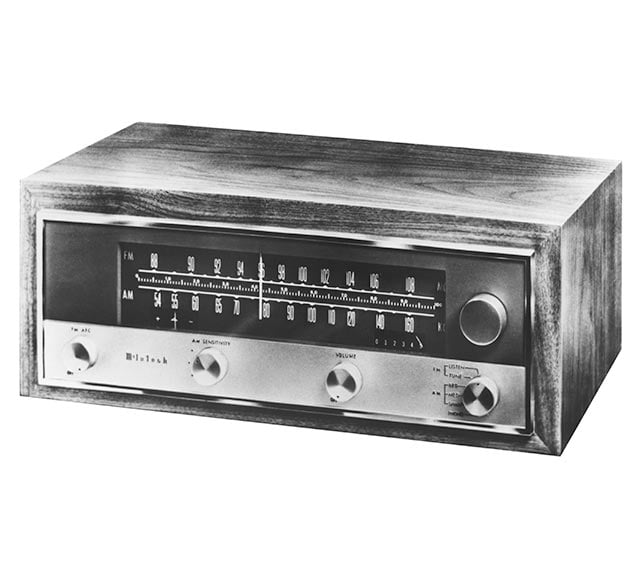

  • The MR55 of 1957, the first McIntosh AM/FM tuner and its first source component
    The MR55 of 1957, the first McIntosh AM/FM tuner and its first source component

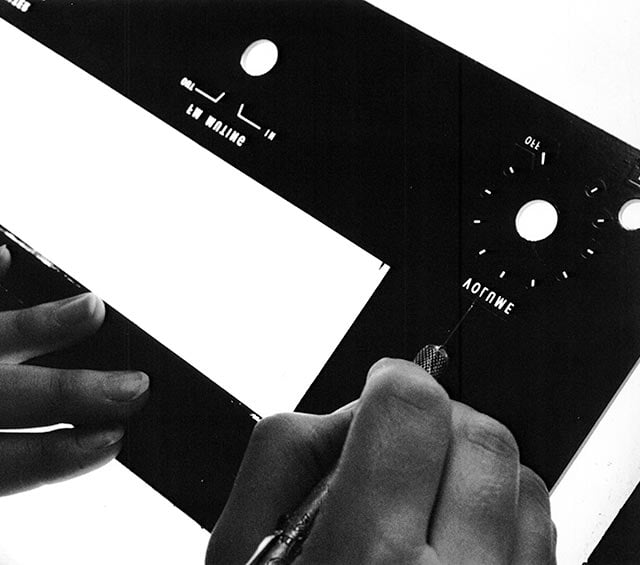

  • The glass front panel of the 1960s: screen-printed from the back in McIntosh's own ink, gold in daylight, teal when lit
    The glass front panel of the 1960s: screen-printed from the back in McIntosh's own ink, gold in daylight, teal when lit
  • Dave O'Brien at a McIntosh Performance Clinic, bench-testing customers' amplifiers in dealers' stores
    Dave O'Brien at a McIntosh Performance Clinic, bench-testing customers' amplifiers in dealers' stores

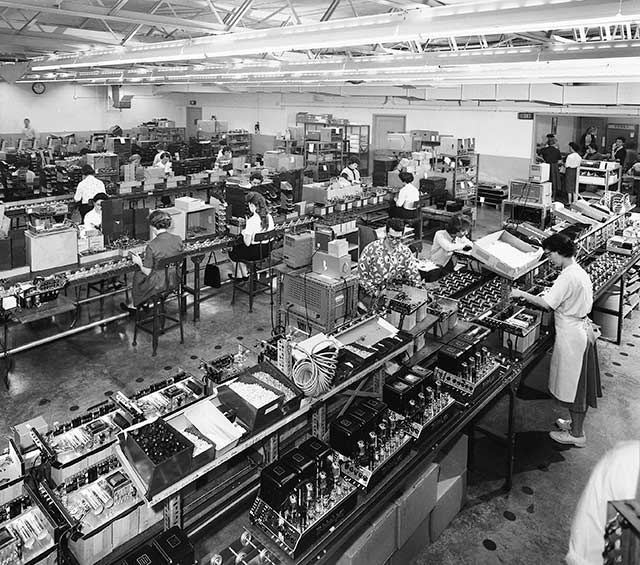

  • MC240 stereo tube amplifiers being hand-assembled in Binghamton in the 1960s
    MC240 stereo tube amplifiers being hand-assembled in Binghamton in the 1960s

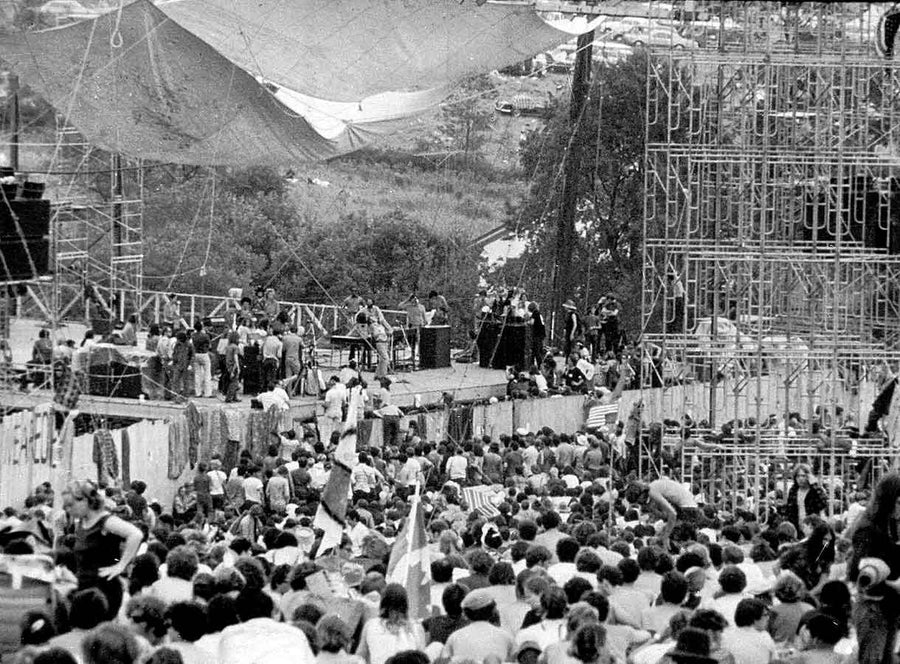

  • Woodstock, August 1969: the festival sound system ran on McIntosh amplifiers
    Woodstock, August 1969: the festival sound system ran on McIntosh amplifiers

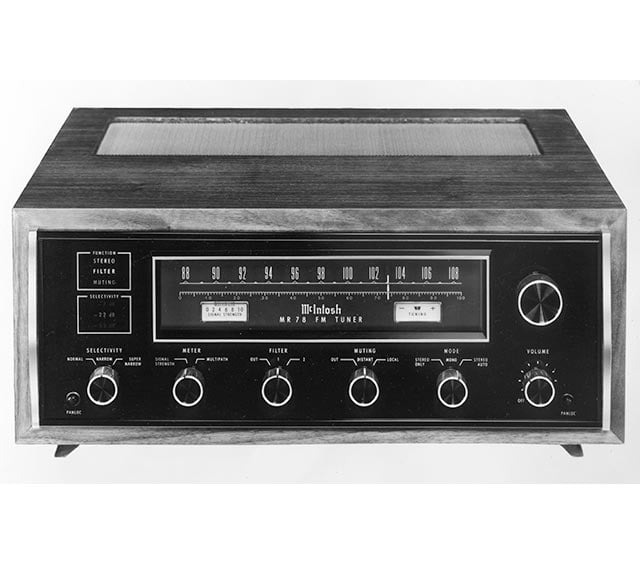

  • The MR78 FM tuner of 1972
    The MR78 FM tuner of 1972

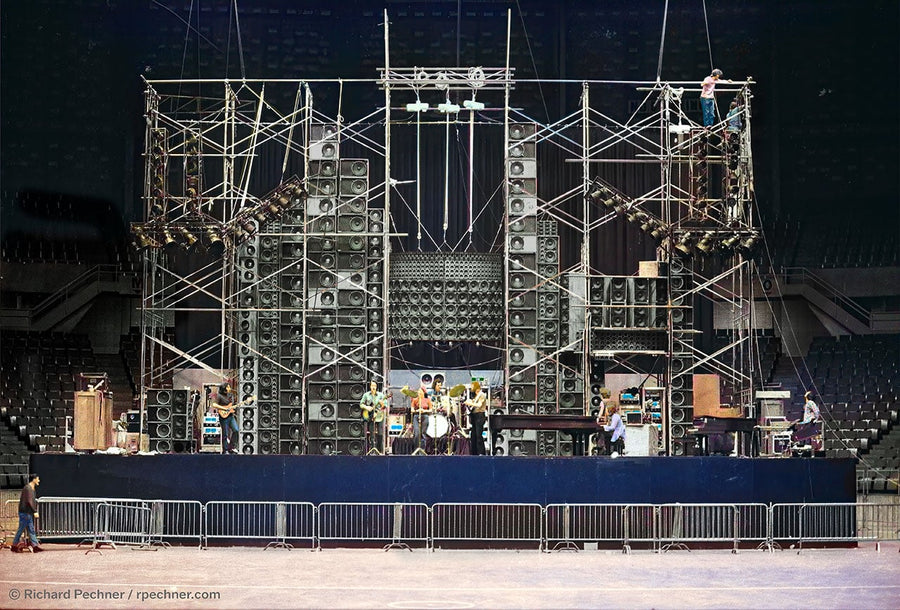

  • The Grateful Dead's Wall of Sound, March 23, 1974: 48 McIntosh MC2300 amplifiers, 28,800 watts
    The Grateful Dead's Wall of Sound, March 23, 1974: 48 McIntosh MC2300 amplifiers, 28,800 watts

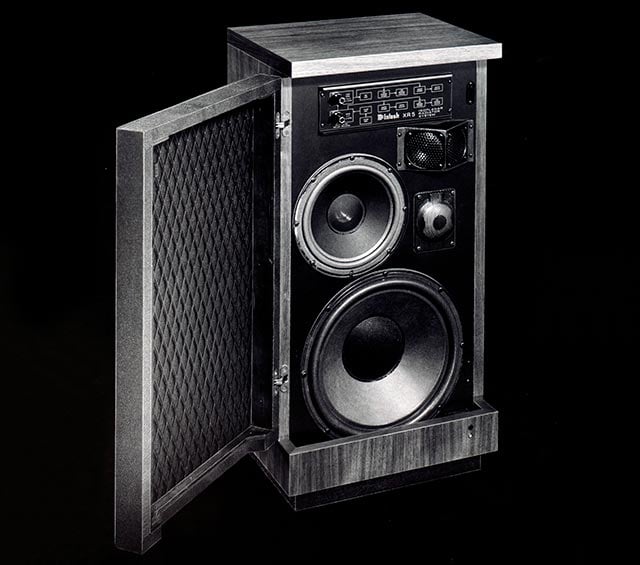

  • The XR5 loudspeaker of the 1970s, designed to be stacked two high
    The XR5 loudspeaker of the 1970s, designed to be stacked two high
  • Gordon Gow, president from 1977, with the microscope he urged dealers to use to inspect phono styli
    Gordon Gow, president from 1977, with the microscope he urged dealers to use to inspect phono styli

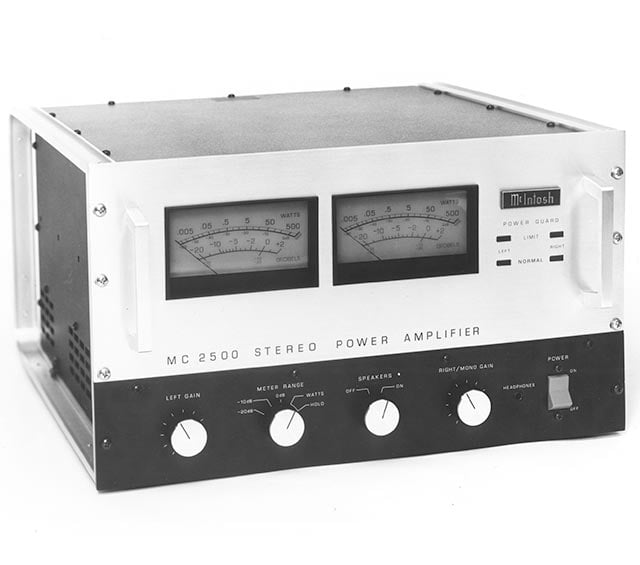

  • The MC2500 of 1980, the big McIntosh stereo amplifier of its decade
    The MC2500 of 1980, the big McIntosh stereo amplifier of its decade

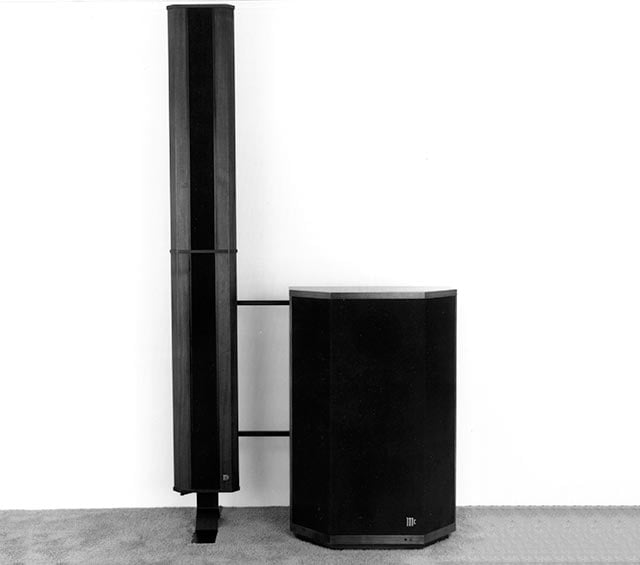

  • The XRT20, which brought the McIntosh line-array loudspeaker into the home
    The XRT20, which brought the McIntosh line-array loudspeaker into the home

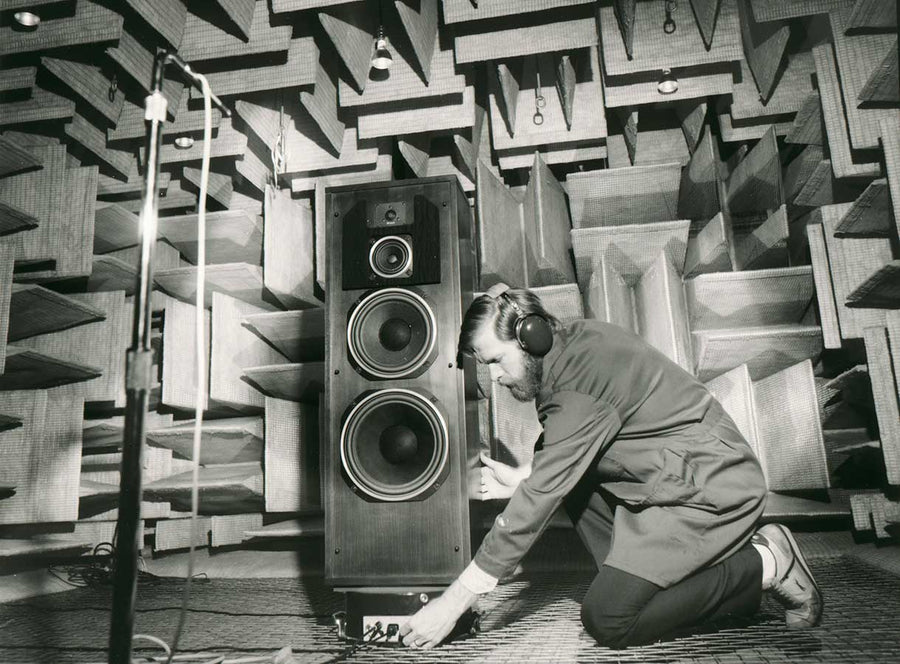

  • Senior loudspeaker engineer Carl Van Gelder in the full-size McIntosh anechoic chamber
    Senior loudspeaker engineer Carl Van Gelder in the full-size McIntosh anechoic chamber

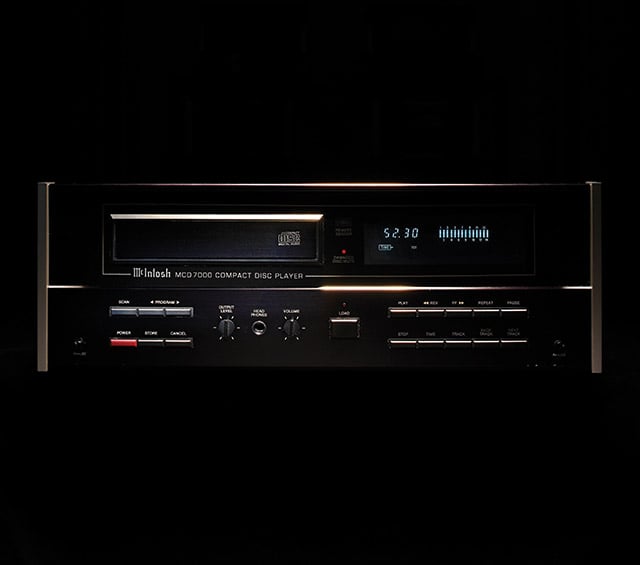

  • The MCD7000, the first McIntosh CD player
    The MCD7000, the first McIntosh CD player

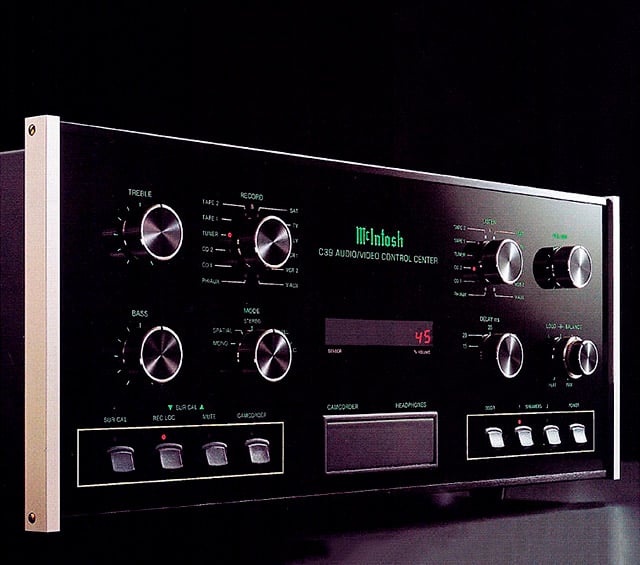

  • The C39 A/V control center, MC7106 six-channel amplifier and HT loudspeakers: the industry's first complete THX-certified system
    The C39 A/V control center, MC7106 six-channel amplifier and HT loudspeakers: the industry's first complete THX-certified system

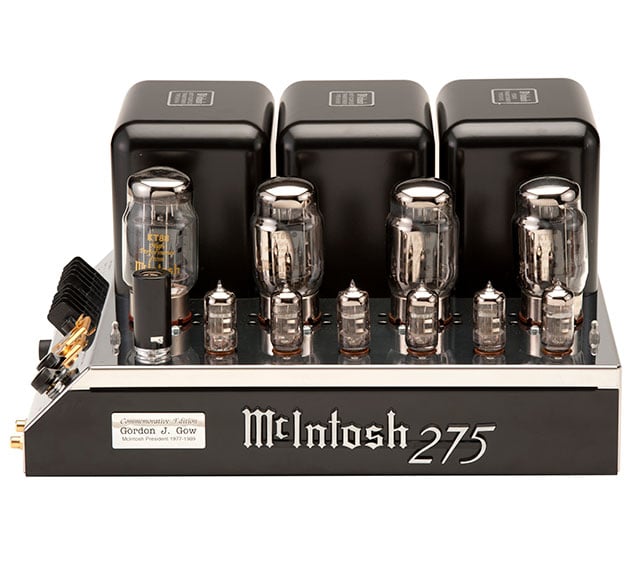

  • The MC275 returned in 1993 as the Gordon Gow Commemorative edition, with a small badge on the chassis front
    The MC275 returned in 1993 as the Gordon Gow Commemorative edition, with a small badge on the chassis front

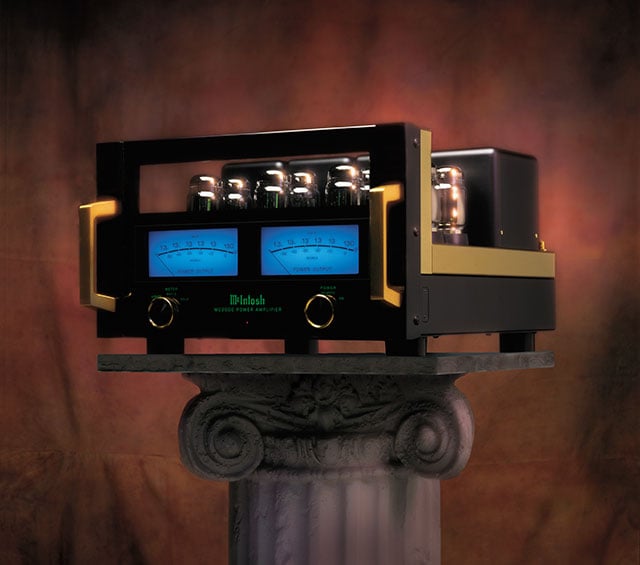

  • The MC2000 of 1999: a limited-edition tube amplifier for the 50th anniversary, designed by Sidney Corderman out of retirement
    The MC2000 of 1999: a limited-edition tube amplifier for the 50th anniversary, designed by Sidney Corderman out of retirement
  • Charlie Randall, an engineer with McIntosh since 1988 and its president and CEO since 2001
    Charlie Randall, an engineer with McIntosh since 1988 and its president and CEO since 2001

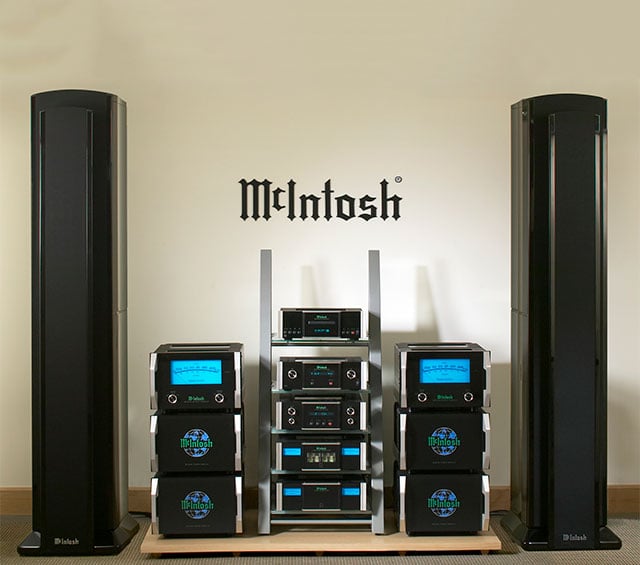

  • The McIntosh Reference System, launched at CES in 2005
    The McIntosh Reference System, launched at CES in 2005
  • Frank McIntosh and Gordon Gow, inducted into the Consumer Technology Hall of Fame in 2017
    Frank McIntosh and Gordon Gow, inducted into the Consumer Technology Hall of Fame in 2017

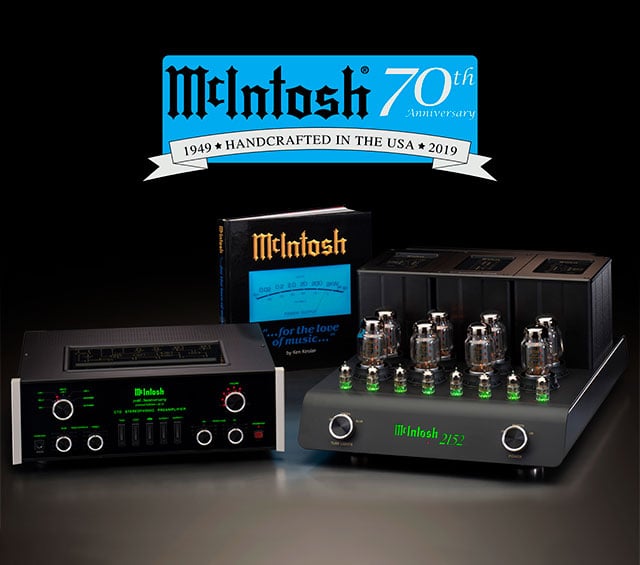

  • The MC2152 amplifier and C70 preamplifier, the 70th-anniversary system of 2019
    The MC2152 amplifier and C70 preamplifier, the 70th-anniversary system of 2019
  • Bethel Woods, 2019: the Woodstock 50th-anniversary panel on Bill Hanley and the festival's sound
    Bethel Woods, 2019: the Woodstock 50th-anniversary panel on Bill Hanley and the festival's sound

Photographs courtesy of McIntosh Laboratory, Inc.

McIntosh at Pearl Audio

Pearl Audio has represented McIntosh since 2005, the year the store was founded, and is the longest-running McIntosh dealer in the Northwest. McIntosh has designated Pearl a Platinum dealer, its mark for its largest showrooms, since our second year with the brand. Two decades on, McIntosh remains the brand we commit to most deeply: we hold the largest McIntosh inventory in Oregon, keep the core of the range on the floor in Portland, and our staff are McIntosh factory trained. McIntosh components are sold for in-store pickup or for local delivery and installation in the Portland area; we do not ship them by carrier.

All McIntosh at Pearl Audio

Signature technologies

The engineering behind McIntosh

McIntosh gives its technologies names because each one solves a specific problem. Here is what each does, where it came from, why it matters in a system, and what you may hear.

Founding technologySince 1949

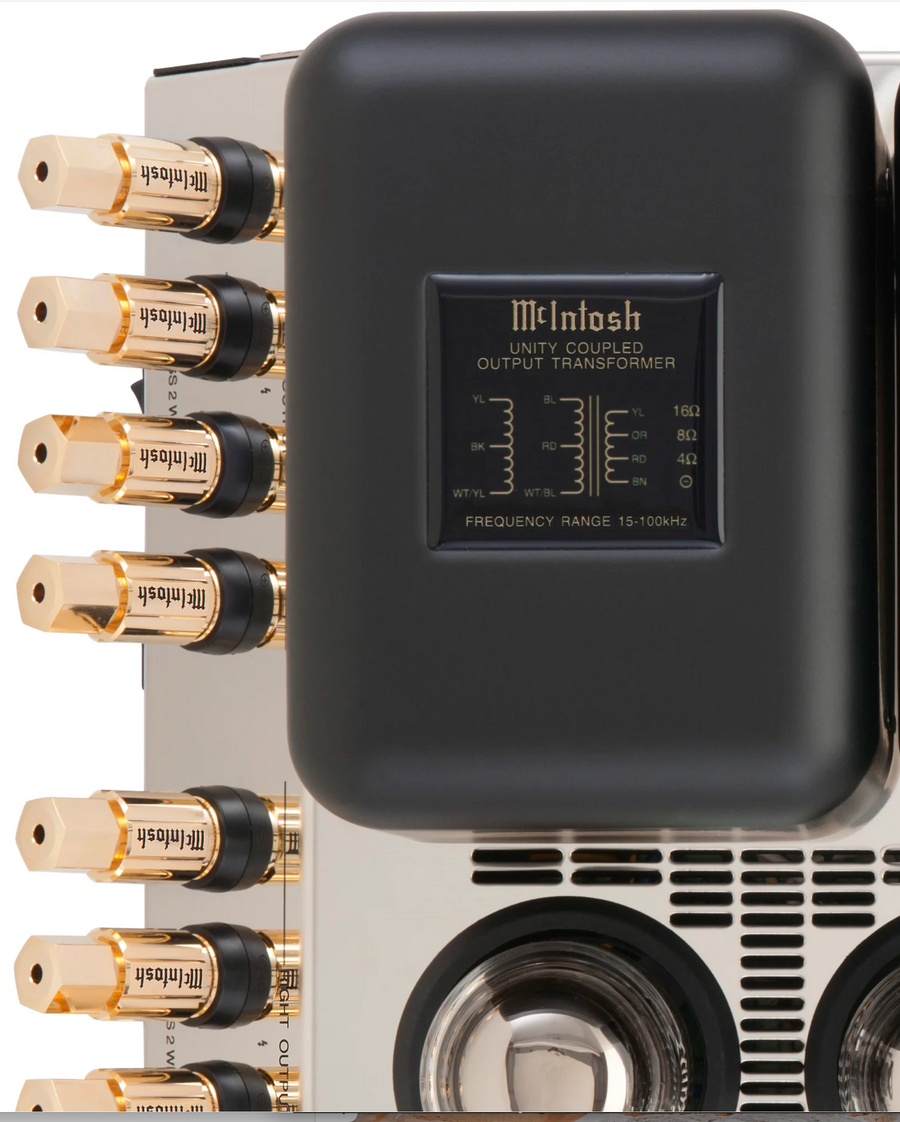

Unity Coupled Circuit

The output transformer is wound into the tube circuit itself, with paired plate and cathode windings, so a McIntosh tube amplifier delivers its rated power at every loudspeaker tap with low distortion. It is the circuit the company was founded on in 1949. Read the deep diveClose

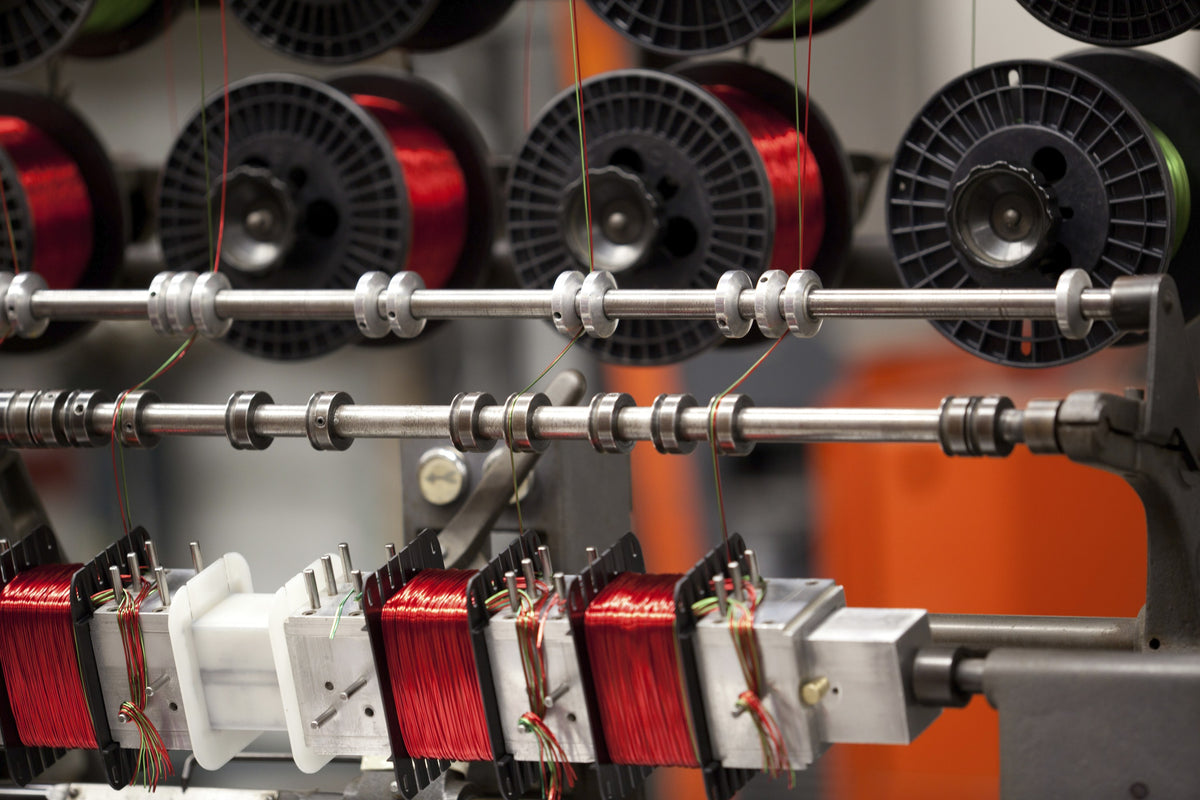

Spools of magnet wire feeding the transformer winding machines at McIntosh in Binghamton
Spools of magnet wire feeding the transformer winding machines at McIntosh in Binghamton

What it does

In a conventional push-pull tube amplifier the output transformer sits at the end of the circuit, in the plate path alone, and the designer trades bass extension against high-frequency behavior and stability. Frank McIntosh and Gordon Gow put the transformer inside the operating circuit. Separate but tightly related primary windings sit in both the plate and the cathode path of each output tube, wound together (bifilar) so their magnetic behavior is almost identical. Because the cathodes work through their own winding, part of the output is returned locally against the tube's own change, which linearizes the stage almost instantaneously; the close coupling also removes most of the leakage inductance that limits bandwidth in an ordinary transformer. The secondary then presents the reconstructed waveform at dedicated 4, 8 and 16 ohm connections.

Why it matters in a system

Local correction inside the output stage lowers distortion across the band and lowers the amplifier's output impedance, so the tubes keep control of the loudspeaker's motion and bass notes stop cleanly rather than blooming. The tight coupling also lets the output tubes hand current to each other without a distortion step, which is why a Unity Coupled amplifier can run in efficient Class AB at substantial power without the hardness that usually comes with it. In practice the circuit lets a 75-watt MC275 or MA2375 behave like a far more powerful amplifier on loudspeakers that would embarrass most tube designs, and it is why the same output stage has stayed in production, in one form or another, since 1961.

What you may hear

Clarity from deep bass to the top octave, bass that is controlled rather than merely warm, and a sense of ease at volume that owners often describe as a tube amplifier that someone has supercharged. On the MC275 and MA2375 the tubes are visible doing the work; the measurements say the work is done with unusual precision.

Signature technologySince 1967

Autoformer output

A single-winding output transformer between the transistors and the loudspeaker, so a McIntosh solid-state amplifier delivers its full rated power into 2, 4 or 8 ohm loads and the output devices always see the load they were designed for. Read the deep diveClose

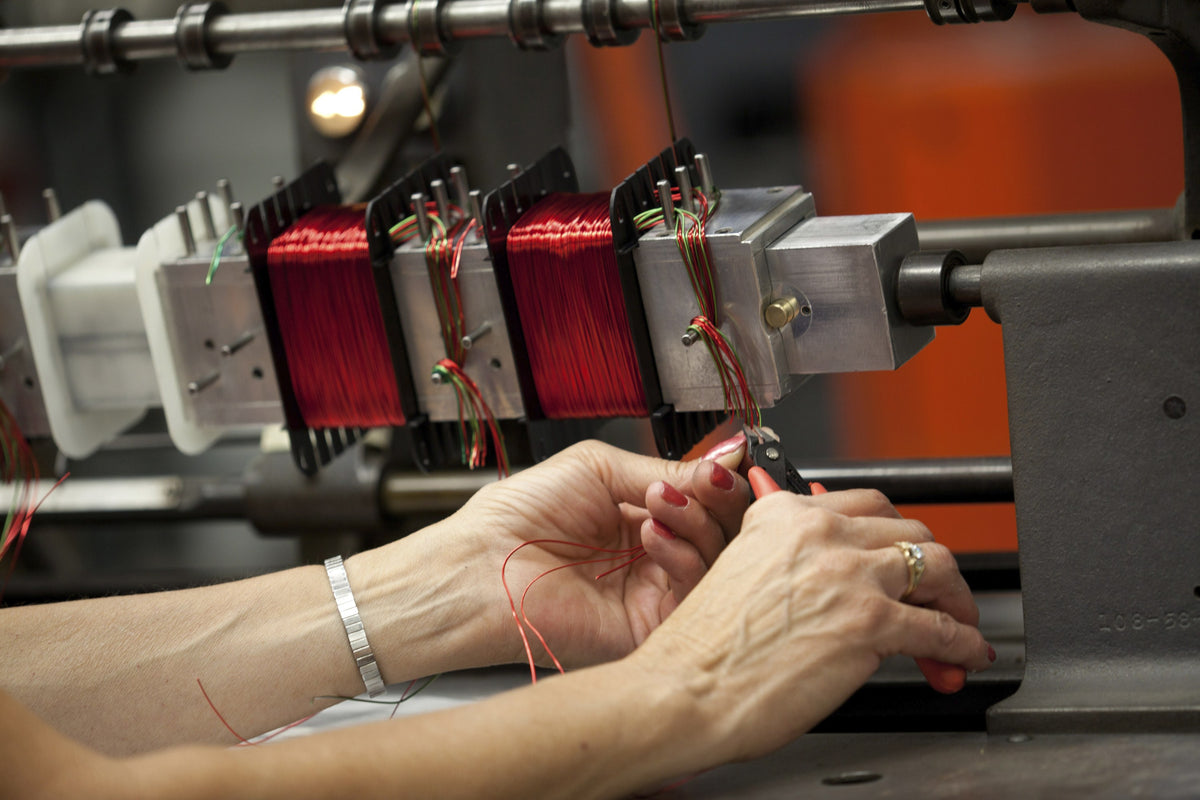

Winding an Autoformer coil by hand at McIntosh in Binghamton, New York
Winding an Autoformer coil by hand at McIntosh in Binghamton, New York

What it does

Most solid-state amplifiers connect the output transistors directly to the loudspeaker, which means the amplifier's power, distortion and heat all change with the loudspeaker's impedance: typically more power into 4 ohms than 8, and strain into 2. McIntosh instead passes the output through an Autoformer, its name for an autotransformer wound in Binghamton, with taps for 2, 4 and 8 ohms. The transistors work into one optimized load regardless of the loudspeaker connected, and the Autoformer transforms current and voltage to suit the tap in use. It also isolates the loudspeaker from DC, so a fault in the amplifier cannot push direct current into a woofer.

Why it matters in a system

An amplifier whose output stage sees the same load every time is an amplifier whose character does not depend on the loudspeaker. The MC462 is rated at the same 450 watts per channel into 2, 4 and 8 ohms, and the MC1.25KW at 1,200 watts into all three, so a difficult load such as a large electrostatic or a four-ohm floorstander with a punishing impedance dip gets the full amplifier rather than a stressed one. In a system built around a McIntosh amplifier the loudspeaker choice opens up, and the amplifier runs cooler and longer because its transistors are never asked to work outside their design window.

What you may hear

Bass that stays the same weight and definition when you change loudspeakers, dynamics that do not compress into difficult loads, and a quiet composure at high volume. The Autoformer is also the reason a McIntosh amplifier can safely drive an unusual impedance that would trip a conventional design into protection.

Signature technologySince 1977

Power Guard

A comparator that watches the amplifier's input and output waveforms and eases the input drive, in real time, the moment the output begins to clip. Read the deep diveClose

What it does

Every amplifier has a point at which it runs out of clean output and the peaks of the waveform flatten. Power Guard compares the shape of the input signal with the shape of the output signal. The two match until the amplifier reaches its limit; when they diverge, the circuit drives a photo-optical attenuator at the input and reduces the drive just enough to keep the output within its clean range. It acts only when needed and only for as long as the overload lasts, and it does not add power: a 450-watt amplifier remains a 450-watt amplifier.

Why it matters in a system

Hard clipping produces harmonics that sound harsh and, sustained, can burn out tweeters; it is the most common way a good system is damaged at a party. Power Guard lets a McIntosh amplifier be driven to its limit without that risk, which matters most with low-sensitivity loudspeakers, large rooms and recordings with wide dynamic range. In a home theater it means a seven-channel MC257 or a Class D MI-series amplifier can be run hard on a film soundtrack without harm. Two amber indicators show when the circuit is working; if you see them often, the system needs more amplifier, not more volume.

What you may hear

Demanding peaks that stay musical instead of turning hard, and the confidence to listen at realistic levels. Most owners never see Power Guard act, which is the point. On the MA252 and MA352 the small-signal tubes flash amber when it does.

Signature technology

Power Guard Screen Grid Sensor (SGS)

The vacuum-tube form of Power Guard: it monitors the current in the screen grids of the output tubes and reduces input drive in real time if that current becomes excessive. Read the deep diveClose

What it does

A waveform comparator suits a transistor amplifier, but an output tube under stress gives an earlier and more specific warning: its screen-grid current rises. Power Guard SGS senses that current in each KT88 output tube. When it climbs toward the level at which the tube would be damaged, the circuit reduces the input signal, in real time and only by as much as is needed, so the tubes keep working inside their safe range. Like Power Guard, SGS does not add power; it protects the tubes and the loudspeakers from the consequences of overdrive.

Why it matters in a system

Output tubes are the consumable part of a tube amplifier, and overdrive is what wears them out early. By catching the overload at the tube itself rather than at the loudspeaker terminals, SGS protects the most expensive parts in the amplifier and the loudspeaker at the same time. With a 75-watt integrated amplifier such as the MA2375 driving a large room, that is the difference between a tube set that lasts years and one that does not. Frequent SGS activity is a signal to reduce the listening level or to consider a more powerful amplifier.

What you may hear

Nothing during normal listening. When the tube stage is pushed, peaks are eased instead of splintering, and the amplifier's indicator lets you know. Think of it as a safeguard built into the tubes' own behavior rather than an effect on the sound.

Signature technologySince 1967

Sentry Monitor

Fuseless protection that watches the output current and disengages the output stage before the current can reach a damaging level, then resets itself when the fault clears. Read the deep diveClose

What it does

A shorted loudspeaker cable, a failed driver or a brutal passage into a very low impedance can ask an output stage for more current than its devices can survive. Sentry Monitor measures the output current continuously and, at the threshold McIntosh sets for each model, disconnects the output stage in a fraction of a second. There is no fuse in the signal path to replace and nothing to degrade the sound; when the condition returns to normal the circuit re-engages on its own. On the tube amplifiers the small-signal tubes flash red when it has acted.

Why it matters in a system

Output protection is usually a fuse (slow, and audible as a resistance in the signal path) or a relay that trips late. Sentry Monitor is neither, and it has been on every McIntosh solid-state amplifier since the company's first transistor designs, which is one reason McIntosh amplifiers from the 1970s are still in daily use. In a system it is the insurance that lets you run long speaker cables, bi-wire, or drive a demanding loudspeaker without worrying about the one bad connection that ends an evening.

What you may hear

Nothing, unless something is wrong. If playback stops and the indicators show a fault, correct the cause, follow the reset instructions in the owner's manual for your model, and the amplifier is back. There is no fuse to find.

Signature technologySince 2000

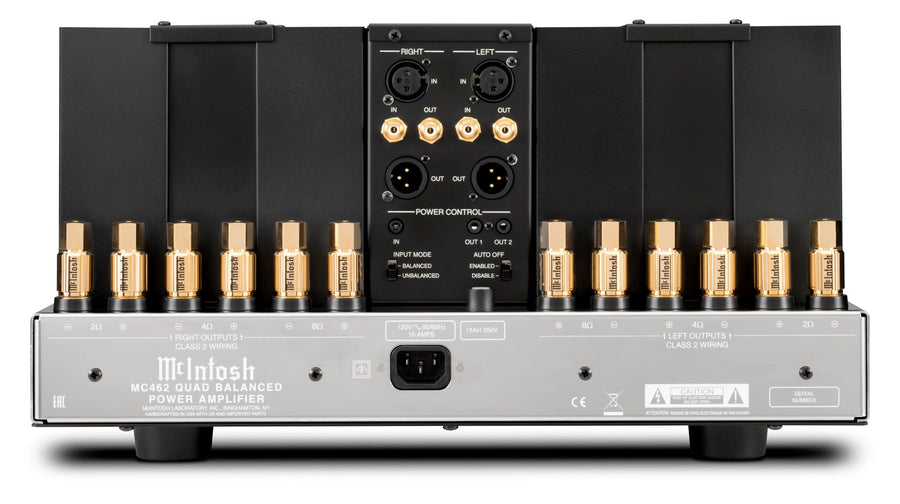

Quad Balanced

Two complete balanced push-pull amplifiers per channel, combined at the Autoformer so that noise and distortion common to both cancel; the same principle runs McIntosh's eight-channel DAC in Quad Balanced mode. Read the deep diveClose

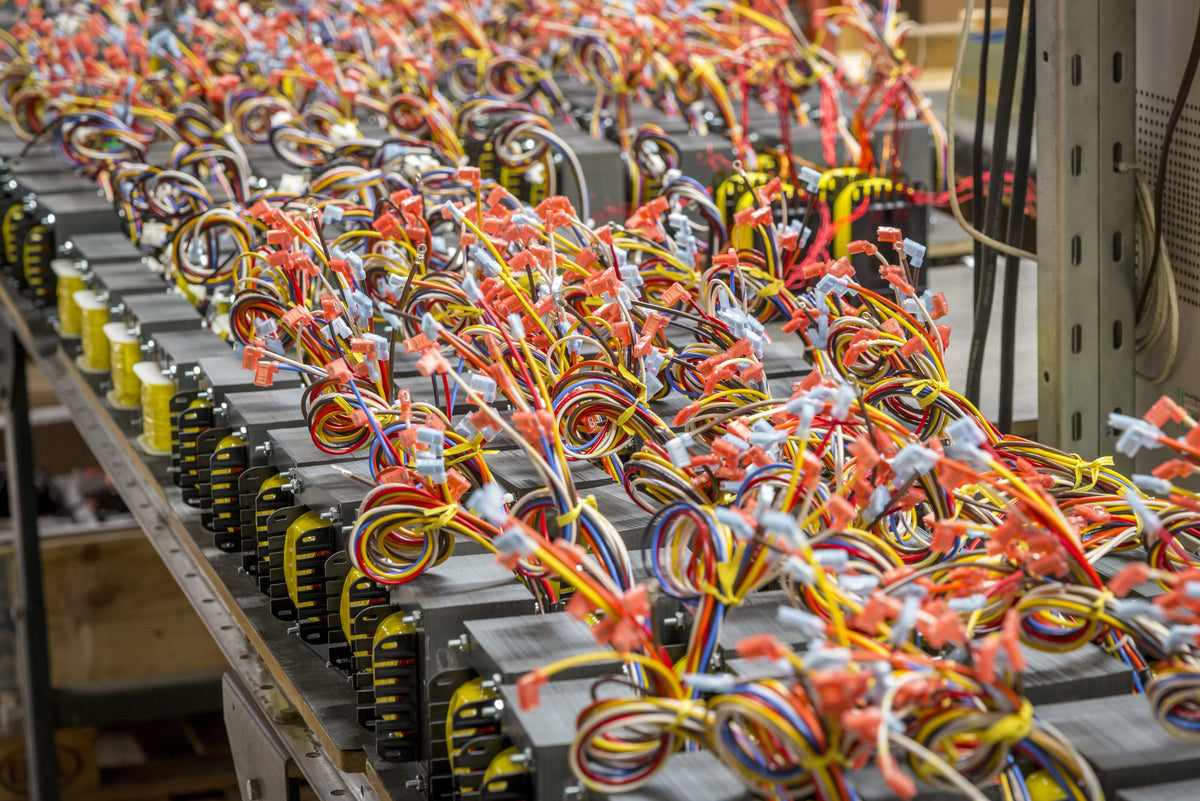

A rack of finished Autoformers, wound and wired in the McIntosh factory in Binghamton, New York
A rack of finished Autoformers, wound and wired in the McIntosh factory in Binghamton, New York

What it does

In a Quad Balanced McIntosh power amplifier each channel contains two matched, fully balanced amplifiers. Each handles half of the push-pull waveform and their outputs are summed in the Autoformer. Noise and distortion products that appear identically in both halves are common-mode and cancel in the summation, while the music, which is differential, adds. The idea scales down to digital: the DA2 Digital Audio Module's eight-channel, 32-bit converter runs four converter channels per stereo channel in Quad Balanced mode, averaging their output so random converter noise falls and the signal stays.

Why it matters in a system

A big amplifier is only as good as its noise floor, and 1,200 watts of headroom is worth little if the background hisses. The MC1.25KW's 124 dB signal-to-noise ratio and the MC611's 124 dB are the measurable results of the architecture, and they are why these amplifiers can drive very sensitive loudspeakers, or horns, without audible hum or hiss. On the digital side the Quad Balanced DAC is what lets McIntosh preamplifiers, integrated amplifiers and the DS200 streamer take a 32-bit/384 kHz or DSD512 file and deliver it with a 100 dB or better dynamic range.

What you may hear

A black background behind quiet passages, instruments that emerge from silence rather than from a faint haze, and the same calm at high volume as at low. In digital sources, a smoothness that does not blur detail.

Signature technology

Monogrammed Heatsinks

Heatsinks cast in a highly conductive alloy, with the McIntosh initials formed by their fins, bolted directly to the high-current output transistors so the amplifier reaches and holds its operating temperature without thermal lag. Read the deep diveClose

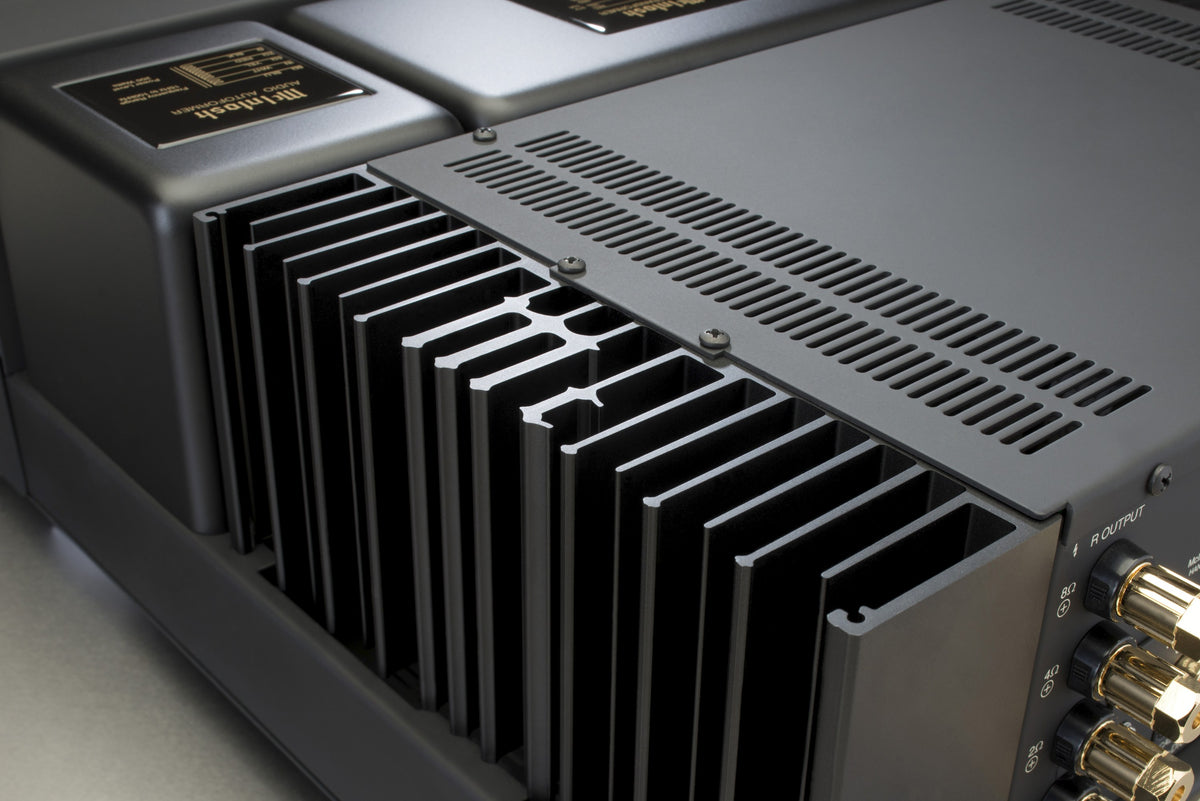

A McIntosh Monogrammed Heatsink: the company initials are formed by the fins
A McIntosh Monogrammed Heatsink: the company initials are formed by the fins

What it does

An output transistor's behavior changes with temperature, and in a conventional amplifier the devices warm, the heatsink lags, and the bias wanders for the first half hour of listening. McIntosh's Monogrammed Heatsinks connect each bank of output transistors to a large casting of high-thermal-conductivity material, so heat moves out of the device immediately and the whole assembly settles quickly to a stable temperature. The fins are arranged to spell the company's monogram when seen from above, which is why the glass tops of the MC462 and MC611 let you look down on them.

Why it matters in a system

Thermal stability is sound-quality engineering, not decoration. An output stage at a steady temperature keeps its bias, its distortion and its channel match constant from the first track to the last, and runs the transistors well inside their ratings, which is why McIntosh amplifiers are known for decades of service. The heatsinks are also silent: there are no fans in an MC-series amplifier or an MC257 home theater amplifier, so nothing in the rack adds noise to a quiet room.

What you may hear

The first note sounding like the hundredth. A system that does not need to warm up for an hour before it is itself, and no fan noise in the pauses.

Signature technology

Dynamic Power Manager

For McIntosh's direct-coupled multichannel amplifiers: a power-management circuit that delivers each channel's full rated output into 4 or 8 ohm loudspeakers, however many channels are working at once. Read the deep diveClose

What it does

A home theater amplifier is rarely asked for equal power from every channel; a film soundtrack loads the three front channels hard and the surrounds lightly, then reverses. In an amplifier without an Autoformer, McIntosh uses Dynamic Power Manager to allocate the power supply's reserves so that each channel can deliver its rated power into either a 4 or an 8 ohm load, regardless of how many channels are driven. The MC257 is rated at 250 watts for each of its three front channels and 200 watts for each of its seven channels, into 4 or 8 ohms, under those conditions.

Why it matters in a system

Many multichannel amplifiers quote a per-channel figure that holds only with one or two channels driven; the real-world number with all channels working is lower. DPM is McIntosh's way of making the published figure the figure you get, so a seven-channel system built around one MC257 behaves like seven dedicated amplifiers. For a dedicated theater it also means the front three channels can be matched to larger loudspeakers without a second amplifier.

What you may hear

Soundtracks that keep their scale in the loudest scenes, dialogue that stays clear while the surrounds are busy, and no sense of the amplifier running out of breath when every channel is working.

Signature technologySince 1967

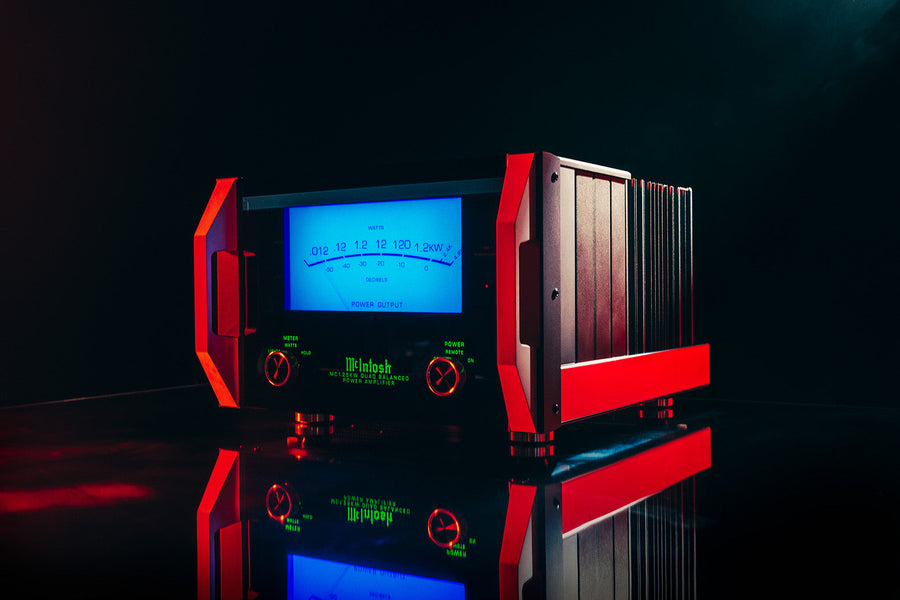

Blue Watt meters

Fast-responding, peak-reading meters that turn the amplifier's output into a visible reference, one per channel, scaled in watts and in decibels relative to rated power, lit McIntosh blue. Read the deep diveClose

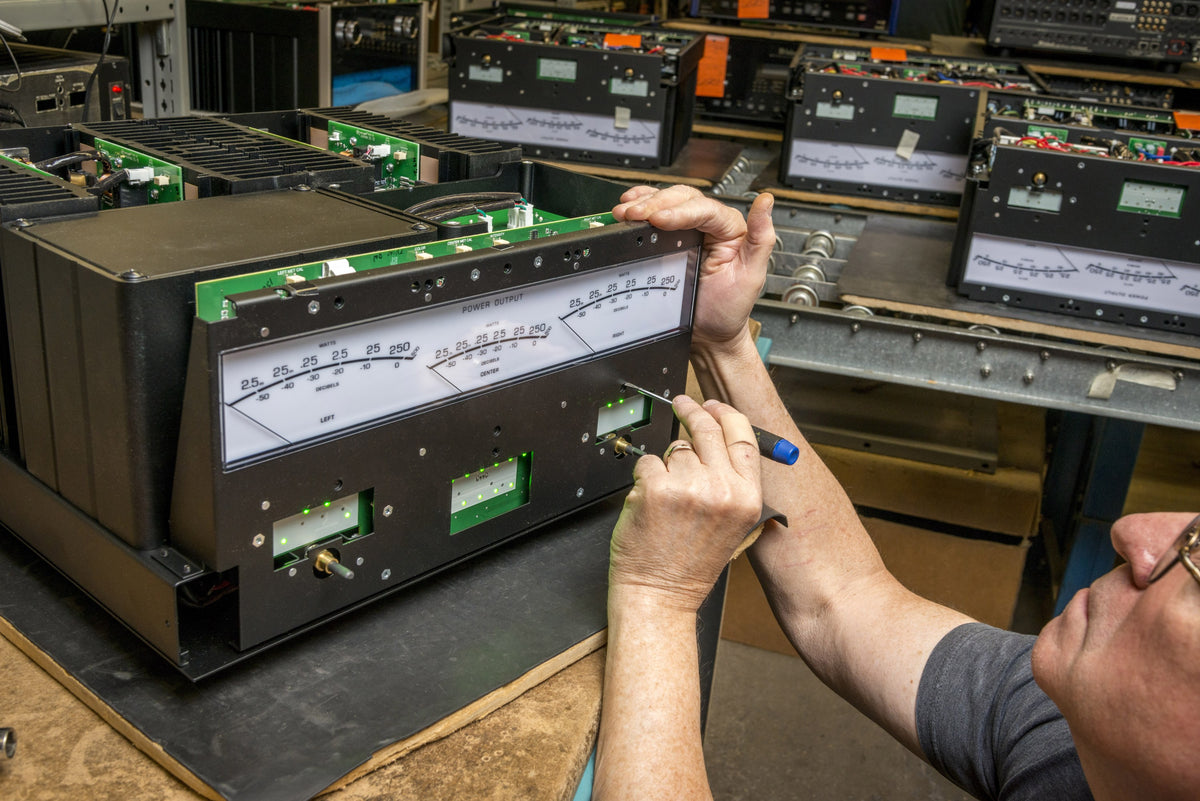

Final test in Binghamton: every McIntosh amplifier is checked on the bench, meters included, before it ships
Final test in Binghamton: every McIntosh amplifier is checked on the bench, meters included, before it ships

What it does

A McIntosh output meter reads the power the channel is delivering to the loudspeaker. Its face carries a watts scale and a decibel scale referenced to rated output: 0 dB is rated power, -10 dB is one tenth of it, -20 dB one hundredth. The movement is quick; McIntosh specifies that the MC462's meters indicate at least 95 percent of the power of a single cycle of a 2,000 Hz tone burst, fast enough to show a drum strike. A Hold mode on the power amplifiers locks the pointer at the highest peak and lets it fall at roughly 6 dB per minute so the peak can be read. On preamplifiers and the MCD12000 the meters show output level; on the MC257 a TripleView housing carries three mechanical meters for the front channels.

Why it matters in a system

The meters are an instrument before they are an ornament. They show how much of the amplifier a loudspeaker is using, which tells you whether the system has headroom or is living near its limit; they show the recording's balance when the left and right pointers diverge; and they make the dynamic range of a good recording visible, which is a quiet lesson in why power matters. Since the first solid-state McIntosh amplifiers of 1967 they have also been the company's signature, recognized across a room before a note is played, and the reason a McIntosh system has a presence other electronics do not.

What you may hear

Watch the needles rise with an orchestral swell and settle as the music relaxes, then listen for the same thing. Owners find the meters change how they hear dynamics. The blue glow is part of the McIntosh experience; the information is why it has lasted.

Design heritage, since the 1960s

Black glass, gold lettering and the illuminated logo

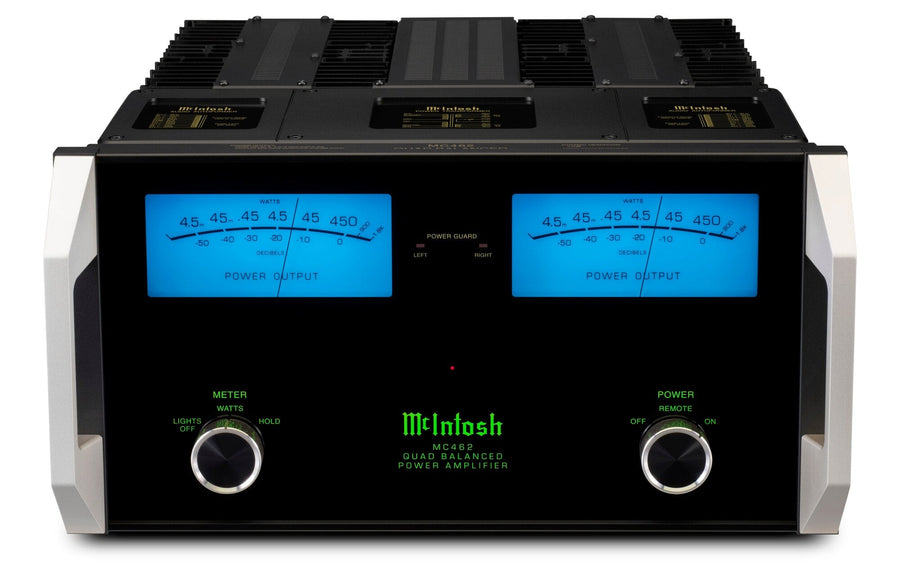

The front panel is a sheet of glass, lettered from the back in McIntosh's own ink so the markings read gold in daylight and glow teal in a dim room, with the logo lit from behind. It has defined the look of a McIntosh since the 1960s and it is why a sixty-year-old C22 still reads as new. Read the deep diveClose

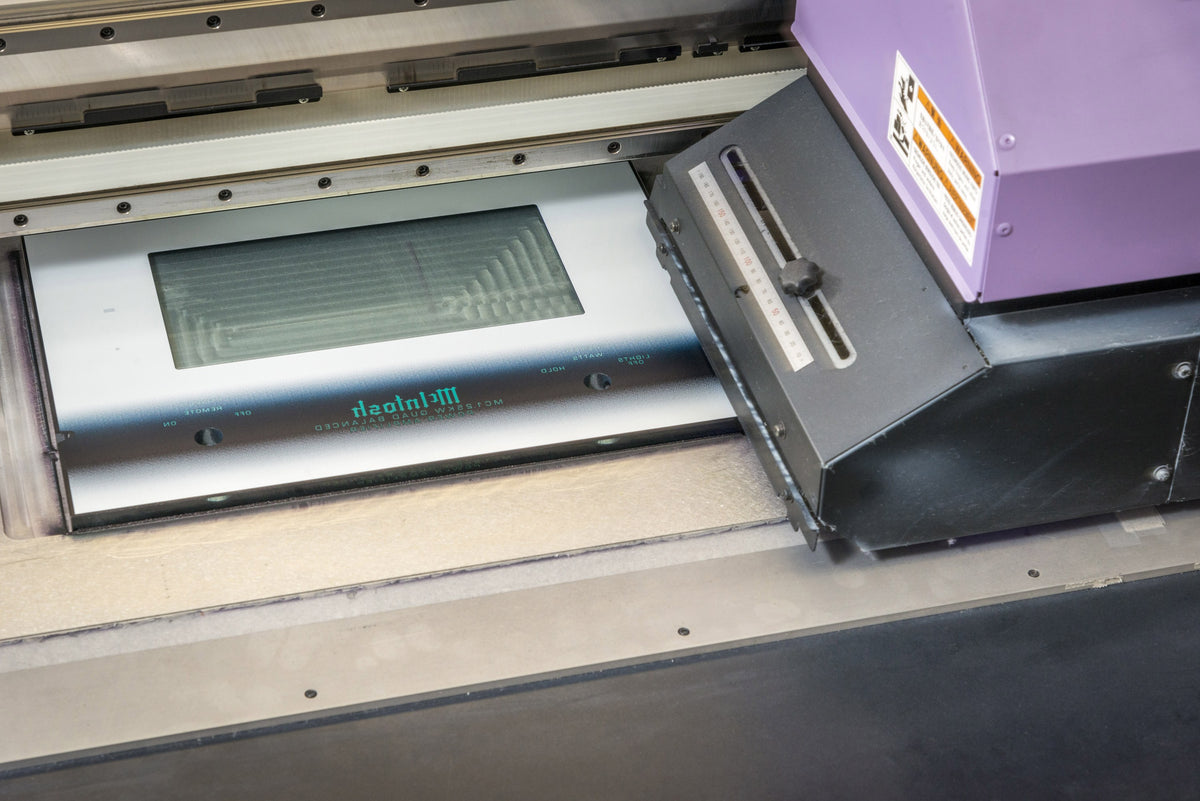

A McIntosh glass front panel leaving the printer, lettered from the back in the factory in Binghamton
A McIntosh glass front panel leaving the printer, lettered from the back in the factory in Binghamton

What it does

Most front panels are painted or anodized metal with printed legends that wear. In the 1960s Gordon Gow suggested a different construction: a glass panel, screen-printed on its back face with an ink McIntosh developed itself. Because the lettering is behind the glass it cannot rub off, and because of the ink's pigment the markings read as gold under room light and as teal when lit from behind in a dim room. The lamps, now direct LEDs on current models, also illuminate the McIntosh name and the blue meter faces. Each panel is cut, printed and finished in Binghamton, and McIntosh describes every faceplate as a unique, handmade piece.

Why it matters in a system

Longevity, first: the panel of a 1963 C22 or a 1967 MC2505 looks today as it did when it was made, which is a large part of why McIntosh components hold their value and why a system can be built over decades from components of different ages that match. Coherence, second: a C2800 preamplifier, an MC462 amplifier and a DS200 streamer share the same glass, the same lettering and the same light, so a complete system reads as one instrument. It also places the engineering where you can see it, from the meters to the glass-topped transformer enclosures on the current amplifiers.

What you may hear

Nothing directly; this is the part of the design you see. What it changes is how a system lives in a room: lights low, the panels glowing gold and teal, the meters moving, the equipment itself part of the evening.

Signature technologySince 2017

Hybrid Drive

A vacuum-tube stage for the small signal followed by a solid-state stage for the power: one component, two circuit types, each placed where McIntosh believes its strengths matter. Read the deep diveClose

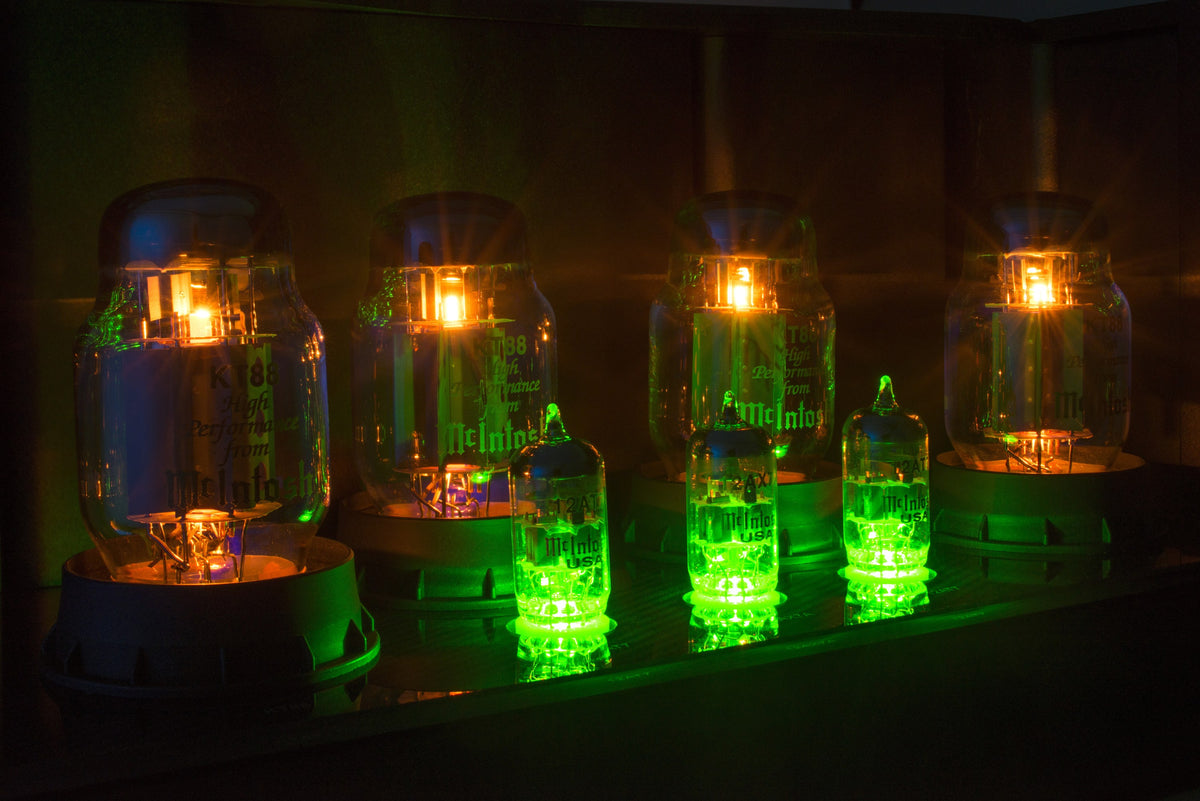

Output tubes and small-signal tubes glowing in a McIntosh vacuum-tube amplifier
Output tubes and small-signal tubes glowing in a McIntosh vacuum-tube amplifier

What it does

A music signal and a loudspeaker ask very different things of an amplifier. At the input the signal is small and the job is to select, control level and add voltage gain without burying detail; at the output the job is to deliver the voltage and current a moving loudspeaker demands. Hybrid Drive divides the work. In the MA252, MA352 and MA12000 integrated amplifiers a vacuum-tube preamplifier (12AX7A and 12AT7 tubes) handles the first task and a solid-state power amplifier the second, in sequence and always both. The MA252 and MA352 use direct-coupled output stages; the MA12000 adds Autoformers. In the C12000 preamplifier and MCD12000 player the idea runs in parallel instead: each has both a tube and a solid-state output stage, and you choose which feeds the system.

Why it matters in a system

It is not a switch between a tube sound and a transistor sound, and it is not a tube buffer added for decoration. The tubes work where their harmonic behavior and low-level resolution are most audible, and the transistors work where current, control and durability count, so a hybrid McIntosh can drive a real loudspeaker in a real room while keeping the dimensionality and tonal color people buy tube equipment for. The three integrated amplifiers scale the same idea: the MA252 keeps a system simple, the MA352 adds power, meters and a five-band equalizer, and the MA12000 surrounds it with 350 watts through Autoformers and a full set of analog and digital inputs.

What you may hear

Image depth and an unforced musical flow from the tube stage, with the composure and loudspeaker control of a McIntosh solid-state amplifier. Loudspeakers, source, room and recording still decide most of what you hear; Hybrid Drive describes how the amplifier is built, not a sound preset.

Signature technologySince 2017

DA2 Digital Audio Module

The digital section of a McIntosh preamplifier or integrated amplifier lives on a replaceable module, so the analog component you buy can keep pace with digital formats; the current DA2 carries an eight-channel, 32-bit Quad Balanced DAC with DSD512 and HDMI ARC. Read the deep diveClose

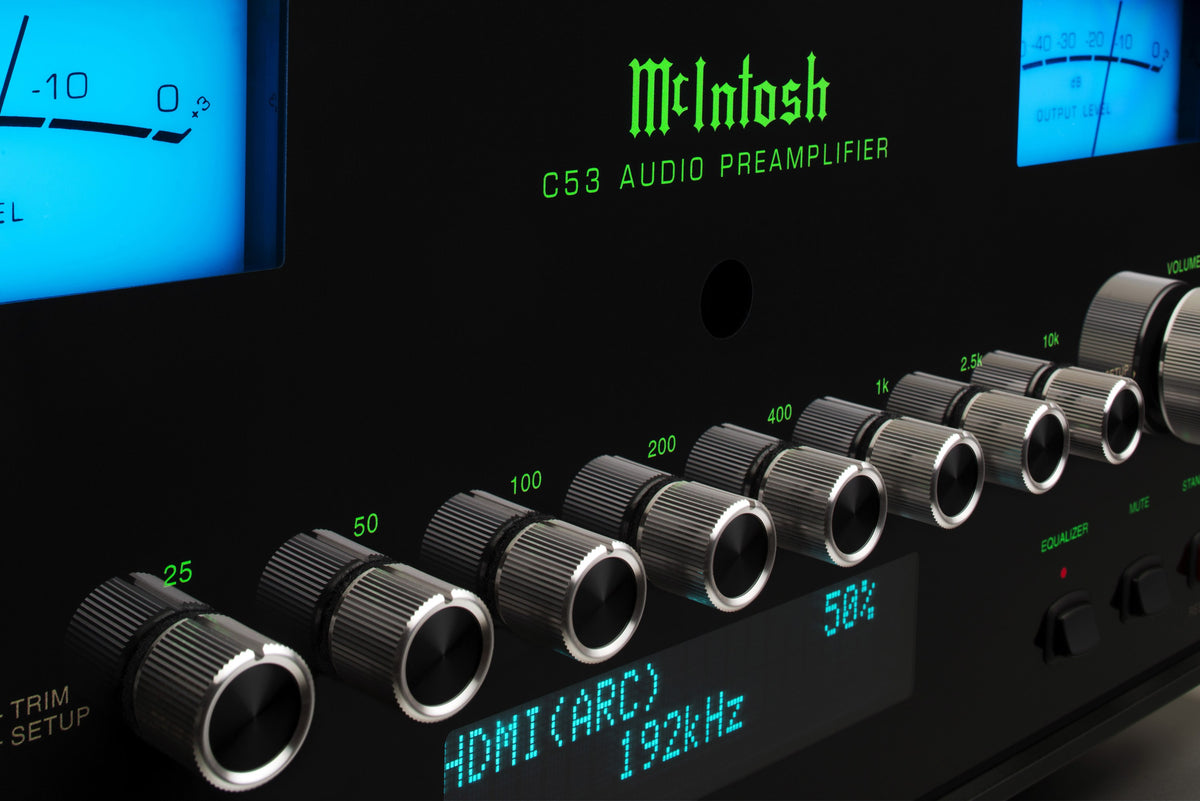

A McIntosh preamplifier display reporting a 192 kHz HDMI ARC signal through its DA2 digital module
A McIntosh preamplifier display reporting a 192 kHz HDMI ARC signal through its DA2 digital module

What it does

Digital audio changes faster than a well-built analog amplifier wears out. McIntosh's answer, introduced as the DA1 in 2017, was to put all of a component's digital inputs and its converter on one module that a dealer can replace. The DA2 of 2019 is the second generation: two coaxial and two optical inputs at 24-bit/192 kHz, a USB input for 32-bit/384 kHz PCM, DSD up to DSD512 and DXD, an MCT input for McIntosh SACD/CD transports, and an audio-only HDMI ARC input that lets a television's remote control the volume. At its heart is an eight-channel, 32-bit converter run in Quad Balanced mode, with better dynamic range and lower distortion than the DA1.

Why it matters in a system

A McIntosh C55 or MA9500 is a thirty-year component. The module means its digital section does not have to be. Owners of DA1-equipped components (C49, MA5300 and others) can have the DA2 fitted by an authorized dealer rather than replacing the whole unit, and the next module will slot in the same way. The HDMI ARC input also folds the television into a two-channel system without a separate processor, which is how most people actually use a serious stereo today.

What you may hear

Files and streams at their full resolution through the same analog stage as your records, television sound through the main loudspeakers with the familiar remote, and a component that still sounds current years after purchase.

Signature technology

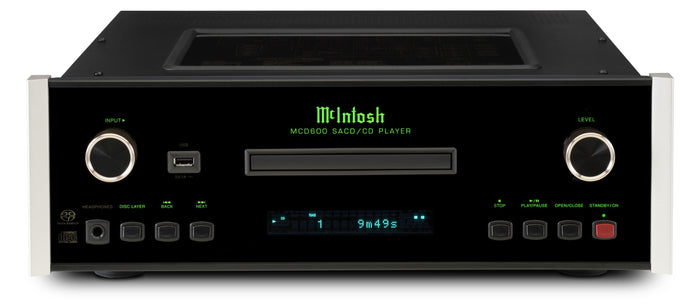

Twin-laser disc transport and the MCT connection

McIntosh disc players read SACD and CD with a twin-laser pickup, one wavelength for each format, and the MCT output carries the SACD's DSD layer to a McIntosh preamplifier or integrated amplifier over a secure proprietary link. Read the deep diveClose

What it does

A CD is read with a 790 nm laser and an SACD with a 650 nm laser; McIntosh players carry both in one twin-beam pickup rather than compromising on a single wavelength, read the disc at double speed and buffer the data for error correction and tracking. The disc sits in a die-cast aluminum tray. SACD's copy protection forbids its DSD layer from leaving a player over an ordinary digital output, which is why most SACD players convert to analog internally. McIntosh's MCT connection solves that: the MCT500 transport passes DSD128 for SACD (and 24-bit/96 kHz for CD) over a dedicated cable to the MCT input on a McIntosh preamplifier, integrated amplifier or the DS200, where the Quad Balanced DAC does the conversion.

Why it matters in a system

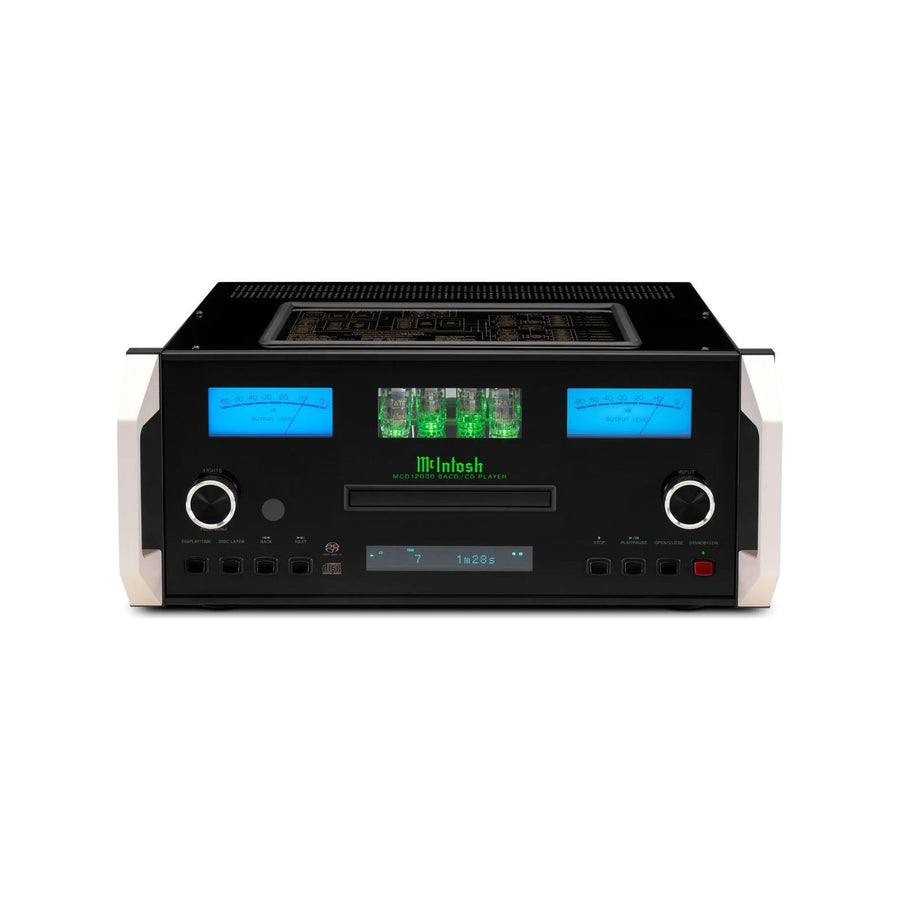

For an owner with a shelf of SACDs the MCT link means one converter for every source, in the component that already has it, and a transport that will outlast several generations of DAC. The MCD600 and MCD12000 players take the other route, with their own Quad Balanced converters, digital inputs for a streamer or server, and in the MCD12000 selectable tube and solid-state output stages. Either way the disc remains a first-class source in a McIntosh system rather than a legacy one.

What you may hear

SACD at its native resolution through the same converter as your files, quiet, stable playback from a heavy transport, and a player that does not need replacing when the rest of the system moves on.

Signature technologySince 2014

Headphone Crossfeed Director (HXD)

A switchable circuit that feeds a controlled, time-shaped portion of each channel to the opposite ear, restoring to headphones some of the spatial character of listening to loudspeakers. Read the deep diveClose

What it does

With loudspeakers each ear hears both channels, the far one slightly later and softer, and the brain builds a stage in front of you from those differences. Headphones remove that: the left ear hears only the left channel. HXD adds a measured amount of the opposite channel to each earpiece, filtered and delayed to mimic what the far loudspeaker would have contributed, so instruments mixed hard to one side stop sitting inside the earcup and take a place in a shared space. It is switchable, so you can compare with it in and out.

Why it matters in a system

Headphone listening is where a preamplifier or integrated amplifier gets used late at night, and HXD is why a McIntosh C2800 or MA9500 is a complete headphone system rather than a jack on the back. It works with the High Drive headphone amplifier, which has the gain and current for demanding headphones, so a serious pair of planars or high-impedance dynamics needs no separate amplifier. The effect depends on the recording and the headphones; McIntosh leaves the choice to you.

What you may hear

Compare a familiar stereo recording with HXD on and off. Listen for a more cohesive sense of placement, less of the hole in the middle of the head, and instruments panned far left or right that feel connected to the rest of the band.

Signature technology

High Drive headphone amplifier

A dedicated headphone amplifier stage with the gain and current to drive demanding headphones from the quarter-inch jack of a McIntosh preamplifier, integrated amplifier or player. Read the deep diveClose

What it does

A headphone jack on most electronics is an afterthought: a resistor off the main output or a small op-amp with little current behind it, fine for efficient earbuds and short of breath with anything else. McIntosh's High Drive section is an amplifier designed for the job, with increased gain and output power compared with a conventional headphone output, and a low output impedance (47 ohms on the MCD600) so that the headphone, not the amplifier, sets the frequency balance. On most components it is paired with the Headphone Crossfeed Director.

Why it matters in a system

Planar-magnetic and high-impedance dynamic headphones need voltage swing and current that a passive jack cannot supply; underdriven, they sound thin and compressed. High Drive lets a C55, an MA8950 or a C8 double as a headphone system of real quality without a separate box, cable and power supply, which keeps the rack simple and the late-night listening serious. The MHA200, McIntosh's tube headphone amplifier, is the dedicated alternative when headphones are the main event.

What you may hear

Fuller bass and more dynamic range from difficult headphones, a sense of ease at volume, and the same tonal character as the loudspeaker system the component drives.

System integration

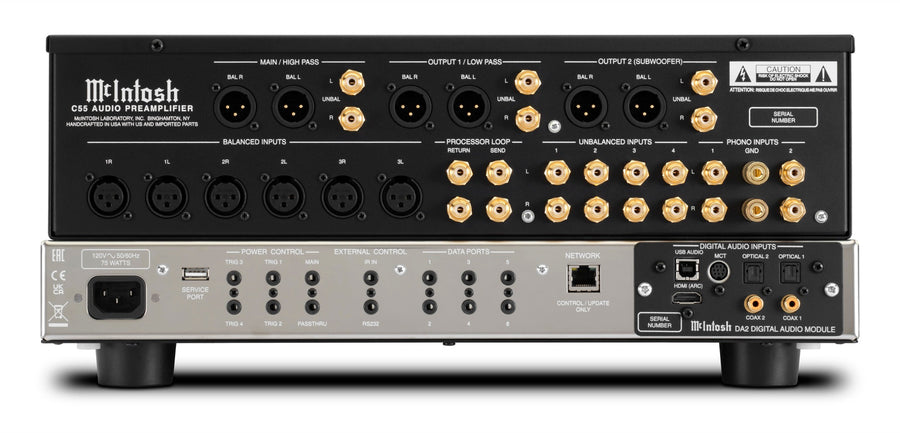

Home Theater PassThru

A fixed-gain input that lets a McIntosh two-channel preamplifier or integrated amplifier sit inside a surround system: the processor drives the front channels through the McIntosh at unity gain, and the two-channel system stays untouched for music. Read the deep diveClose

What it does

Mixing a serious stereo system with a home theater usually means compromising one of them. Home Theater PassThru assigns one input of the McIntosh preamplifier or integrated amplifier to the surround processor's front left and right outputs and passes it at a fixed level, so the processor's own volume control and calibration govern the front loudspeakers during a film. Select any other input and the McIntosh is a pure two-channel preamplifier again, with the processor out of the signal path. On the C55 and C2800 a Processor Loop adds a send and return for an external processor or equalizer.

Why it matters in a system

It lets one pair of main loudspeakers and one McIntosh amplifier serve both music and film without re-cabling or re-calibrating, which is how a C2800 and MC462 can anchor a theater built on an MX124 processor while remaining a reference stereo system at night. For a client building in stages it also means the stereo system can be bought first and the theater added later around it.

What you may hear

Film soundtracks through the main loudspeakers at the processor's calibrated level, and your records through the same loudspeakers with nothing from the theater in the way.

System integration

Power Control

A low-voltage control link between McIntosh components: switch the preamplifier on and the amplifier, player, turntable and streamer wake with it, with their meter lighting following along. Read the deep diveClose

What it does

Every McIntosh component carries Power Control jacks. A three-conductor cable runs from the preamplifier's POWER CONTROL MAIN (or a Trigger output) to the POWER CONTROL IN of the next component, and on down the chain; the power command and the meter-illumination command travel on that one cable. On a power amplifier a rear switch sets the behavior: REMOTE follows the preamplifier, ON keeps the amplifier on regardless, OFF keeps it off. The C55 and C2800 provide a Main output and four Trigger outputs so a complex system, or a second zone, can be sequenced; Data ports and IR inputs carry the remote-control commands alongside.

Why it matters in a system

A separates system is only as pleasant to live with as its first thirty seconds. Power Control turns a rack of McIntosh components into one instrument that comes to life from a single button and shuts down the same way, with the amplifiers' lighting switching with the rest. It also lets the Eco power-management feature on current amplifiers be used safely: an amplifier that has switched itself off after a period of silence returns the moment the preamplifier wakes it. The matching McIntosh Power Control Cables are available in several factory lengths; Pearl Audio can specify the right ones for your rack.

What you may hear

Nothing, by design; Power Control carries commands, not audio. What you notice is a system that behaves as one component, and meters that light together.

Signature technology

Solid Cinch speaker binding posts

Patented, gold-plated loudspeaker terminals whose clamping barrel presses straight down on the spade lug without turning it, so a heavy cable stays exactly where you set it and cannot work loose. Read the deep diveClose

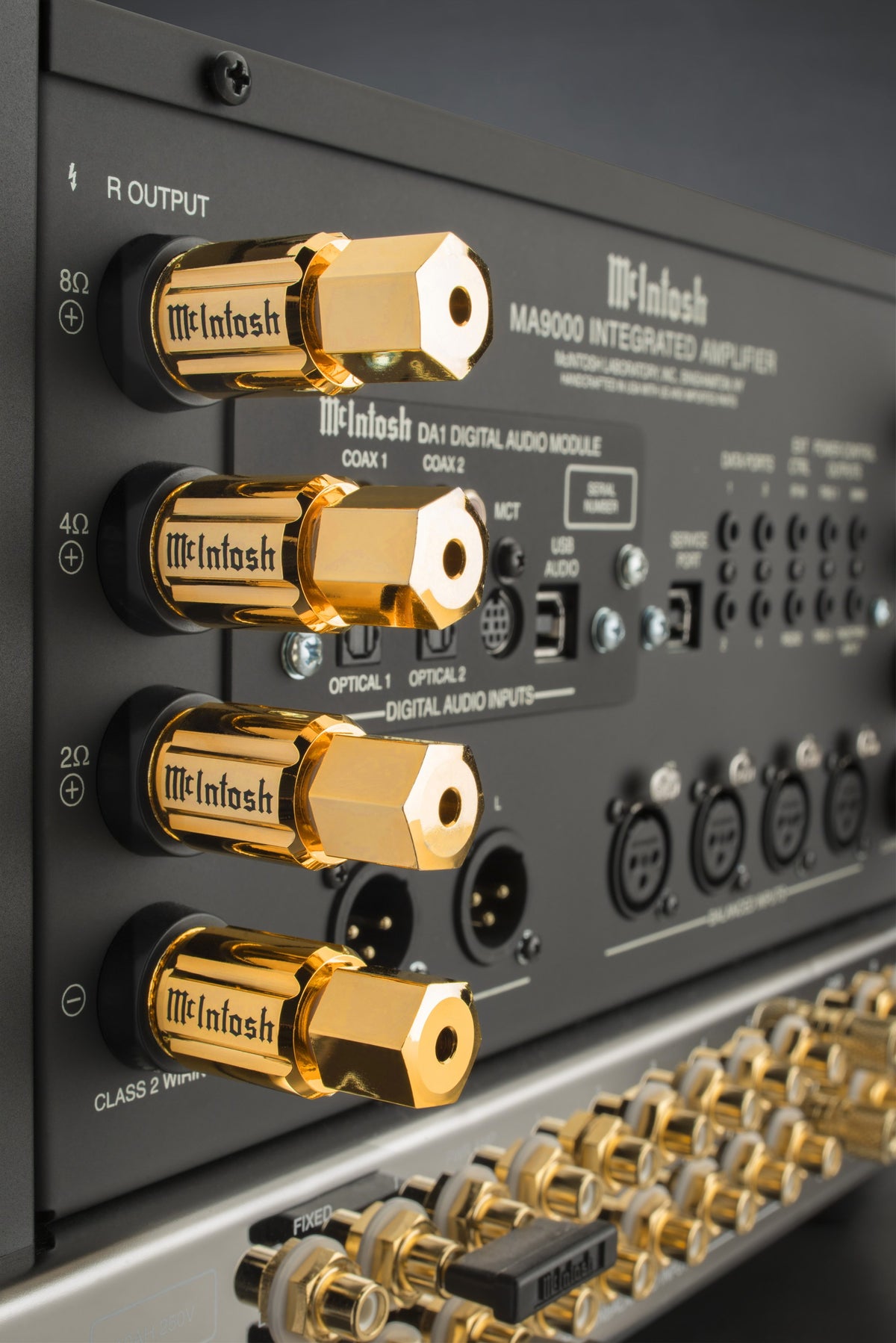

Gold-plated Solid Cinch speaker binding posts on the rear panel of a McIntosh integrated amplifier
Gold-plated Solid Cinch speaker binding posts on the rear panel of a McIntosh integrated amplifier

What it does

On an ordinary binding post the nut that tightens the connection also rotates against the spade lug, dragging it round, twisting a stiff cable and, over time, loosening under its own torque. Solid Cinch separates the two motions. Only the top turns; a separate clamping barrel moves straight down and presses the spade flat against the gold-plated contact surface. The lug stays at the angle you chose, neighboring connections stay clear of one another, and the contact is metal to metal under real pressure. On the MC611 each impedance tap has its own set of posts, spaced for cable management.

Why it matters in a system

The loudspeaker connection carries the most current in the system and is the one most often made badly. A spade that has crept round a post can touch its neighbor, and a short at the output of a 600-watt amplifier is exactly what Sentry Monitor exists to catch; Solid Cinch is the reason it rarely has to. With the large-gauge, stiff cables used in a serious system, the ability to clamp hard while keeping the cable straight is the difference between a connection you make once and one you check every month.

What you may hear

Nothing you would attribute to a terminal, which is the aim. You notice it with the cables in your hands: a large spade stays perfectly aligned as you tighten, and the connection does not change.

Loudspeaker technologySince 1980

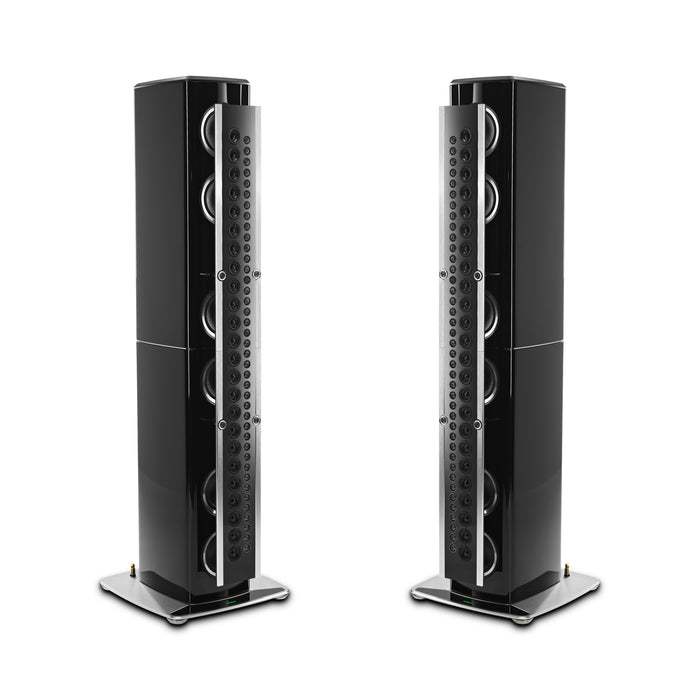

XRT line array loudspeakers

A tall column of small drivers that radiates as a line rather than a point, so the sound field is even across the room and the stereo image holds from almost every seat; a McIntosh idea since the XRT20 of 1980. Read the deep diveClose

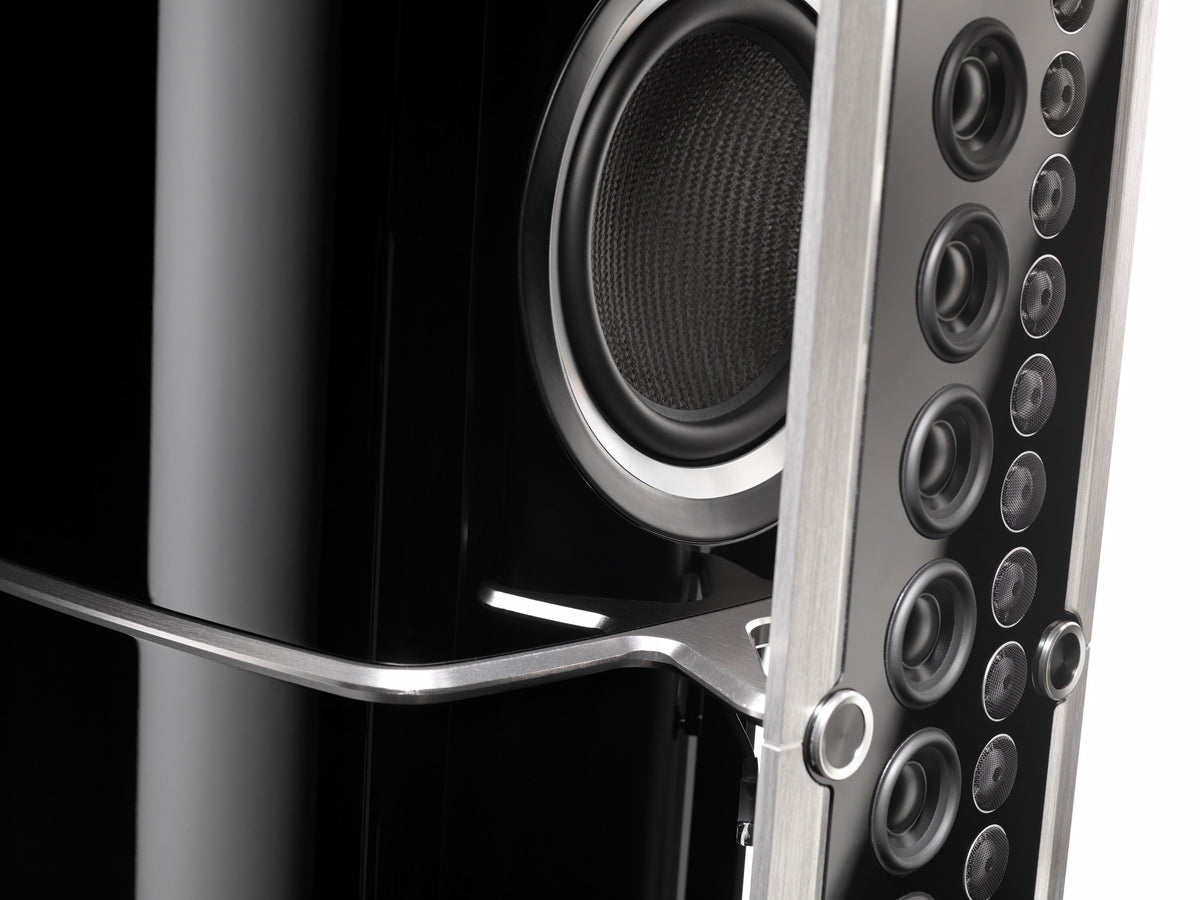

The driver column of a McIntosh XRT line-array loudspeaker, seen without its grille
The driver column of a McIntosh XRT line-array loudspeaker, seen without its grille

What it does

A single tweeter radiates in a widening sphere, so its level falls quickly with distance and its tonal balance changes as you move. A line array of many identical small drivers, stacked floor to ceiling height, radiates a cylindrical wavefront: level falls more slowly with distance, less energy goes to the floor and ceiling, and the balance stays constant across the width of the room. McIntosh's XRT2.1K carries 81 drivers per loudspeaker: six 8-inch woofers and two 6.5-inch low-midrange drivers in an aluminum bass cabinet, and an array of 28 two-inch aluminum-magnesium upper-midrange domes and 45 three-quarter-inch tweeters with neodymium magnets, suspended from the bass cabinet on steel spiders. The XRT1.1K uses 70 drivers and the XCS1.5K center channel 43.

Why it matters in a system

Most reference loudspeakers have one good seat. A line array has a row of them, which suits a large room, a long sofa or a family that listens together, and its 90 dB sensitivity with an 8-ohm load and a 2,000-watt rating means it can use everything an MC1.25KW or a pair of MC611s can give. Tri-wire and tri-amp terminals let the bass cabinet and array be driven separately. It is also the loudspeaker McIntosh voices its own electronics with: the XRT and XCS models are built to be heard together as a theater or a two-channel reference.

What you may hear

A stereo image that does not collapse when you stand up or move to the other end of the sofa, treble that stays smooth at high level, and bass from 12 Hz that fills a large room without strain.

Made in the USASince 1951

Handcrafted in Binghamton, New York

McIntosh electronics are designed, built and tested at 2 Chambers Street in Binghamton, New York, where the company has been since 1951 and where its transformers are still wound by hand. Read the deep diveClose
The McIntosh factory at 2 Chambers Street, Binghamton, New York, from the air
The McIntosh factory at 2 Chambers Street, Binghamton, New York, from the air

What it does

McIntosh moved from Silver Spring, Maryland, to Binghamton in 1951 and built its present factory at 2 Chambers Street in 1956. The company still makes the parts that matter most to its sound on the premises. Output transformers and Autoformers are hand-wound and potted in the building; the glass front panels are cut, screen-printed and finished there; circuit boards are populated on the company's own surface-mount line, up to 7,000 boards a month, with temperature-sensitive and large components placed by hand, and every board is tested individually before it goes into a chassis. Every finished component goes through a bench test before it leaves.

Why it matters in a system

Keeping engineering, winding, assembly and test under one roof is how a company controls the consistency that lets a 1961 circuit and a 2026 amplifier sound like relatives. It is also what makes long-term service real: McIntosh maintains documentation and parts for decades of production, and a component bought today can go back to the people who built it. For an owner this is the practical meaning of heritage, a system that can be repaired, updated and handed on.

What you may hear

Consistency between units and across years, and the quiet confidence of equipment that was measured before it shipped. The glass-topped transformer enclosures on the current amplifiers let you see the work.

McIntosh at Pearl Audio

The McIntosh range we represent

All 54 McIntosh products
McIntosh MA2375 Vacuum Tube Integrated Amplifier McIntosh LabsReferenceOn demoIn stock MA2375 Vacuum Tube Integrated Amplifier $15,000 MA252 Integrated Amplifier McIntosh LabsReferenceOn demoIn stock MA252 Integrated Amplifier $5,000 MA352 Integrated Amplifier McIntosh LabsReferenceOn demoIn stock MA352 Integrated Amplifier $8,000 MSA5500 Streaming Integrated Amplifier McIntosh LabsReferenceOn demoIn stock MSA5500 Streaming Integrated Amplifier $8,000 MA8950 Integrated Amplifier McIntosh LabsReferenceOn demoIn stock MA8950 Integrated Amplifier $10,500 MA12000 Integrated Amplifier McIntosh LabsReferenceOn demoIn stock MA12000 Integrated Amplifier $17,500 McIntosh DS200 Streaming DAC — front McIntosh LabsReferenceIn stock DS200 Streaming DAC $4,000 McIntosh MCD600 SACD/CD Player — front McIntosh LabsReferenceOn demoIn stock MCD600 Sacd/Cd Player $9,000 MCD12000 Sacd/Cd Player McIntosh LabsReferenceOn demoIn stock MCD12000 Sacd/Cd Player $14,000 McIntosh MT5 Angle 2022 McIntosh LabsReferenceOn demo MT5 Precision Turntable $8,500 C22 Preamplifier Mk V McIntosh LabsReferenceOn demoIn stock C22 Preamplifier Mk V $7,500 C55 Preamplifier McIntosh LabsReferenceOn demoIn stock C55 Preamplifier $10,500 C2800 Preamplifier McIntosh LabsReferenceOn demoIn stock C2800 Preamplifier $10,500 McIntosh C12000 C and ST Front Balanced McIntosh LabsReferenceOn demoIn stock C12000 Preamplifier $19,000 MC275 Power Amplifier McIntosh LabsReferenceOn demoIn stock MC275 Power Amplifier $7,500 MC312 Power Amplifier McIntosh LabsReferenceOn demoIn stock MC312 Power Amplifier $8,500 MC611 Power Amplifier McIntosh LabsReferenceOn demo MC611 Power Amplifier $9,500 MC462 Power Amplifier McIntosh LabsReferenceOn demoIn stock MC462 Power Amplifier $11,500 MC1.25KW Power Amplifier McIntosh LabsReferenceOn demo MC1.25KW Power Amplifier $15,500 MC257 Power Amplifier McIntosh LabsReference MC257 Power Amplifier $13,000 McIntosh ML1 Mk II Angle Left and Angle Right no grille McIntosh LabsReference ML1 Loudspeaker Mk II $14,000 McIntosh XRT1.1K Pair Angle McIntosh LabsReference XRT1.1K Floorstanding Loudspeaker $40,000 McIntosh XRT2.1K in Piano Black, pair front view McIntosh LabsReference XRT2.1K Floorstanding Loudspeaker $80,000 McIntosh PS1K Angle McIntosh LabsReference PS1K Powered Subwoofer $40,000

Search
