Bowers & Wilkins · 800 Series Diamond D5
The smallest 800 Series speaker with the Turbine Head midrange: true 800 Series imaging in a cabinet that fits a real living room.
Price is for a pair. New for 2026; replaces the 803 D4.

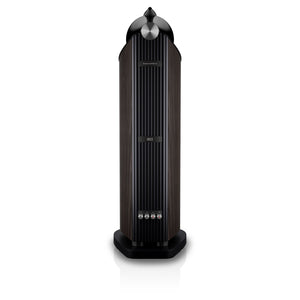

The 803 D5 is where the Turbine Head begins. A 5-inch Continuum Cone midrange sits in its own solid aluminum enclosure, decoupled from the cabinet below, with the Diamond Dome tweeter above it and two 7-inch Aerofoil bass drivers beneath. For D5 the midrange and bass drivers get Signature-derived motor parts, and the cabinet gains rear Space Frame rails, a thicker Matrix and a new tuned plinth.
The payoff of the Turbine Head is focus: voices and instruments float free of the boxes, with the kind of precise, stable stereo image the 800 Series is known for. The 803 still reaches 16 Hz at −6 dB, so it rarely needs help from a subwoofer, and at 90 dB sensitivity it's efficient. Plan on a solid amplifier for its 3.0 Ω minimum impedance. It suits medium-sized rooms.

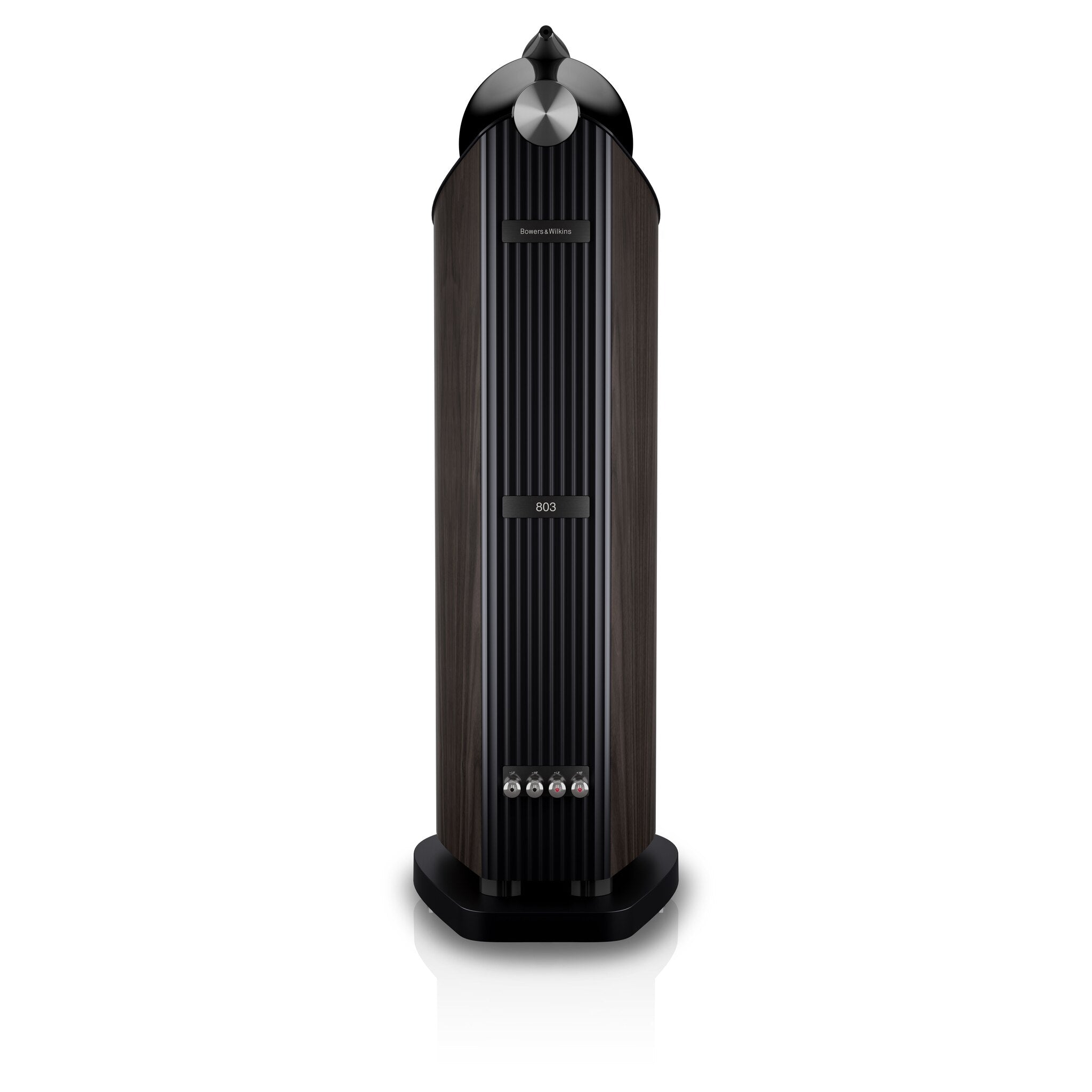

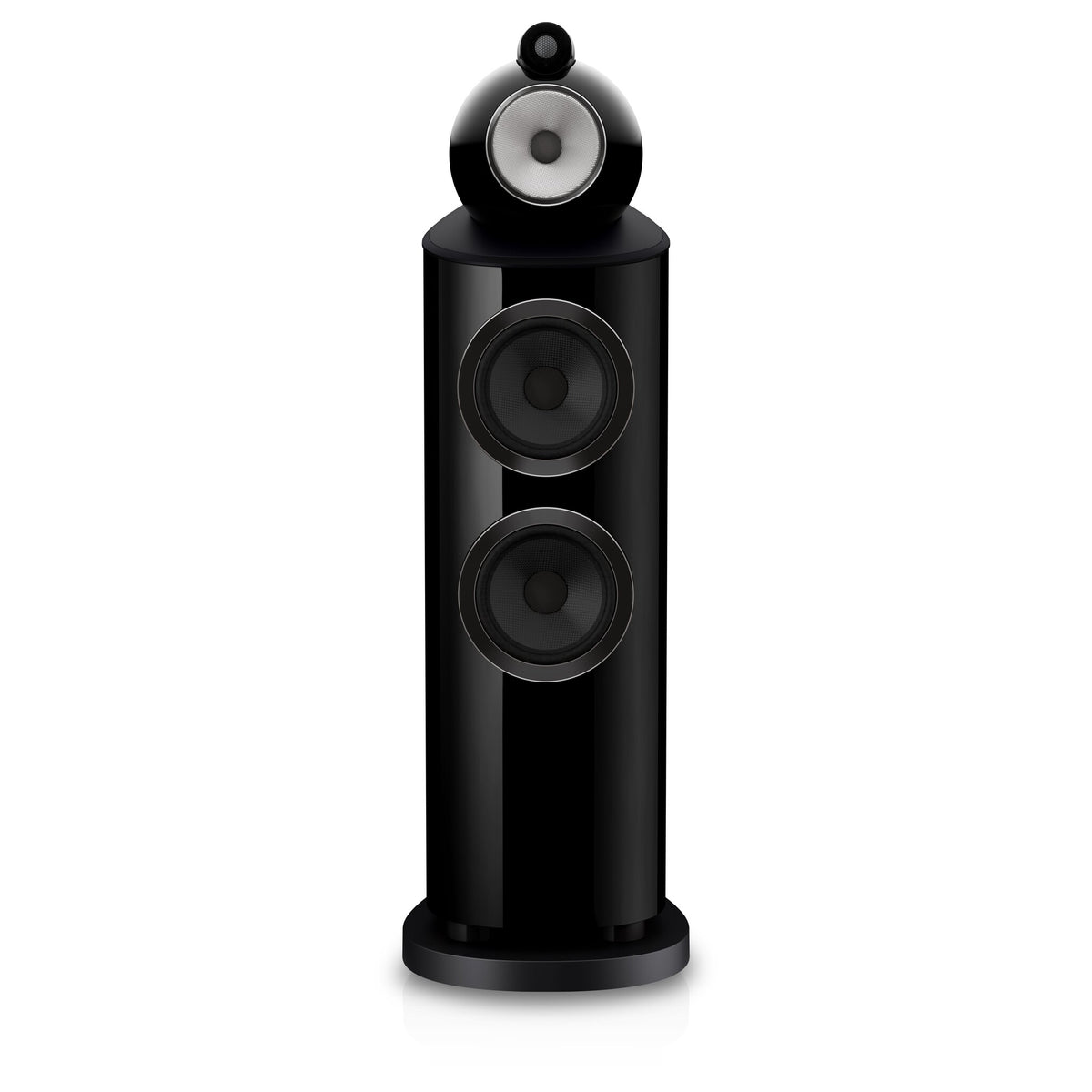

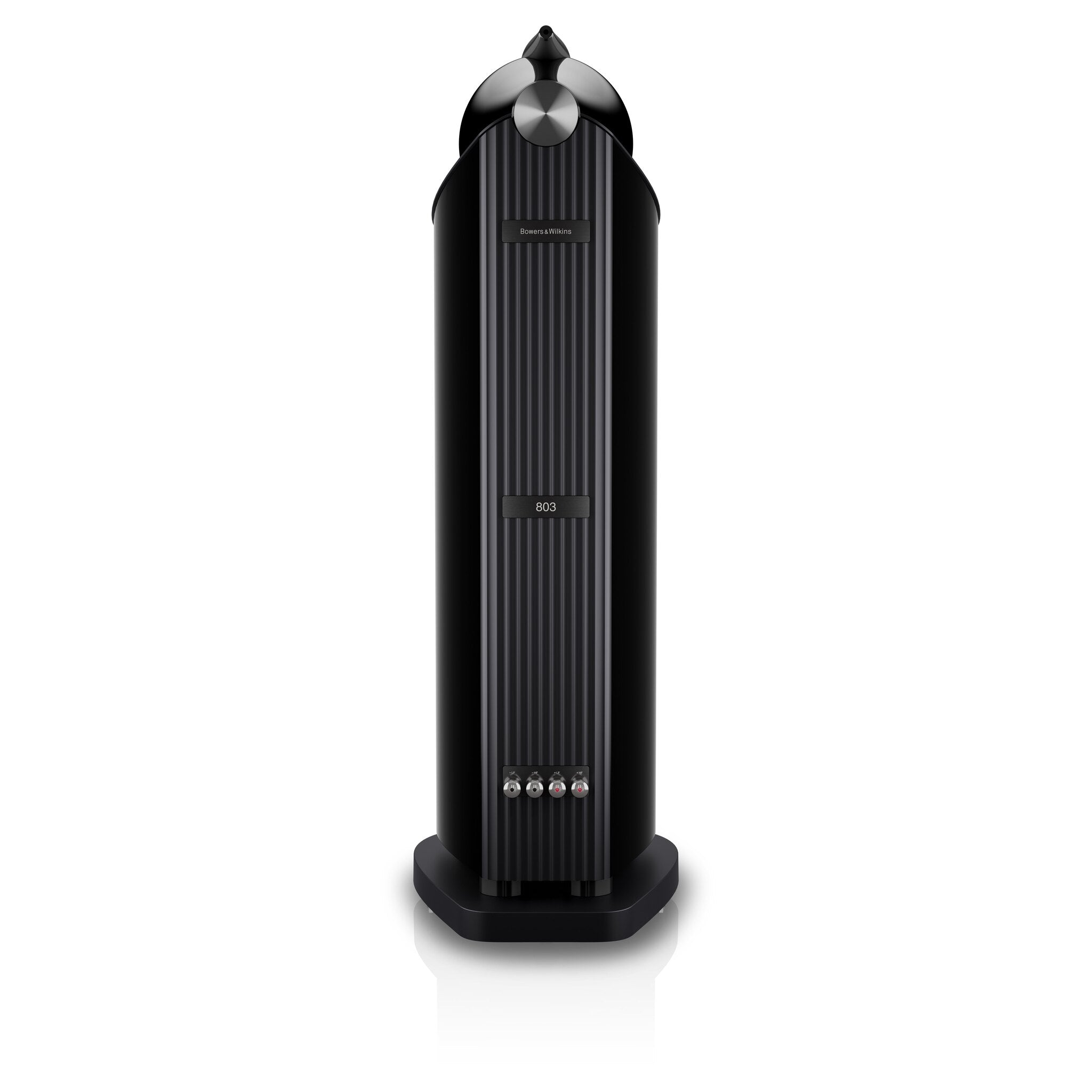

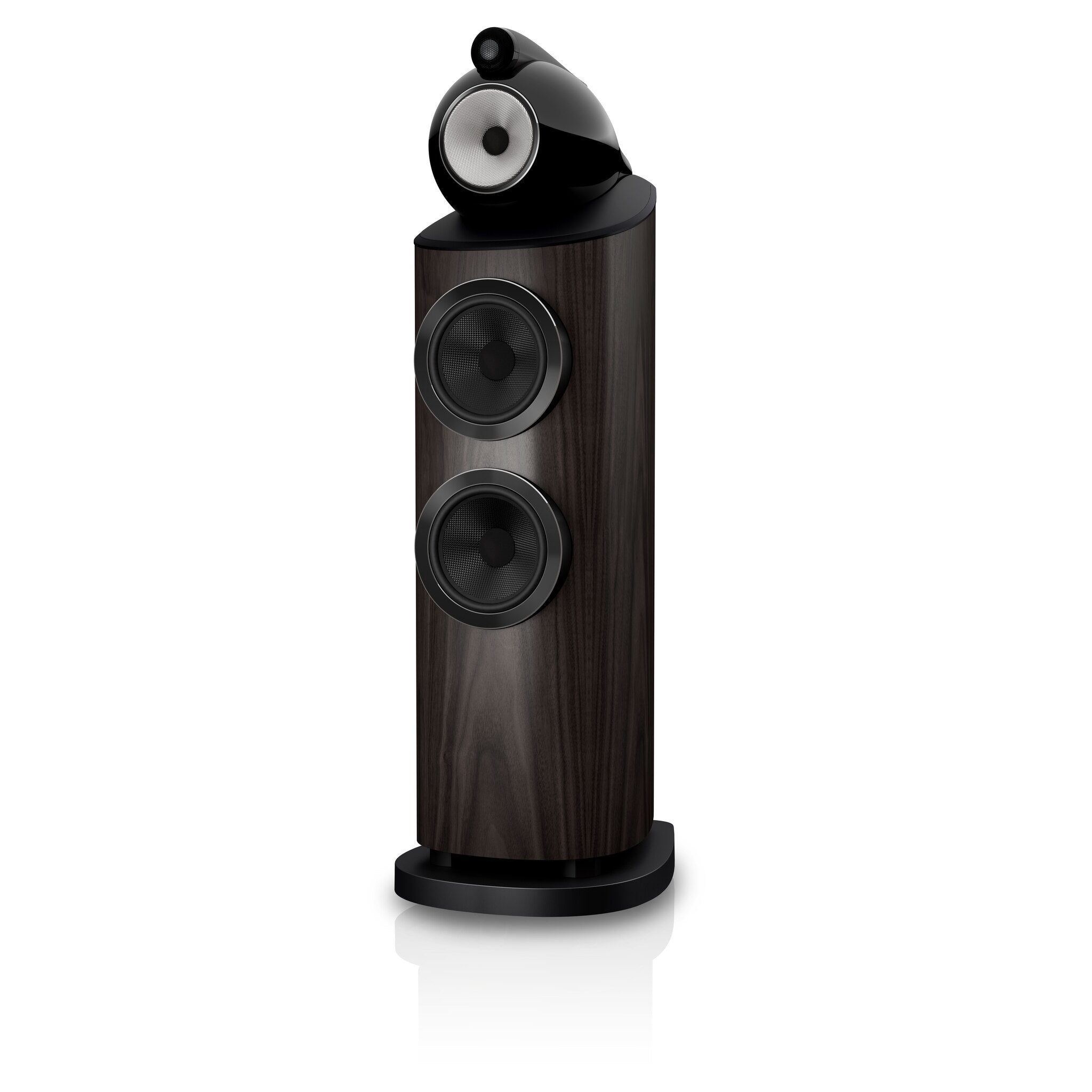

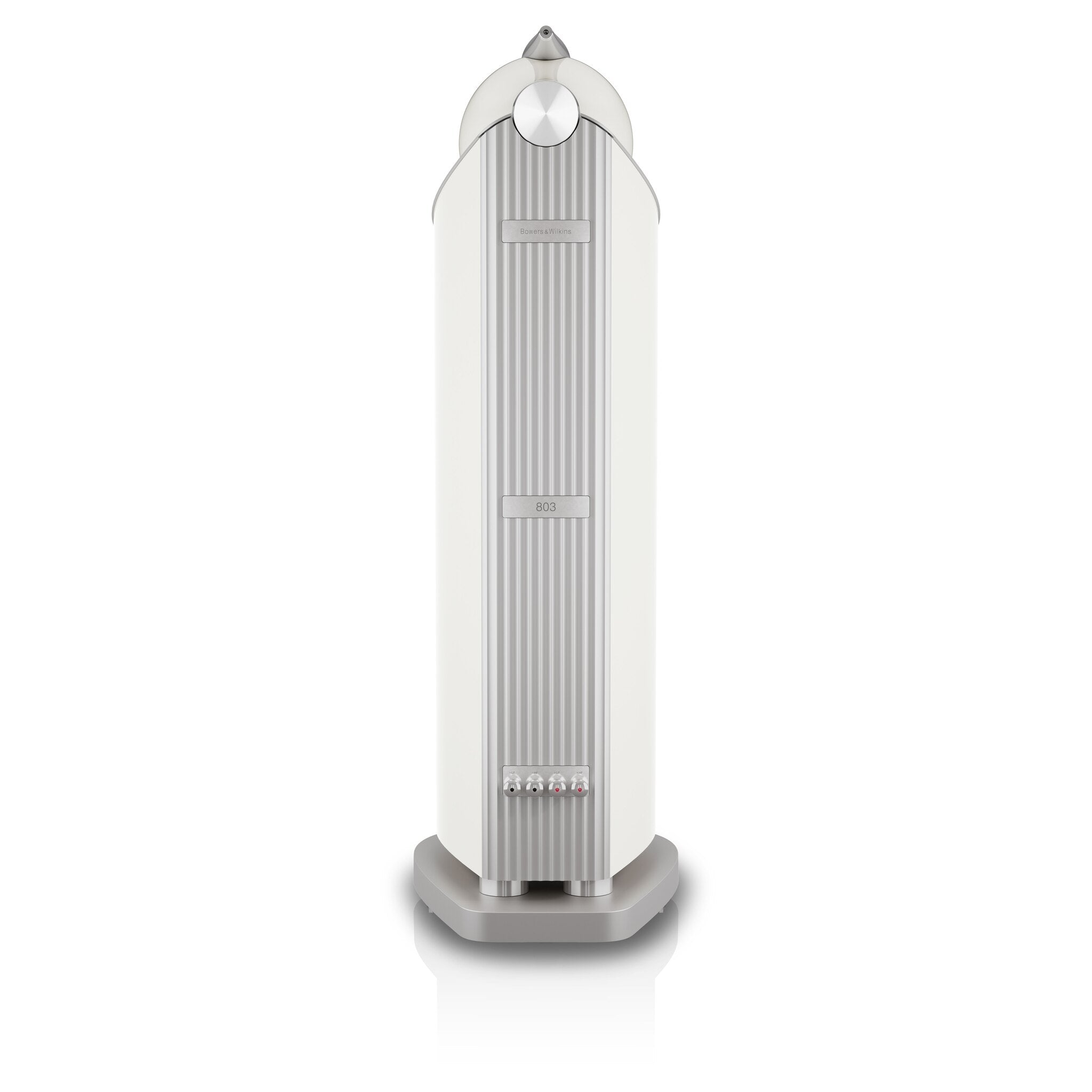

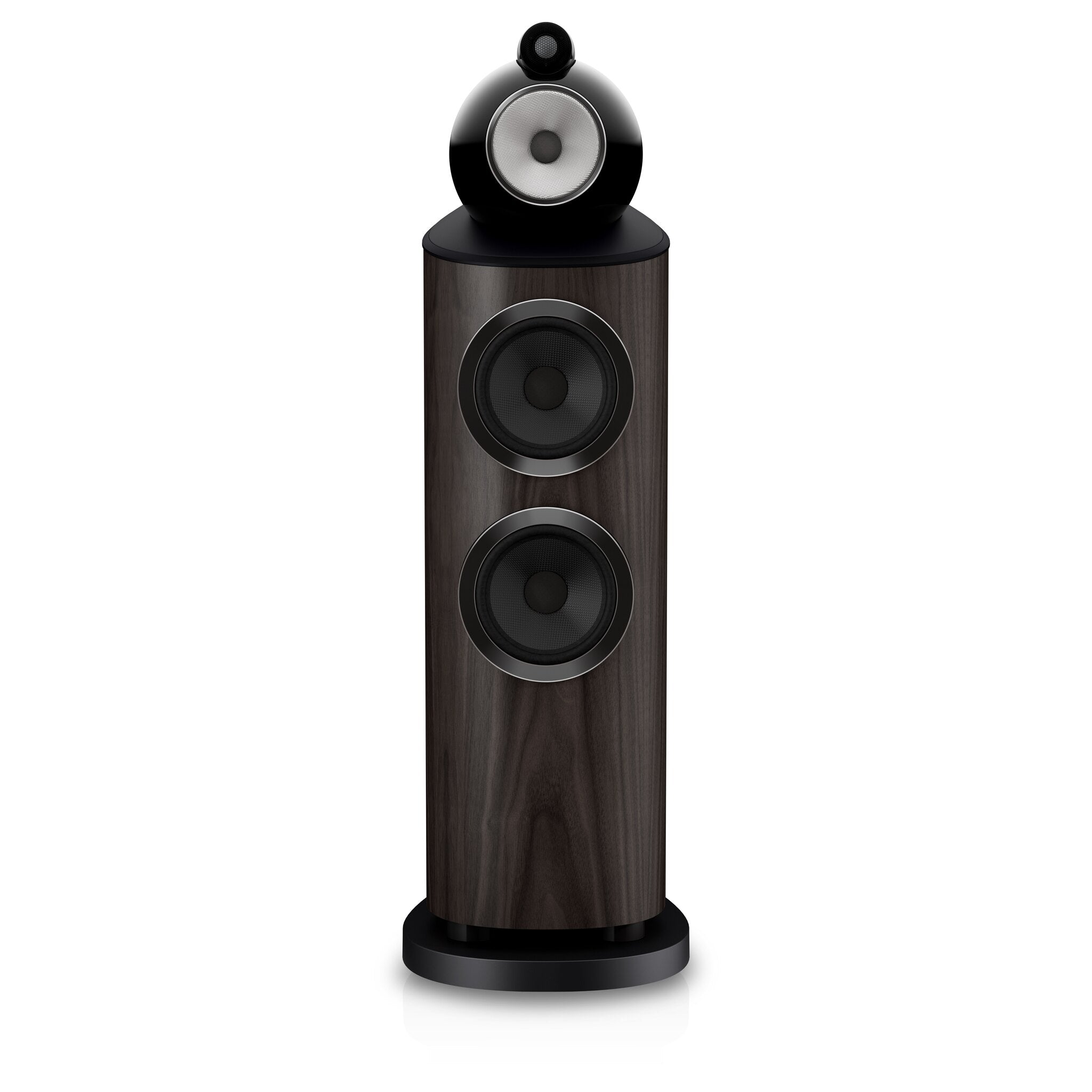

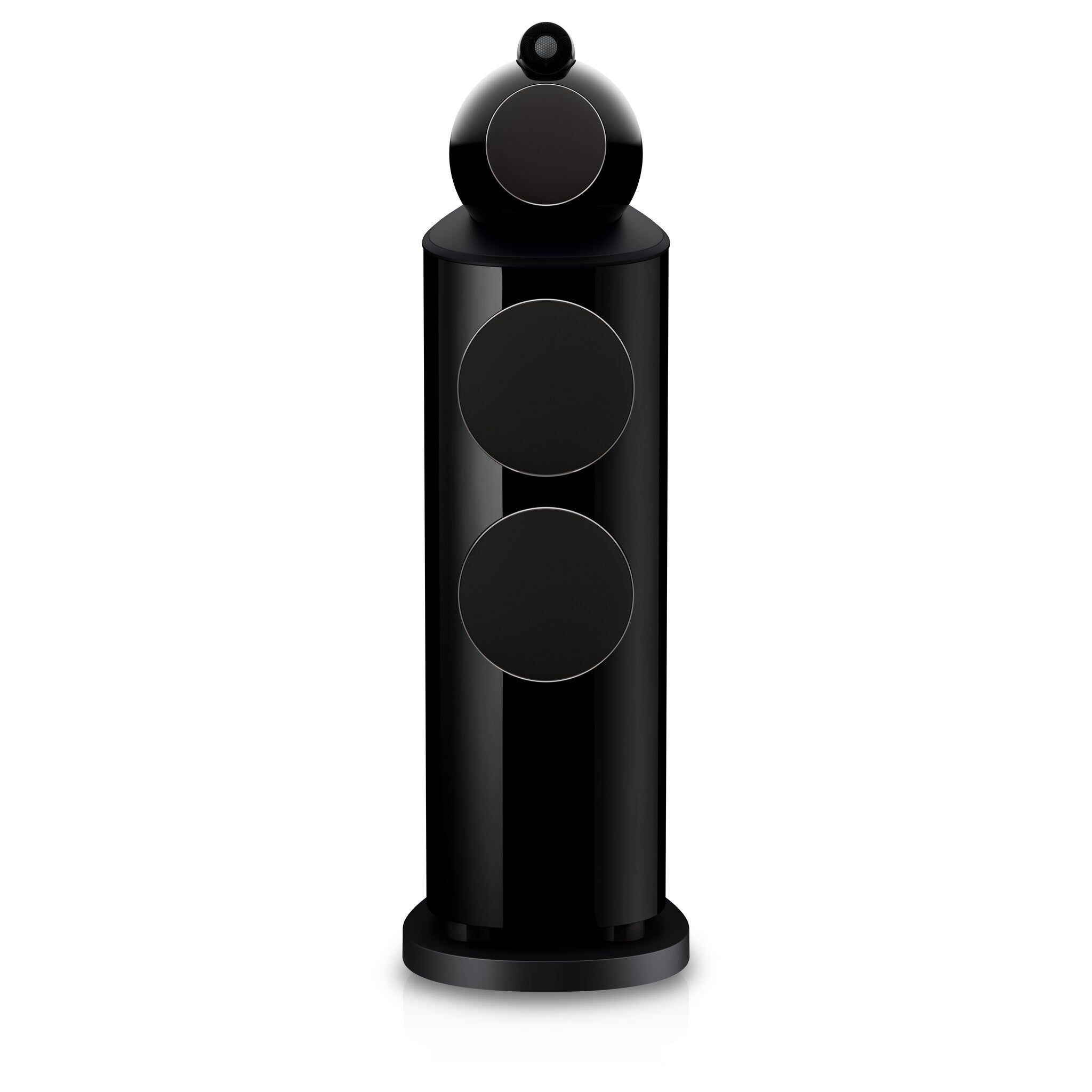

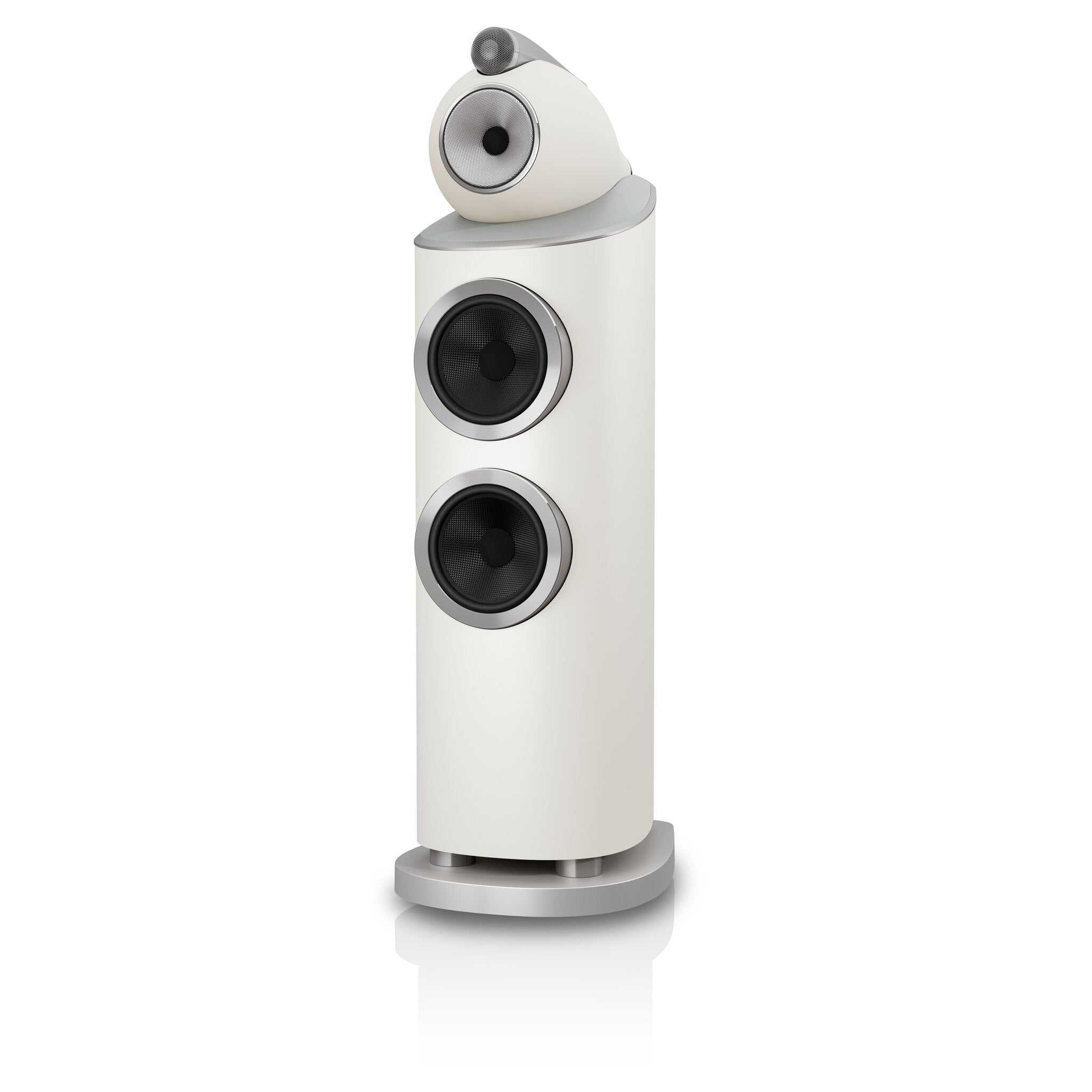

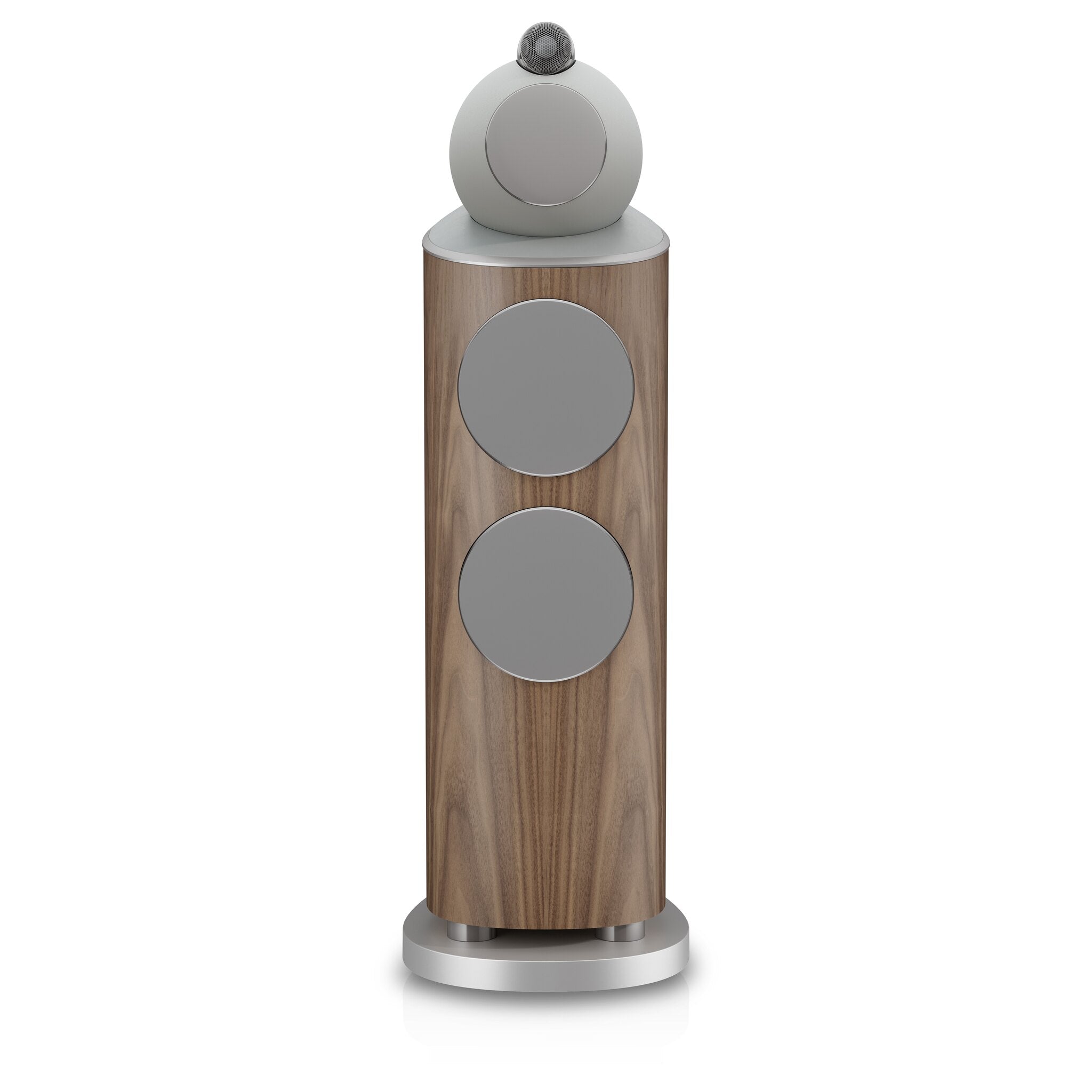

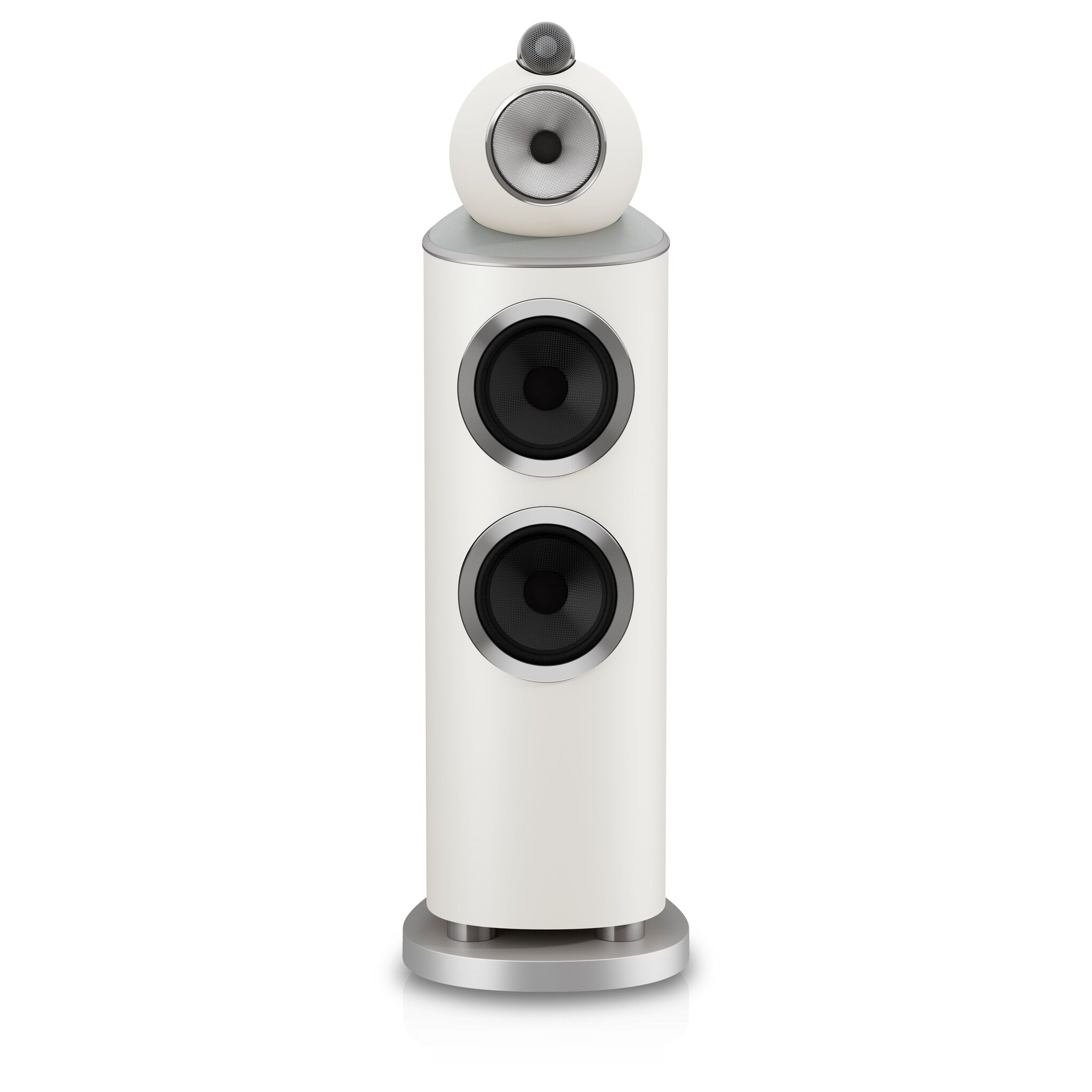

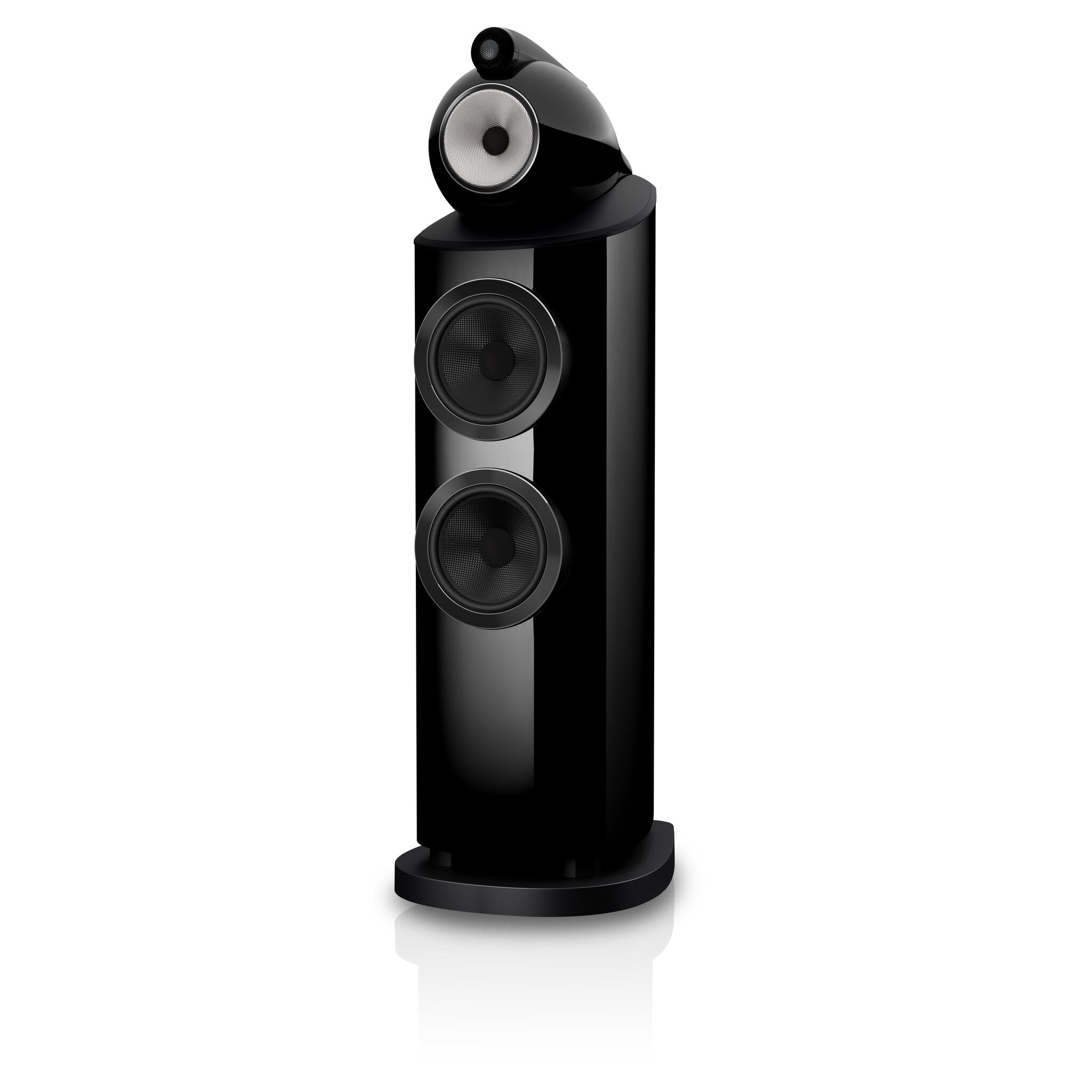

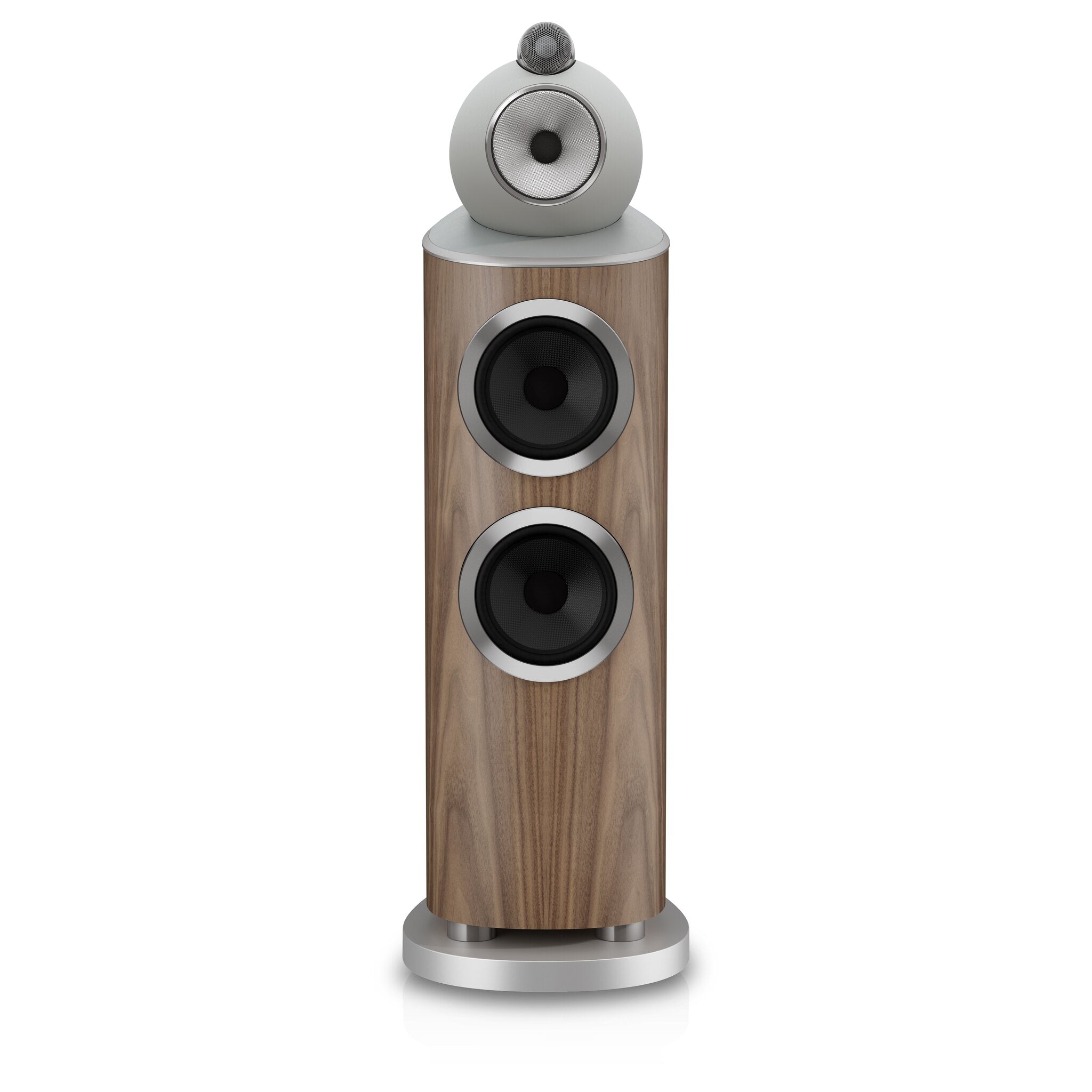

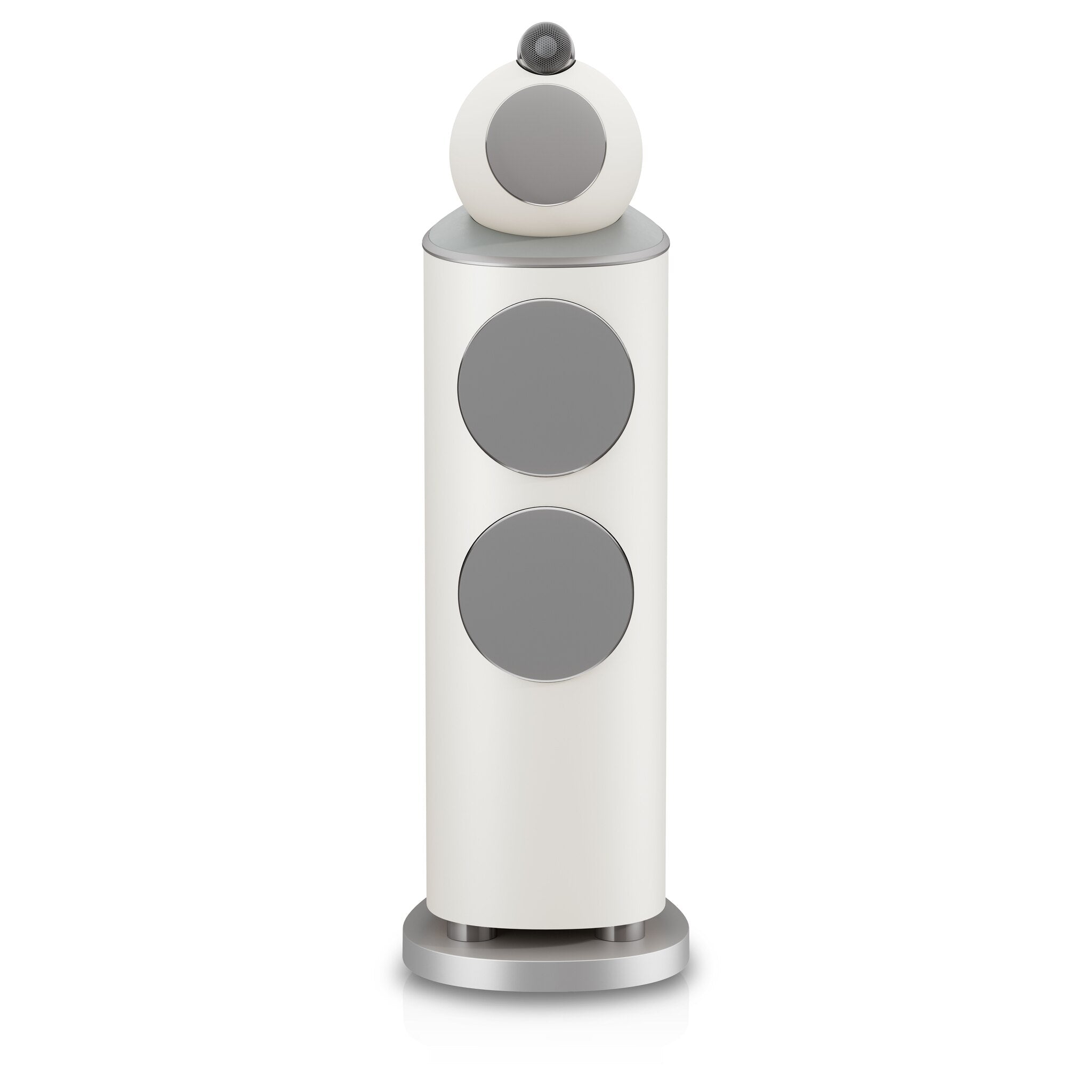

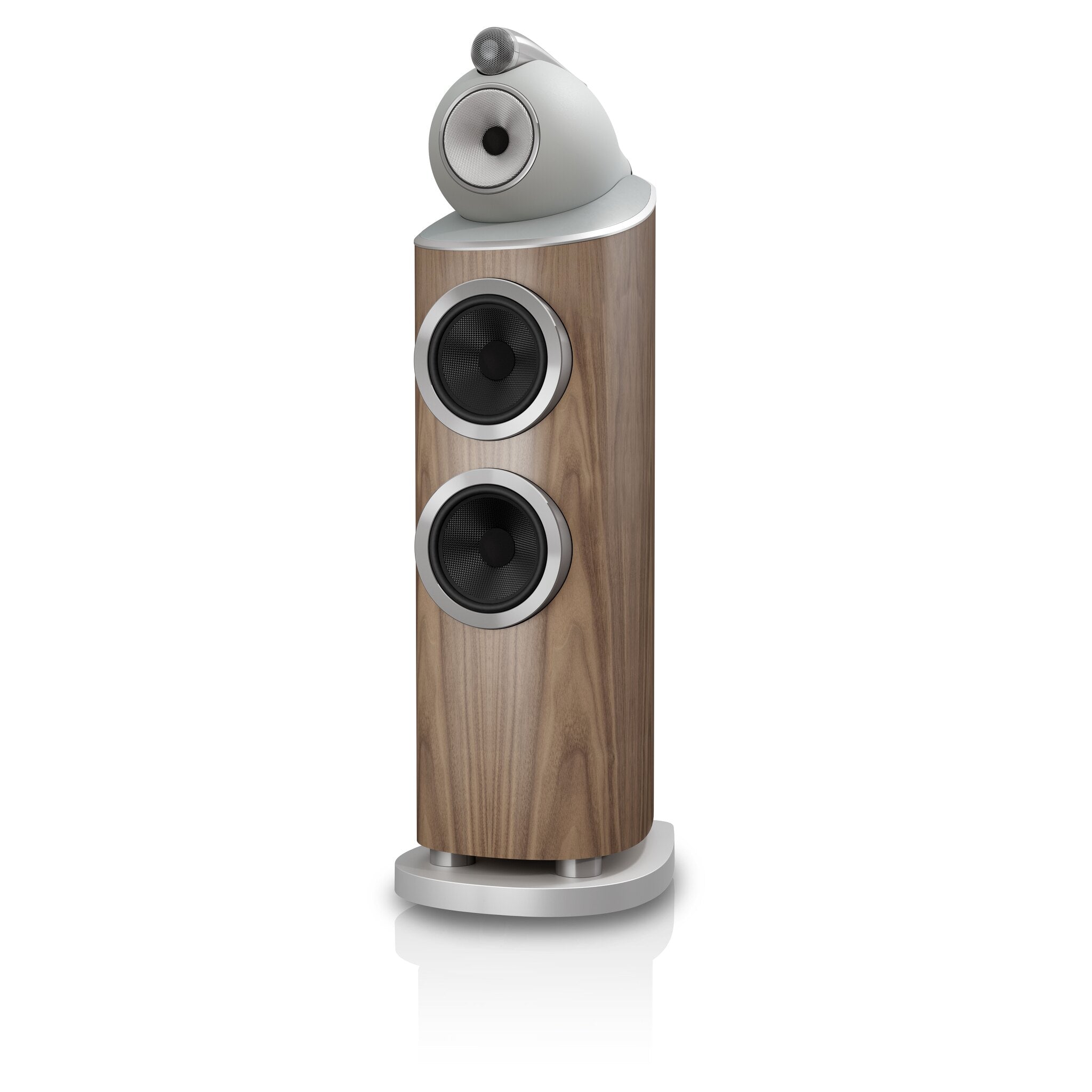

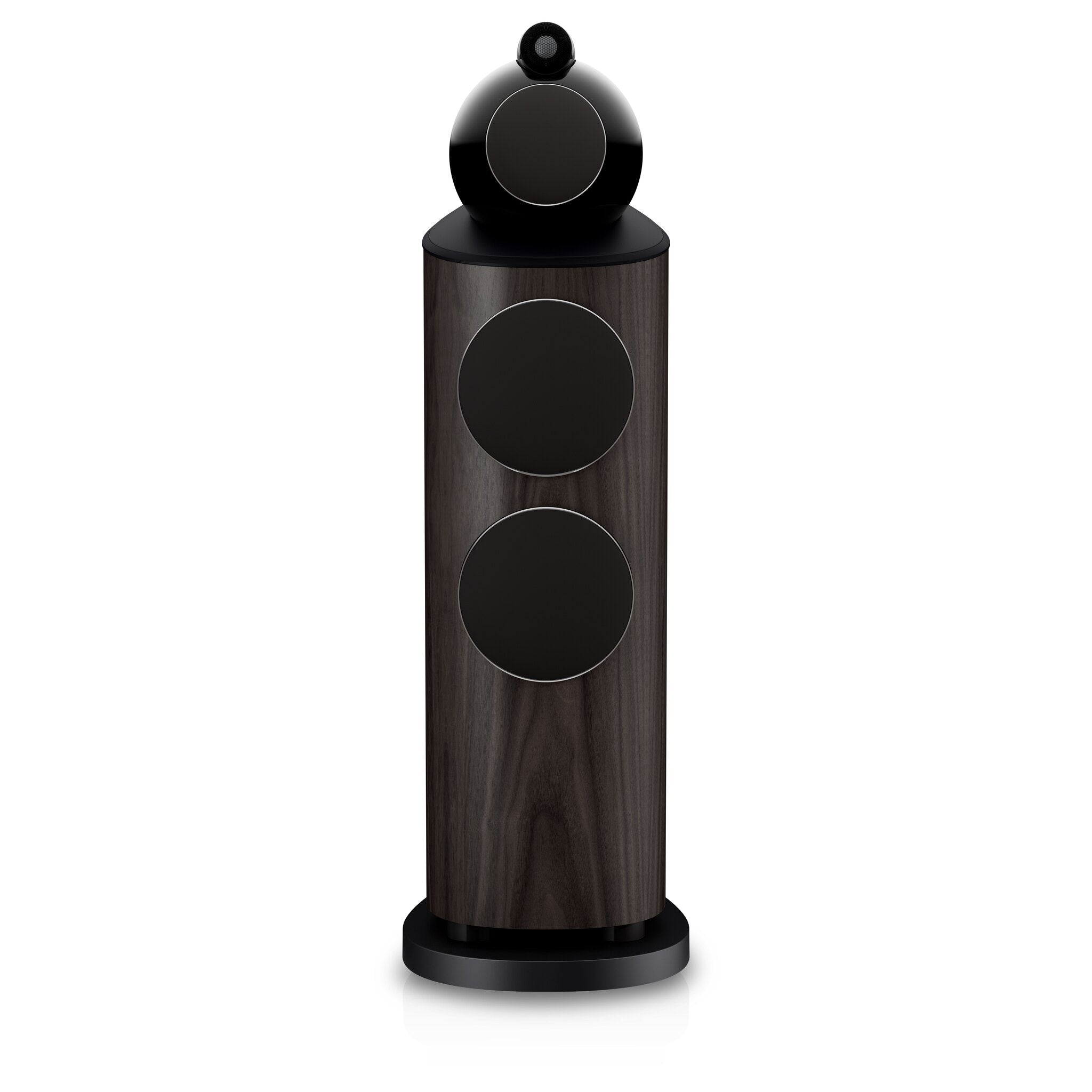

The top plate is trimmed in Leather by Connolly: black on Stealth Black and Dark Walnut, light grey on Warm White and Light Walnut.
| Type | 3-way vented-box floorstanding loudspeaker |
| Tweeter | 1 in (25 mm) Diamond Dome, Solid Body Tweeter-on-Top |
| Midrange | 5 in (130 mm) Continuum Cone FST, in Turbine Head |
| Bass | 2 × 7 in (180 mm) Aerofoil |
| Frequency range (−6 dB) | 16 Hz – 35 kHz |
| Frequency response (±3 dB) | 19 Hz – 28 kHz |
| Sensitivity | 90 dB (2.83 V, 1 m) |
| Impedance | 8 Ω nominal, 3.0 Ω minimum |
| Recommended amplifier | 50 – 1,000 W into 8 Ω |
| Harmonic distortion | < 1% 80 Hz – 20 kHz; < 0.3% 100 Hz – 8 kHz |
| Dimensions (H × W × D) | 45.8 × 14.1 × 19.6 in (1165 × 359 × 499 mm), incl. plinth |
| Weight | 140.3 lb (63.7 kg) each |
| Sold as | Pair |
Best in medium-sized rooms.
For home theater, the matching center channel is the HTM82 D5. B&W recommends its DB Series subwoofers with the range.
