McIntosh · Upgrades

McIntosh DA2 Digital Audio Module Upgrade Kit

$1,500

Upgrade part · All McIntosh upgrades and parts →

Signature technologiesThe McIntosh story

Not currently in our rooms. For a serious buyer we will often bring a piece in from the manufacturer for a private session — tell us about your system and what you are weighing it against, and we will advise.

McIntosh · Upgrades

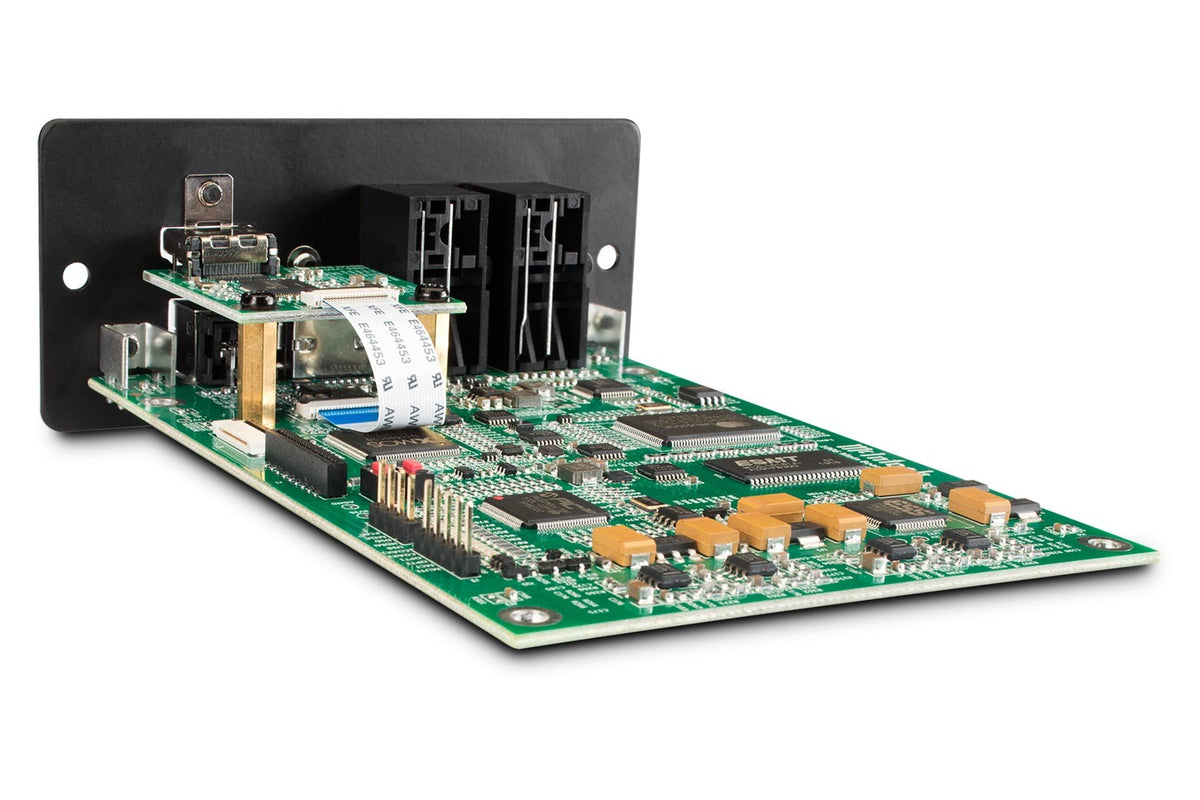

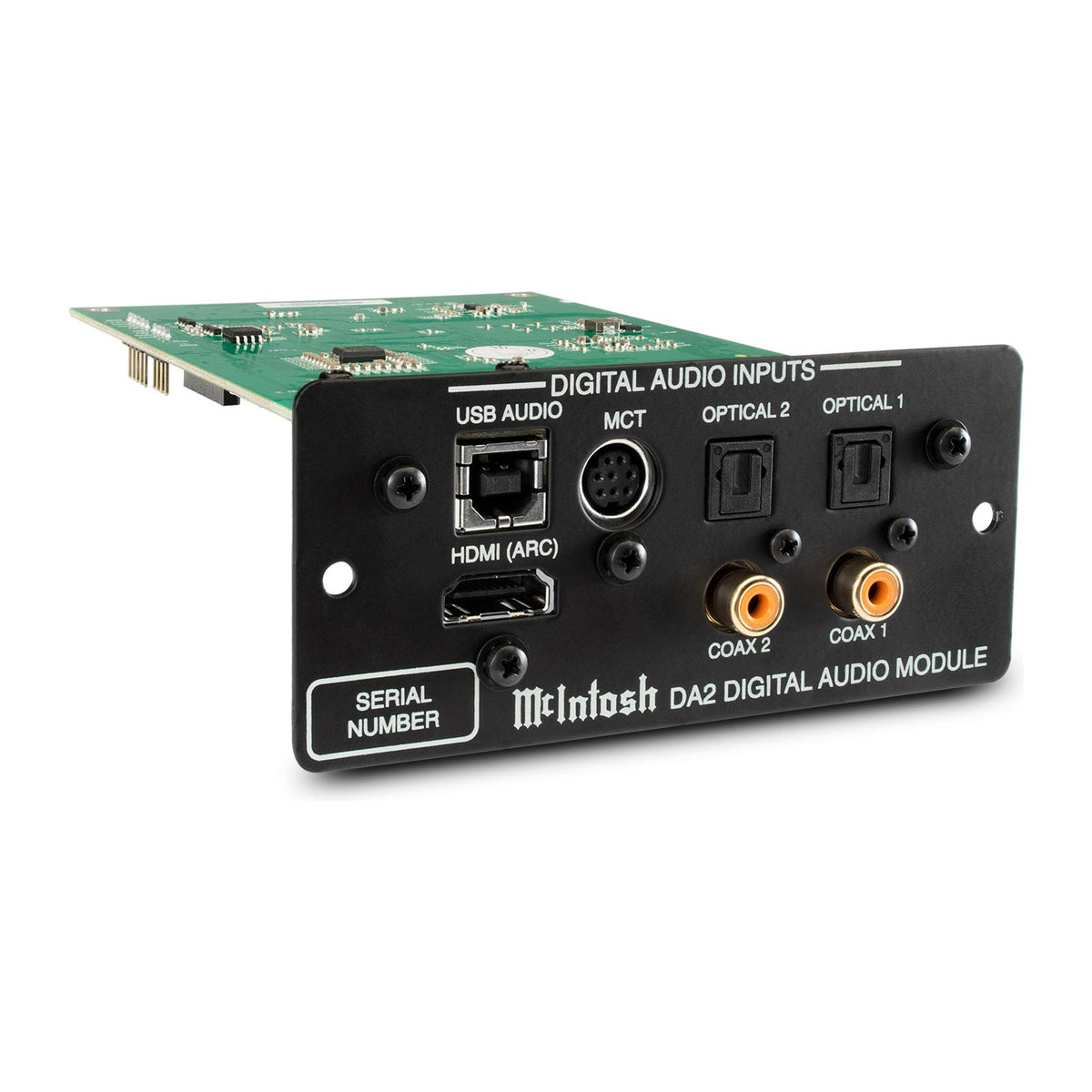

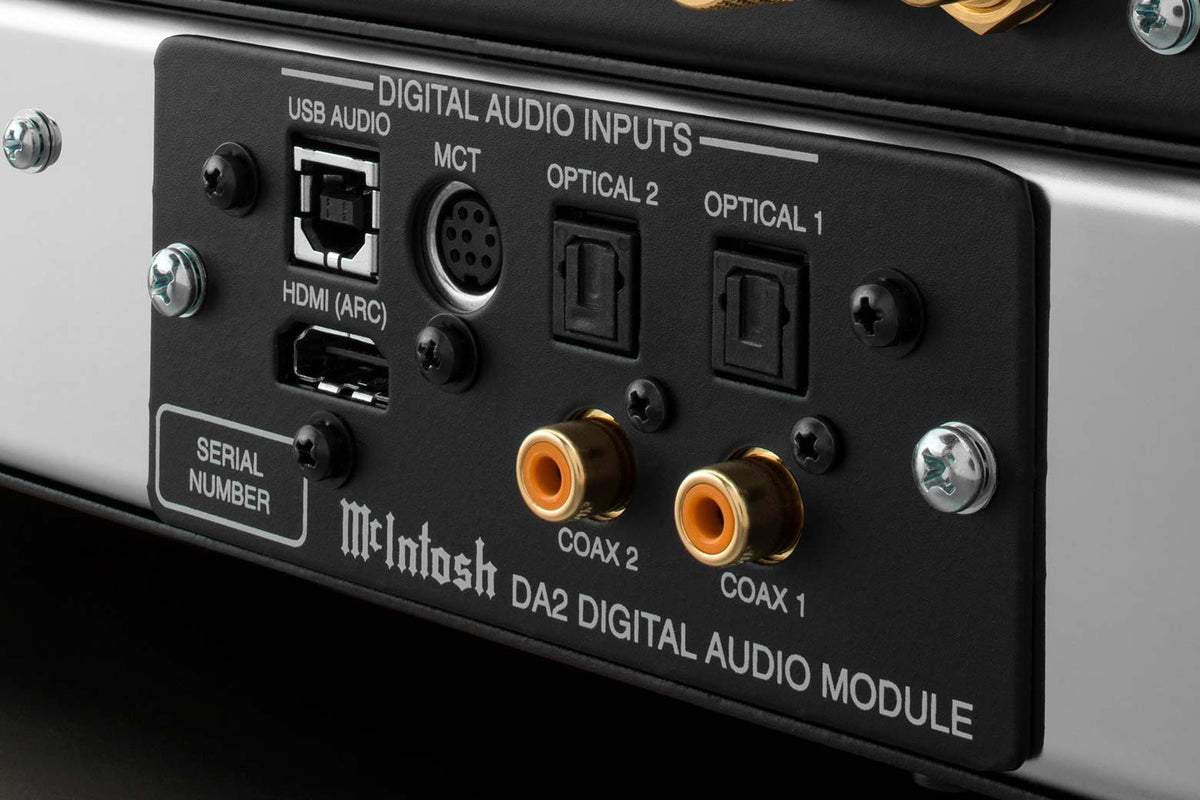

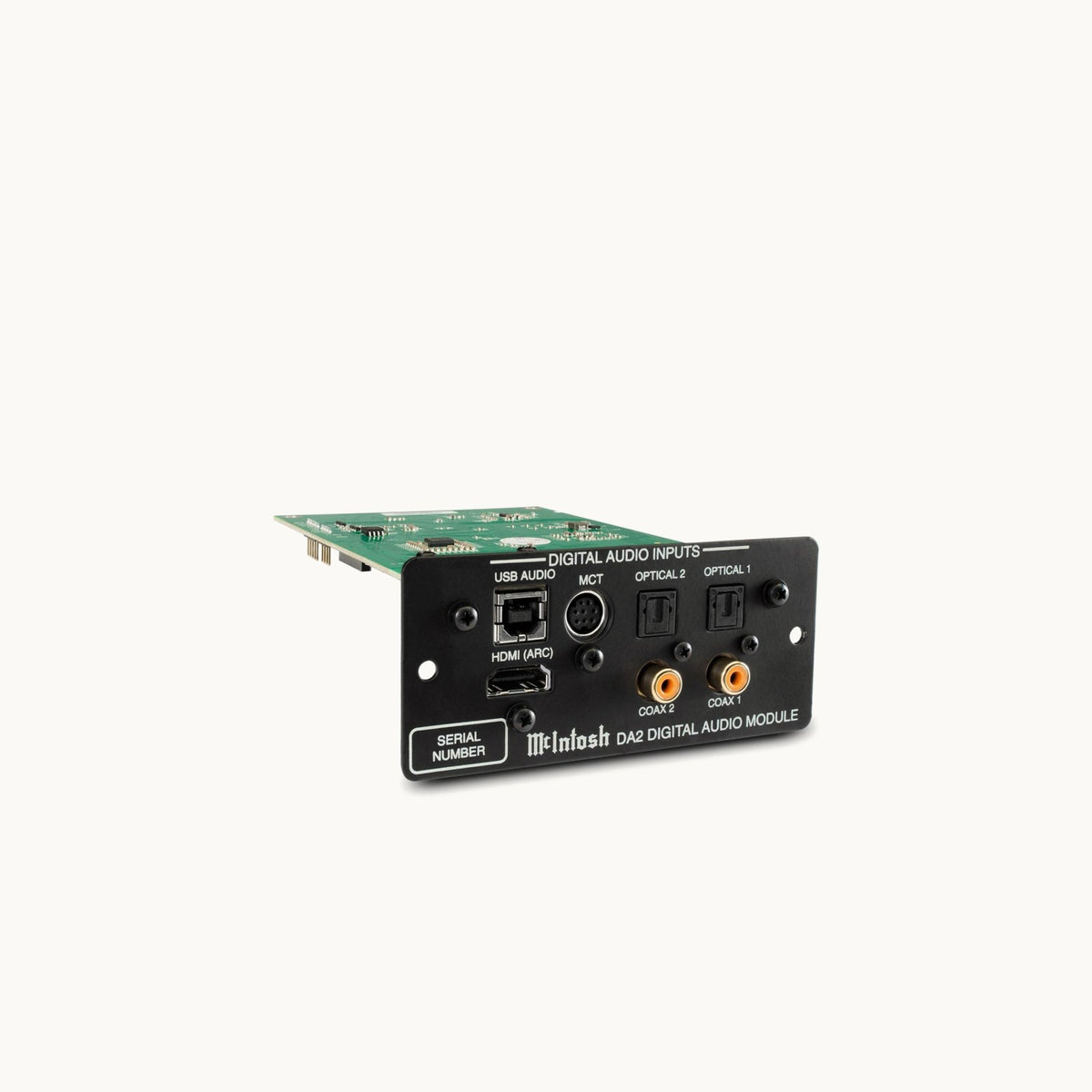

The DA2 Digital Audio Module replaces the DA1 in eligible McIntosh preamplifiers, integrated amplifiers and the MAC7200 receiver, adding an HDMI ARC input, native DSD512 and a newer Quad Balanced DAC; it must be installed by an authorized McIntosh dealer.

Dealer-installed upgrade for the MA9000, MA8900, MA7200, MA5300, MAC7200, C49 and C8. Price is for the module; ask us about installation.

7 inputs
2 coaxial, 2 optical, USB, MCT and HDMI ARC
DSD512
native over USB; DXD to 384 kHz; coaxial and optical to 24-bit/192 kHz

Authorized McIntosh Labs dealer · Delivery and installation by Pearl Audio · Trade-ins welcome

The story

McIntosh builds the digital section of its analog preamplifiers and integrated amplifiers as a plug-in module, so the component does not become obsolete when digital formats move on. The DA2 is the current module, standard in the C55, C2800, MA8950, MA9500 and MA12000 and available as an upgrade for components that shipped with the DA1. It keeps the DA1's two coaxial, two optical, USB and MCT inputs and adds an audio-only HDMI ARC input, so a television connects directly, its Dolby and DTS soundtracks are folded to two channels, and with CEC enabled the television remote controls the McIntosh component's power and volume. The converter is a newer eight-channel 32-bit DAC run in Quad Balanced mode, which McIntosh specifies with better dynamic range and lower distortion than the DA1; USB now accepts native DSD to DSD512 and DXD to 384 kHz.

The upgrade applies to the MA9000, MA8900, MA7200 and MA5300 integrated amplifiers, the MAC7200 receiver and the C49 and C8 preamplifiers, and McIntosh requires installation by an authorized dealer or service agency; damage from any other installation is excluded from the warranty. In our current catalog the C8, C49 and MA5300 can take the DA2, and we install it for our customers.

Key technologies

  • HDMI ARC with CEC. An audio-only HDMI input takes a compatible television's sound, converts multichannel Dolby and DTS to stereo, and lets the television remote control power and volume.
  • Quad Balanced 32-bit DAC. An eight-channel converter run four channels per side for improved dynamic range and distortion over the DA1, with native DSD512 and DXD 384 kHz over USB and 24-bit/192 kHz on coaxial and optical.
Specifications
Type Digital Audio Module upgrade kit, dealer installed
Digital inputs 2 coaxial, 2 optical, 1 USB, 1 MCT, 1 HDMI (ARC, audio only)
Converter 8-channel, 32-bit, Quad Balanced
Sample rates USB: native DSD to DSD512, DXD to 384 kHz. Coaxial and optical: to 24-bit/192 kHz. MCT: DSD from a McIntosh transport
Eligible components MA9000, MA8900, MA7200, MA5300, MAC7200, C49, C8
Installation Authorized McIntosh dealer or service agency only
Warranty 3-year limited (McIntosh USA)

McIntosh DA2 product page and specifications · Owner's manual (PDF) · Brochure (PDF)

Where it sits in the range

McIntosh's specialty products and upgrades, cheapest to dearest.

  • McIntosh DA2 (this model): dealer-installed digital module upgrade for DA1 components, $1,500
  • McIntosh LB200: enclosure that hides a streamer or cable box behind a McIntosh glass front, $1,700
  • McIntosh Clock: mantel or rack clock with two blue McIntosh meters, $2,000

In our current catalog the C8, C49 and MA5300 can take the DA2.

McIntosh purchases are completed in store or by phone or email after a consultation, with pickup at Pearl Audio or delivery and installation within the Portland, Oregon area. McIntosh products are not available for carrier shipment.

Plan your McIntosh system with Pearl Audio

Pearl Audio is an authorized McIntosh dealer. We confirm your component's eligibility, order the module and install it for you. Call (503) 222-2599 or email sales@pearlaudio.com.

Signature technologies

The engineering behind the McIntosh DA2 Digital Audio Module Upgrade Kit

McIntosh gives its technologies names because each one solves a specific problem. Here is what each does, where it came from, why it matters in a system, and what you may hear.

Signature technologySince 2017

DA2 Digital Audio Module

The digital section of a McIntosh preamplifier or integrated amplifier lives on a replaceable module, so the analog component you buy can keep pace with digital formats; the current DA2 carries an eight-channel, 32-bit Quad Balanced DAC with DSD512 and HDMI ARC. Read the deep diveClose
A McIntosh preamplifier display reporting a 192 kHz HDMI ARC signal through its DA2 digital module
A McIntosh preamplifier display reporting a 192 kHz HDMI ARC signal through its DA2 digital module

What it does

Digital audio changes faster than a well-built analog amplifier wears out. McIntosh's answer, introduced as the DA1 in 2017, was to put all of a component's digital inputs and its converter on one module that a dealer can replace. The DA2 of 2019 is the second generation: two coaxial and two optical inputs at 24-bit/192 kHz, a USB input for 32-bit/384 kHz PCM, DSD up to DSD512 and DXD, an MCT input for McIntosh SACD/CD transports, and an audio-only HDMI ARC input that lets a television's remote control the volume. At its heart is an eight-channel, 32-bit converter run in Quad Balanced mode, with better dynamic range and lower distortion than the DA1.

Why it matters in a system

A McIntosh C55 or MA9500 is a thirty-year component. The module means its digital section does not have to be. Owners of DA1-equipped components (C49, MA5300 and others) can have the DA2 fitted by an authorized dealer rather than replacing the whole unit, and the next module will slot in the same way. The HDMI ARC input also folds the television into a two-channel system without a separate processor, which is how most people actually use a serious stereo today.

What you may hear

Files and streams at their full resolution through the same analog stage as your records, television sound through the main loudspeakers with the familiar remote, and a component that still sounds current years after purchase.

All McIntosh technologies and the company story

The McIntosh story

Seventy-seven years of American engineering you can see working: the Unity Coupled transformer, the Autoformer, the blue meter and the glass panel, still made in Binghamton.

Founded 1949 in Silver Spring, Maryland (in Binghamton, New York since 1951) by Frank H. McIntosh and Gordon J. Gow · mcintoshlabs.com

Milestones

  1. 1949 Founded on the Unity Coupled Circuit Frank H. McIntosh and Gordon Gow found McIntosh in Silver Spring, Maryland. U.S. Patent 2,477,074 covers the Unity Coupled Circuit; the 50W-1 is the first product, the AE2 preamplifier follows in 1950.
  2. 1951 Binghamton, New York The company moves to the second floor of 320 Water Street in Binghamton; Sidney Corderman joins as head of research, engineering and development and stays forty years. The factory at 2 Chambers Street, built in eight months in 1956, is still home.
  3. 1954 MC30, MC60 and the chrome chassis The MC30 and MC60 establish the chrome chassis as a McIntosh design element; the C8 preamplifier shows that industrial design matters; the MR55 of 1957 is the first McIntosh tuner.
  4. 1961 MC275 The MC275 stereo tube amplifier arrives with the MC225 and MC240. Discontinued in 1971, it returns in 1993 and has been in production since; today in its sixth generation.McIntosh MC275 Power Amplifier
  5. 1963 C22 and the illuminated glass panel The C22 tube preamplifier (1963-1972) pairs with the MC275. Through the 1960s McIntosh develops the back-printed glass front panel: gold lettering by day, teal by night.McIntosh C22 Preamplifier Mk V
  6. 1967 Solid state, with Autoformers The MC2505 and MC2105 are McIntosh's first transistor amplifiers: output Autoformers, Sentry Monitor protection, illuminated output meters and an all-glass front panel, the template for every McIntosh amplifier since.McIntosh MC462 Power Amplifier
  7. 1969 Woodstock McIntosh amplifiers, by most accounts about twenty MC3500 tube monoblocks, power the Woodstock festival.
  8. 1974 The Wall of Sound On March 23 the Grateful Dead unveil the Wall of Sound at the Cow Palace: 48 McIntosh MC2300 amplifiers, 28,800 watts. The MR78 FM tuner of 1972 belongs to the same years.
  9. 1977 Power Guard The MC2205 is the first amplifier with Power Guard, the anti-clipping comparator carried by every McIntosh amplifier since. Frank McIntosh retires; Gordon Gow becomes president.
  10. 1980 XRT20 line array and MC2500 The XRT20 brings line-array loudspeakers into the home and the MC2500 (1980-1990) becomes the big stereo amplifier of the decade; the MCD7000 is the first McIntosh CD player.McIntosh XRT2.1K Floorstanding Loudspeaker
  11. 1993 Gordon Gow Commemorative MC275 After Gow's death in 1989 and the 1990 sale to Clarion, the MC275 returns as a commemorative edition and never leaves the line again.
  12. 1999 50 years: the MC2000 Sidney Corderman comes out of retirement to design the MC2000, a limited-edition vacuum-tube amplifier for the company's fiftieth anniversary.
  13. 2000 Quad Balanced and a new president The MC1201 monoblock introduces the Quad Balanced architecture behind today's MC1.25KW, MC611 and MC462. In 2001 Charlie Randall, an engineer with the company since 1988, becomes president and CEO.McIntosh MC1.25KW Power Amplifier
  14. 2007 MT10 turntable Two years after the Reference System of 2005, McIntosh introduces its first turntable, the MT10, with an illuminated speed meter and McIntosh green platter.McIntosh MT10 Precision Turntable
  15. 2017 Hybrid Drive and the digital module The MA252 is the first McIntosh hybrid integrated amplifier; the DA1 Digital Audio Module makes the digital section replaceable. Frank McIntosh and Gordon Gow enter the Consumer Technology Hall of Fame.McIntosh MA252 Integrated Amplifier
  16. 2019 70th anniversary The MC2152 amplifier and C70 preamplifier mark 70 years; the MC901 puts a tube and a solid-state amplifier on one chassis; the DA2 module arrives. The MC1502 and C22 Mk V carry the anniversary designs forward.
  17. 2024 75 years, and Bose McIntosh marks its 75th anniversary. In November, Highlander Partners (owner since 2022) sells McIntosh Group, parent of McIntosh and Sonus faber, to Bose Corporation. Manufacturing stays in Binghamton.
  18. 2026 MA2375 In June the MA2375 becomes the first McIntosh vacuum-tube integrated amplifier in more than a decade: Unity Coupled transformers, Sentry Monitor and Power Guard SGS in one 75-watt chassis.McIntosh MA2375 Vacuum Tube Integrated Amplifier
  19. Now McIntosh DA2 Digital Audio Module Upgrade Kit The DA2 upgrade kit replaces the DA1 module in the C49, MA5300, MA7200, MA8900, MA9000 and MAC7200, adding DSD512 and HDMI ARC; installation is by an authorized McIntosh dealer such as Pearl Audio.
Read the McIntosh story
McIntosh MC275 vacuum tube amplifier, low angle

McIntosh Laboratory was founded in 1949 in Silver Spring, Maryland, by Frank H. McIntosh, a radio engineer who had run a Washington consulting practice, and Gordon J. Gow, the young engineer he had hired in 1946 to help build an amplifier that did not yet exist: one that could deliver real power across the whole audible band with distortion below one percent. Their answer was the Unity Coupled Circuit, patented in 1949 as U.S. Patent 2,477,074, which wound the output transformer into the operating circuit of the tubes with paired plate and cathode windings. The 50W-1 amplifier that carried it was the company's first product, and the AE2 of 1950 its first preamplifier. In 1951 the company moved to the second floor of a building in Binghamton, New York, where Sidney Corderman joined as head of research, engineering and development; the factory McIntosh still occupies at 2 Chambers Street opened in 1956.

The 1950s and 1960s made the McIntosh look. The MC30 and MC60 of 1954 and 1955 established the chrome chassis, the C8 preamplifier showed that industrial design mattered, and the MR55 of 1957 was the first McIntosh tuner. Through the 1960s the company developed the front panel it is known for: a sheet of glass, screen-printed from the back in an ink McIntosh made itself, so the lettering reads gold under room light and glows teal in the dark and never wears off. The stereo tube amplifiers of the decade, the MC225, MC240 and MC275 of 1961, with the C22 preamplifier of 1963, are the designs collectors chase today; the MC275 has been back in production since 1993 and the C22 is in its fifth version. Dave O'Brien spent those years on the road running the McIntosh Performance Clinics, bench-testing customers' amplifiers of every make in dealers' stores, a tradition of measured proof that the company has never given up.

McIntosh's history runs through the music of the period. In 1969 McIntosh amplifiers, by most accounts about twenty MC3500 tube monoblocks, powered Woodstock. On March 23, 1974, the Grateful Dead unveiled the Wall of Sound at the Cow Palace with 48 McIntosh MC2300 solid-state amplifiers delivering 28,800 watts. The MC2300 belonged to the transistor generation McIntosh had begun in 1967 with the MC2505 and MC2105, the first solid-state amplifiers to keep output transformers, which McIntosh called Autoformers, so that the amplifier delivered full power into any loudspeaker impedance; the same amplifiers introduced Sentry Monitor protection, the illuminated output meters and the all-glass front panel. The MC2205 of the late 1970s added Power Guard, the anti-clipping circuit that has been on every McIntosh amplifier since. Frank McIntosh retired in 1977 and Gordon Gow became president; the XRT20 of 1980 brought line-array loudspeakers into the home, and the MCD7000 was the company's first CD player.

Gow died in 1989 and the company was sold to Clarion of Japan in 1990, the year Frank McIntosh also died; the MC275 returned in 1993 as the Gordon Gow Commemorative edition. D&M Holdings bought McIntosh in 2003; Fine Sounds of Milan, parent of Sonus faber and Audio Research, bought it in 2012; a management buyout in 2014 led to the group's renaming as McIntosh Group and its move to New York; Highlander Partners acquired the group in June 2022 and sold it to Bose Corporation in November 2024. Through all of it the company stayed in Binghamton, and since 2001 it has been led by Charlie Randall, an electrical engineer who joined in 1988 and rose through engineering to president. The MC1201 of 2000 brought the Quad Balanced architecture that defines today's big amplifiers; the Reference System of 2005, the MT10 turntable of 2007, the first hybrid integrated amplifier (the MA252 of 2017), the replaceable DA1 and DA2 digital modules, and the 70th-anniversary MC2152 and C70 of 2019 mark the modern era. Frank McIntosh and Gordon Gow were inducted into the Consumer Technology Hall of Fame in 2017.

The McIntosh of 2026 still winds its transformers by hand at 2 Chambers Street, still prints its glass panels in the building, and still tests every component on the bench before it ships. The MA2375 of June 2026, the first McIntosh vacuum-tube integrated amplifier in more than a decade, carries the Unity Coupled transformers of 1949, the Sentry Monitor of 1967 and a tube form of the Power Guard of 1977 in one chassis, which is as good a summary of the company as any. Pearl Audio holds the largest McIntosh inventory in Oregon.

The complete McIntosh story and technology library

McIntosh at Pearl Audio

Pearl Audio has represented McIntosh since 2005, the year the store was founded, and is the longest-running McIntosh dealer in the Northwest. McIntosh has designated Pearl a Platinum dealer, its mark for its largest showrooms, since our second year with the brand. Two decades on, McIntosh remains the brand we commit to most deeply: we hold the largest McIntosh inventory in Oregon, keep the core of the range on the floor in Portland, and our staff are McIntosh factory trained. McIntosh components are sold for in-store pickup or for local delivery and installation in the Portland area; we do not ship them by carrier.

The Pearl Audio experience

How we work with you

A system at this level should be heard, thoughtfully matched, and properly set up. From the first audition to long-term ownership, you work with the same people, in person.

  1. 01

    Listen first

    The DA2 Digital Audio Module Upgrade Kit is not in our rooms at present. When it is the right piece for a client we arrange a demonstration unit from the manufacturer and set it up for a private session.

  2. 02

    Delivery and installation

    We deliver and install throughout the Portland area, taking care of placement, connections, ventilation and system configuration ourselves.

  3. 03

    Support for as long as you own it

    We support everything we sell for as long as you own it, whether the answer comes by phone, in your home, or through factory service.

  4. 04

    A path for what comes next

    Trade-in assistance and qualifying 100% Trade-Up options give you flexibility when your listening priorities or your system change.
