JL Audio · Fathom v2 Series
The most compact Fathom: a sealed 10-inch subwoofer with 1,100 watts and JL Audio's automatic room optimization, for rooms where size matters.
Price is for one subwoofer. Built in the USA.
The f110v2 brings the Fathom feature set to a cabinet under 16 inches tall. A proprietary 10-inch JL Audio driver is driven by a 1,100-watt switching amplifier with a large toroidal transformer, and an onboard DSP runs D.A.R.O., JL's 18-band Digital Automatic Room Optimization, set up with the included calibration microphone. Front-mounted controls add E.L.F. trim for the deepest bass, 12 or 24 dB/octave low-pass filtering, and continuous phase.
Room correction is what separates a Fathom from the E-Sub and Dominion models: it tames the peaks most rooms produce at the listening seat, so bass sounds even rather than boomy. Reviewers found the f110v2 packs a real punch for its size, though it can't match the larger Fathoms for extension and output; it reaches 25 Hz at −3 dB. It suits small and medium rooms, and two can be linked by XLR as master and slave.

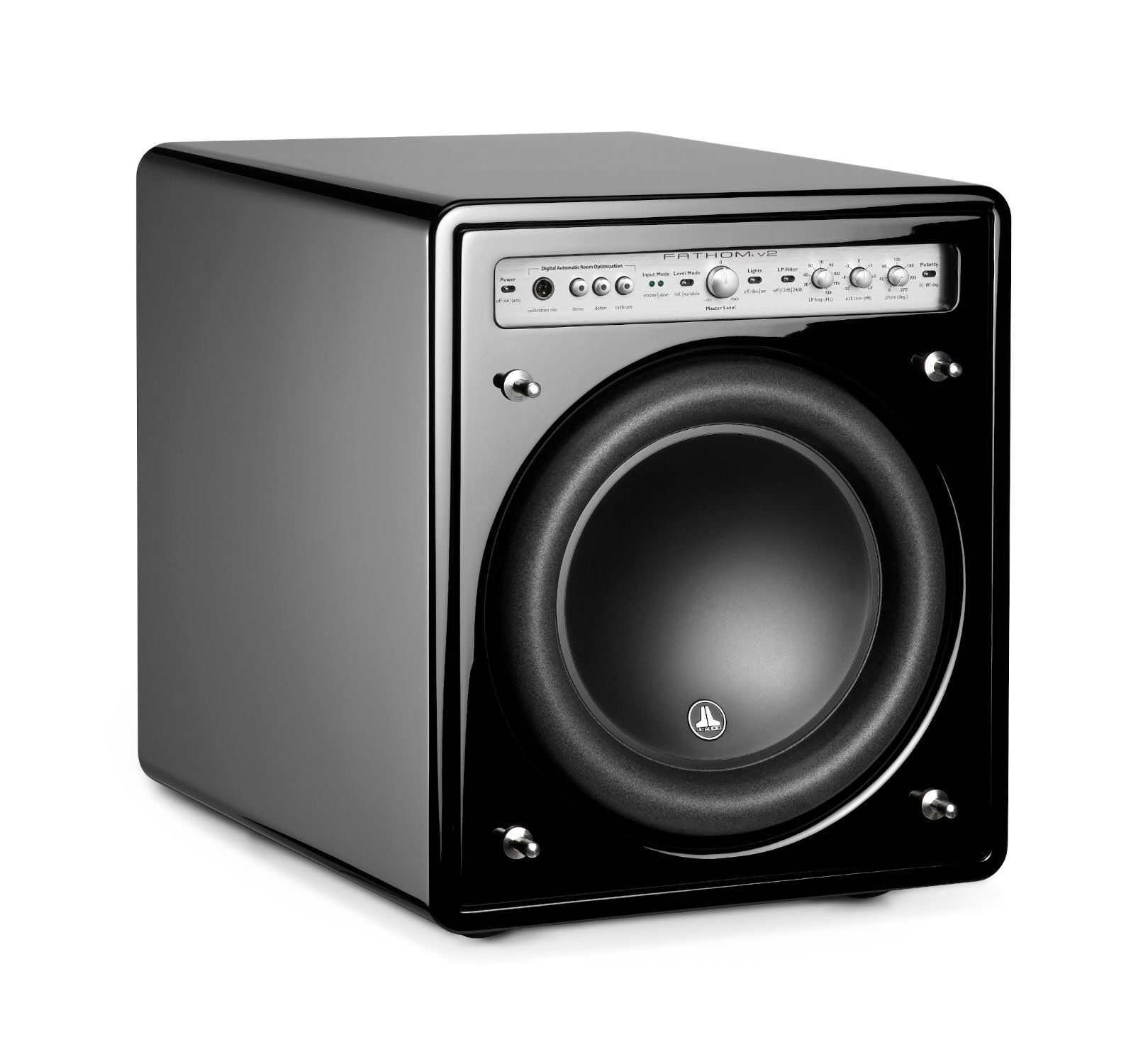

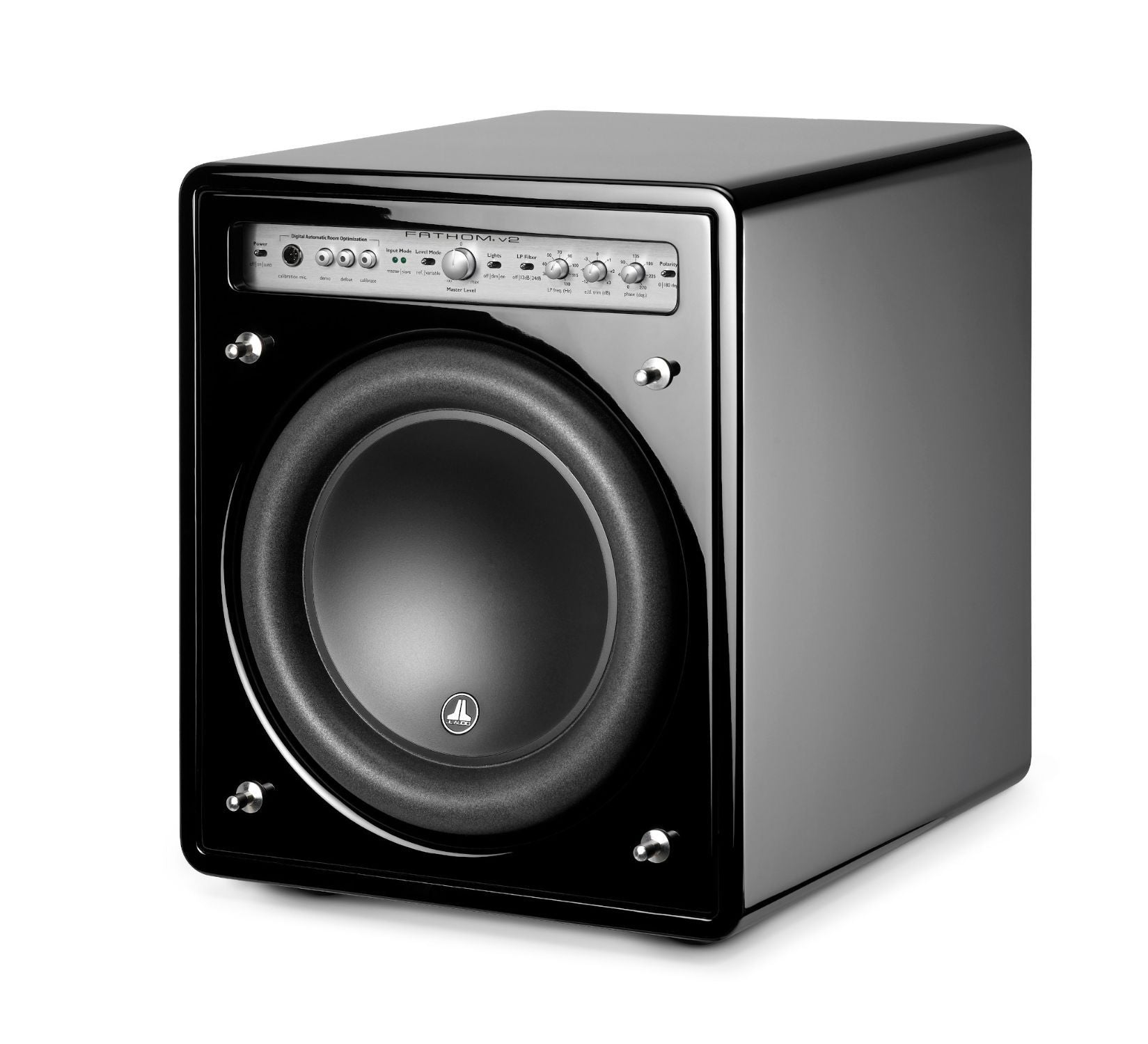

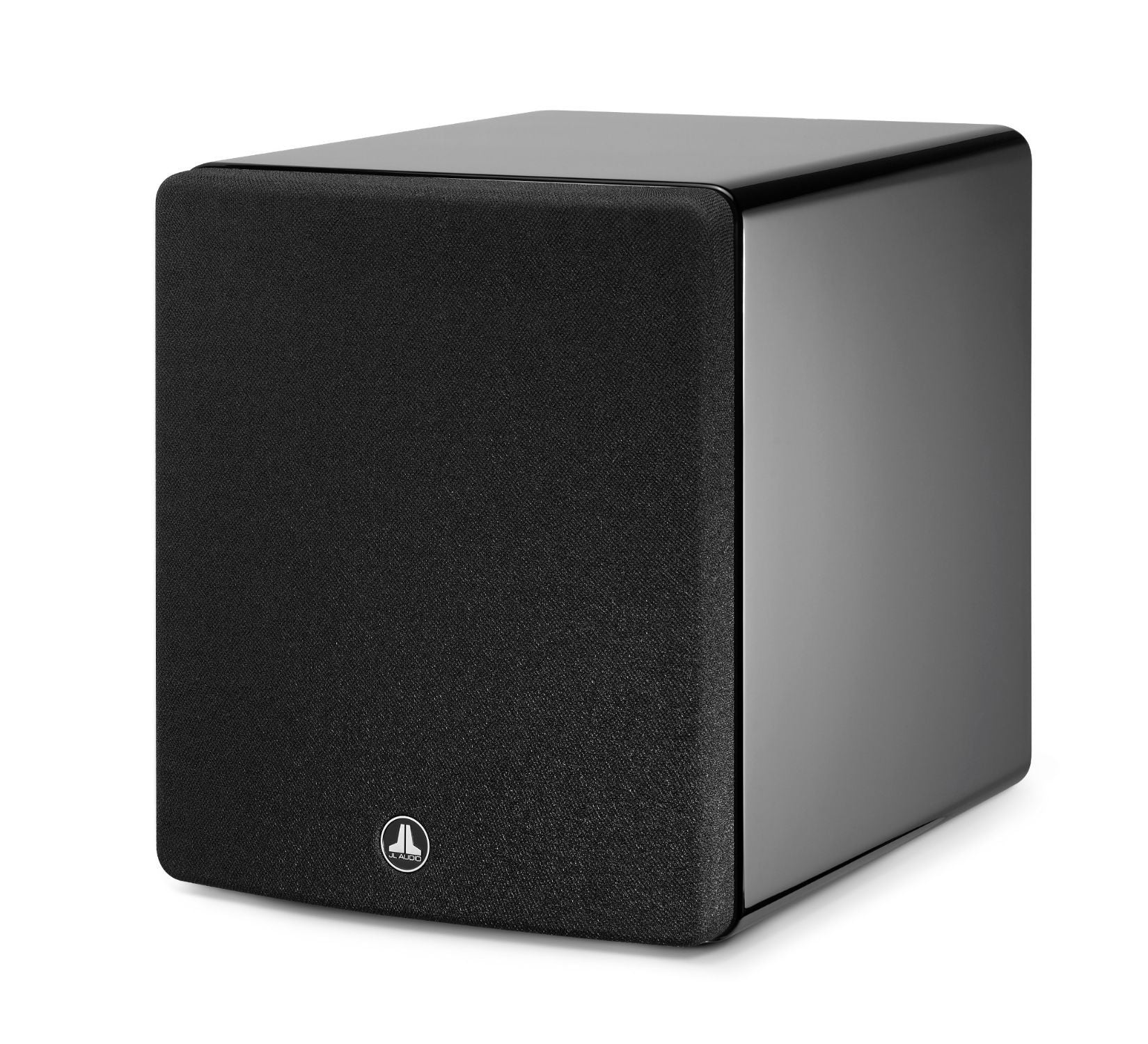

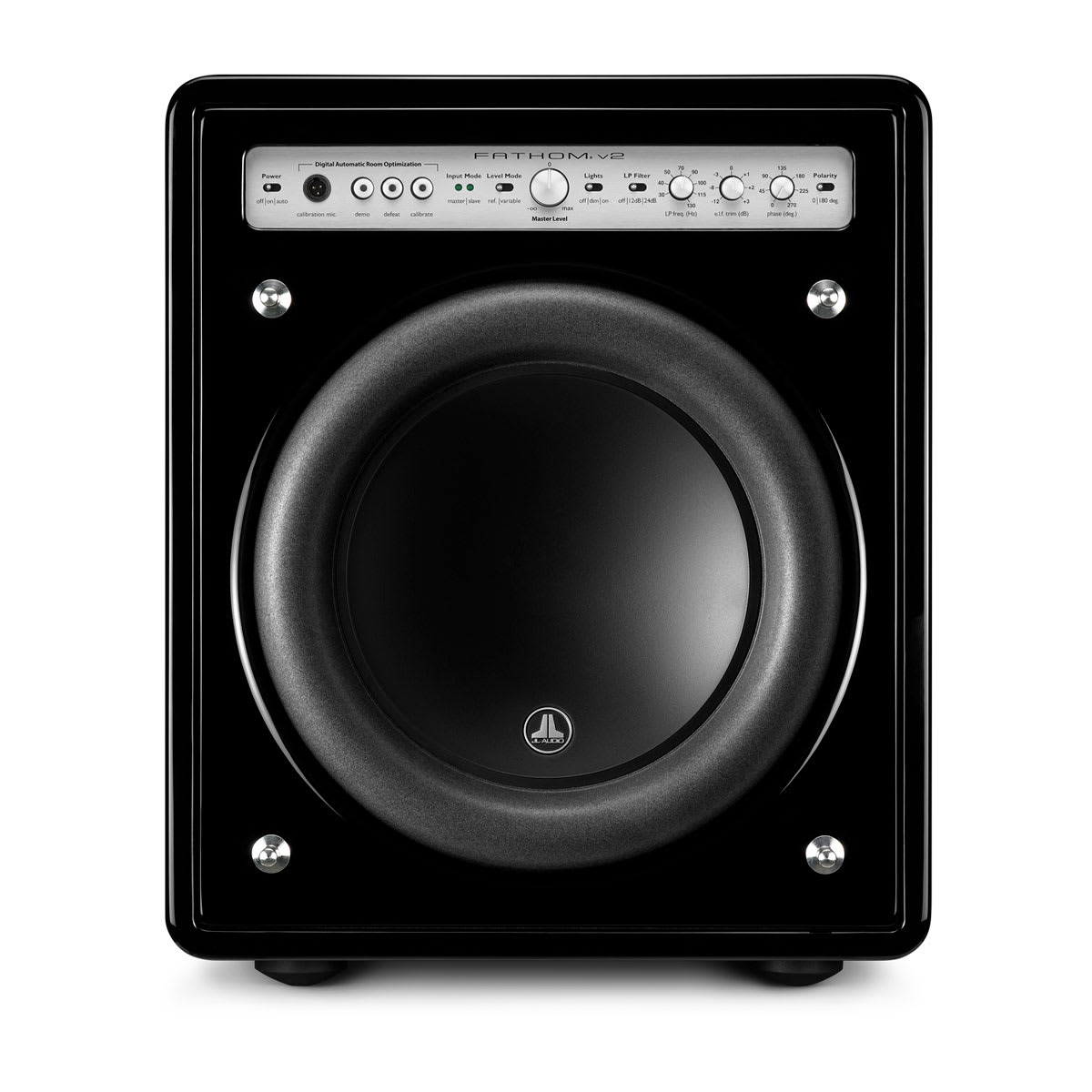

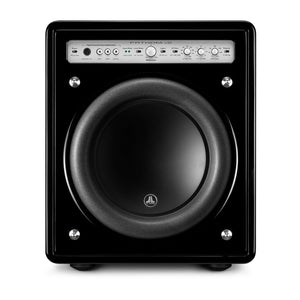

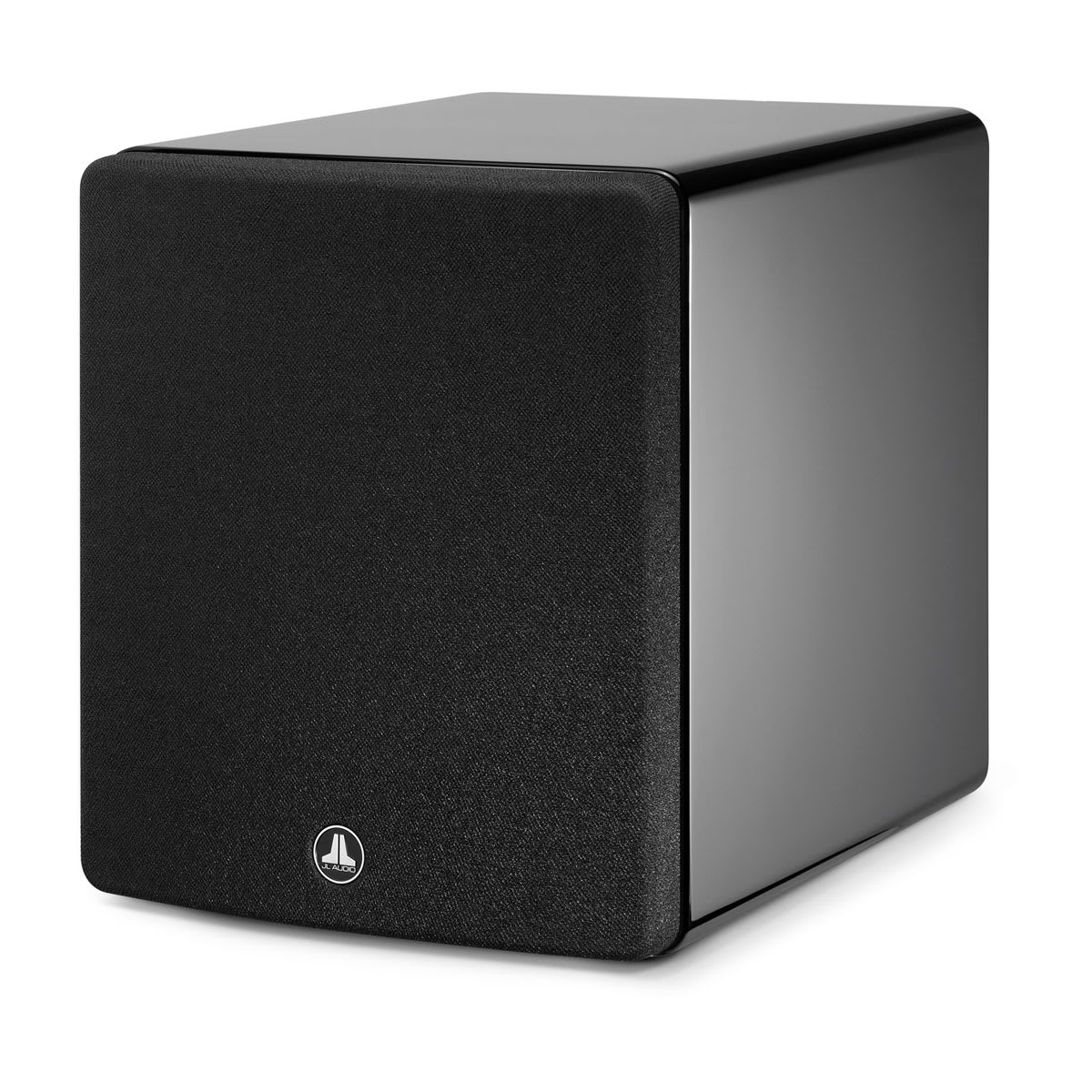

Supplied with a grille. Photos show the Gloss Black finish.
| Type | Powered subwoofer, sealed enclosure |
| Driver | 1 × 10 in (nominal), proprietary JL Audio driver |
| Amplifier power | 1,100 W RMS short-term |
| Frequency response (anechoic) | 27 – 111 Hz (±1.5 dB) |
| −3 dB / −10 dB points | −3 dB at 25 Hz / 120 Hz; −10 dB at 19 Hz / 155 Hz |
| Effective piston area | 60 sq in (0.0387 m²) |
| Effective displacement | 160 cu in (2.6 L) |

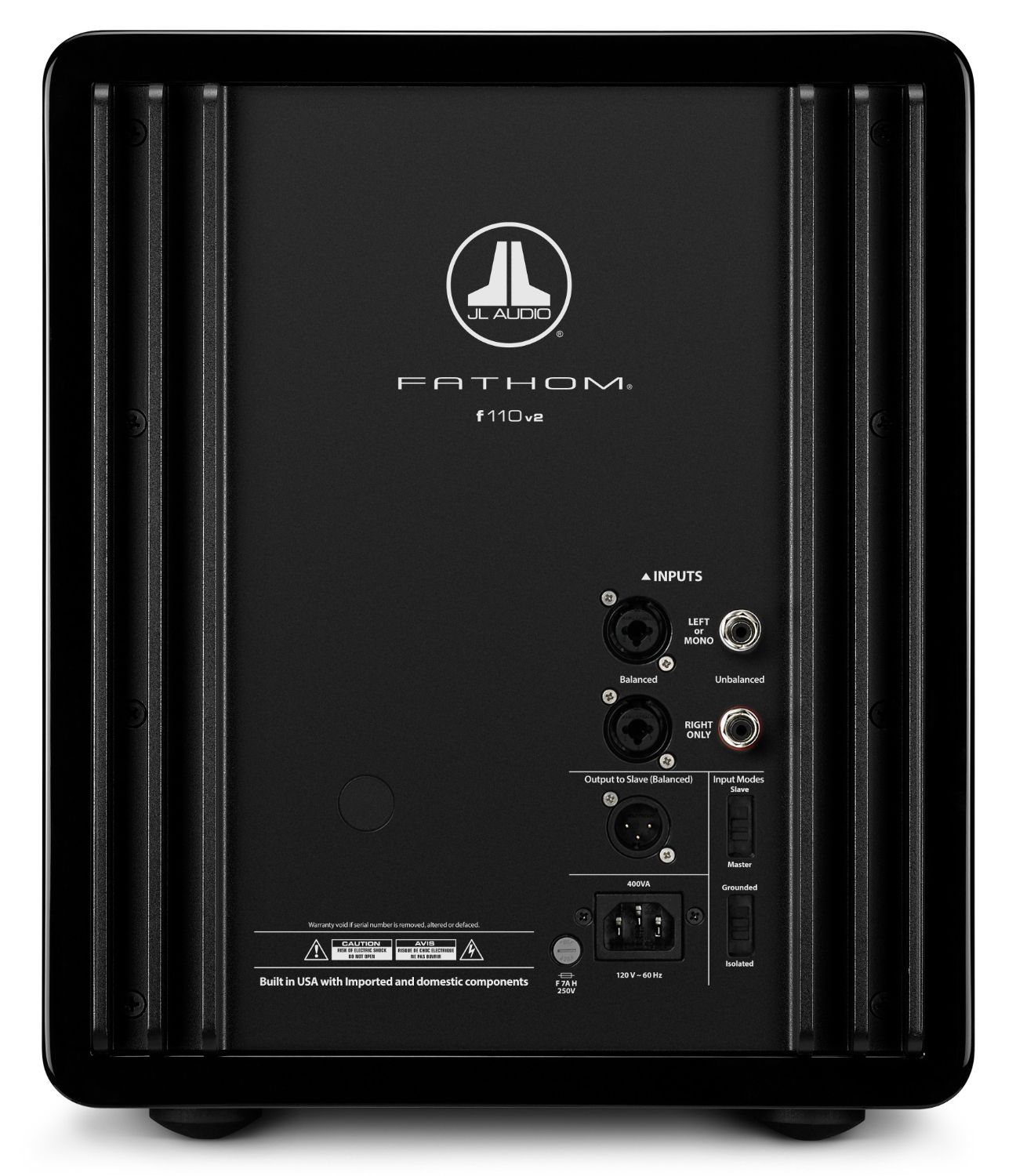

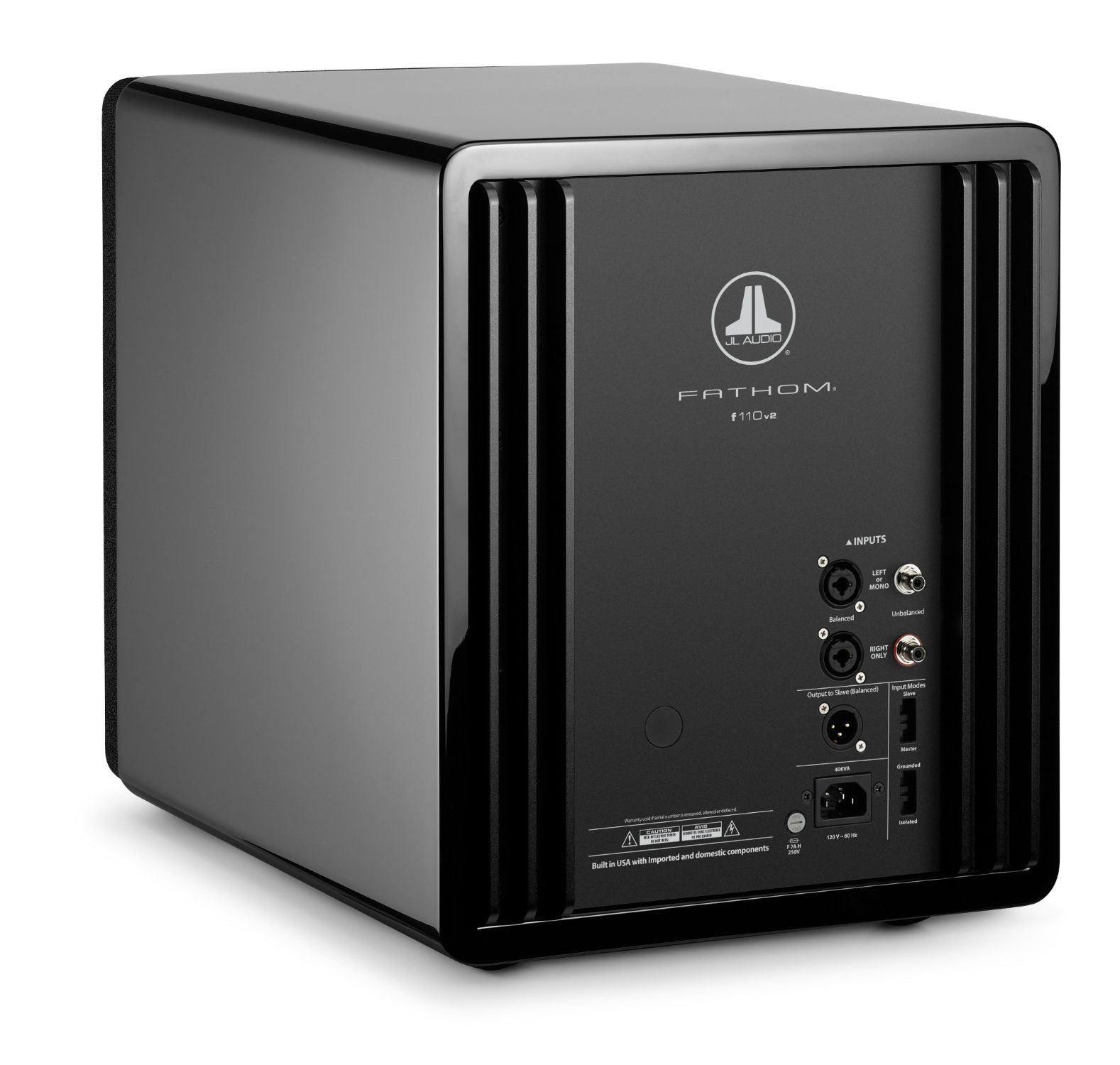

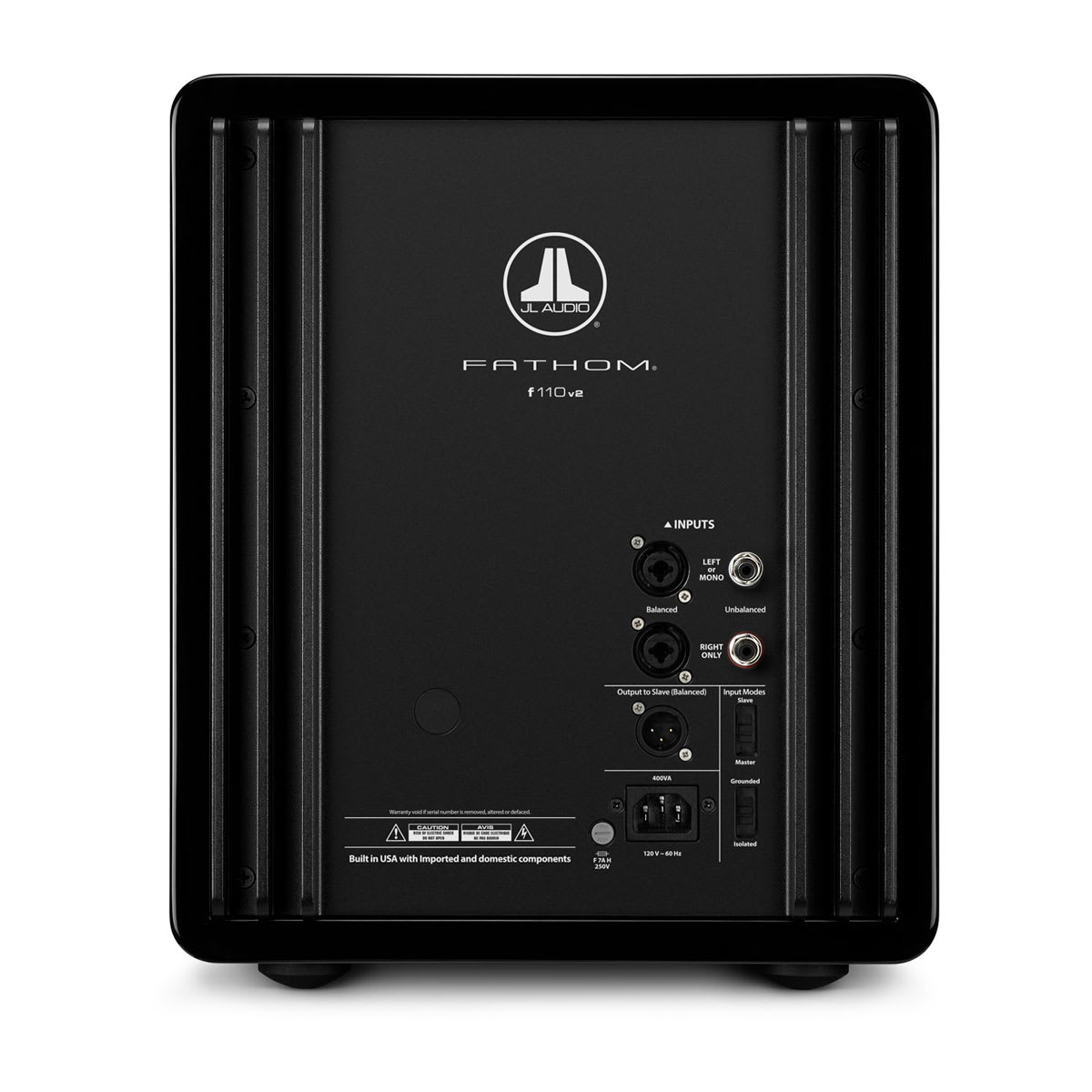

| Inputs | Stereo or mono line: 2 × RCA (unbalanced) and 2 × female XLR (balanced) |
| Outputs | Balanced output to slave: 1 × male XLR |

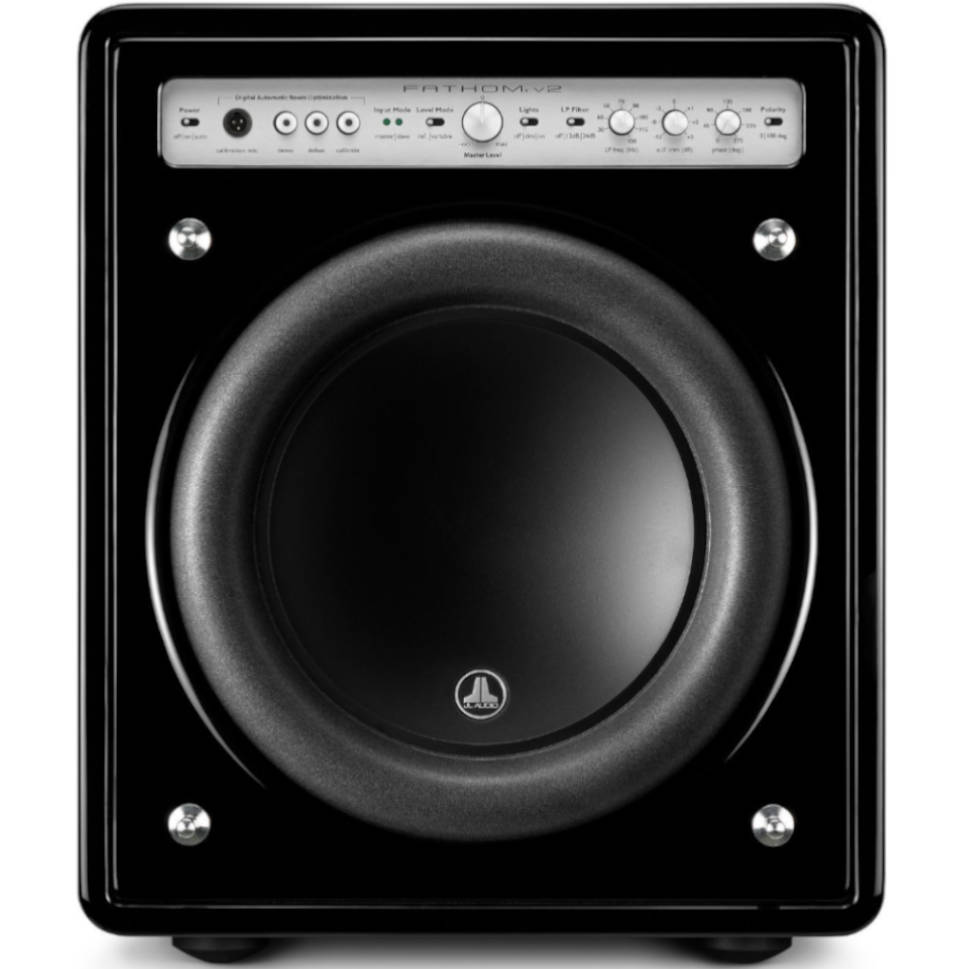

| Controls | Front-mounted. Input mode (master or slave); level (reference fixed gain, or variable from mute to +15 dB); low-pass filter (off, 12 or 24 dB/octave, 30–130 Hz); phase 0–280° (referenced to 80 Hz); polarity 0/180°; E.L.F. trim −12 to +3 dB at 25 Hz; power (off, on or auto signal-sensing); light (off, on or dim) |
| Auto room optimization | D.A.R.O. digital automatic room optimization: 18-band, with included calibration microphone, defeatable |
| Dimensions (H × W × D) | 15.64 × 12.92 × 17.27 in (397 × 328 × 439 mm); height includes feet, depth includes grille |
| Weight | 71 lb (32 kg) |
| Finishes | Gloss Black (high-gloss black) |
| Sold as | One subwoofer |
Best in small and medium rooms, or where a compact sub must hide. JL Audio's home range runs from the compact Dominion models through the E-Sub to the Fathom, which adds automatic room optimization, topped by the dual-driver Fathom f212v2.
