JL Audio · Dominion Series
JL Audio's smallest home subwoofer: a sealed 8-inch sub just over 11 inches tall that adds real low-end weight to a desktop, bookshelf or small-room system.
Price is for one subwoofer. Black Ash and Gloss Black are priced separately.
The d108 is the entry point to JL Audio's home subwoofers. A purpose-built 8-inch long-excursion driver, built on JL's DMA motor optimization, sits in a sealed cabinet just over 11 inches tall, powered by a 500-watt Class D amplifier with a tightly regulated switching power supply. Line and speaker-level inputs and a 24 dB/octave Linkwitz-Riley low-pass filter make it simple to add to almost any system.
It's built for small rooms, desktop systems and compact bookshelf speakers that need help below 50 or 60 Hz, and it reaches 29 Hz at −3 dB. The sealed box keeps bass quick and tidy rather than boomy, which matters with music. It has no built-in room correction, so placement and the phase and crossover controls do the work. For a bigger room or more output, step up to the d110 or an E-Sub.

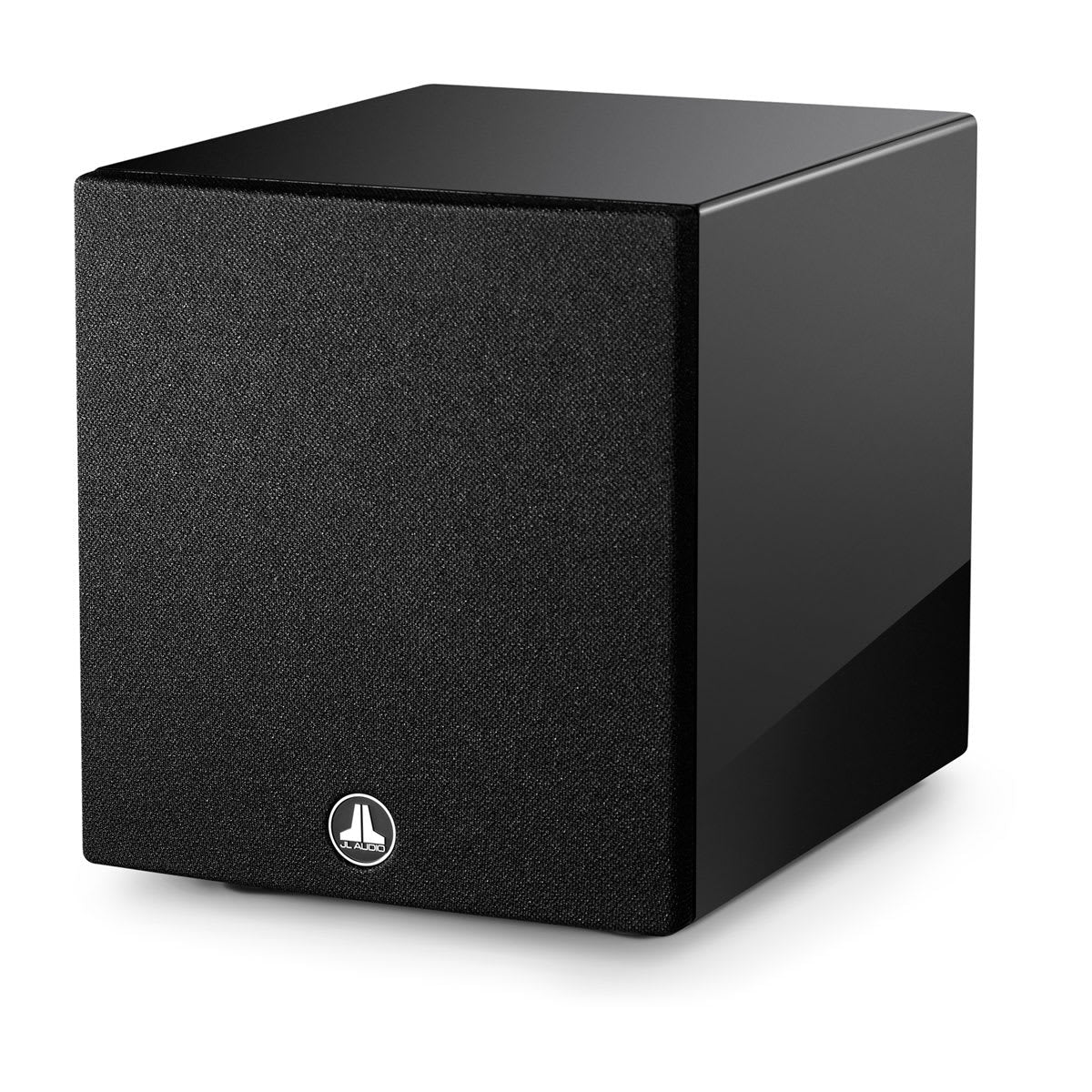

Supplied with a grille. Photos show the Black Ash finish.
| Type | Powered subwoofer, sealed enclosure |
| Driver | 1 × 8 in (nominal), long-excursion |
| Amplifier power | 500 W RMS short-term |
| Frequency response (anechoic) | 31 – 112 Hz (±1.5 dB) |
| −3 dB / −10 dB points | −3 dB at 29 Hz / 119 Hz; −10 dB at 21 Hz / 143 Hz |
| Effective piston area | 32.18 sq in (0.0208 m²) |
| Effective displacement | 80 cu in (1.3 L) |
| Inputs | Stereo or mono line: 2 × RCA (20 kΩ); stereo or mono speaker-level: removable plug (4.4 kΩ); input grounding selectable (isolated or grounded) |

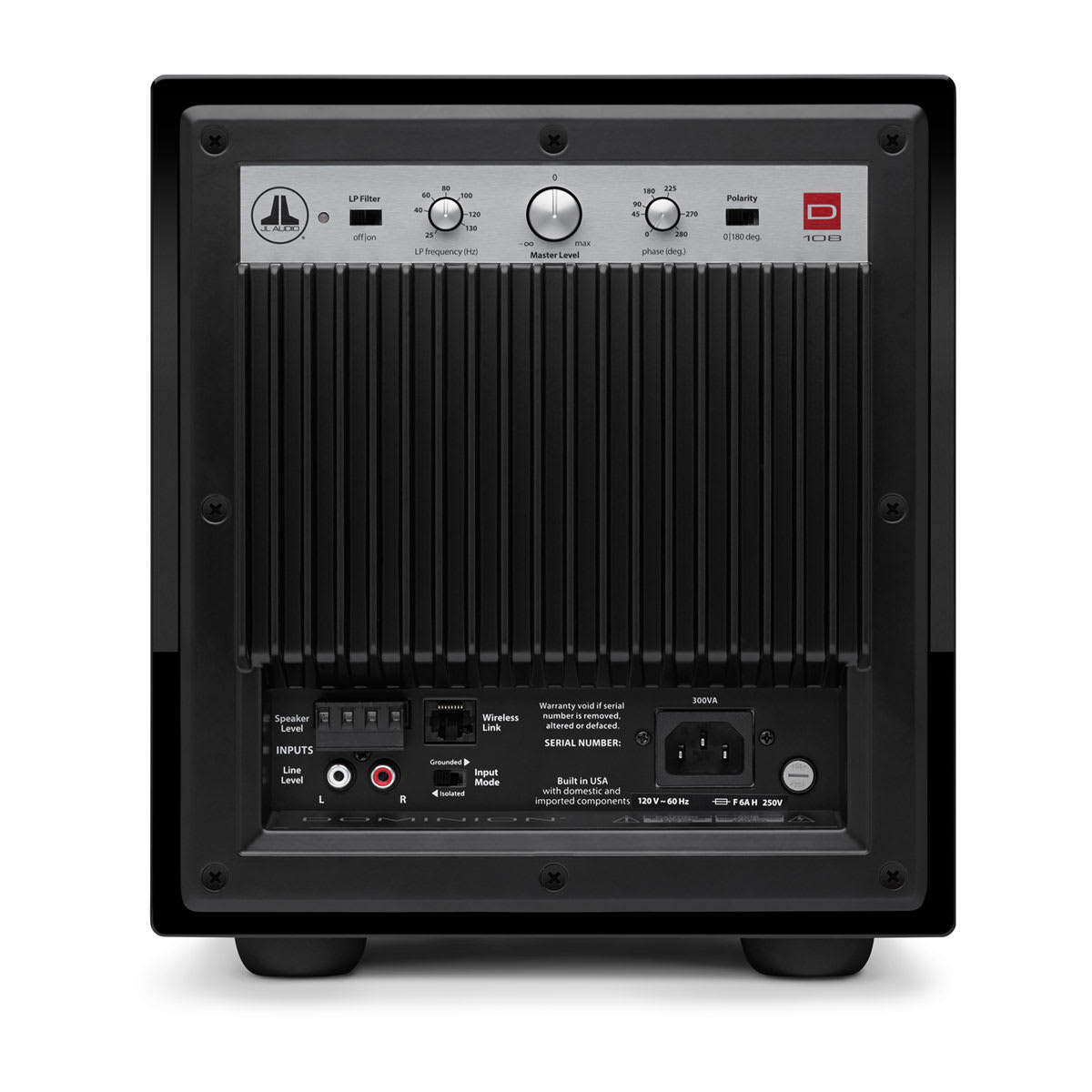

| Controls | Level (mute to +15 dB over reference gain); low-pass 25–130 Hz, 24 dB/octave Linkwitz-Riley; phase 0–280° (referenced to 80 Hz); polarity 0/180°; power on/off by automatic signal-sensing only |
| Auto room optimization | None built in. Set up with the phase, polarity and crossover controls, or your processor's room correction. |
| Dimensions (H × W × D) | 11.37 × 10.00 × 13.23 in (289 × 254 × 336 mm); height includes feet, depth includes grille |
| Weight | 26.4 lb (12 kg) |
| Finishes | Black Ash (black ash vinyl veneer), Gloss Black (high-gloss black) |
| Sold as | One subwoofer |
Best in small rooms, desktop and bookshelf systems. JL Audio's home range runs from the compact Dominion models through the E-Sub to the Fathom, which adds automatic room optimization, topped by the dual-driver Fathom f212v2.
