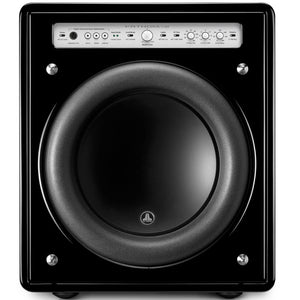

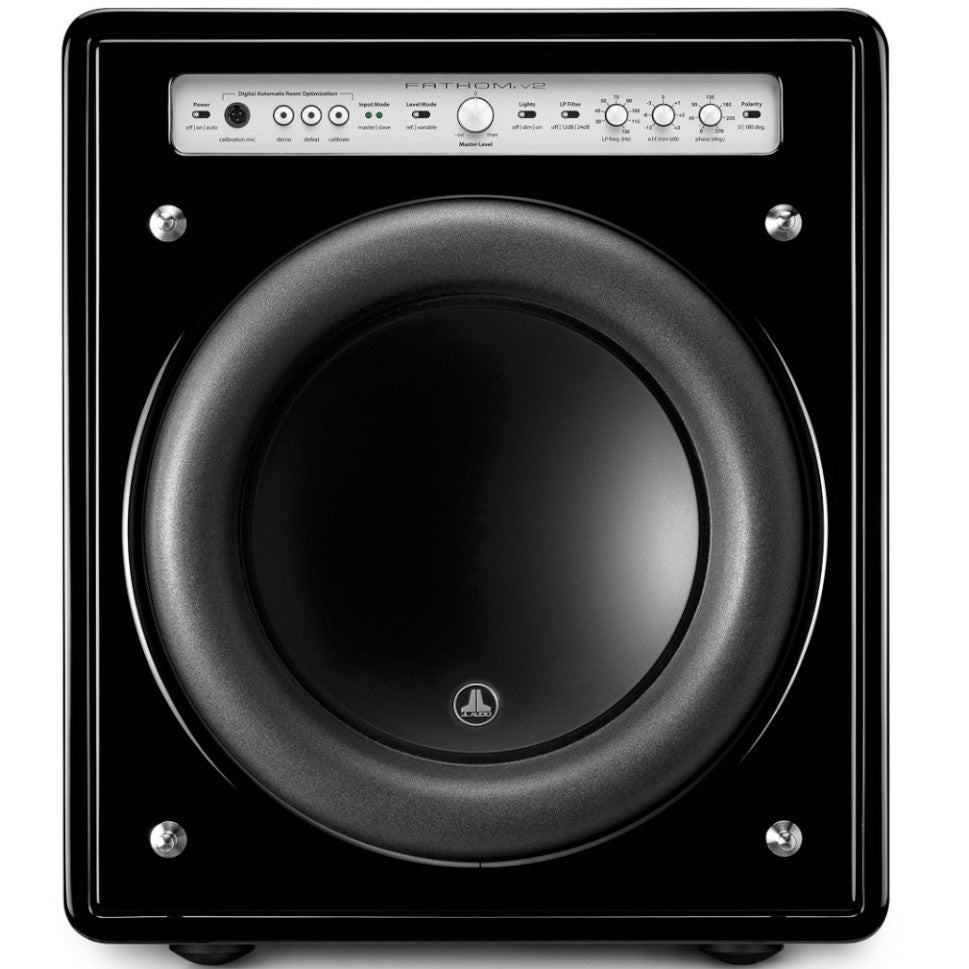

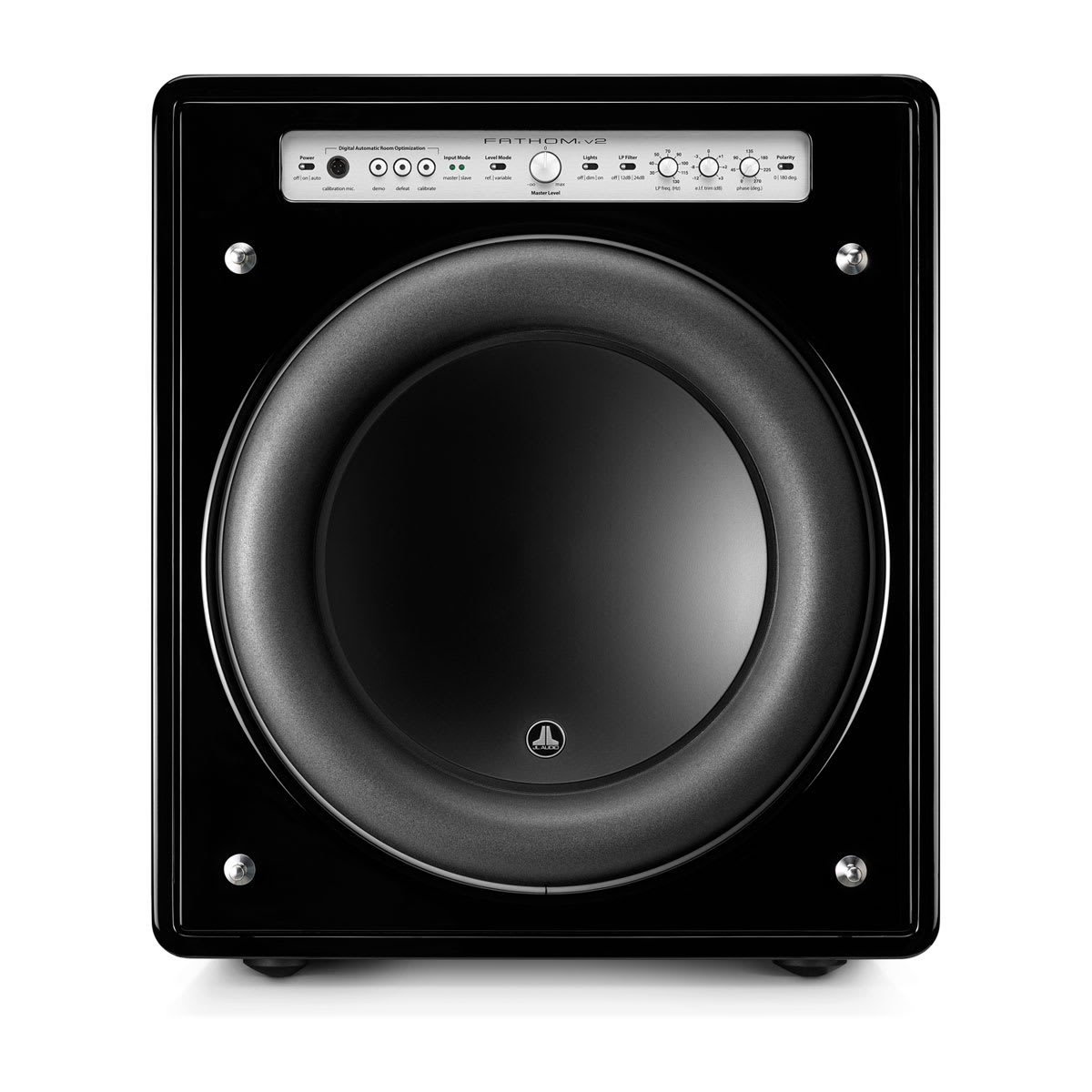

JL Audio Fathom f113v2 in Gloss Black, front without grille

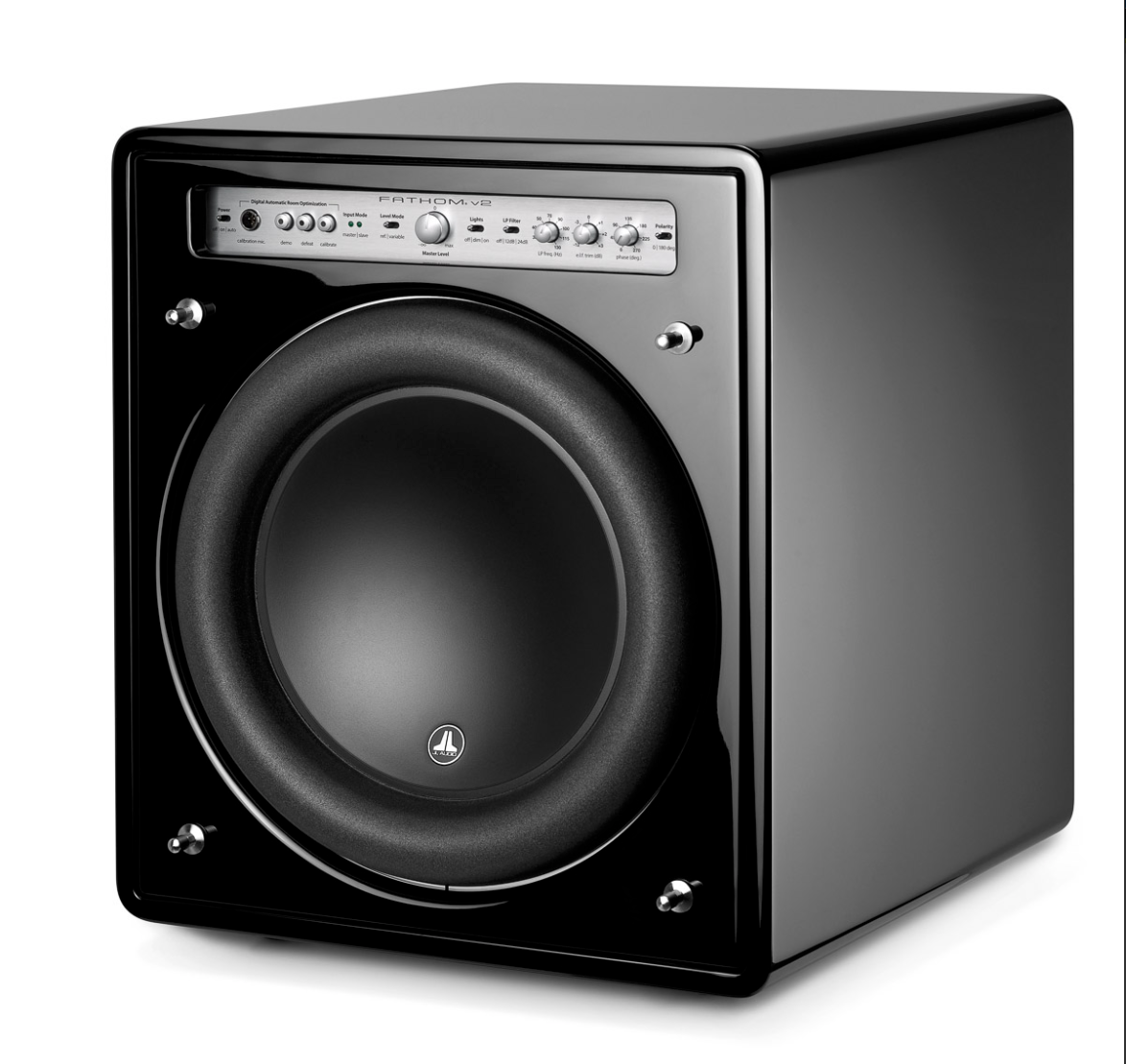

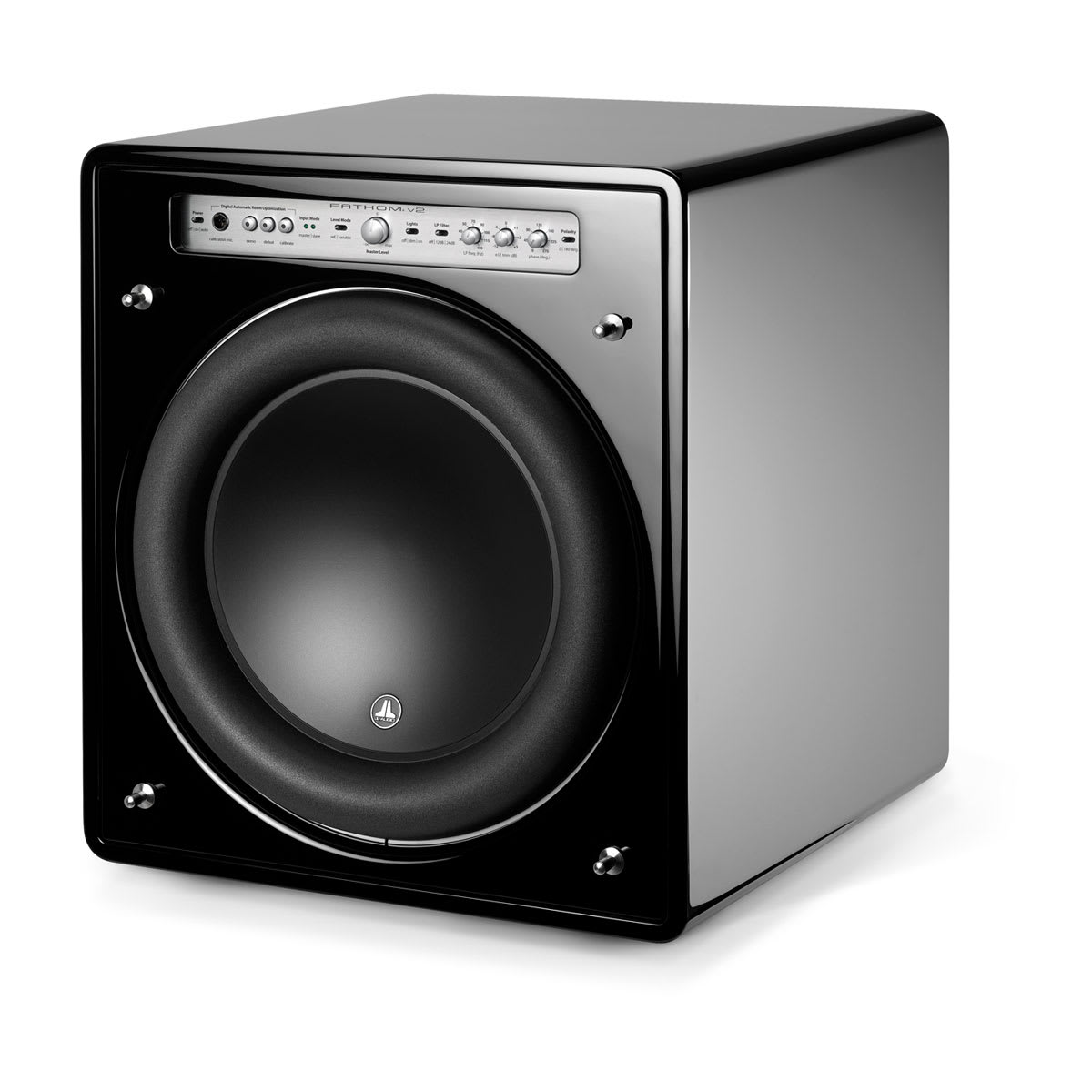

JL Audio Fathom f113v2 in Gloss Black, angle without grille

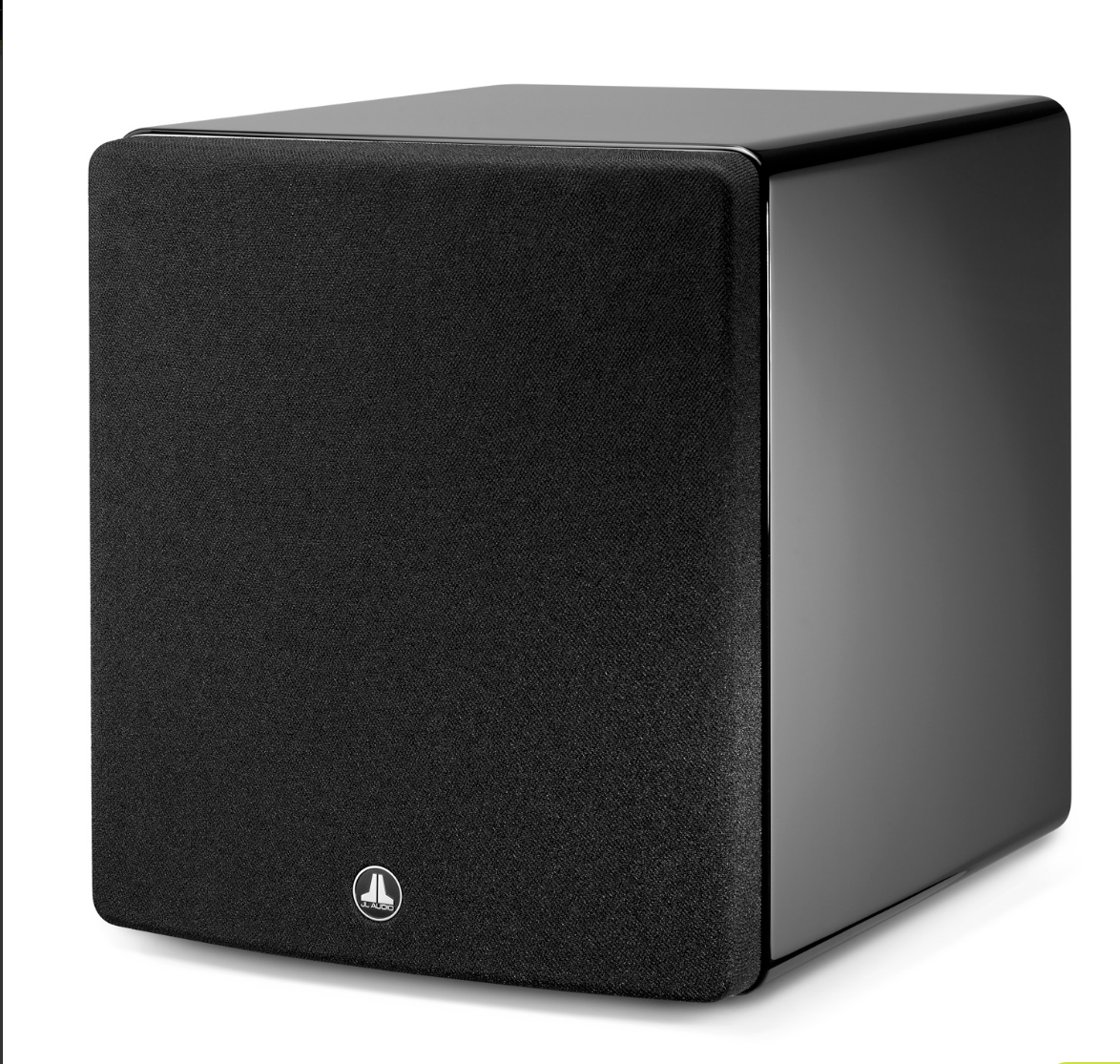

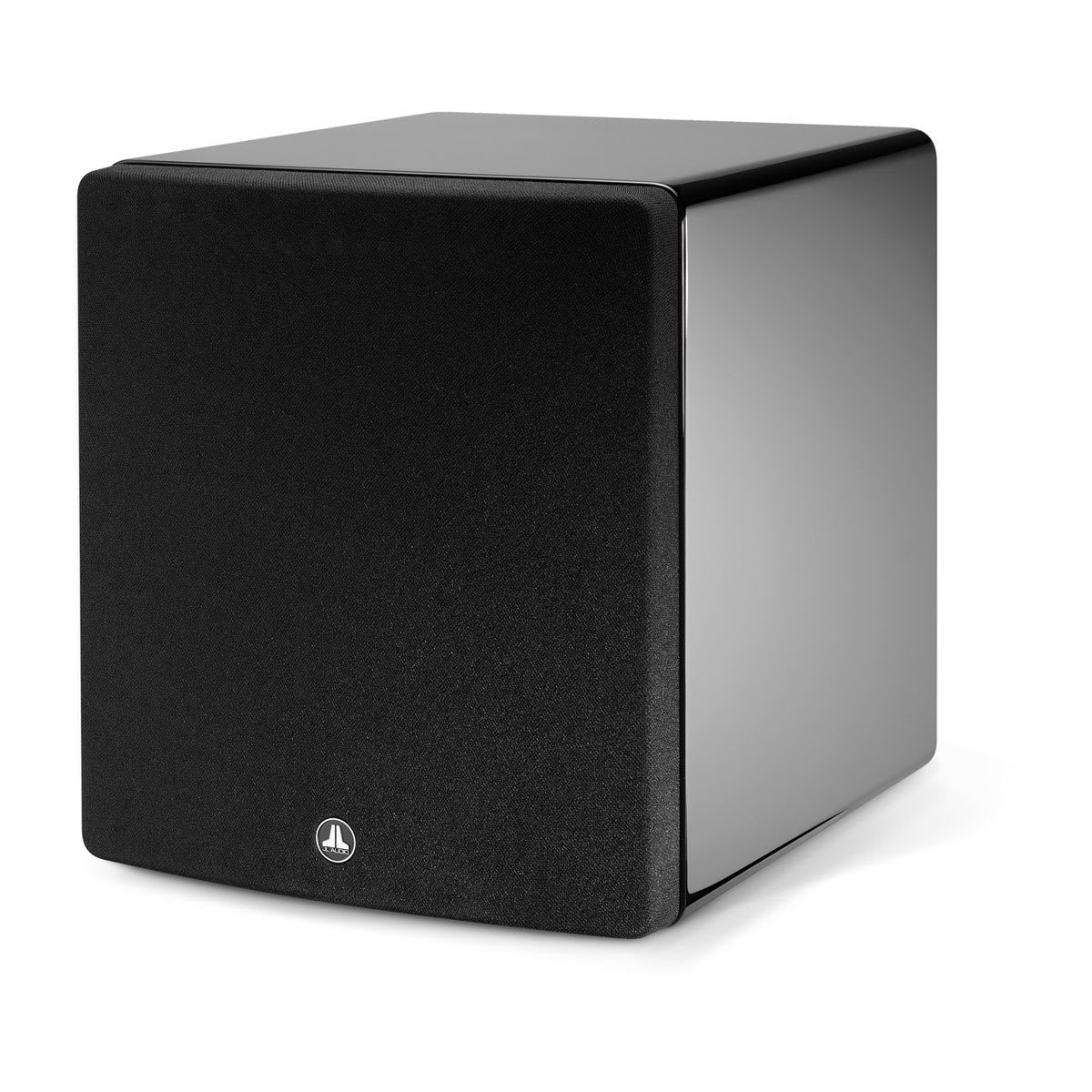

JL Audio Fathom f113v2 in Gloss Black, angle with grille

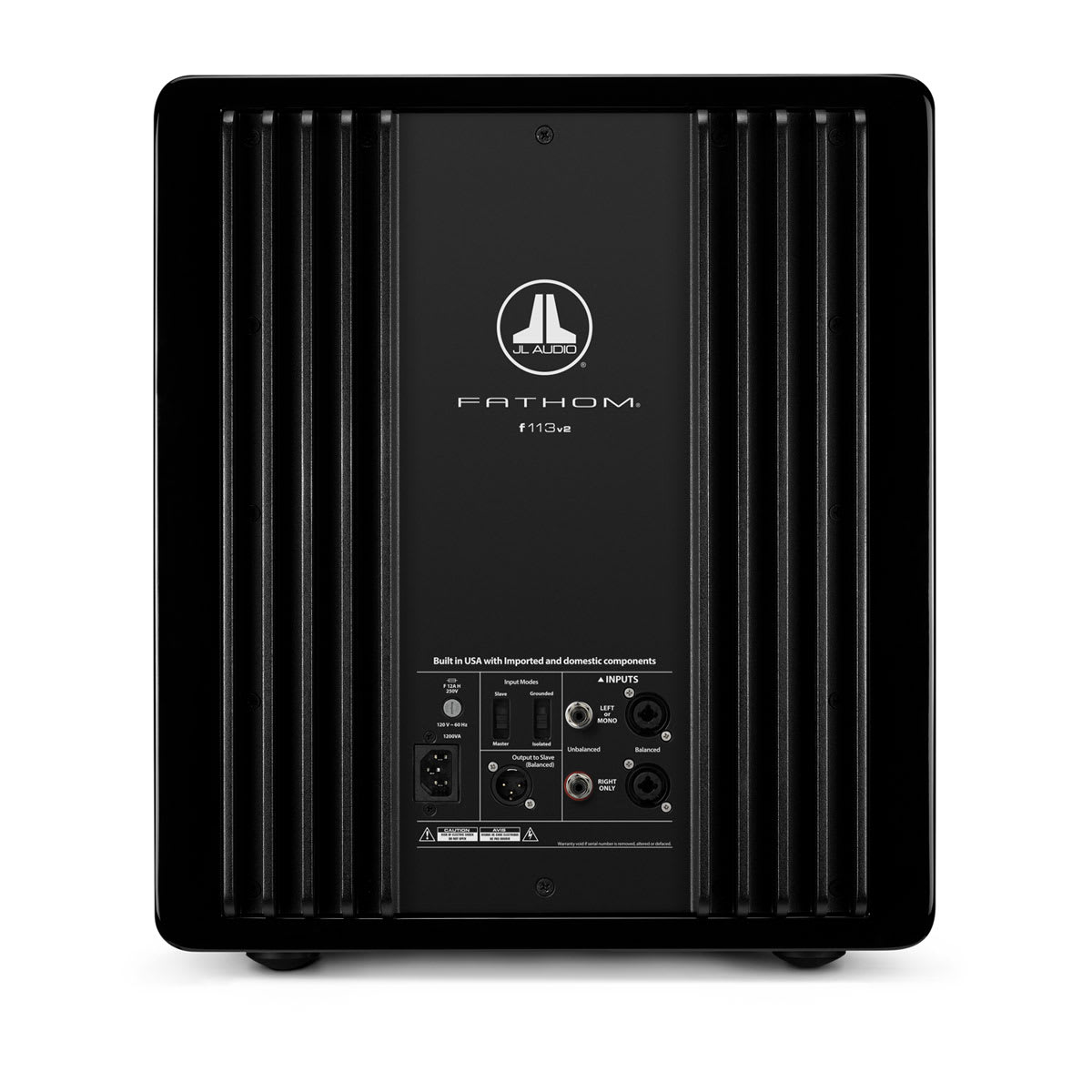

JL Audio Fathom f113v2 in Gloss Black, rear panel

JL Audio

Fathom F113 v2

$6,500

JL Audio · Fathom v2 Series

JL Audio's largest single-driver Fathom: a 13.5-inch subwoofer with 3,000 watts, reaching 18 Hz with the control to make that depth musical.

Price is for one subwoofer. Built in the USA.

13.5 in
proprietary JL Audio driver
3,000 W
RMS short-term amplifier
18 Hz
low-frequency extension (−3 dB)
D.A.R.O.
18-band automatic room optimization

The f113v2 puts a proprietary 13.5-inch JL Audio driver and a 3,000-watt switching amplifier, with a large toroidal transformer and a patented control circuit, into a sealed cabinet about 19 inches on a side. As on every Fathom, JL's DSP runs D.A.R.O., 18-band Digital Automatic Room Optimization, with the included calibration microphone, and the front-mounted controls add E.L.F. trim, a 12 or 24 dB/octave low-pass filter and continuous phase.

Reviewers describe deep, forceful, physical bass that still blends with the main speakers rather than overwhelming them, felt as much as heard. It reaches 18 Hz at −3 dB and has the output for large rooms and serious home theaters; JL notes that a pair of f113v2s will satisfy the most demanding theater or studio. D.A.R.O. smooths the room's worst bass peaks at the listening seat, and we can help plan placement.

Key technologies

  • Proprietary JL Audio driver. Engineered for a true subwoofer passband and very high output with low distortion.
  • Switching amplifier. A powerful switching design with a large toroidal transformer and a patented circuit for control and fidelity.
  • D.A.R.O. 18-band Digital Automatic Room Optimization, set up with the included calibration microphone; it can be switched off.
  • E.L.F. trim. Adjusts the deepest bass by −12 to +3 dB at 25 Hz to suit the room and your taste.
  • Master/slave linking. A balanced XLR output feeds a second Fathom, so two subs can be run and corrected as one.
  • Sealed cabinet, front controls. A conventional sealed box that suits built-in installations, with controls on the front.

Finishes

  • Gloss Black high-gloss black

Supplied with a grille. Photos show the Gloss Black finish.

Specifications
Type Powered subwoofer, sealed enclosure
Driver 1 × 13.5 in (nominal), proprietary JL Audio driver
Amplifier power 3,000 W RMS short-term
Frequency response (anechoic) 20 – 86 Hz (±1.5 dB)
−3 dB / −10 dB points −3 dB at 18 Hz / 127 Hz; −10 dB at 16 Hz / 154 Hz
Effective piston area 107.35 sq in (0.0693 m²)
Effective displacement 386 cu in (6.3 L)
Inputs Stereo or mono line: 2 × RCA (unbalanced) and 2 × female XLR (balanced)
Outputs Balanced output to slave: 1 × male XLR
Controls Front-mounted. Input mode (master or slave); level (reference fixed gain, or variable from mute to +15 dB); low-pass filter (off, 12 or 24 dB/octave, 30–130 Hz); phase 0–280° (referenced to 80 Hz); polarity 0/180°; E.L.F. trim −12 to +3 dB at 25 Hz; power (off, on or auto signal-sensing); light (off, on or dim)
Auto room optimization D.A.R.O. digital automatic room optimization: 18-band, with included calibration microphone, defeatable
Dimensions (H × W × D) 19.25 × 16.50 × 19.25 in (489 × 419 × 489 mm); height includes feet, depth includes grille
Weight 131 lb (59 kg)
Finishes Gloss Black (high-gloss black)
Sold as One subwoofer

JL Audio Fathom f113v2 catalog sheet (PDF)

Where it sits in the range

Best in medium-to-large rooms and dedicated theaters. JL Audio's home range runs from the compact Dominion models through the E-Sub to the Fathom, which adds automatic room optimization, topped by the dual-driver Fathom f212v2.

Reviews

Plan your subwoofer setup with Pearl Audio

Pearl Audio is an authorized JL Audio dealer. We can help with room placement, integration with your main speakers, delivery and setup, and arrange a listening appointment. Call (503) 222-2599 or email sales@pearlaudio.com.
