JL Audio · E-Sub Series
The bigger E-Sub: a sealed 12-inch subwoofer with 1,500 watts and the headroom for full-scale music and films in a medium-sized room.
Price is for one subwoofer. Black Ash and Gloss Black are priced separately.
The e112 uses a 12-inch JL Audio long-excursion driver with a DMA-optimized motor, a 1,500-watt proprietary switching amplifier and a sealed cabinet just over 16 inches tall. Like the e110, it has a true two-way crossover with high-pass line outputs, so it can relieve your main speakers of the deepest bass, and speaker-level inputs for amplifiers without a sub output. It is built and individually tested in JL Audio's U.S. factory.
Reviewers found the e112 smooth and composed, nearly indistinguishable from the e110 at normal levels but clearly ahead in the deepest bass and at high volume, where its extra output gives films real physical impact. It reaches 21 Hz at −3 dB. It suits medium rooms and floorstanding or large standmount speakers. There's no built-in room correction, so placement and the phase and crossover controls matter; for automatic room optimization, look at the Fathom range.

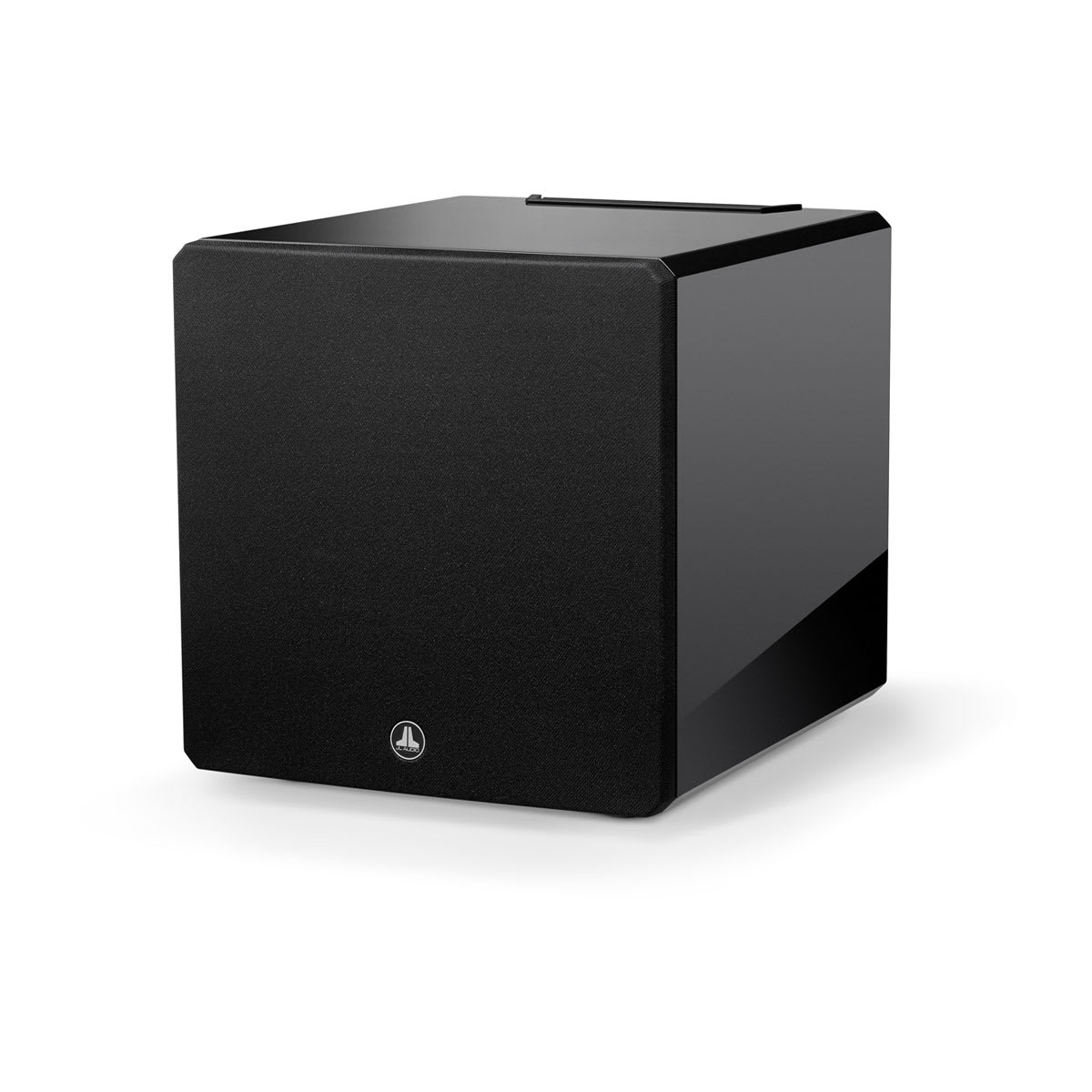

Supplied with a grille. Photos show the Black Ash finish.
| Type | Powered subwoofer, sealed enclosure |
| Driver | 1 × 12 in (nominal), long-excursion |
| Amplifier power | 1,500 W RMS short-term |
| Frequency response (anechoic) | 22 – 118 Hz (±1.5 dB) |
| −3 dB / −10 dB points | −3 dB at 21 Hz / 120 Hz; −10 dB at 17 Hz / 153 Hz |
| Effective piston area | 84.4 sq in (0.0545 m²) |
| Effective displacement | 235 cu in (3.9 L) |

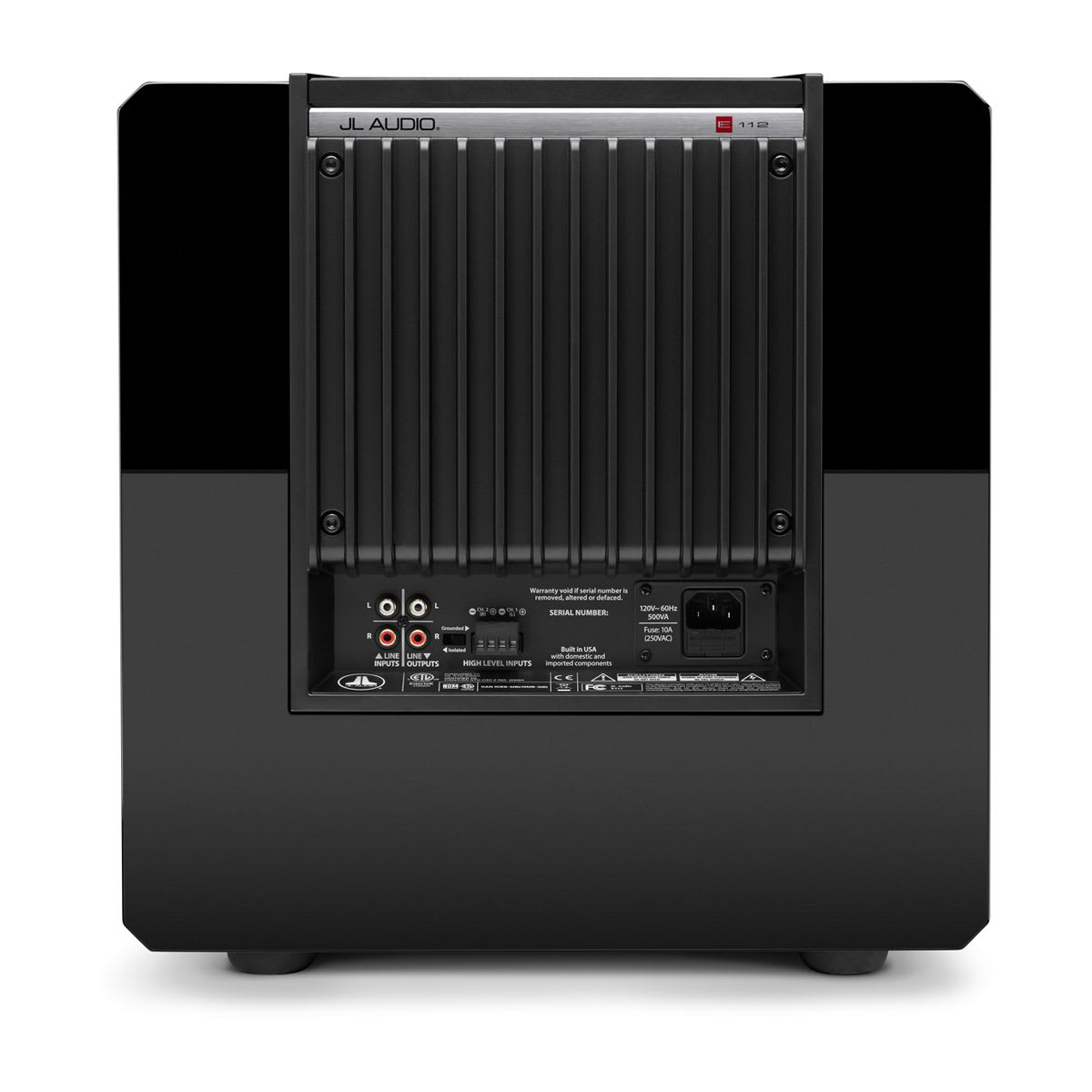

| Inputs | Stereo or mono line: 2 × RCA (10 kΩ); stereo or mono speaker-level: removable plug (4.3 kΩ); input grounding selectable (isolated or grounded) |
| Outputs | Line outputs: 2 × RCA, high-pass (by crossover) or pass-through |
| Controls | Level (mute to +15 dB over reference gain); crossover 25–130 Hz, 24 dB/octave Linkwitz-Riley; phase 0–280° (referenced to 80 Hz); polarity 0/180°; power (off, on or auto signal-sensing) |
| Auto room optimization | None built in. Set up with the phase, polarity and crossover controls, or your processor's room correction. |
| Dimensions (H × W × D) | 16.23 × 15.50 × 18.39 in (412 × 394 × 467 mm); height includes feet, depth includes grille |
| Weight | 73.5 lb (33.3 kg) |
| Finishes | Black Ash (black ash vinyl veneer), Gloss Black (high-gloss black) |
| Sold as | One subwoofer |
Best in medium rooms, for music and home theater. JL Audio's home range runs from the compact Dominion models through the E-Sub to the Fathom, which adds automatic room optimization, topped by the dual-driver Fathom f212v2.
