JL Audio · E-Sub Series
A compact sealed 10-inch subwoofer with 1,200 watts behind it: deep, clean bass and a true two-way crossover for seamless music integration.
Price is for one subwoofer. Black Ash and Gloss Black are priced separately.
The e110 pairs a deep-architecture 10-inch JL Audio driver, with a DMA-optimized motor for long, linear excursion, with a 1,200-watt proprietary switching amplifier in a sealed cabinet barely over 14 inches tall. Its true two-way crossover sets the low-pass for the sub and offers high-pass line outputs, so the deepest bass can be taken off your main speakers. Each E-Sub is built and individually tested in JL Audio's U.S. factory.
Reviewers describe the e110 as smooth and balanced, with clean, deep bass that seems out of proportion to the box; it reaches 23 Hz at −3 dB. It's an easy match for small standmount speakers and for stereo systems where the sub should be felt more than heard. It has no built-in room correction, so setup relies on placement and its phase, crossover and polarity controls. For larger rooms or more movie output, the e112 has the same feature set with a 12-inch driver.

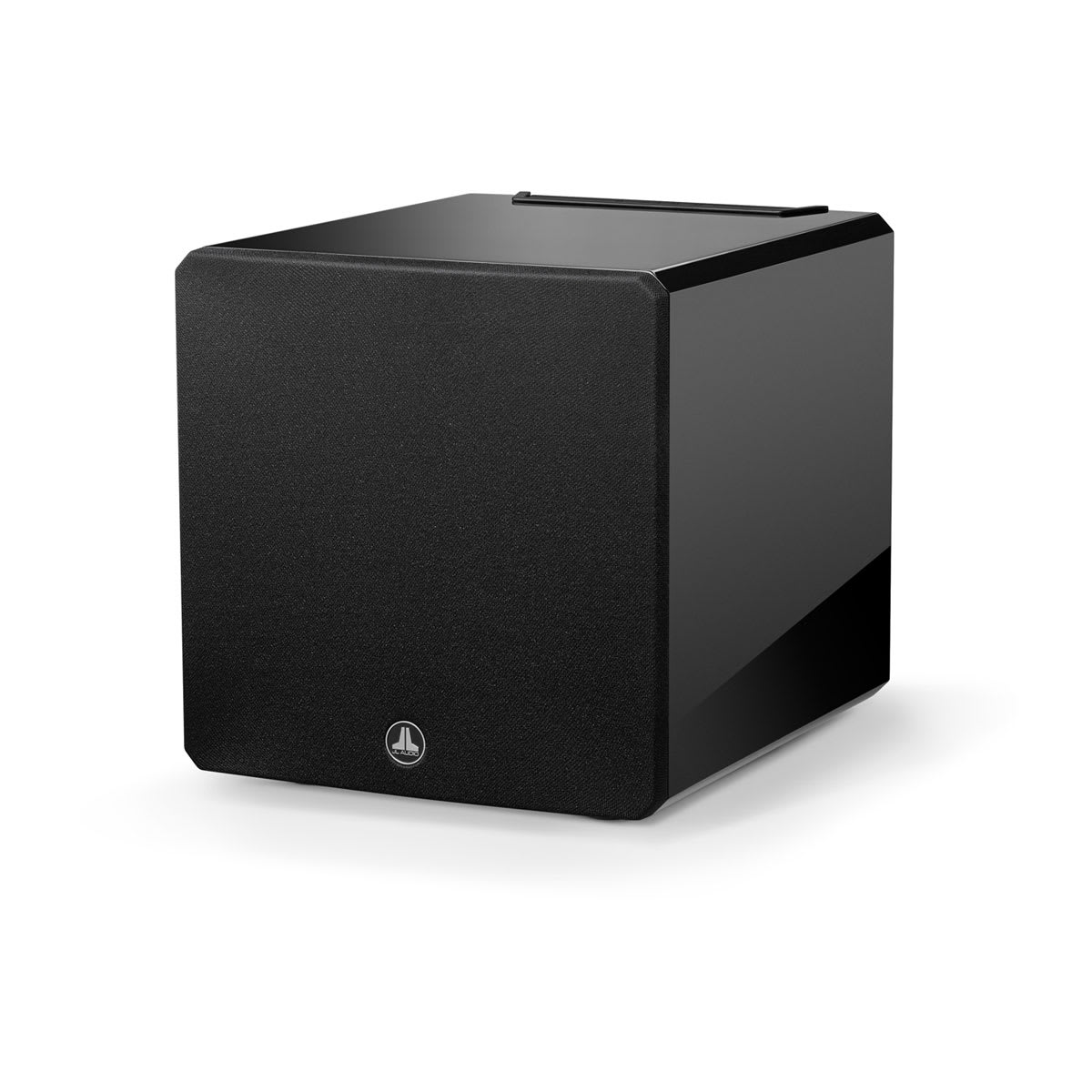

Supplied with a grille. Photos show the Black Ash finish.
| Type | Powered subwoofer, sealed enclosure |
| Driver | 1 × 10 in (nominal), long-excursion |
| Amplifier power | 1,200 W RMS short-term |
| Frequency response (anechoic) | 25 – 116 Hz (±1.5 dB) |
| −3 dB / −10 dB points | −3 dB at 23 Hz / 120 Hz; −10 dB at 18 Hz / 165 Hz |
| Effective piston area | 58.78 sq in (0.0379 m²) |
| Effective displacement | 131 cu in (2.1 L) |
| Inputs | Stereo or mono line: 2 × RCA (10 kΩ); stereo or mono speaker-level: removable plug (4.3 kΩ); input grounding selectable (isolated or grounded) |
| Outputs | Line outputs: 2 × RCA, high-pass (by crossover) or pass-through |
| Controls | Level (mute to +15 dB over reference gain); crossover 25–130 Hz, 24 dB/octave Linkwitz-Riley; phase 0–280° (referenced to 80 Hz); polarity 0/180°; power (off, on or auto signal-sensing) |
| Auto room optimization | None built in. Set up with the phase, polarity and crossover controls, or your processor's room correction. |
| Dimensions (H × W × D) | 14.24 × 13.50 × 16.51 in (362 × 343 × 419 mm); height includes feet, depth includes grille |
| Weight | 52.7 lb (23.9 kg) |
| Finishes | Black Ash (black ash vinyl veneer), Gloss Black (high-gloss black) |
| Sold as | One subwoofer |
Best in small and medium rooms, especially with standmount speakers. JL Audio's home range runs from the compact Dominion models through the E-Sub to the Fathom, which adds automatic room optimization, topped by the dual-driver Fathom f212v2.
Plan your subwoofer setup with Pearl Audio
Pearl Audio is an authorized JL Audio dealer. We can help with room placement, integration with your main speakers, delivery and setup, and arrange a listening appointment. Call (503) 222-2599 or email sales@pearlaudio.com.
