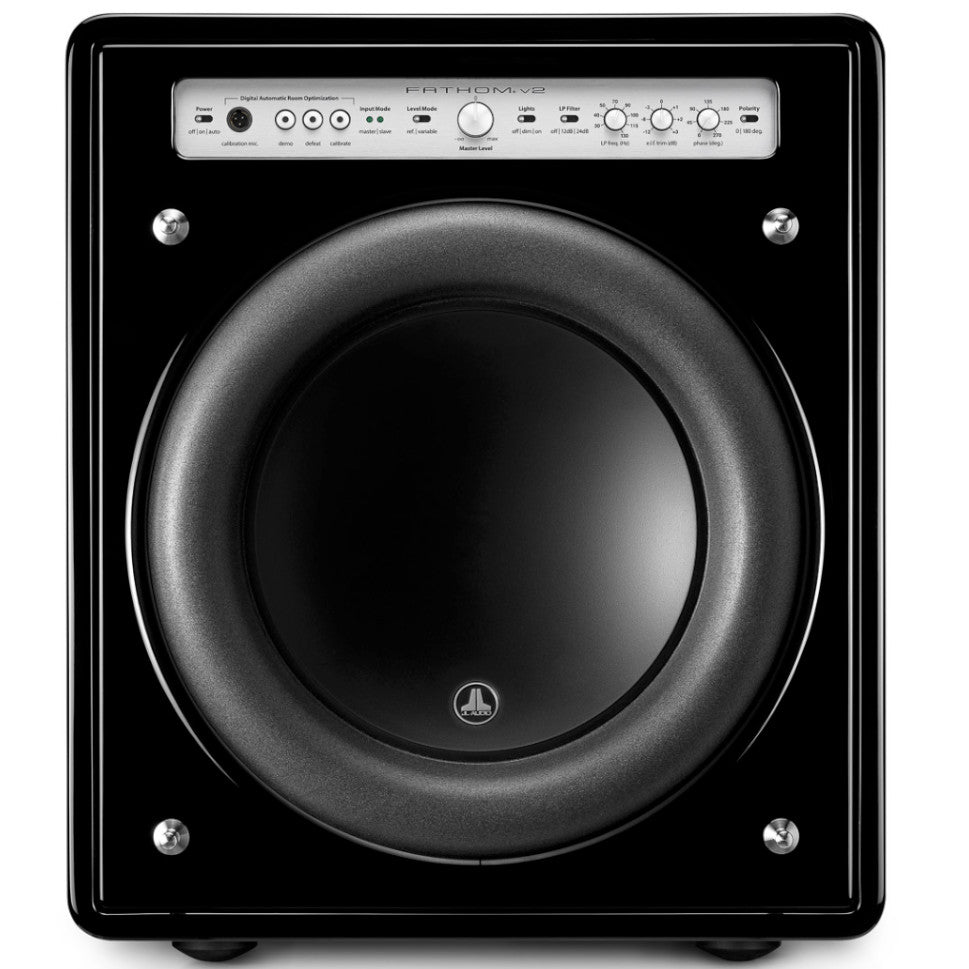

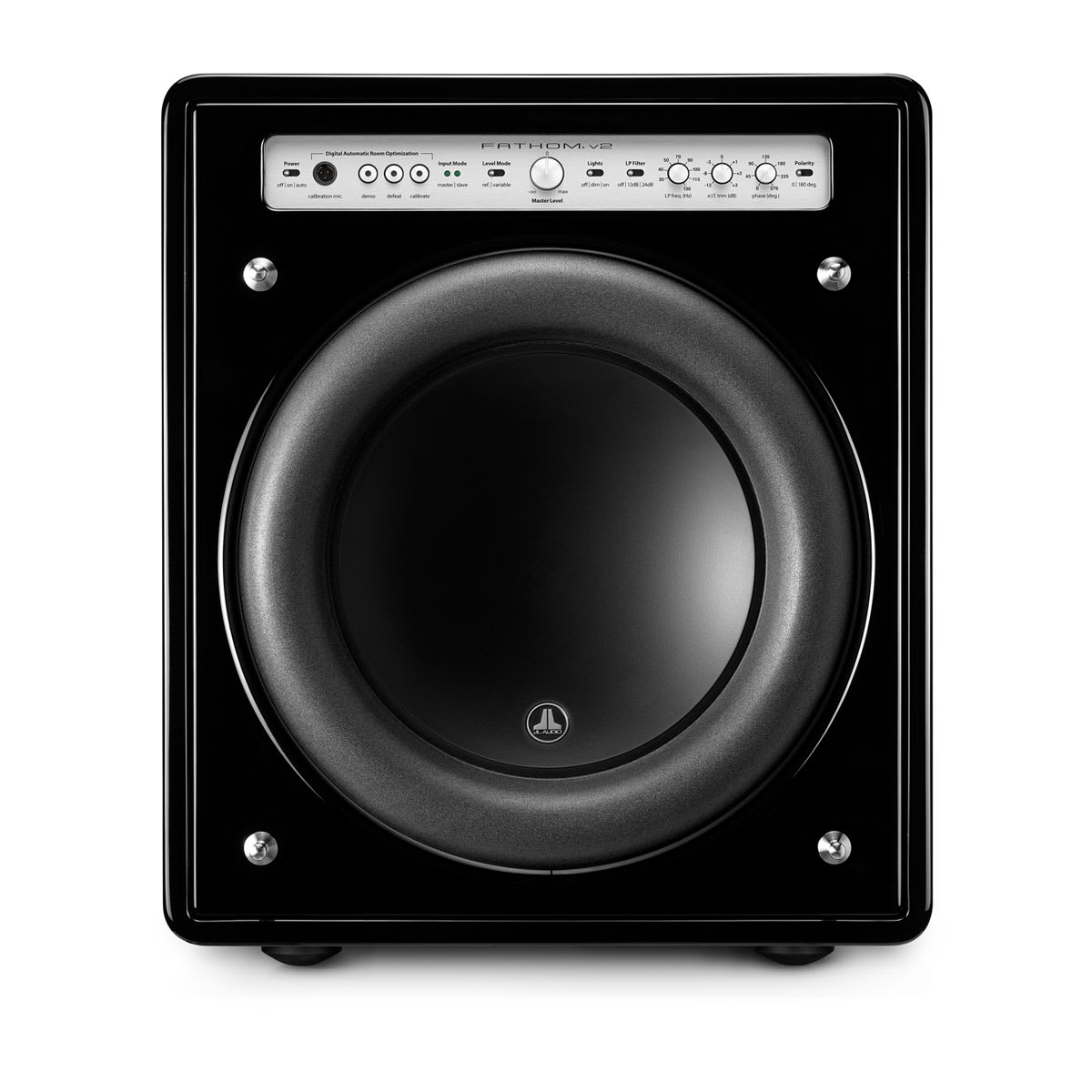

JL Audio Fathom f112v2 in Gloss Black, front without grille

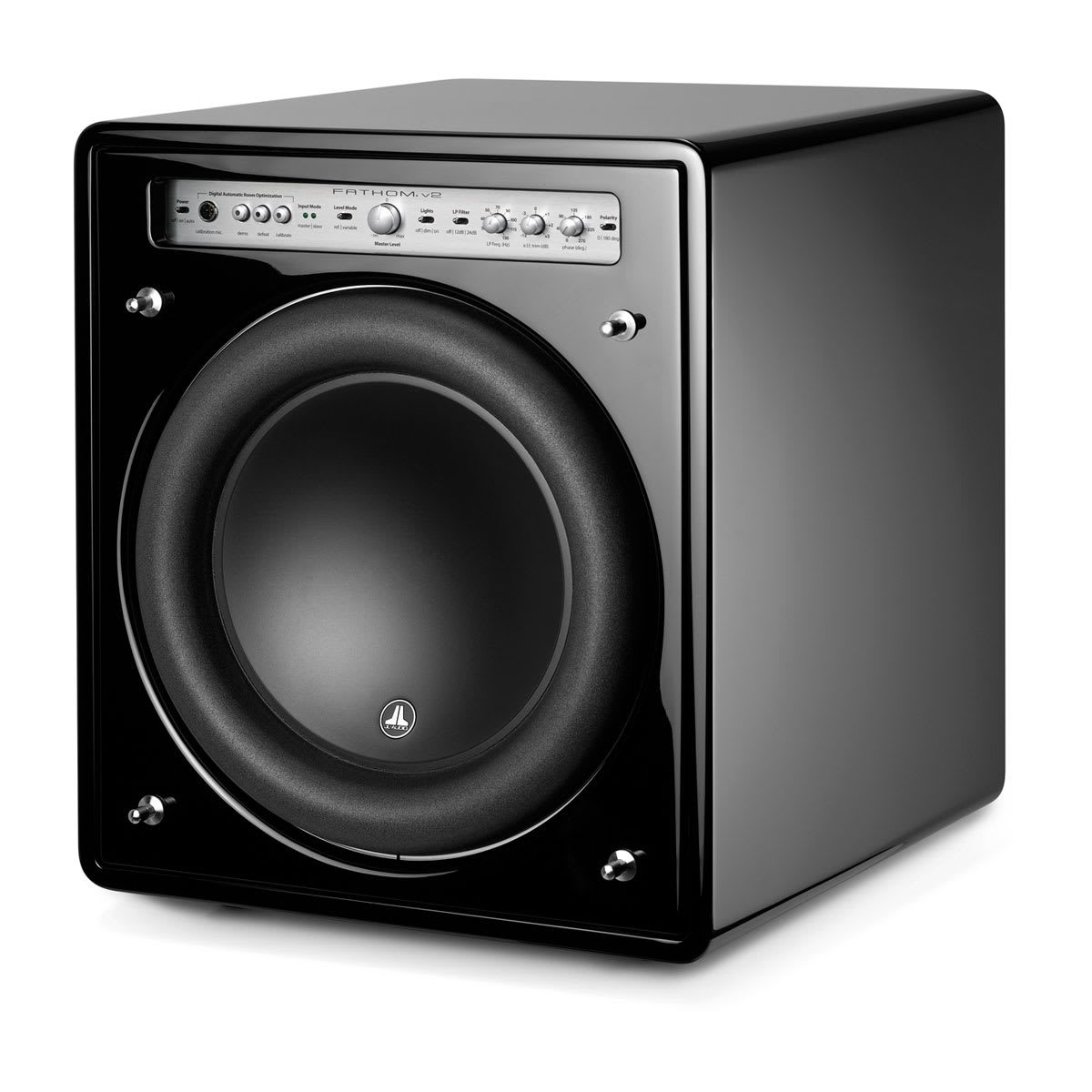

JL Audio Fathom f112v2 in Gloss Black, angle without grille

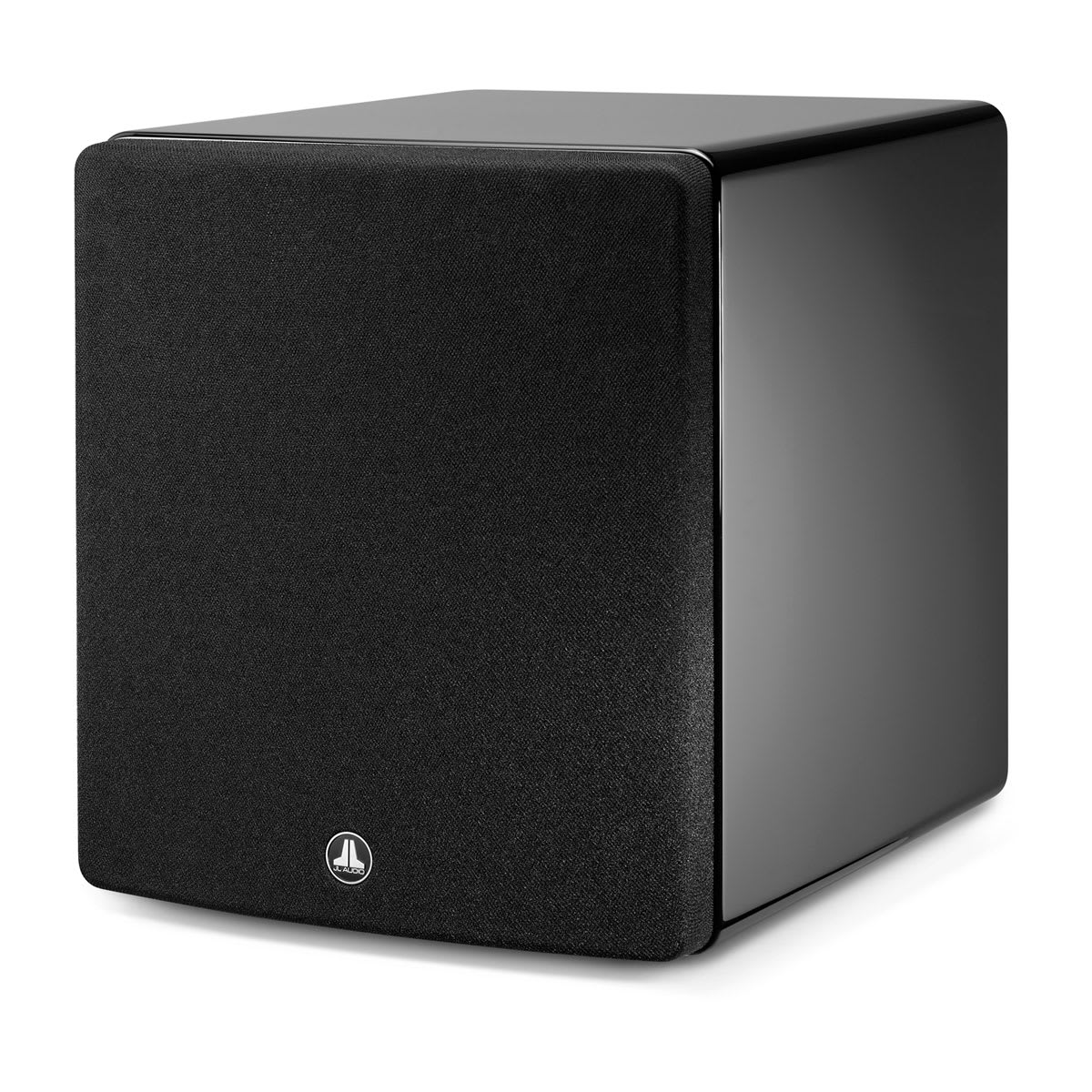

JL Audio Fathom f112v2 in Gloss Black, angle with grille

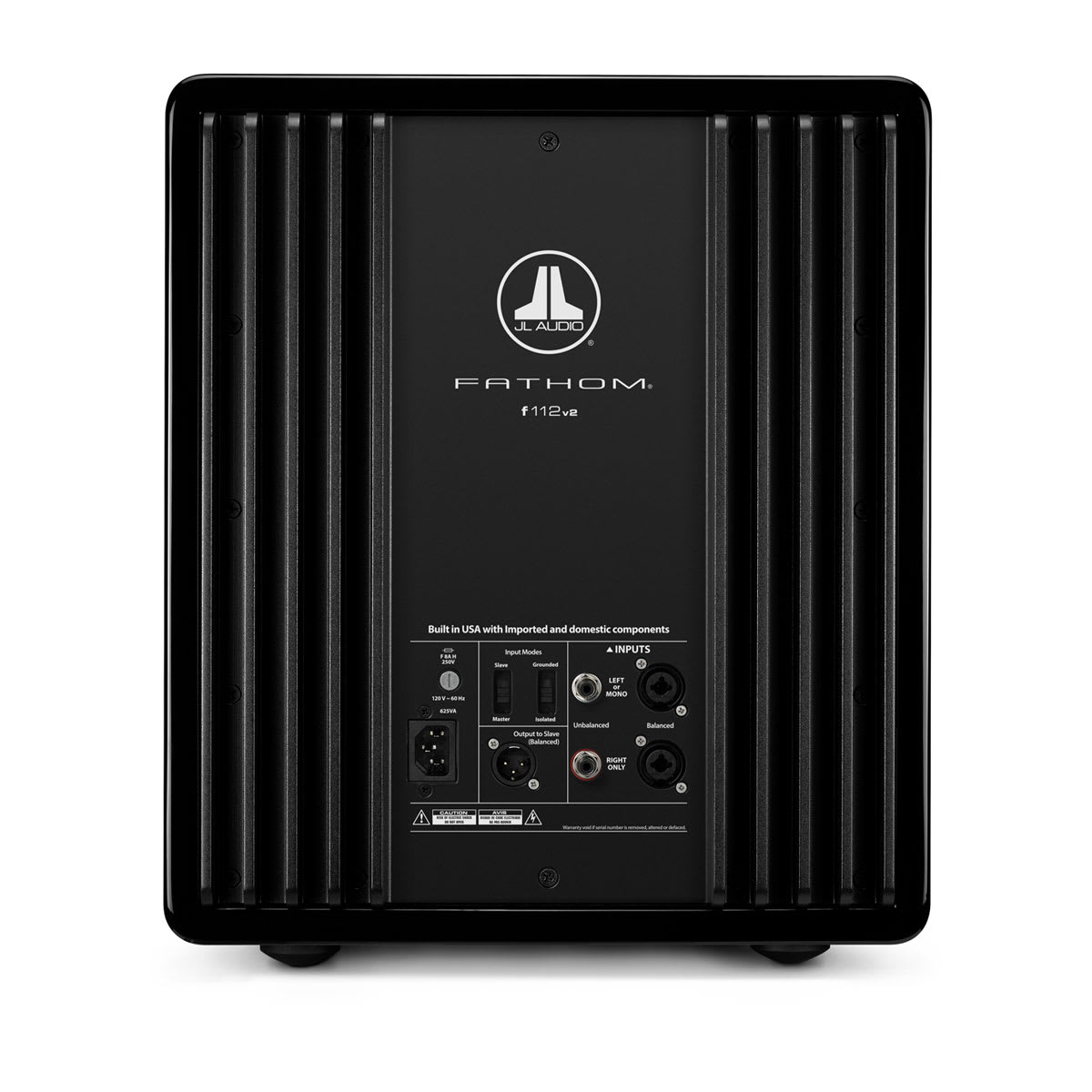

JL Audio Fathom f112v2 in Gloss Black, rear panel

JL Audio

Fathom F112 v2

$5,500

JL Audio · Fathom v2 Series

The heart of the Fathom range: a sealed 12-inch subwoofer with 1,800 watts and automatic room optimization, for full-range bass in a medium-sized room.

Price is for one subwoofer. Built in the USA.

12 in
proprietary JL Audio driver
1,800 W
RMS short-term amplifier
19 Hz
low-frequency extension (−3 dB)
D.A.R.O.
18-band automatic room optimization

The f112v2 uses a proprietary 12-inch JL Audio driver in a sealed cabinet about 18 inches tall, powered by an 1,800-watt switching amplifier with a large toroidal transformer and a patented control circuit. JL's onboard DSP runs D.A.R.O., 18-band Digital Automatic Room Optimization, with the included calibration microphone. Front controls cover E.L.F. trim, 12 or 24 dB/octave low-pass filtering, phase and polarity.

With a −3 dB point of 19 Hz, the f112v2 reaches the true bottom octave of organ, synth and film soundtracks, and D.A.R.O. smooths the room's bass peaks at the listening seat so that depth stays clean and even. It suits medium rooms and full-range systems in larger ones, and two can be linked by XLR as master and slave for smoother, deeper bass across a room. Reviewers of the original f112 praised its output, control and texture with drums, organ and bass guitar.

Key technologies

  • Proprietary JL Audio driver. Engineered for a true subwoofer passband and very high output with low distortion.
  • Switching amplifier. A powerful switching design with a large toroidal transformer and a patented circuit for control and fidelity.
  • D.A.R.O. 18-band Digital Automatic Room Optimization, set up with the included calibration microphone; it can be switched off.
  • E.L.F. trim. Adjusts the deepest bass by −12 to +3 dB at 25 Hz to suit the room and your taste.
  • Master/slave linking. A balanced XLR output feeds a second Fathom, so two subs can be run and corrected as one.
  • Sealed cabinet, front controls. A conventional sealed box that suits built-in installations, with controls on the front.

Finishes

  • Gloss Black high-gloss black

Supplied with a grille. Photos show the Gloss Black finish.

Specifications
Type Powered subwoofer, sealed enclosure
Driver 1 × 12 in (nominal), proprietary JL Audio driver
Amplifier power 1,800 W RMS short-term
Frequency response (anechoic) 21 – 119 Hz (±1.5 dB)
−3 dB / −10 dB points −3 dB at 19 Hz / 150 Hz; −10 dB at 17 Hz / 167 Hz
Effective piston area 84 sq in (0.0542 m²)
Effective displacement 287 cu in (4.7 L)
Inputs Stereo or mono line: 2 × RCA (unbalanced) and 2 × female XLR (balanced)
Outputs Balanced output to slave: 1 × male XLR
Controls Front-mounted. Input mode (master or slave); level (reference fixed gain, or variable from mute to +15 dB); low-pass filter (off, 12 or 24 dB/octave, 30–130 Hz); phase 0–280° (referenced to 80 Hz); polarity 0/180°; E.L.F. trim −12 to +3 dB at 25 Hz; power (off, on or auto signal-sensing); light (off, on or dim)
Auto room optimization D.A.R.O. digital automatic room optimization: 18-band, with included calibration microphone, defeatable
Dimensions (H × W × D) 18.50 × 15.06 × 17.75 in (470 × 384 × 451 mm); height includes feet, depth includes grille
Weight 100 lb (45 kg)
Finishes Gloss Black (high-gloss black)
Sold as One subwoofer

JL Audio Fathom f112v2 catalog sheet (PDF)

Where it sits in the range

Best in medium rooms; run two for larger spaces. JL Audio's home range runs from the compact Dominion models through the E-Sub to the Fathom, which adds automatic room optimization, topped by the dual-driver Fathom f212v2.

Reviews

Plan your subwoofer setup with Pearl Audio

Pearl Audio is an authorized JL Audio dealer. We can help with room placement, integration with your main speakers, delivery and setup, and arrange a listening appointment. Call (503) 222-2599 or email sales@pearlaudio.com.
