Bowers & Wilkins · DB Series
$4,500
Bowers & Wilkins · DB Series

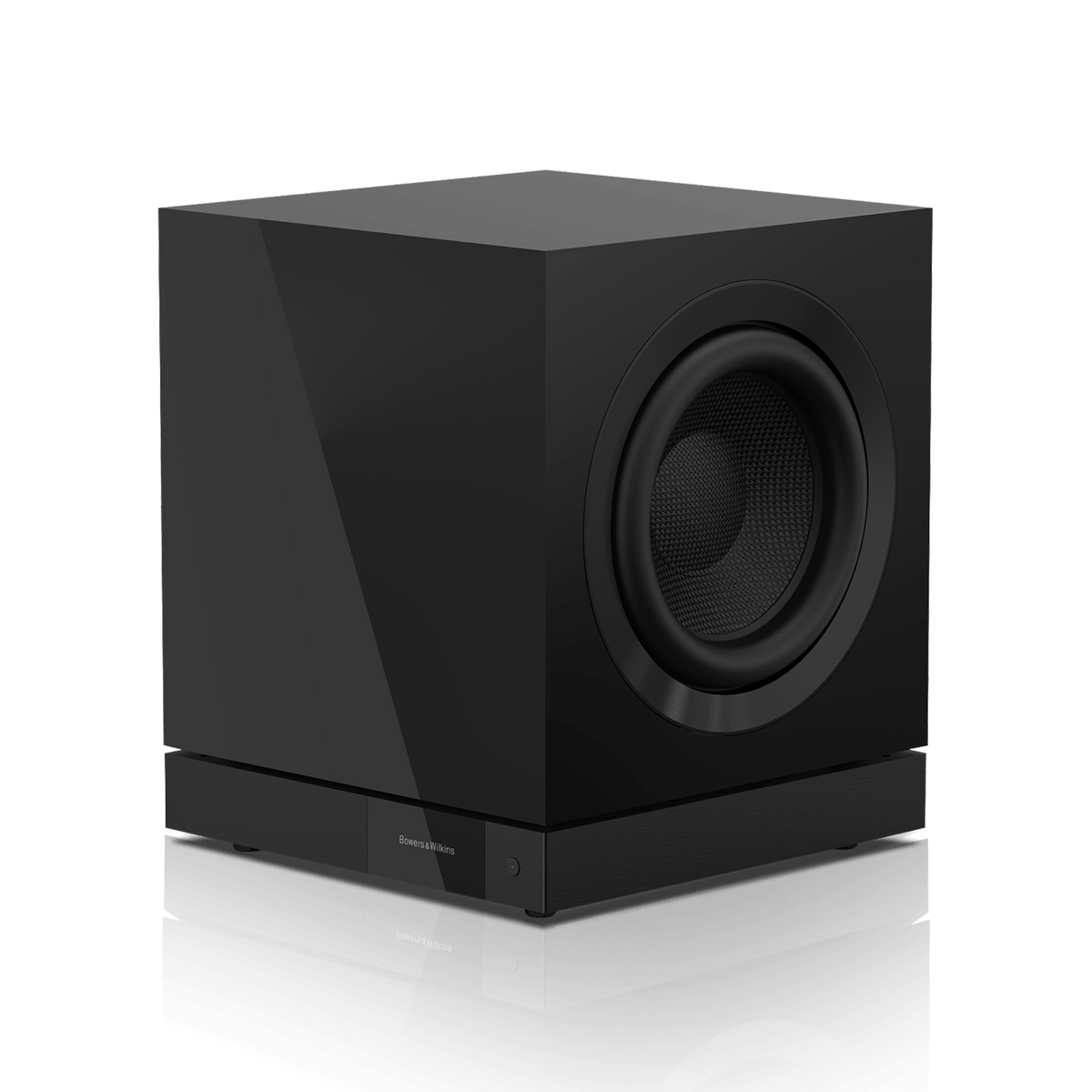

The DB3D is the compact DB Series model: two opposed 8-inch Aerofoil drivers, 1,000 watts of digital amplification and full app-based room correction in a cabinet just over a foot wide.
Price is for one subwoofer.
Authorized Bowers & Wilkins dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The DB3D makes the DB Series fit rooms where a larger subwoofer would dominate. Two 200 mm Aerofoil cone drivers in a balanced back-to-back arrangement cancel each other's reaction forces, and a 1,000-watt Class D amplifier with a digital preamplifier and Dynamic EQ drives them to the same 10 Hz low-frequency limit as its bigger siblings, with less absolute output.
Setup is from the Bowers & Wilkins DB Subwoofers app over Bluetooth LE, including a room measurement with your phone and Room EQ correction, so the DB3D can be tucked into a corner or beside a bookshelf and still sound right. Balanced XLR and RCA inputs, 12 V triggers and RS-232 are standard. It pairs especially well with 600 Series and 700 Series speakers, and with 805 D4 stand-mounts in smaller rooms.
All finishes are the same price. Choose the finish above; if you would like to see samples, ask us for a listening appointment.
| Type | Active closed-box subwoofer |
| Drive units | 2 × 200 mm (8 in) Aerofoil cone, balanced configuration |
| Amplifier | 1,000 W digital (Class D), Bowers & Wilkins specification |
| Frequency response | 10 Hz–350 Hz, –3 dB (centered on 100 Hz) |
| Frequency range | –6 dB at 8.5 Hz and 500 Hz |
| Inputs | 2 × XLR, 2 × RCA, 2 × 3.5 mm 12 V trigger, RS-232 (9-pin D) |
| Control | Digital preamplifier with Dynamic EQ and Room EQ; app setup over Bluetooth LE |
| Dimensions (H × W × D) | 14.1 × 12.6 × 11.8 in (360 × 320 × 300 mm) |
| Weight | 55.1 lb (25 kg) |
| Finishes | Stealth Black (black grille), Warm White (grey grille) |
| Sold as | Single unit |
Bowers & Wilkins makes two subwoofer families: the DB Series, with Aerofoil drivers, digital preamplifiers and app-based room correction, and the ASW Series, with long-throw drivers and simple analog controls.
