Bowers & Wilkins · ASW Series
$1,000
Bowers & Wilkins · ASW Series

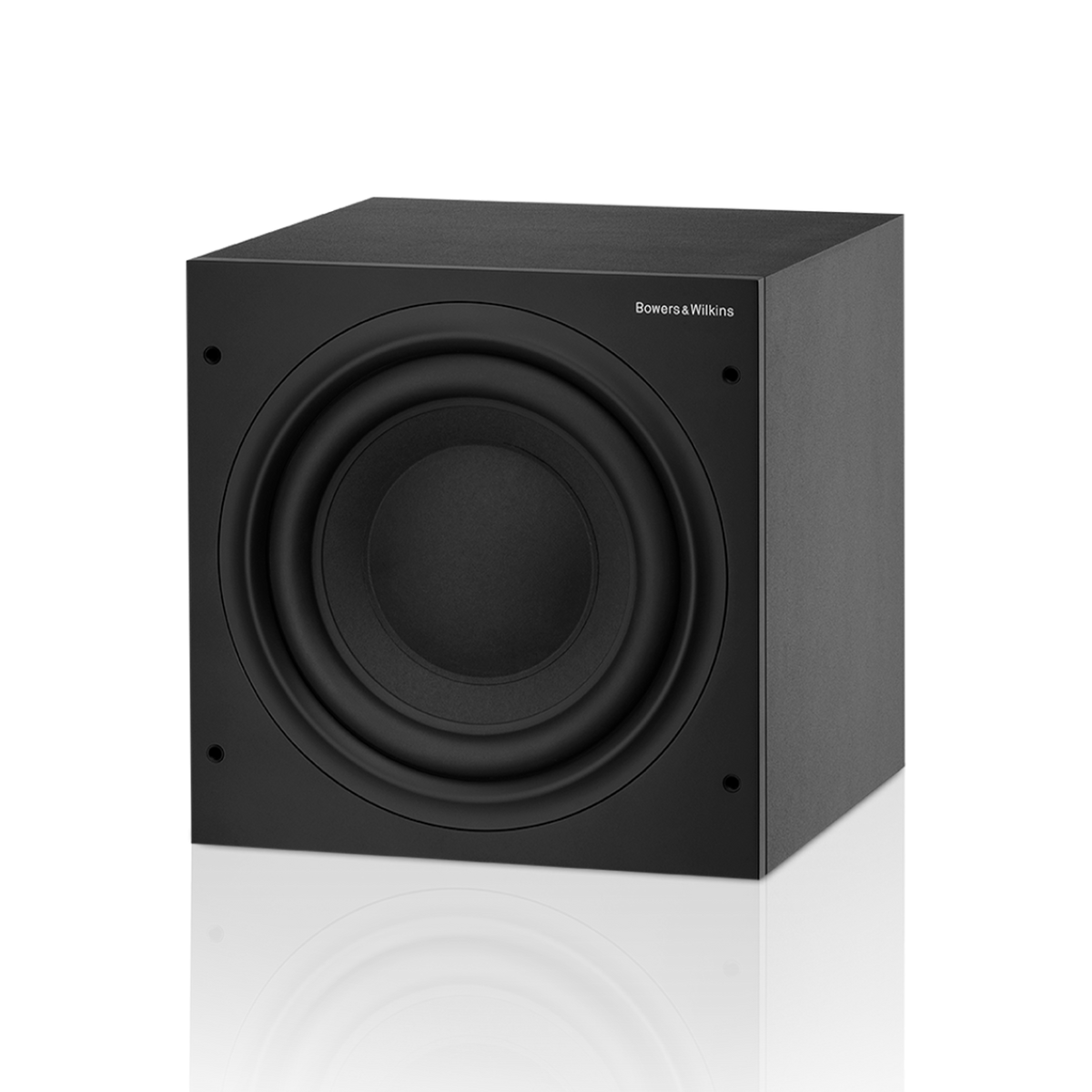

The ASW610 is Bowers & Wilkins' long-running 10-inch subwoofer: a long-throw driver, a 200-watt amplifier and a sealed cabinet that delivers tight, musical bass to 20 Hz for about the price of a pair of 607 S3s.
Price is for one subwoofer.
Authorized Bowers & Wilkins dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The ASW610 is the subwoofer we most often add to a 600 Series system. Its 250 mm long-throw driver uses a paper-pulp, aramid-fiber and resin cone that stays stiff under load, and the closed-box cabinet keeps the bass fast and controlled rather than loose. A 200-watt Class D amplifier gives it comfortable headroom for music and film in small and medium rooms.
Controls are analog and easy: line and speaker-level inputs with separate level knobs, a variable 4th-order low-pass filter with bypass, three bass-extension positions, a bass roll-off alignment switch, phase and auto-sense standby. A 12 V trigger input lets a processor switch it on and off. In Matte Black or Matte White it disappears beside a pair of 606 S3 or 603 S3 speakers.
All finishes are the same price. Choose the finish above; if you would like to see samples, ask us for a listening appointment.
| Type | Active closed-box subwoofer |
| Drive unit | 1 × 250 mm (10 in) long-throw paper/aramid fibre cone |
| Amplifier | 200 W Class D, Bowers & Wilkins specification |
| Frequency response | 27 Hz to 40/140 Hz adjustable, ±3 dB (EQ at A) |
| Bass extension | –6 dB at 20 Hz (A), 25 Hz (B), 30 Hz (C) |
| Inputs | Line in (RCA), speaker in (binding post), 12 V trigger (3.5 mm); input impedance 33 kΩ |
| Signal-to-noise ratio | More than 90 dB |
| Controls | Line and speaker level, low-pass filter frequency and bypass, bass extension, bass roll-off alignment, phase, auto-sense standby |
| Power consumption | 40 W; 0.5 W standby |
| Dimensions (H × W × D) | 12.2 × 12.2 × 13.7 in cabinet (310 × 310 × 347 mm); 12.7 in high with feet, 14.8 in deep with grille and controls |
| Weight | 27.6 lb (12.5 kg) |
| Finishes | Matte Black (black grille), Matte White (grey grille) |
| Sold as | Single unit |
Bowers & Wilkins makes two subwoofer families: the DB Series, with Aerofoil drivers, digital preamplifiers and app-based room correction, and the ASW Series, with long-throw drivers and simple analog controls.
