Bowers & Wilkins · ASW Series
$2,000
Bowers & Wilkins · ASW Series

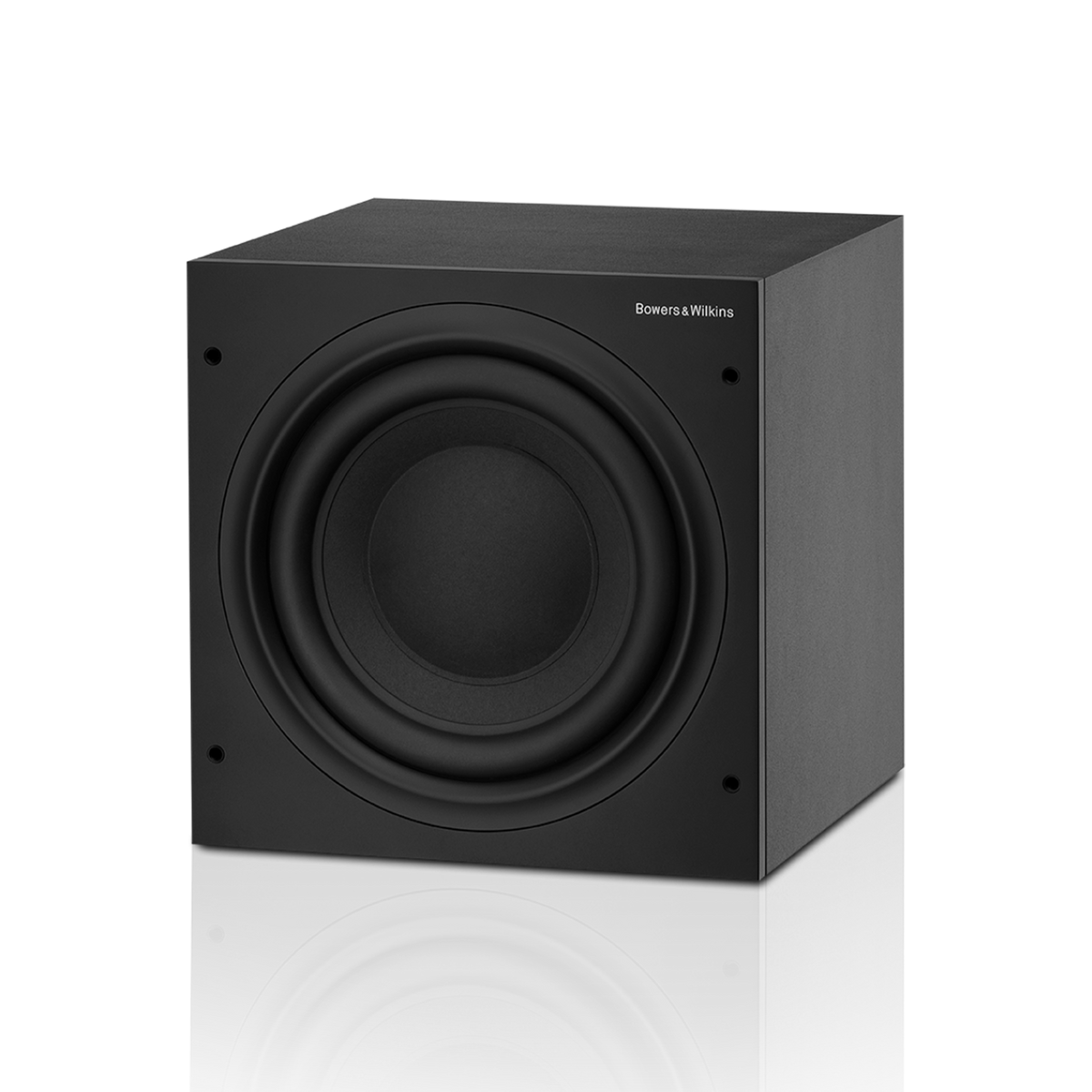

The ASW610XP is the most powerful of Bowers & Wilkins' ASW Series: a long-throw 10-inch driver, a 500-watt amplifier and bass extension to 18 Hz in a compact sealed cabinet with classic analog controls.
Price is for one subwoofer.
Authorized Bowers & Wilkins dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The ASW610XP is the ASW610 with more of everything: a stiffer, longer-throw 250 mm driver, more than twice the amplifier power and an extra 2 Hz of extension. The cone combines paper pulp, aramid fiber and resin for stiffness without weight, and the sealed cabinet keeps the bass tight rather than boomy. Three bass-extension settings and a bass roll-off alignment control let you tune it to the room by ear.
Connections are the straightforward kind: stereo line in on RCA, speaker-level in on binding posts and a 12 V trigger, with a variable 4th-order low-pass filter that can be bypassed when a processor handles the crossover. Auto-sense standby and a phase switch complete the panel. For a 600 Series or 700 Series system that needs real weight from a small box, the ASW610XP is the answer.
All finishes are the same price. Choose the finish above; if you would like to see samples, ask us for a listening appointment.
| Type | Active closed-box subwoofer |
| Drive unit | 1 × 250 mm (10 in) long-throw paper/aramid fibre cone |
| Amplifier | 500 W Class D, Bowers & Wilkins specification |
| Frequency response | 25 Hz to 40/140 Hz adjustable, ±3 dB (EQ at A) |
| Bass extension | –6 dB at 18 Hz (A), 23 Hz (B), 28 Hz (C) |
| Inputs | Line in (RCA), speaker in (binding post), 12 V trigger (3.5 mm); input impedance 33 kΩ |
| Signal-to-noise ratio | More than 80 dB |
| Controls | Line and speaker level, low-pass filter frequency and bypass, bass extension, bass roll-off alignment, phase, auto-sense standby |
| Power consumption | 98 W; 1 W standby |
| Dimensions (H × W × D) | 12.8 × 12.8 × 13.7 in cabinet (325 × 325 × 348 mm); 13.3 in high with feet, 14.8 in deep with grille and controls |
| Weight | 41.1 lb (18.65 kg) |
| Finishes | Matte Black (black grille), Matte White (grey grille) |
| Sold as | Single unit |
Bowers & Wilkins makes two subwoofer families: the DB Series, with Aerofoil drivers, digital preamplifiers and app-based room correction, and the ASW Series, with long-throw drivers and simple analog controls.
