MOON · 820S

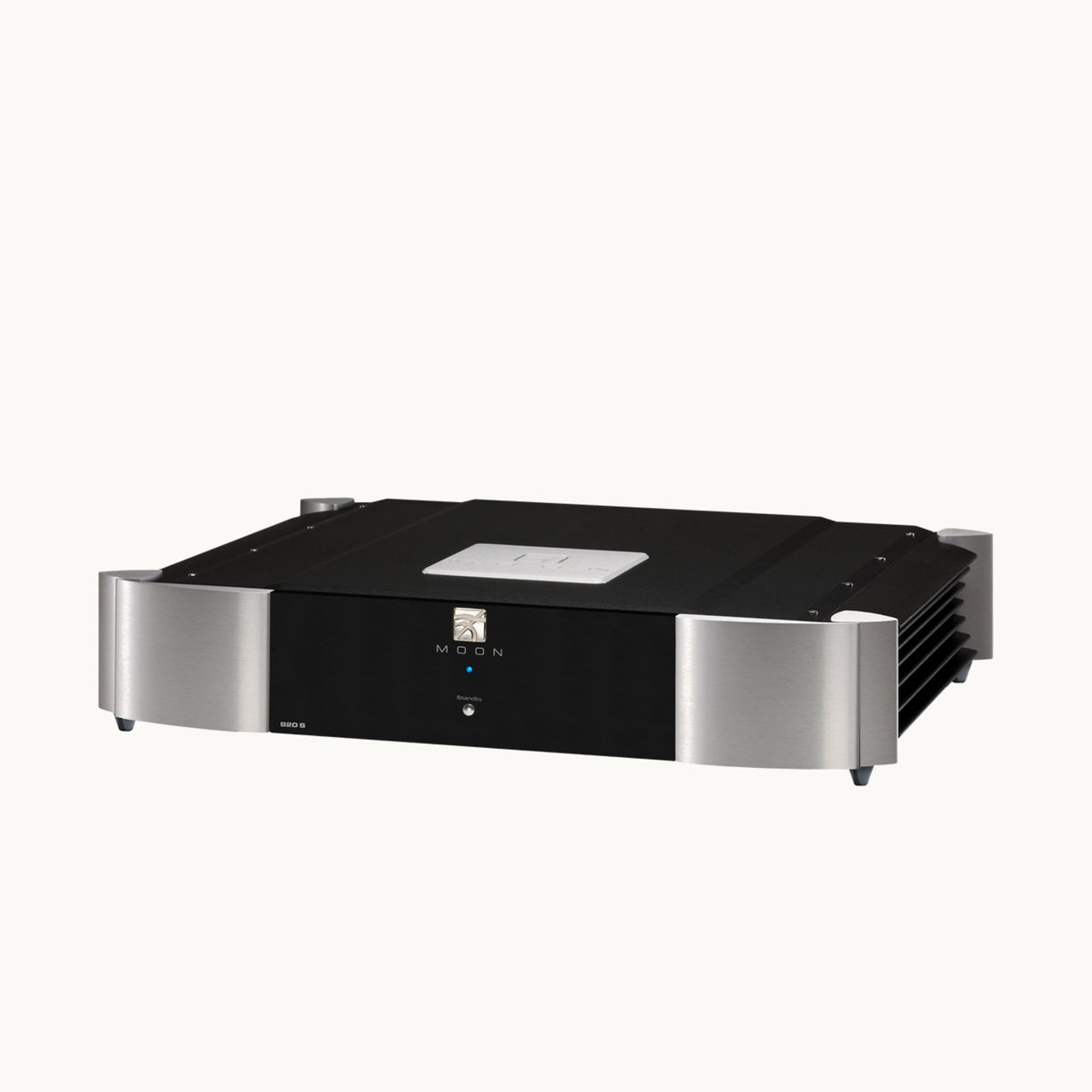

MOON 820S Power Supply

$8,500

Upgrade part · All MOON upgrades and parts →

Signature technologiesThe MOON story

Not currently in our rooms. For a serious buyer we will often bring a piece in from the manufacturer for a private session — tell us about your system and what you are weighing it against, and we will advise.

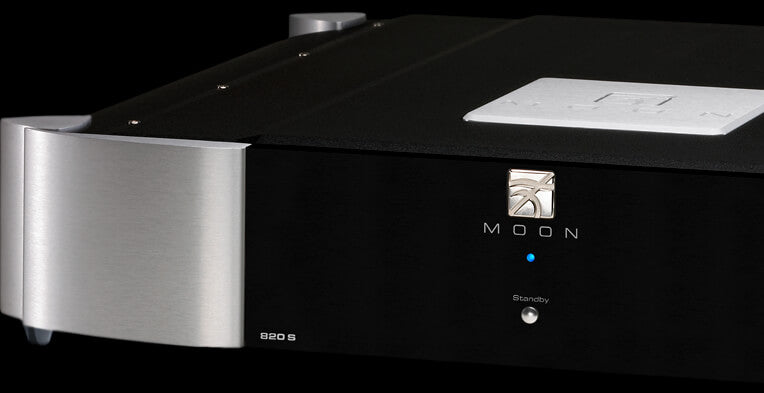

MOON · 820S

The 820S is MOON's external power supply: two custom toroidal transformers, pi filtering with 40,000 µF and dual chokes per supply, and four stages of discrete M-R2S regulation, able to power two components at once.

Price is for one unit. Two 4-pin and two 5-pin XLR supply cables included.

2 supplies
independent analog and digital sections, each with its own transformer
40,000 µF
per supply (4 × 10,000 µF) with 2 × 20 mH chokes
M-R2S
four stages of discrete regulation per supply
2 units
powered at once
Options and pricing

Authorized MOON dealer · Delivery and installation by Pearl Audio · Trade-ins welcome

The story

The 820S exists because Simaudio's engineers consider the power supply part of the audio circuit. It moves the supply of a MOON component into its own chassis, away from the transformer's magnetic field and the signal, and replaces it with something larger than any component could hold: two custom proprietary toroidal transformers, one for an analog supply and one for a digital supply, chosen for lower magnetic, electrical and thermal loss, which Simaudio says improves power transfer and the speed of current delivery.

After rectification each supply passes through two pi-type filters, 40,000 µF of capacitance in four 10,000 µF capacitors with a pair of 20 mH chokes, which strip the mains of the noise that rides on it. Regulation is M-R2S, a fully discrete circuit built around a precision reference feeding a multi-IC and transistor amplifier, in four stages per supply, instead of a single regulator chip. The boards are four-layer with pure copper traces for low impedance. Four XLR supply cables are included, two 4-pin for analog sections and two 5-pin for digital, and the 820S can power two components at the same time.

It connects to the EXT. SUPPLY input of the 610LP and 810LP phono preamplifiers, which list it as fully compatible, and to the North Collection's 681, 791 and 891, each of which carries an EXT. SUPPLY connector for a bespoke external MOON supply; Stereophile's 891 review lists the 820S as that preamplifier's option. For a phono stage, which amplifies microvolts, and for a preamplifier's analog and digital sections, the quieter rails are heard as a lower noise floor and firmer dynamics; Simaudio describes the result as "impressive performance upgrades."

In a MOON system the 820S is the last step rather than the first: a 610LP owner who has settled the cartridge and the loading, or a 791 or 891 owner whose loudspeakers and amplifier are already right, adds it to raise the front end without replacing anything. Because it powers two units, one 820S can serve an 810LP and an 891 together.

Pearl Audio can arrange for you to hear the 820S on your own component: bring the 610LP, 810LP or North Collection player you own and compare it with and without the external supply. We deliver and connect it and can supply MOON's Bridges for stacking.

Key technologies

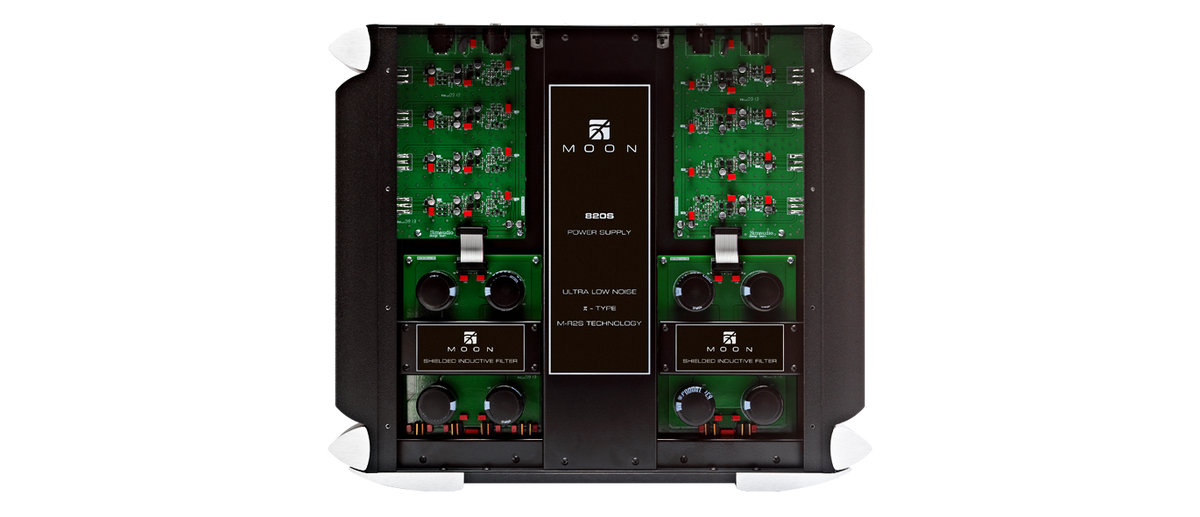

  • Two custom toroidal transformers. Separate analog and digital supplies, each with its own transformer for lower magnetic, electrical and thermal loss.
  • Pi filtering with chokes. Two pi-type filters per supply: 40,000 µF (4 × 10,000 µF) and dual 20 mH chokes to remove mains noise.
  • M-R2S regulation. Fully discrete regulation around a precision reference, four stages per supply, in place of a single regulator chip. See the i²DCf deep dive below.
  • Four-layer boards. Pure copper traces with very low impedance, shortening the current path.
  • Powers two components. Two 4-pin (analog) and two 5-pin (digital) XLR supply cables included.
  • Made in Boucherville, Québec. Hand-assembled and tested; up to 10 years of warranty with registration within 30 days.

Finishes

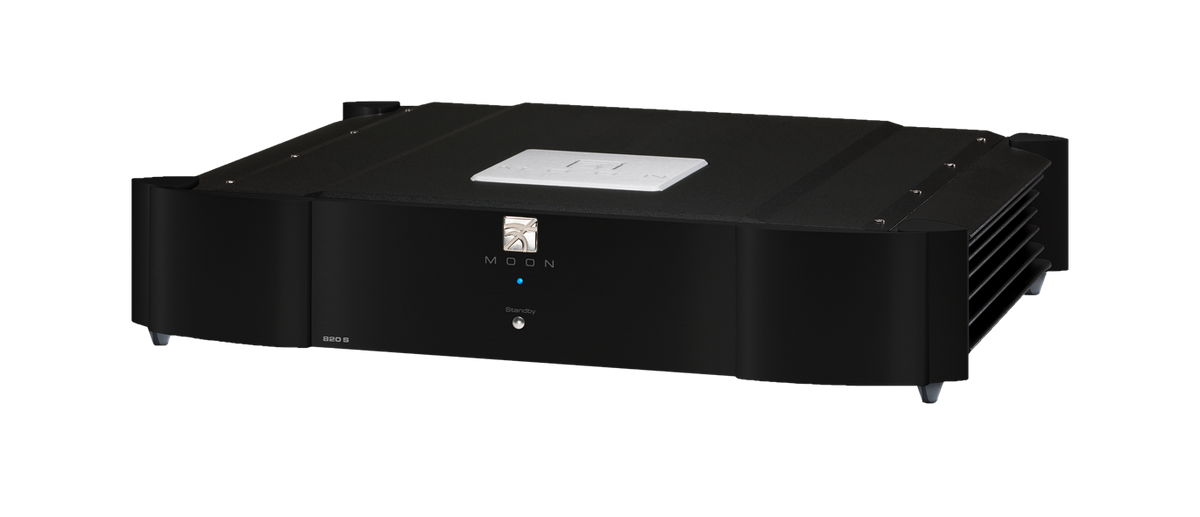

  • Black black chassis with black bead-blasted aluminum cheeks

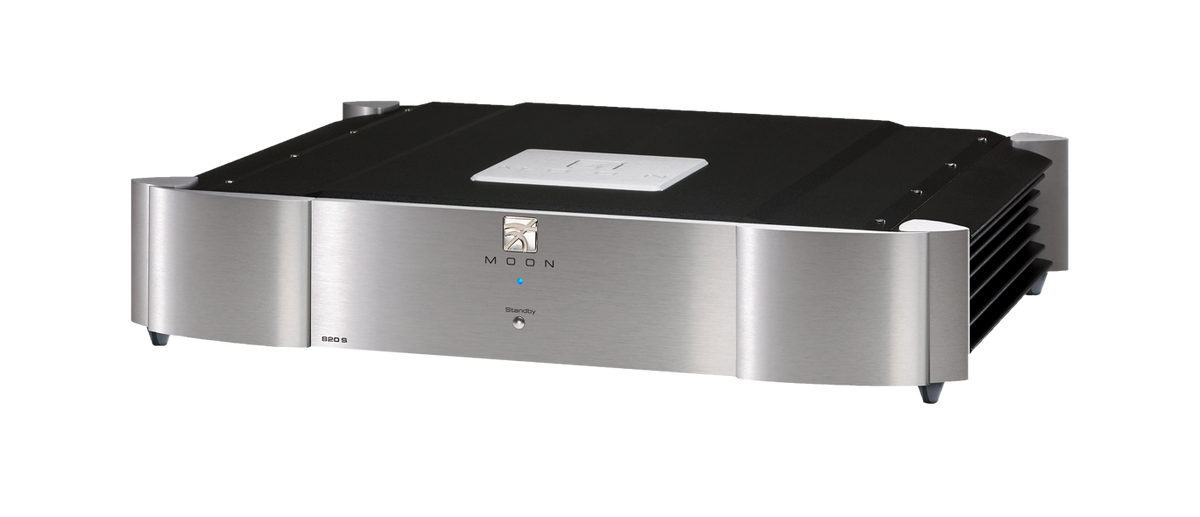

  • Silver silver anodized aluminum front and cheeks

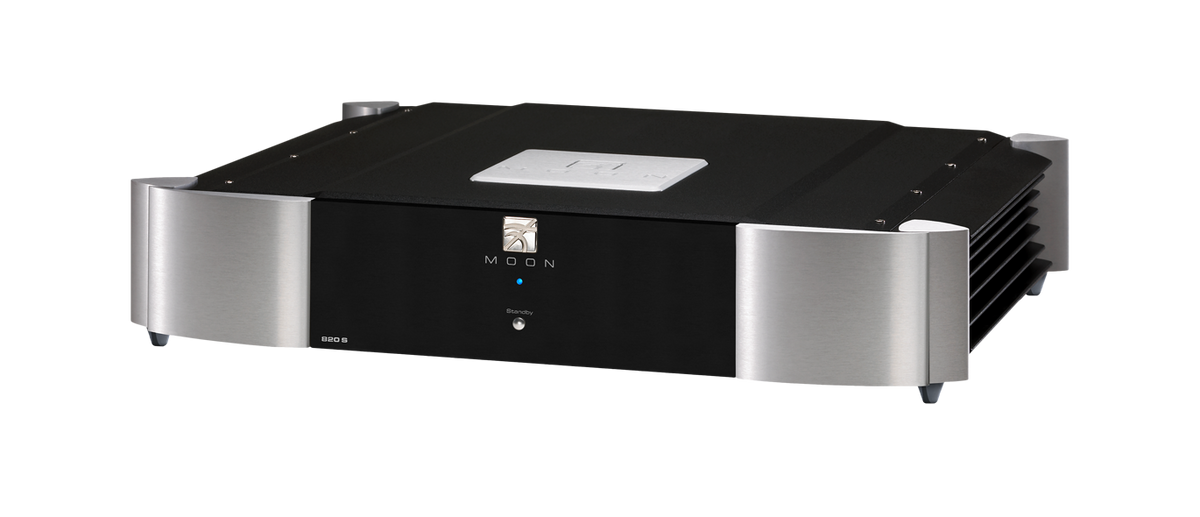

  • 2-Tone black chassis with silver bead-blasted aluminum cheeks

Black, Silver and 2-Tone are the same price. Choose the finish under Options and pricing above.

Specifications
Type External power supply with independent analog and digital sections
Transformers Two custom proprietary toroidal transformers (analog and digital)
Filtering Two pi-type filters per supply; 40,000 µF (4 × 10,000 µF) and 2 × 20 mH chokes per supply
Regulation M-R2S, fully discrete, four stages per supply

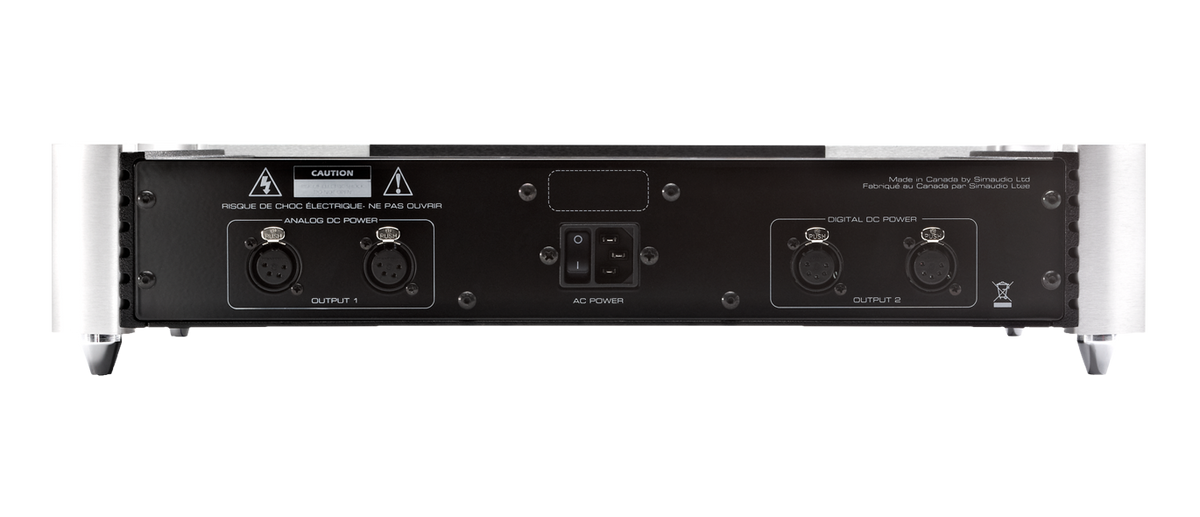

Outputs Powers up to two units; two 4-pin XLR (analog) and two 5-pin XLR (digital) cables included
Compatible with MOON 610LP and 810LP; North Collection 681, 791 and 891 (EXT. SUPPLY input)
Circuit boards Four-layer, pure copper traces
Power consumption Not published by MOON
Dimensions and weight Not published by MOON
Warranty 1 year standard; up to 10 years with registration within 30 days (USA and Canada)

MOON 820S product page and specifications

Where it sits in the range

The 820S is MOON's only external power supply. The components it upgrades, cheapest to dearest:

One 820S can power two of them at once.

Plan your MOON system with Pearl Audio

Pearl Audio is an authorized MOON dealer. We can match it to the rest of your system, set it up in your room and arrange an audition in our Portland showroom. Call (503) 222-2599 or email sales@pearlaudio.com.

Signature technologies

The engineering behind the MOON 820S Power Supply

MOON gives its technologies names because each one solves a specific problem. Here is what each does, where it came from, why it matters in a system, and what you may hear.

Signature technologySince 2011

i²DCf (Independent Inductive DC Filtering)

A dedicated inductor filtering the DC supply of every integrated circuit in the signal path, so each gain stage draws from its own quiet reservoir of power. Read the deep diveClose

What it does

A phono preamplifier amplifies a signal measured in fractions of a millivolt, so any noise riding on its power rails ends up in the music. MOON's answer is to give each IC in the audio path its own inductor-based filter stage: 40 stages in the 850P preamplifier, 24 in the 810LP and 610LP phono stages, 2 in the compact 310LP, with the same inductive DC filtering principle in the 110LP v2. Behind the filters sits multi-stage voltage regulation, four stages of what Simaudio calls M-LoVo (MOON Low Voltage) in the 810LP, and in the top models a separate power supply board with a toroidal transformer. The optional 820S external supply takes the idea further for the 610LP, 810LP and the North players: two toroidal transformers, pi filtering with 40,000 µF and dual 20 mH chokes per supply, and four stages of discrete M-R2S regulation.

Why it matters in a system

With a moving-coil cartridge at 60 to 70 dB of gain the phono stage is the noisiest link in most systems, and its noise floor sets how much of the groove you hear. Independent filtering stops stages from modulating one another through the supply, and the result is the very low noise MOON's phono stages are known for: 115 dBr at 40 dB gain on the 810LP, 112 dBr on the 610LP, 110 dBr on the 310LP. It also makes the units unusually insensitive to the quality of the mains.

What you may hear

Black silence between tracks even with a low-output moving coil, and the small details of a record, room sound, decays, the texture of a bow, that noise would otherwise bury. Michael Fremer's verdict on the 810LP: "the 810LP was dead quiet."

Made in Canada

Hand-assembled in Boucherville, Québec

Every MOON component is designed, hand-assembled and tested in Simaudio's own factory in Boucherville, across the St. Lawrence from Montréal, as it has been since the company's founding in 1980. Read the deep diveClose

What it does

Simaudio has built its own products in Québec since Victor Sima founded the company in 1980. Under Jean Poulin, owner and chief executive for nearly two decades, the operation grew from a 3,000-square-foot shop to a 46,000-square-foot, vertically integrated factory in Boucherville, where engineering, assembly and quality control sit under one roof. When Poulin handed the company to three of its own people in 2013, their commitment was that MOON "will continue to be engineered and manufactured in-house, in Quebec." Boards are populated, chassis finished and every unit hand-assembled and measured before it leaves; a single 888 monoblock takes about a week to build.

Why it matters in a system

Keeping design and production together is how a small company controls quality at this level: the engineer who specified a matched set of transistors can walk to the bench where they are selected, and a change in a circuit can be made in production the same month. It is also what makes long-term service realistic. A MOON component bought today can go back to the people who built it, and the 10-year warranty program rests on that.

What you may hear

Consistency. Two 761s sound like two 761s, and the one you audition in Portland is built the same way as the one delivered to your home.

Ownership

10-year warranty

Register a new MOON component within 30 days of purchase from an authorized dealer and the one-year standard warranty is replaced by up to ten years of coverage against manufacturing defects. Read the deep diveClose

What it does

In Canada and the United States every MOON component carries a one-year parts-and-labor warranty. With a validated registration completed within 30 days of purchase from an authorized MOON dealer, that limited warranty is replaced by an extended warranty of up to ten years against manufacturing defects. Mechanical parts, the laser transport, volume control and switches, are covered for three years under the extended program. The coverage is not transferable from one private owner to another, which is one reason a MOON component bought new, from a dealer, holds its value. Outside Canada and the United States the dealer or distributor sets the terms.

Why it matters in a system

A ten-year commitment is a statement about how the products are built and how long the company expects to support them, and it changes how you plan a system: a 641 or 791 bought today is a component you can build around for a decade, with Simaudio's own factory behind it. Ask Pearl Audio to help with registration when your component is delivered; the 30-day window starts at purchase.

What you may hear

Peace of mind is not audible, but a system you are not worried about is one you listen to more.

All MOON technologies and the company story

The MOON story

Canadian engineering since 1980, devoted to revealing the recording: not spectacle, not excess.

Founded 1980 in Québec, Canada (today Boucherville, near Montréal) by Victor Sima · simaudio.com

Milestones

  1. 1980 Sima Electronics founded Engineer and musician Victor Sima founds the company in Québec; its early PW2000 amplifier is aimed first at professional users.
  2. 1990 Simaudio Ltd. and Celeste The company's timeline places the Simaudio Ltd. name and the Celeste series here; the Celeste i-5080 integrated amplifier earns a following.
  3. 1997 The MOON Series Simaudio launches MOON as its reference-grade line. The i-5 integrated amplifier, W-5 power amplifier and P-5 preamplifier define the period.
  4. 2010 30th anniversary Limited editions of the MOON 600i and the Evolution 750D converter in high-gloss red, each with a 30-year warranty.
  5. 2011 Evolution 850P The two-chassis flagship preamplifier is shown at CES: eight-point floating suspension, dual-mono supply and the M-Ray 530-step volume control.MOON 850P Preamplifier
  6. 2012 MiND The 180 MiND is Simaudio's first network streamer, built on MiND, the MOON intelligent Network Device. The 810LP reference phono preamplifier arrives the same year.MOON 810LP Phono Preamplifier
  7. 2013 New owners from within Jean Poulin, owner and CEO for nearly two decades, passes the company to Costa Koulisakis, Thierry Dufour and Louis Lemire. Production stays in-house in Québec.
  8. 2018 888 and MiND 2 The 888 monoblock ships (888 W into 8 ohms, 32 matched bipolar transistors, no global feedback) after its CES 2017 debut; MiND 2 is shown at HIGH END Munich.MOON 888 Power Amplifier
  9. 2022 EISA award for the ACE The MOON ACE all-in-one player wins the EISA High-End Stereo System 2022-2023 award.
  10. 2023 North Collection Unveiled at HIGH END Munich: 641, 681, 761, 791, 861 and 891, introducing MDCA, the MDE digital engines, M-RAY2 and M-VOL3 volume control, MOONLink and the BRM-1 remote.MOON 891 Network Player / Preamplifier
  11. 2025 Compass Collection The 371 Network Player / Amplifier opens a more accessible range built on MDCA and the MHP hybrid power supply, and wins EISA's Premium Integrated Amplifier 2026-2027; the 491, 461 and 341 follow in 2026.MOON 371 Network Player / Amplifier
  12. 2026 MOON at Pearl Audio Pearl Audio becomes a MOON dealer in April 2026 and brings the North Collection to Portland.
  13. Now MOON 820S Power Supply The 820S is the external power supply of MOON's reference range: two toroidal transformers, pi filtering and four stages of M-R2S regulation on separate analog and digital supplies, built to lift the 610LP and 810LP phono preamplifiers and the North Collection's 681, 791 and 891.
Read the MOON story
MOON 791 Network Player / Preamplifier from the North Collection in a living room (manufacturer photo)

Simaudio began in 1980, when Victor Sima, an engineer and musician, founded Sima Electronics in Québec to build amplifiers for people who found mass-market audio wanting; its early PW2000 amplifier was aimed first at professional users. The company's own timeline places the Celeste series and the Simaudio Ltd. name at 1990, and the Celeste i-5080 integrated amplifier, which brought the firm's preamplifier and power amplifier work into one chassis, gave it a following. In 1997 Simaudio introduced the MOON Series, a reference-grade line that moved the company into the high end. The MOON i-5 integrated amplifier, the W-5 power amplifier and the P-5 preamplifier defined the period and set the house values that still hold: amplifiers without global feedback, dual-mono construction, and a sound that reveals rather than flatters.

Under Jean Poulin, owner and chief executive for nearly two decades, the company grew from a 3,000-square-foot shop to a 46,000-square-foot, vertically integrated factory in Boucherville, across the St. Lawrence from Montréal, and MOON became a brand sold around the world. The 2000s added home theater, the MOON ROCK monoblock and the Attraction processor, and then the Evolution Series brought the brand into a new tier: the 750D, the fully balanced converter Simaudio counts as its digital milestone, and the Evolution 850P preamplifier, shown at CES in January 2011 with its two-chassis layout, eight-point floating suspension and M-Ray 530-step volume control, which became the reference for everything that followed. In 2012 Simaudio launched its first network streamer, the 180 MiND, and with it MiND, the MOON intelligent Network Device.

In September 2013 Poulin handed the company to three of its own people: Costa Koulisakis, who had spent thirteen years building its sales and customer relationships; Thierry Dufour, chief engineer for almost twenty years and the designer behind its award-winning products; and Louis Lemire, an engineer with a business background. Their commitment was that MOON would continue to be engineered and manufactured in-house in Québec. The 888 monoblock, shown as a prototype at CES 2017 and shipped in 2018, was their statement piece: 888 watts into 8 ohms, 32 hand-matched bipolar transistors mounted in cast heat sinks machined to a thousandth of an inch, no global feedback, and about a week on the bench for each one. MiND 2, the second-generation streaming platform, arrived the same year.

The modern MOON took shape over the following years. In 2022 the ACE all-in-one player won the EISA High-End Stereo System award, confirming that the company's streaming platform could carry a complete system. In May 2023 at HIGH END Munich the company unveiled the North Collection, six components (641, 681, 761, 791, 861, 891) that introduced MDCA distortion-cancelling amplification, the MDE digital engines, the M-RAY2 and M-VOL3 volume controls, MOONLink system control and the BRM-1 Bluetooth remote; Stereophile measured the 861 and called the result "one of the best I have encountered." In 2025 the Compass Collection followed, opening with the 371 Network Player / Amplifier, EISA's Premium Integrated Amplifier 2026-2027, and continuing with the 491, 461 and 341, bringing MDCA and the MHP hybrid power supply to a more accessible range. MOON International now carries the brand beyond North America.

The philosophy has not changed since the i-5. Simaudio describes its aim as bringing listeners "closer to the emotional truth of a performance," revealing the recording "with natural authority and emotional depth," and sums up the design brief as "Not spectacle. Not excess." Every MOON component is still designed, hand-assembled and tested in Boucherville, backed by a ten-year warranty with registration, and the company counts more than 400 awards worldwide. Pearl Audio has represented MOON since April 2026.

The complete MOON story and technology library

MOON at Pearl Audio

Pearl Audio became an authorized MOON dealer in April 2026 and keeps the North Collection on the floor in Portland. Our MOON representative is Ari Margolis. Ask us about registering your MOON purchase for the 10-year warranty (registration must be completed within 30 days); we handle delivery and setup ourselves.
