MOON · Phono Preamplifiers
$8,500
MOON · Phono Preamplifiers

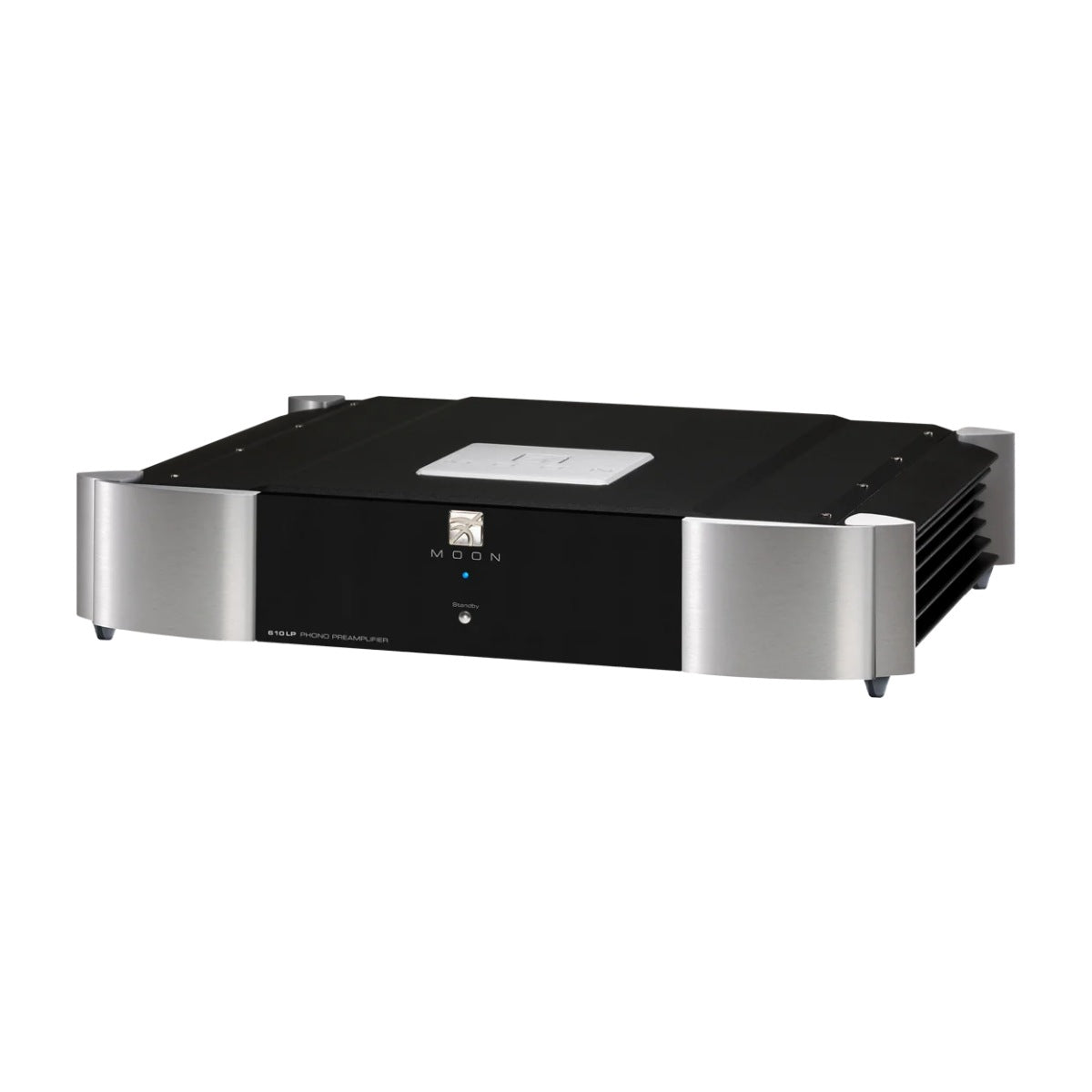

The 610LP is a dual-mono, fully balanced phono preamplifier derived from MOON's reference 810LP, with 16 gain settings, 64 loading values and selectable RIAA or IEC equalization.
Price is for one unit.
Authorized MOON dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The 610LP is what MOON calls a purist design: the 810LP's balanced differential topology, 24-stage i2DCf inductive filtering and 1%-tolerance polypropylene capacitors, in a single-suspension chassis at a lower price. Both balanced and single-ended inputs and outputs are provided. Sixteen gain settings from 40 to 70 dB, 64 resistive loads from 12.1 Ω to 47 kΩ and 16 capacitive loads to 1,120 pF let it be set precisely for any cartridge, and the RIAA or IEC curve is selectable. The 820S external supply is an available upgrade.
TONEAudio's Jeff Dorgay noted that with the 610LP "the noise floor is always in the recording, with tape hiss from the master coming through, not the electronics." It is the phono stage for a serious moving-coil setup with a 641 or 791 system; the 310LP covers simpler systems and the 810LP adds the floating suspension and lower noise of the reference.
Black, Silver and 2-Tone are MOON's standard finishes and carry the same price. Choose your finish under Options and pricing above.
| Type | Balanced dual-mono MM/MC phono preamplifier |
| Inputs | 1 × XLR pair, 1 × RCA pair |
| Outputs | Balanced XLR and single-ended RCA; 50 Ω |
| Gain | 40 – 70 dB, 16 settings |
| Resistive loading | 12.1 Ω – 47 kΩ, 64 settings |
| Capacitive loading | 0 – 1,120 pF, 16 settings |
| Equalization | RIAA or IEC, selectable |
| Signal-to-noise ratio | 112 dBr at 40 dB gain; 93 dBr at 70 dB gain |
| Frequency response | 20 Hz – 20 kHz (±0.1 dB) |
| THD | 0.001% (20 Hz – 20 kHz) |
| Crosstalk | −106 dB at 1 kHz |
| External power supply | 820S compatible |
| Dimensions (W × H × D) | 18.75 × 4.0 × 16.8 in (47.6 × 10.2 × 42.7 cm) |
| Shipping weight | 40 lb (18 kg) |
MOON's phono preamplifiers, from entry to reference:
The MOON 820S external power supply is an available upgrade.
Plan your MOON system with Pearl Audio
Pearl Audio is an authorized MOON dealer. We can match the 610LP to your turntable and cartridge, set gain and loading, and arrange a listening appointment. Call (503) 222-2599 or email sales@pearlaudio.com.
