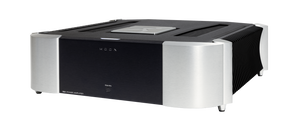

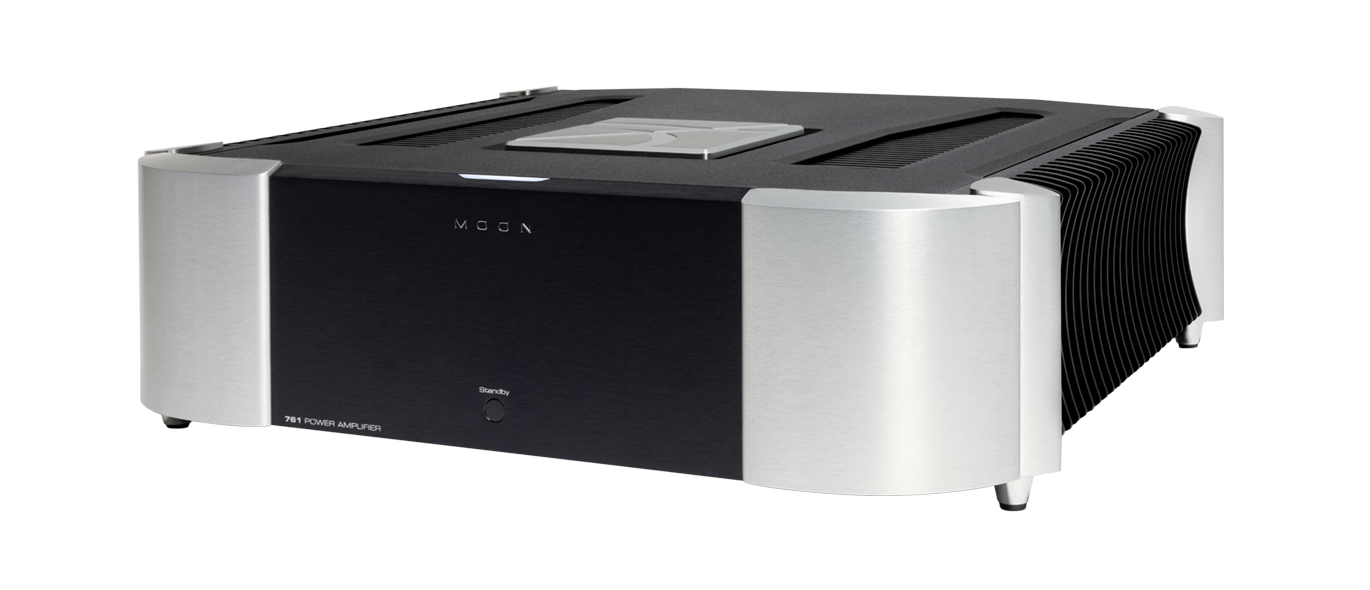

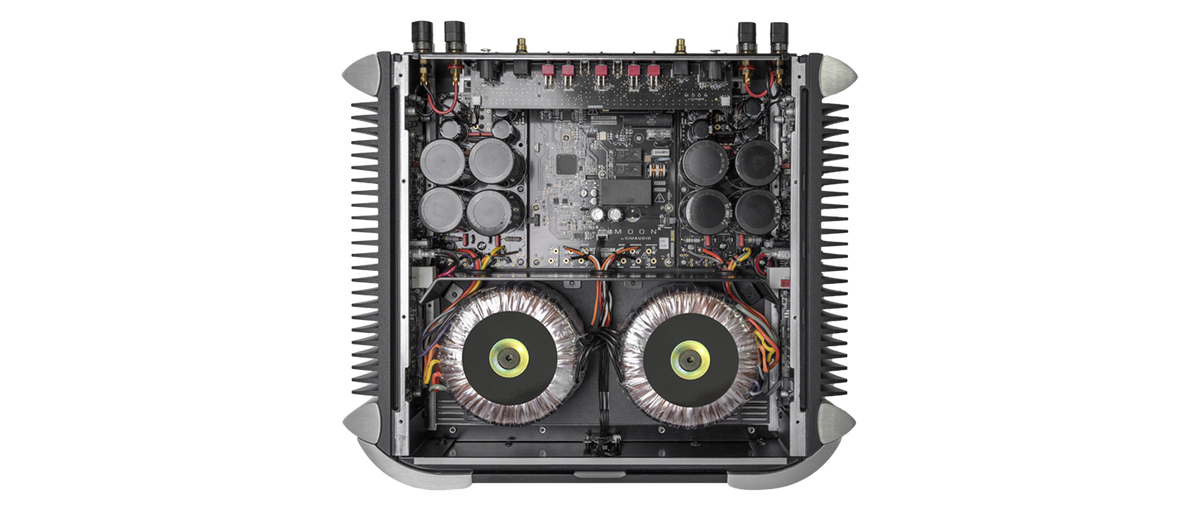

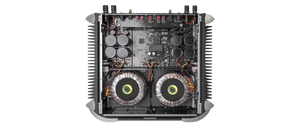

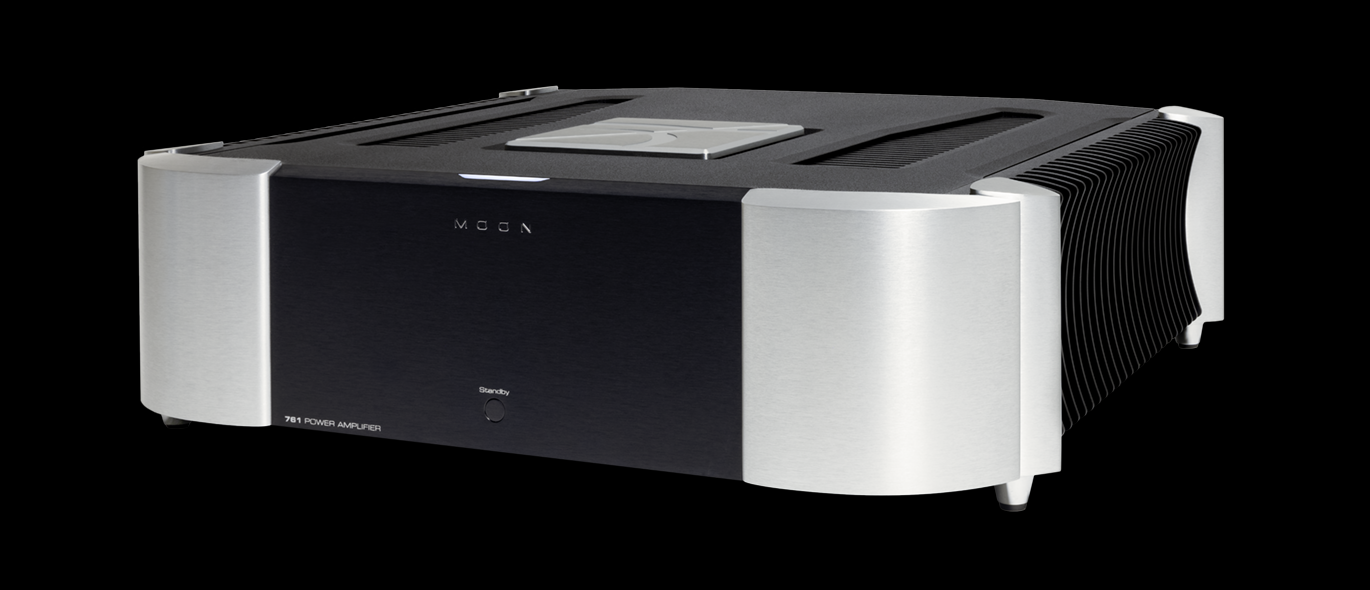

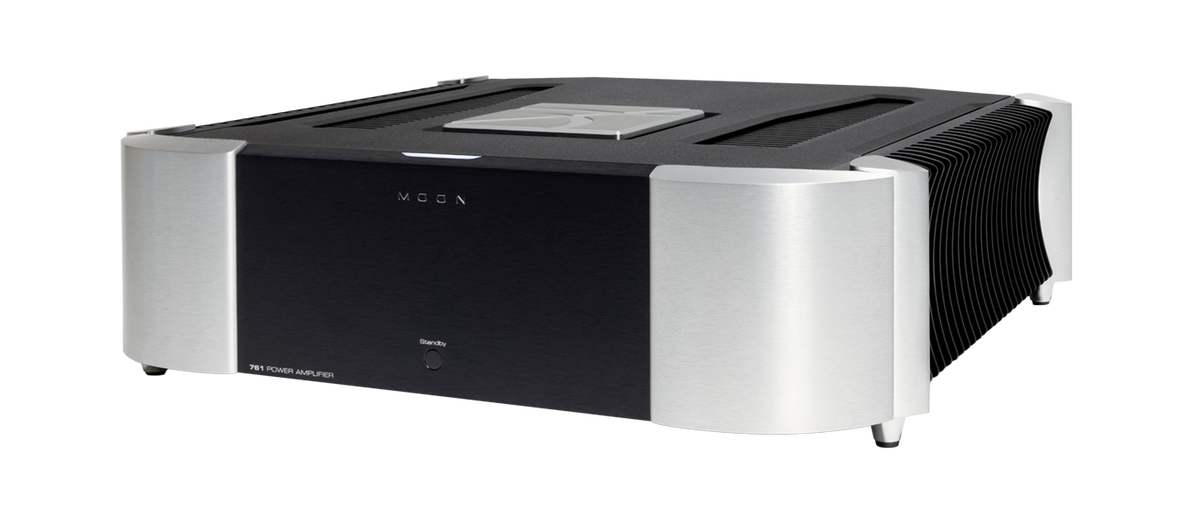

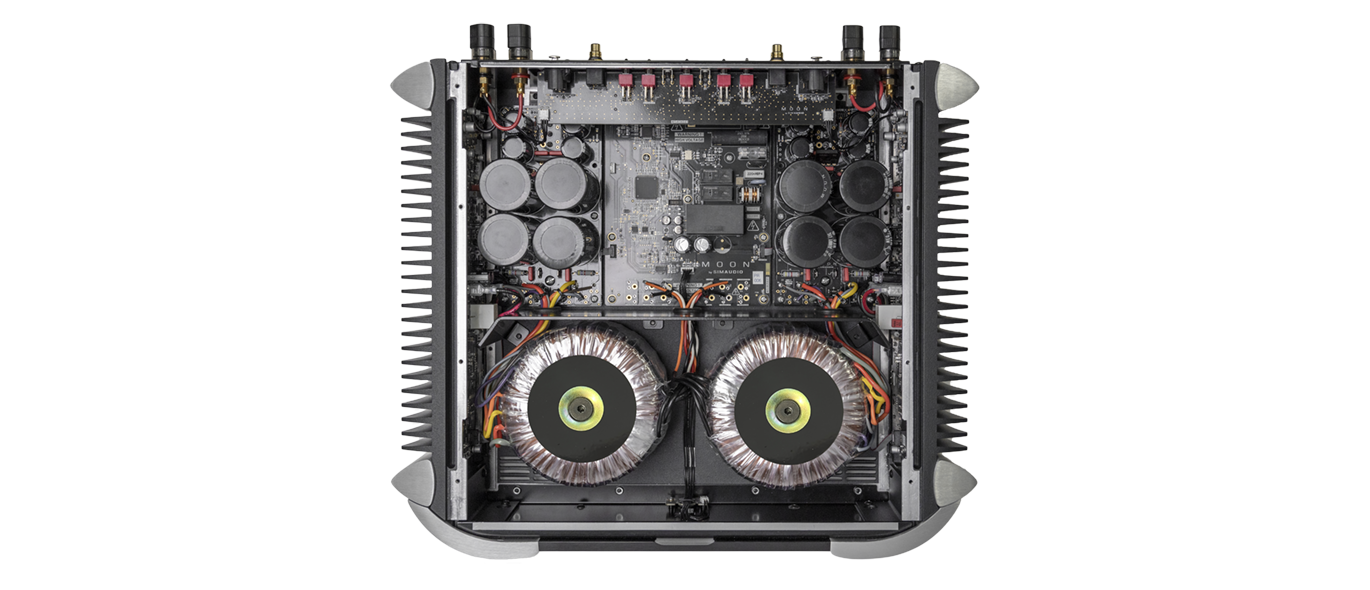

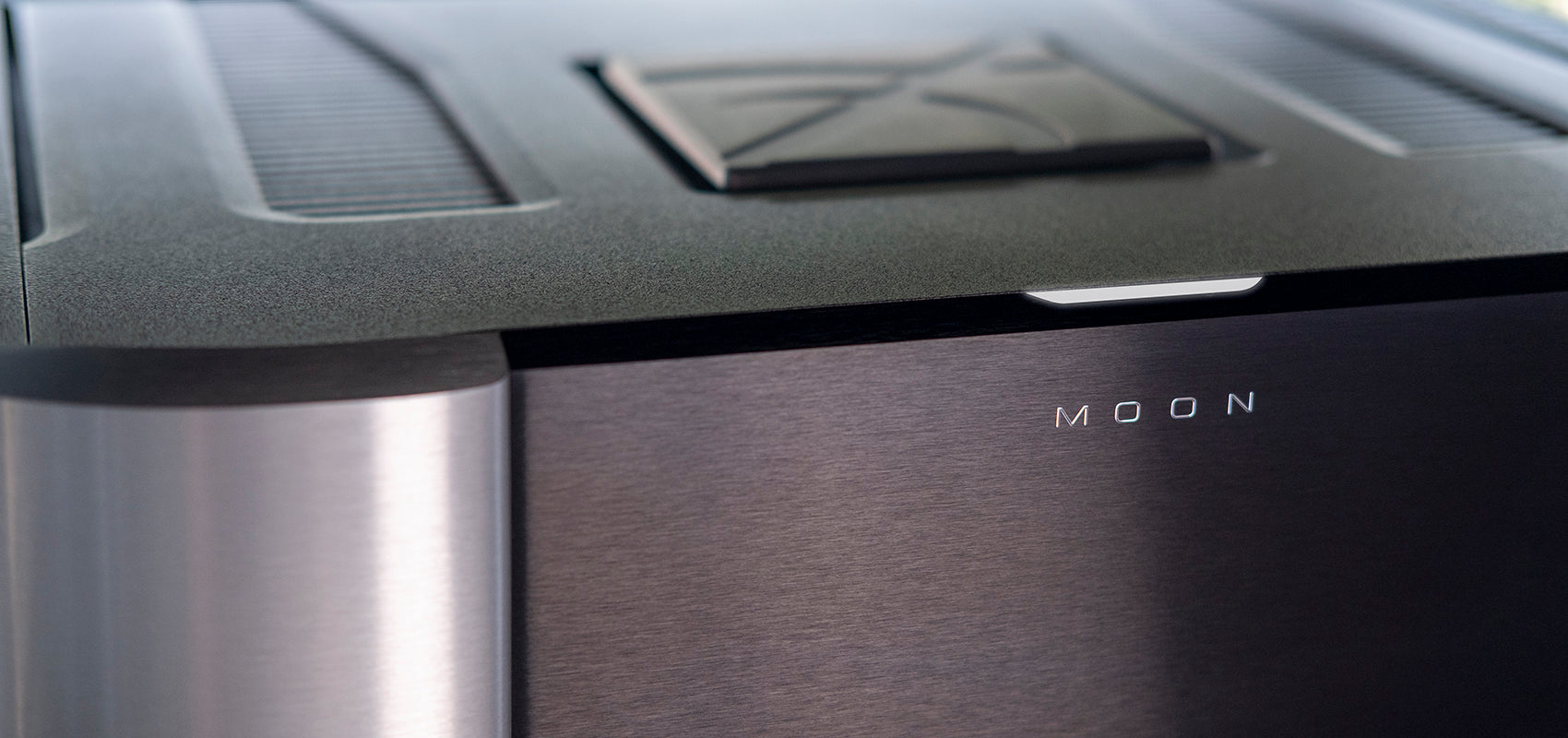

A stereo power amplifier delivering 200 watts per channel into 8 ohms and 400 watts into 4 ohms, the 761 employs a dual-mono topology with independent power supplies per channel. The MDCA amplification architecture minimizes distortion without global feedback, achieving a total harmonic distortion of just 0.001% at full output. Twin custom 700 VA toroidal transformers and over 150,000 µF of capacitance ensure stable energy delivery during demanding musical passages. The high damping factor of 800 provides authoritative control over complex loudspeaker loads, preserving soundstage integrity and dynamic consistency.
-
Output Power (Stereo 8 Ω): 200 W
-
Output Power (Stereo 4 Ω): 400 W
-
Output Power (Mono 8 Ω): 600 W
-
Frequency Response: 2 Hz – 100 kHz (+0 dB / –3 dB)
-
Total Harmonic Distortion + Noise (@ 200 W): 0.001%
-
Signal-to-Noise Ratio: 117 dB
-
Damping Factor: 800
-
Input Sensitivity: 1.1 V
-
Input Impedance: 47 kΩ
-
Gain: 31 dB
