MOON · Phono Preamplifiers
$2,300
MOON · Phono Preamplifiers
The 310LP is MOON's half-width phono preamplifier: a symmetrical MM/MC circuit with adjustable gain, loading and EQ curve, balanced and single-ended outputs, and a separate oversized power supply board.
Price is for one unit.
Authorized MOON dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The 310LP is MOON's long-running mid-priced phono stage, and SoundStage! keeps it on its list of Recommended Reference Components. The circuit is symmetrical, with the power supply on its own board around a toroidal transformer and two regulation stages, MOON's i2DCf inductive filtering, custom electrolytic capacitors and four-layer boards with pure copper traces. Resistive loading, capacitance, gain and the RIAA or IEC curve are set by the user, and outputs are offered on both RCA and balanced XLR.
The 310LP is the right phono stage for most turntables and cartridges feeding a 641, 341 or a preamplifier without phono built in. Owners of low-output moving coils and reference tables should look at the 610LP.

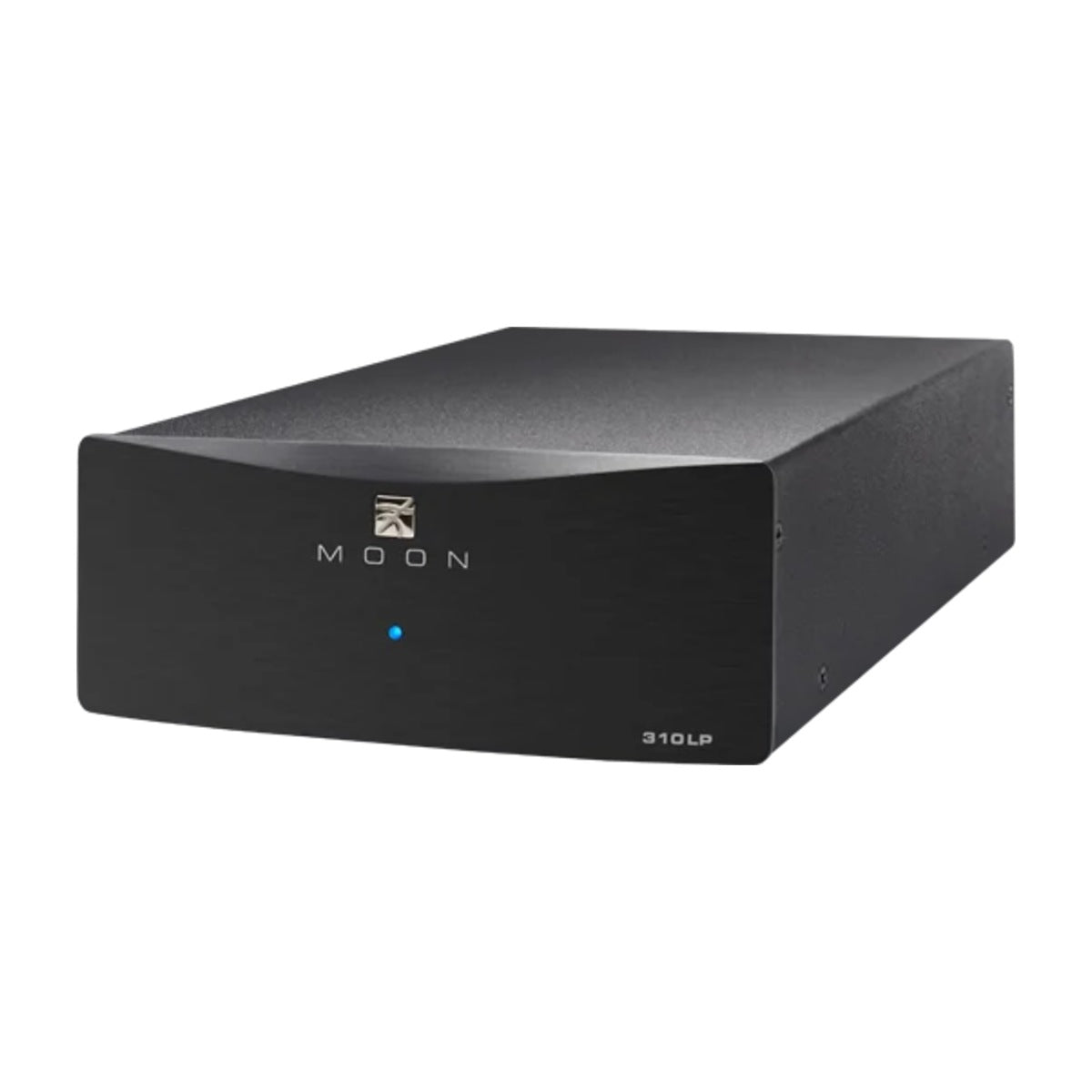

The 310LP is supplied in black.
| Type | MM/MC phono preamplifier, half-width |
| Gain | Adjustable; specified at 40 dB and 66 dB settings |
| Loading | Adjustable resistive and capacitive loading; RIAA or IEC curve |
| Outputs | Single-ended RCA and balanced XLR; 50 Ω |
| Signal-to-noise ratio | 110 dBr at 40 dB gain; 88 dBr at 66 dB gain |
| Frequency response | 20 Hz – 20 kHz (±0.5 dB) |
| THD | 0.001% (20 Hz – 20 kHz) |
| Crosstalk | −100 dB at 1 kHz |
| Input overload | 58 mV RMS at 40 dB; 3.0 mV RMS at 66 dB (1 kHz) |
| Dimensions (W × H × D) | 7.0 × 3.0 × 11.0 in (17.8 × 7.6 × 28.0 cm) |
| Shipping weight | 9 lb (4 kg) |
MOON's phono preamplifiers, from entry to reference:
Plan your MOON system with Pearl Audio
Pearl Audio is an authorized MOON dealer. We can set the 310LP for your cartridge and arrange a listening appointment. Call (503) 222-2599 or email sales@pearlaudio.com.
