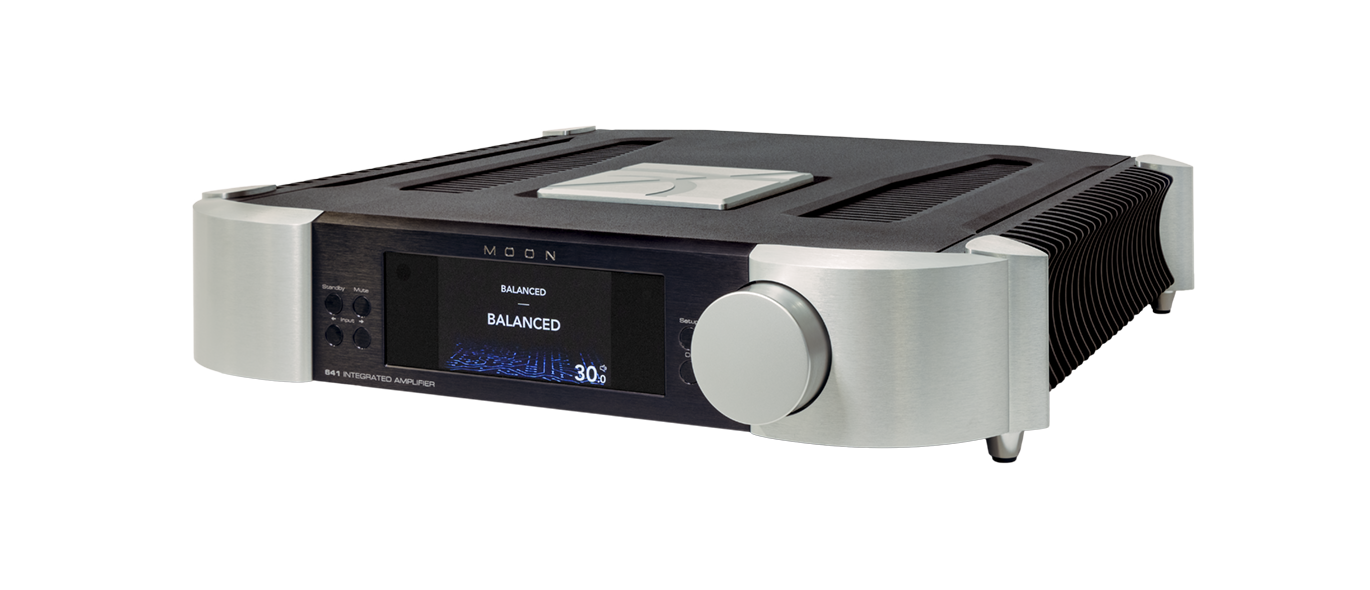

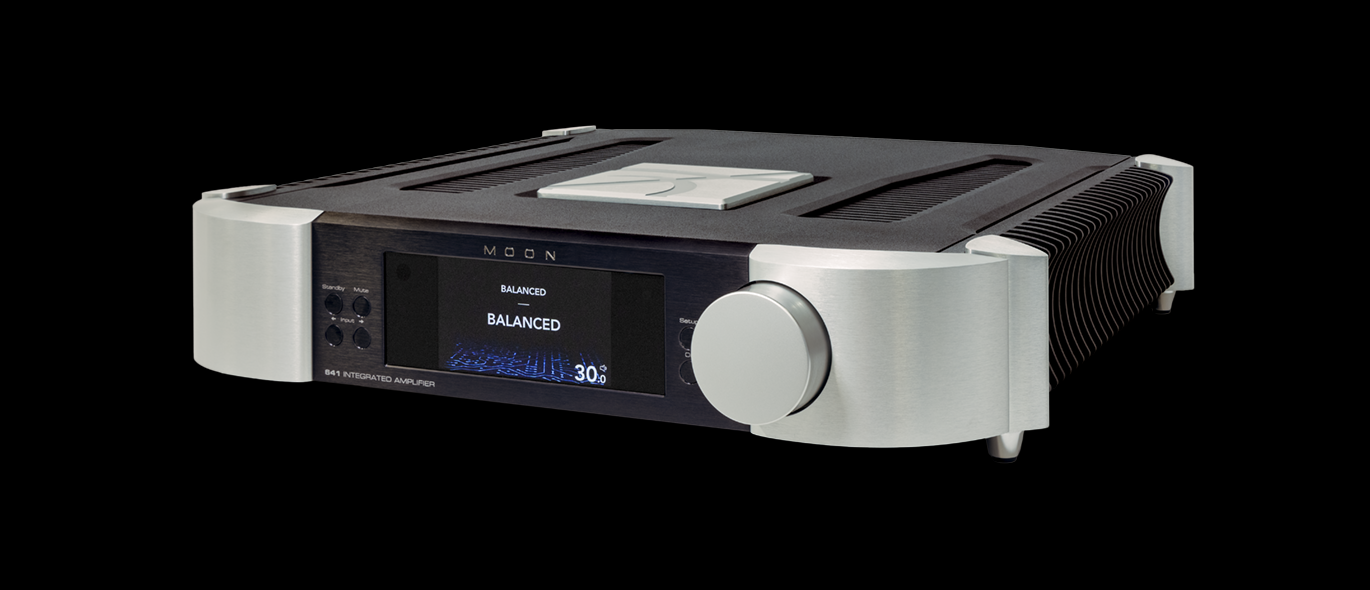

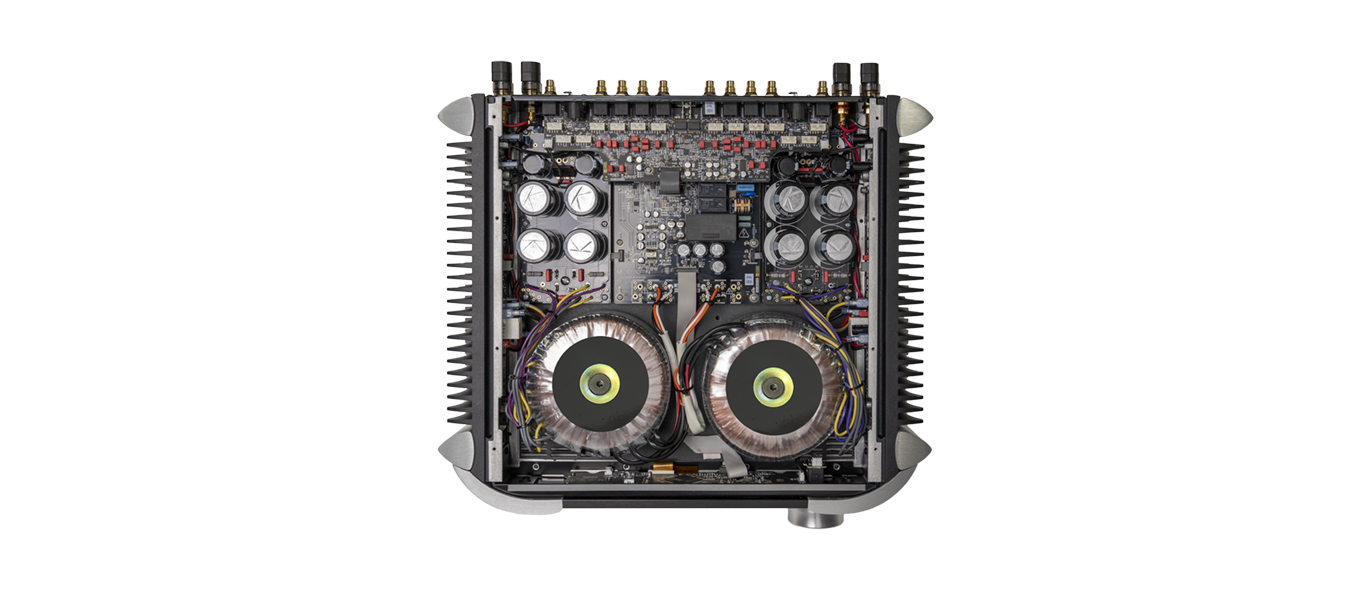

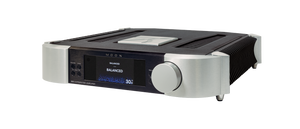

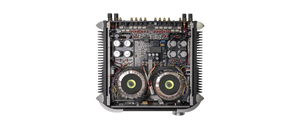

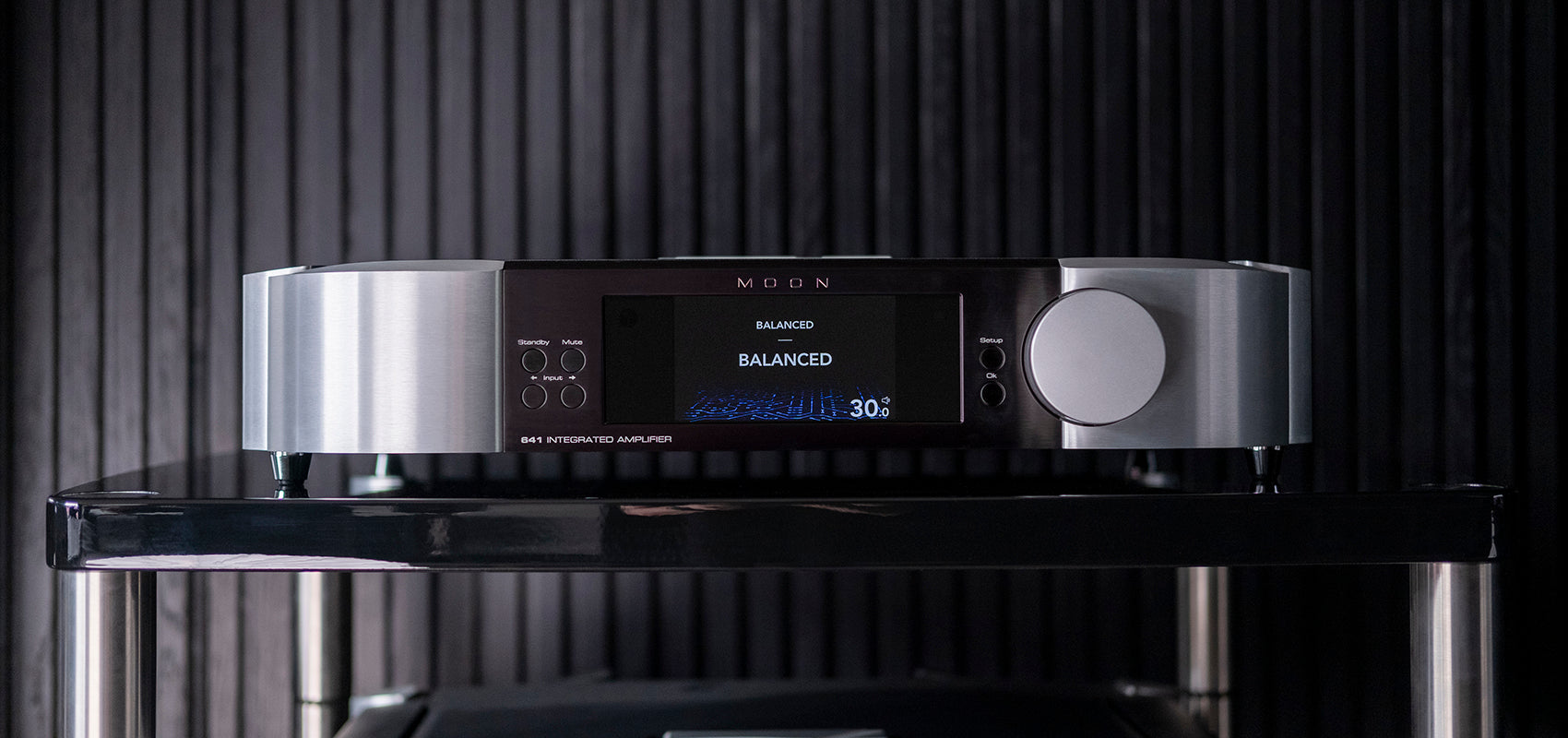

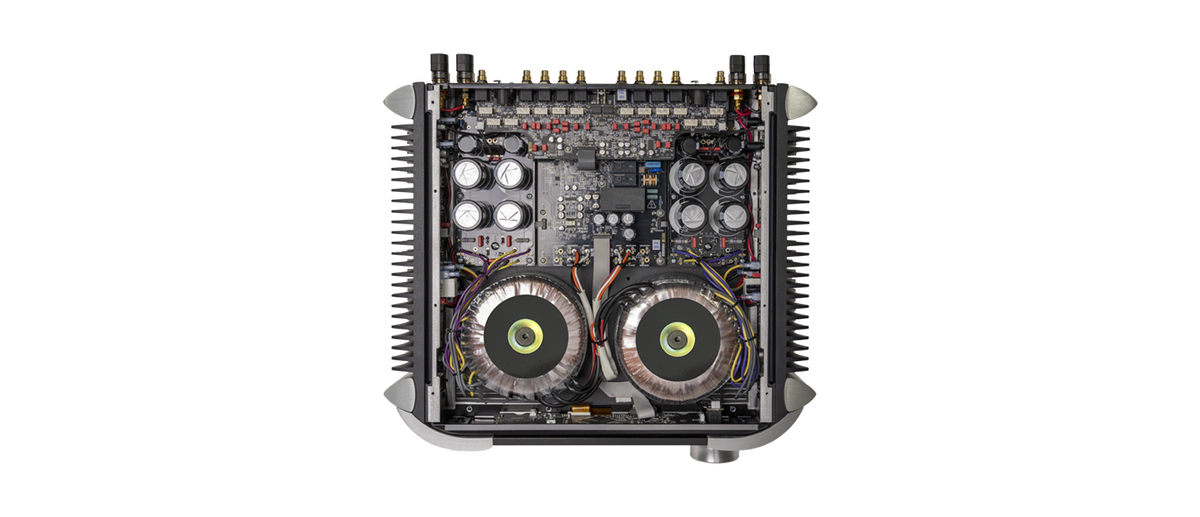

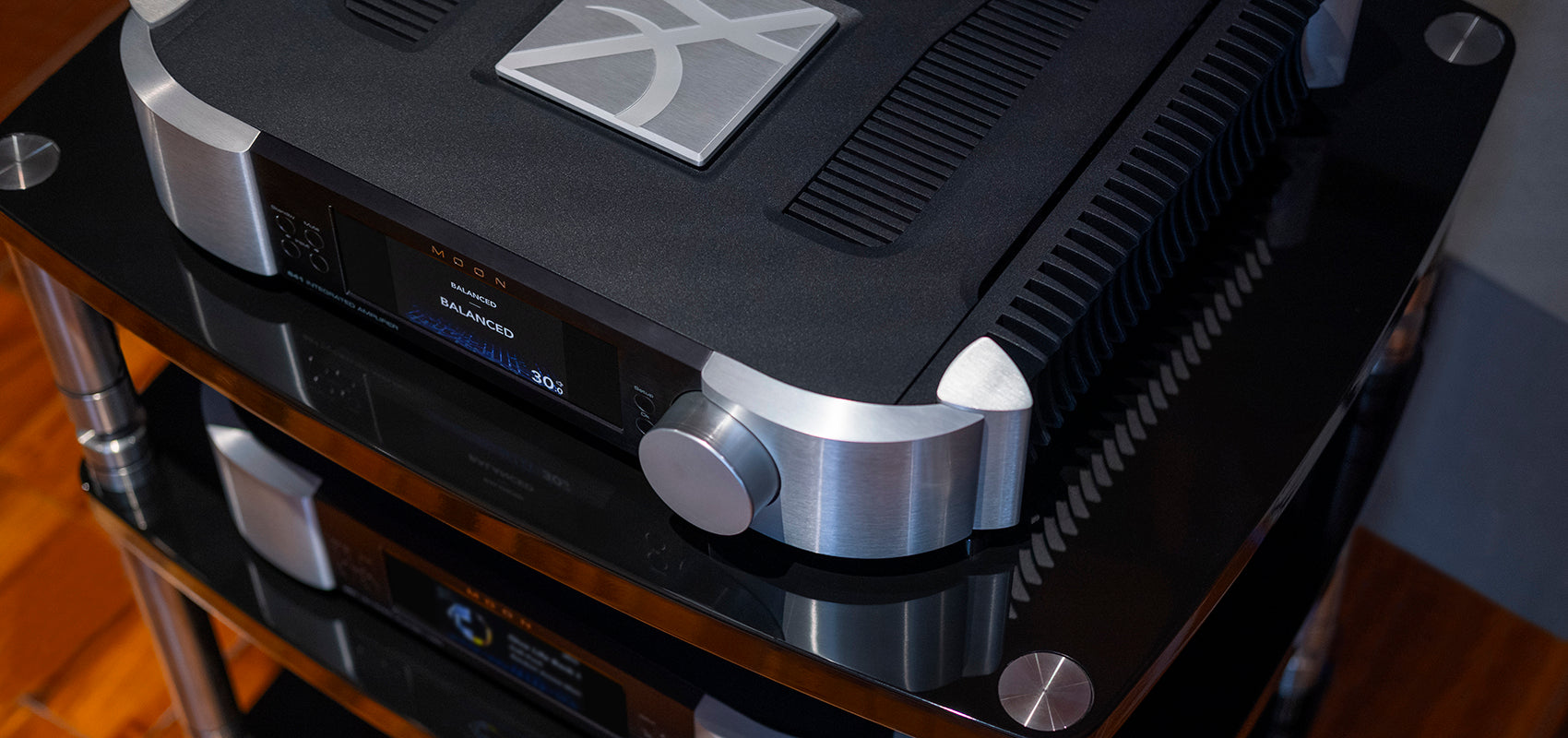

A dual-mono integrated amplifier housing preamplifier and power amplifier stages within a single chassis. The MDCA circuit operates outside the signal path to reduce distortion without global feedback, while M-VOL3 delivers precise gain control at low levels. Rated at 125 W into 8 ohms and 250 W into 4 ohms, with a damping factor of 700 and signal-to-noise ratio of 109 dB. The 4.3-inch color display and MOONLink connectivity simplify system integration.
-
Output Power (Stereo 8 Ω): 125 W
-
Output Power (Stereo 4 Ω): 250 W
-
Frequency Response: 2 Hz – 90 kHz (+0 dB / –3 dB)
-
Total Harmonic Distortion + Noise (@ 125 W): 0.003%
-
Signal-to-Noise Ratio: 109 dB
-
Damping Factor: 700
-
Input Sensitivity: 300 mV – 6 V
-
Input Impedance: 22 kΩ
-
Dimensions (width x height x depth): 18.95 x 4.03 x 18.32 in
-
Shipping Weight: 57.5 lbs
