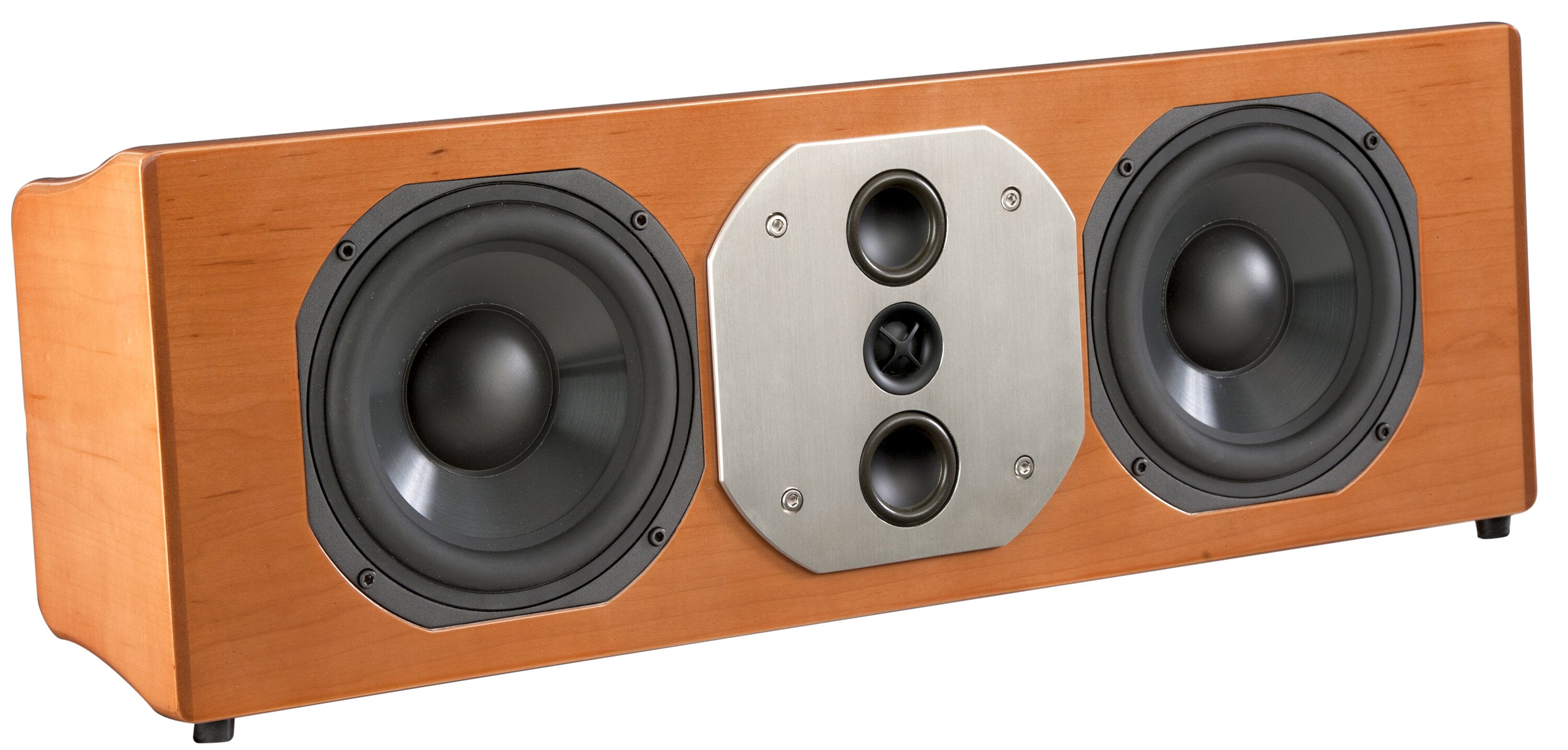

McIntosh LCR80 in wood veneer, angle view without grille

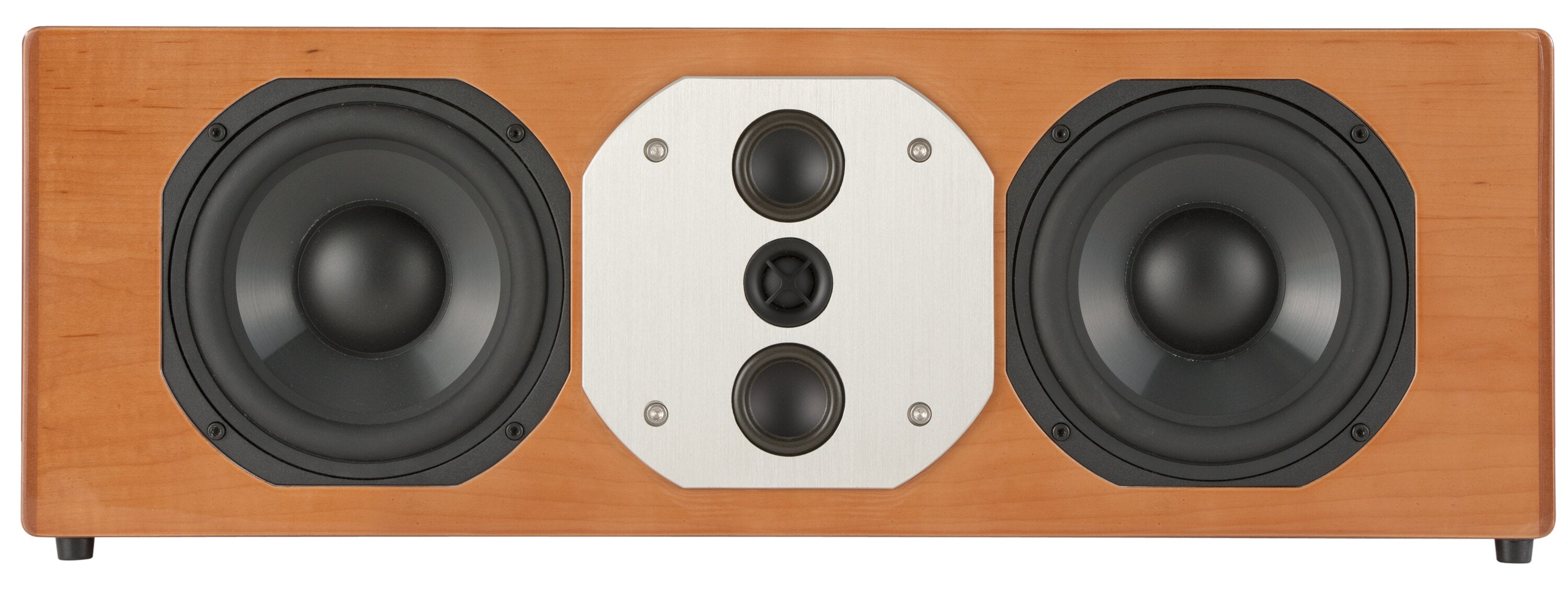

McIntosh LCR80 in wood veneer, front view without grille

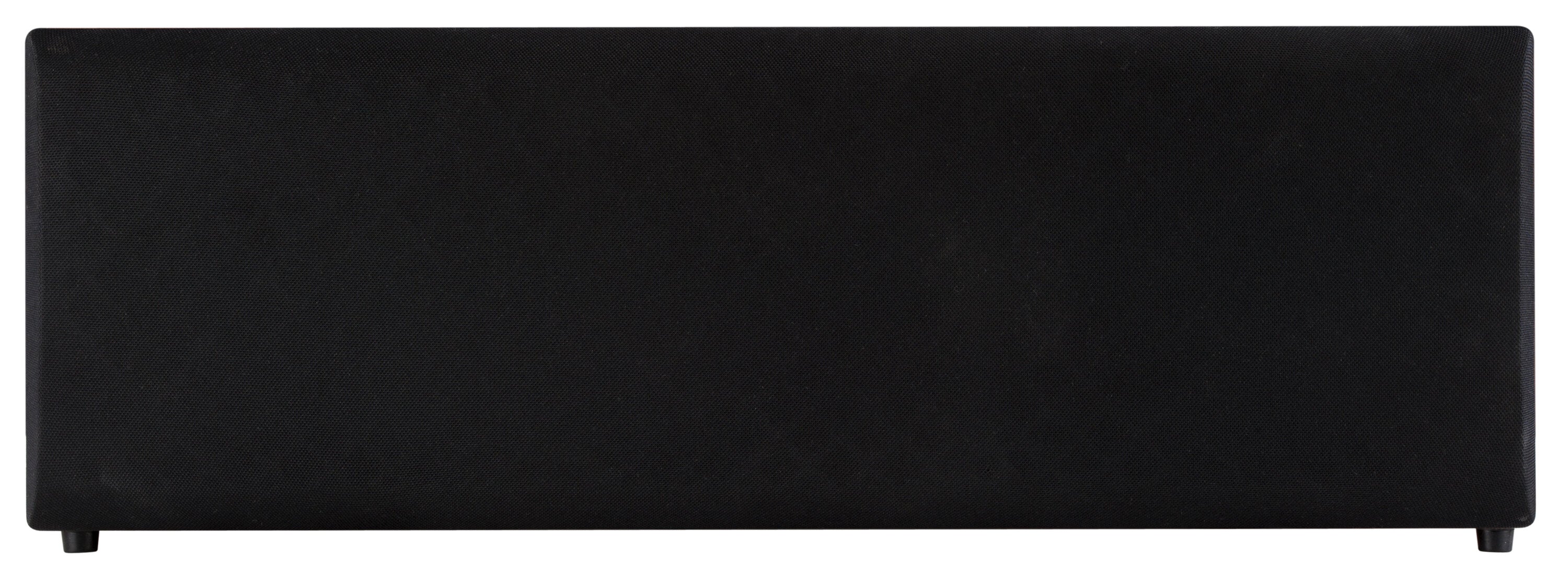

McIntosh LCR80 in wood veneer, front view with grille

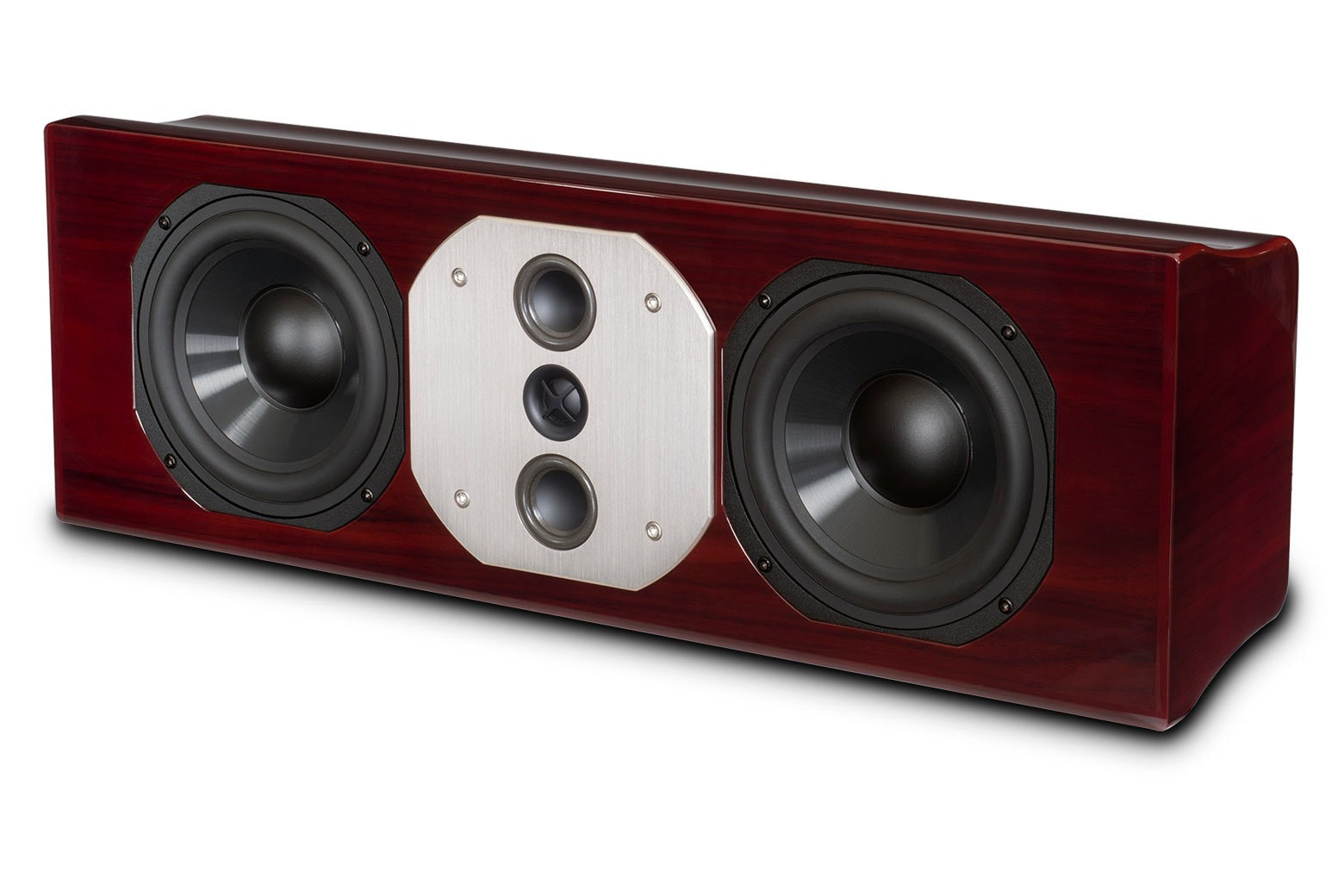

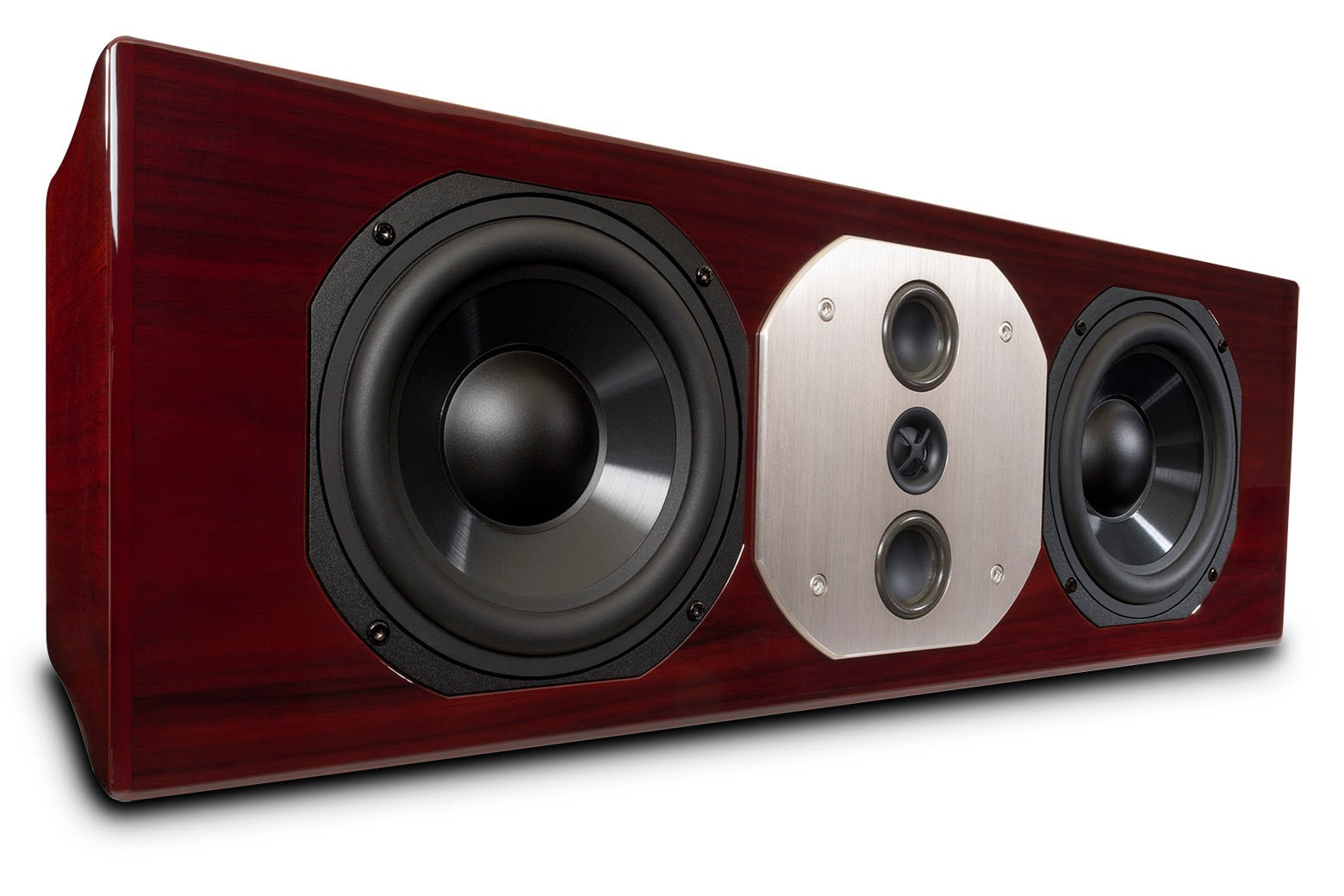

McIntosh LCR80 in Rosewood, angle view without grille
McIntosh LCR80 in Rosewood, low angle view without grille

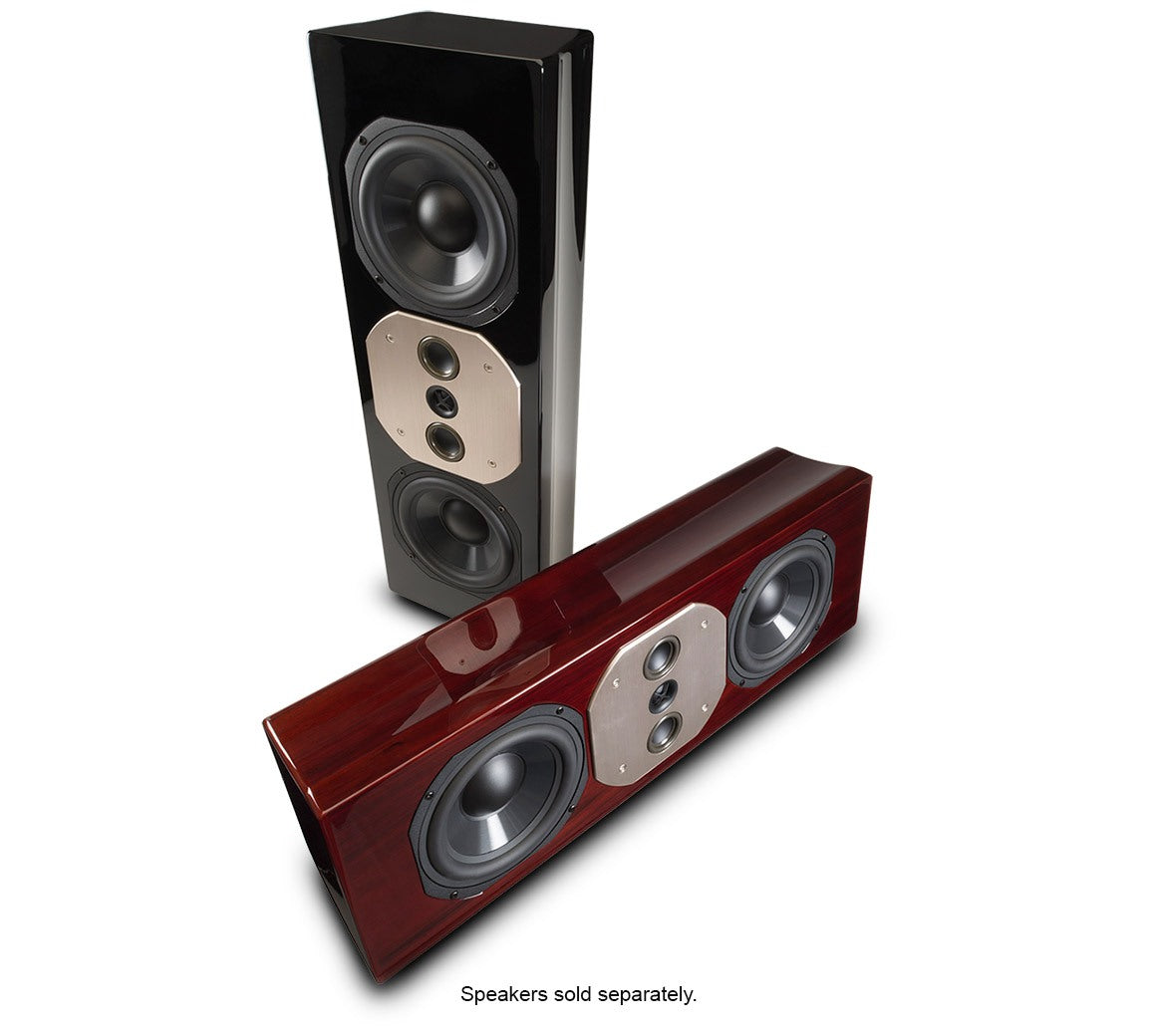

McIntosh LCR80 in Black and Rosewood, vertical and horizontal placement

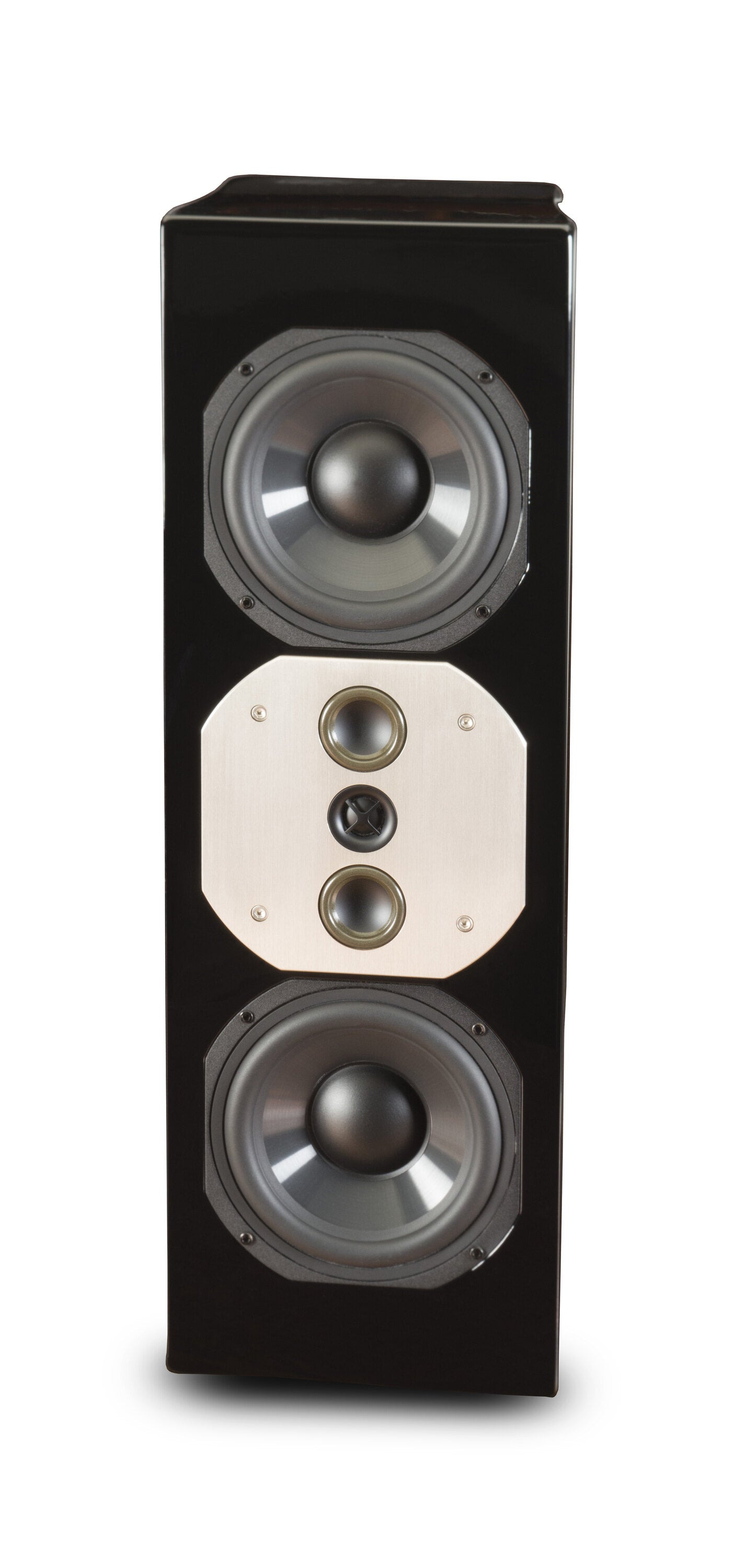

McIntosh LCR80 in Black, vertical front view without grille

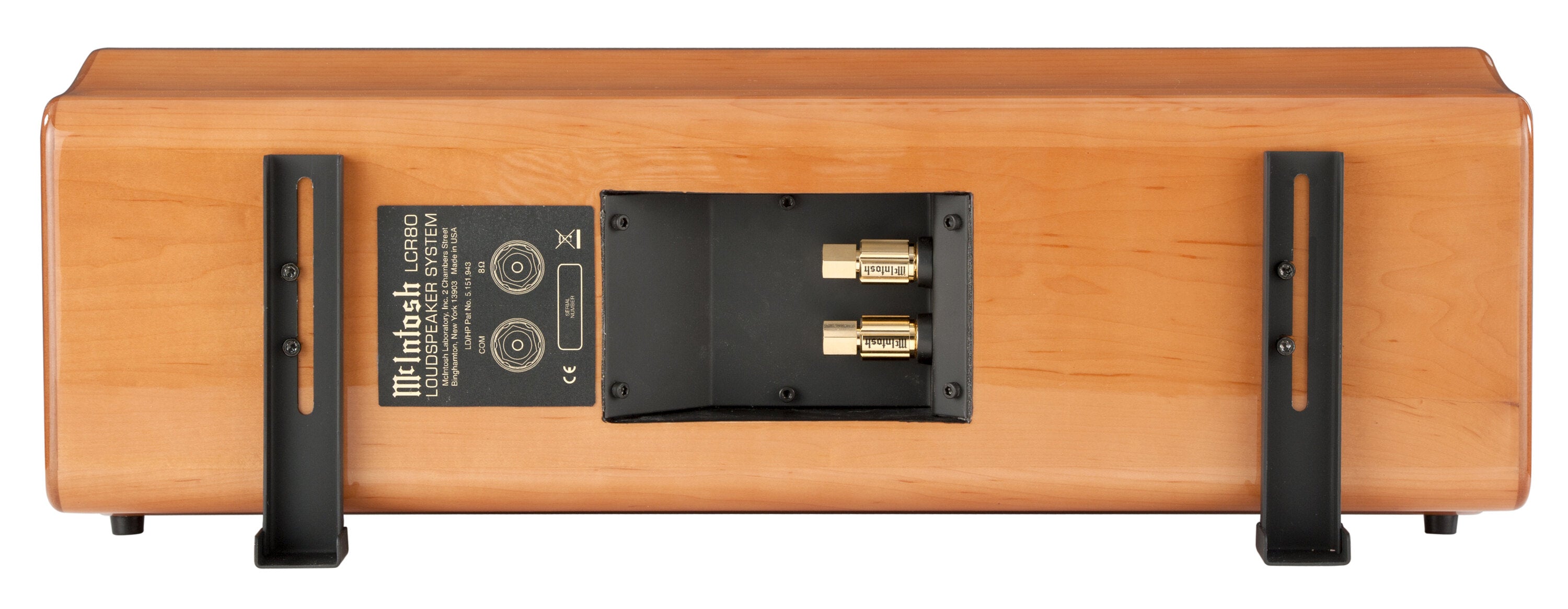

McIntosh LCR80 in wood veneer, rear view

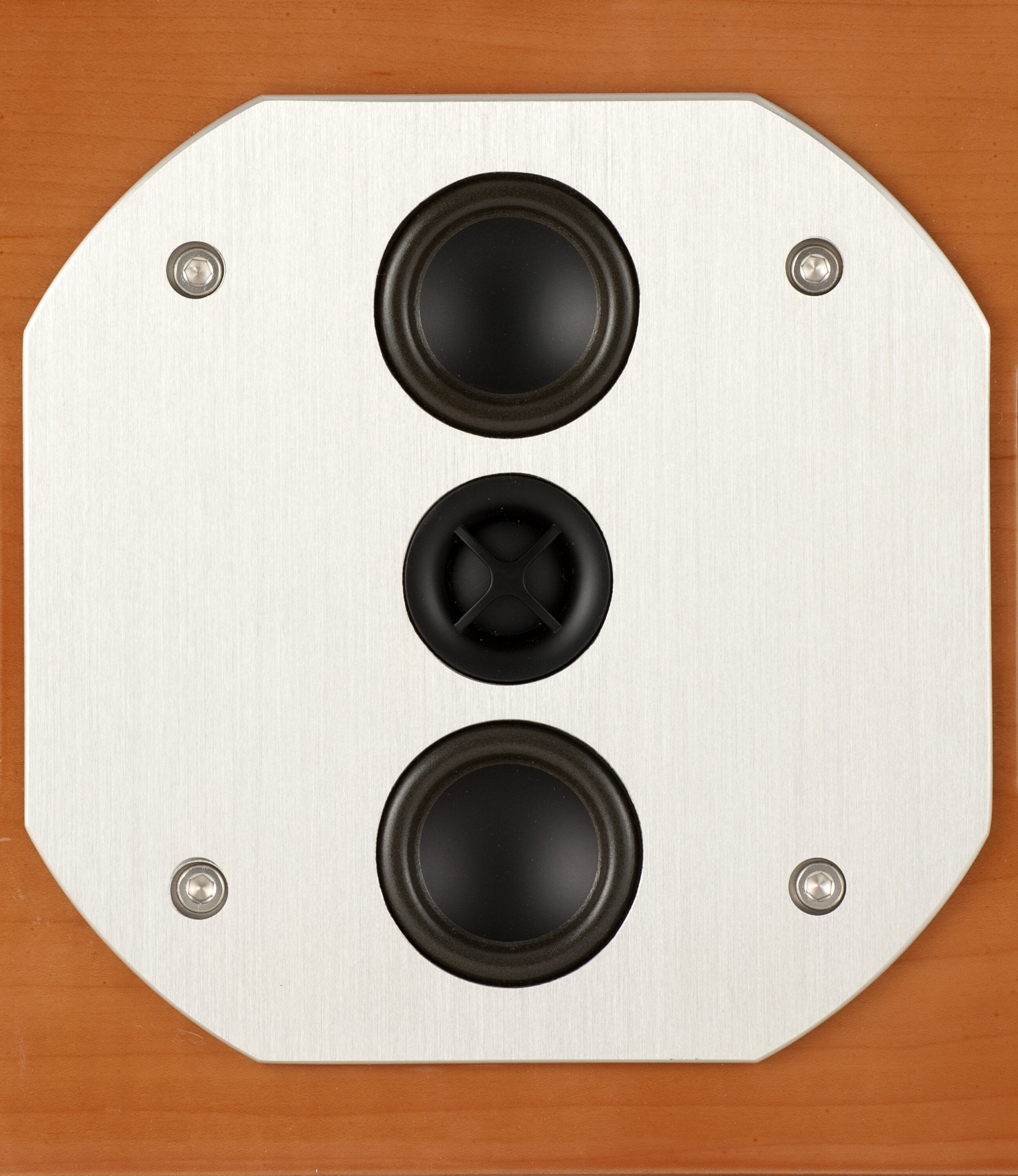

McIntosh LCR80 in wood veneer, rotatable baffle detail

McIntosh Labs

LCR80 LCR Loudspeaker

$2,500

McIntosh · Loudspeakers

A compact sealed three-way that works as a left, center or right speaker, mounted horizontally, vertically or on a shelf.

Price is for one speaker.

3-way
sealed design
2 × 6 in
LD/HP woofers
80 Hz
frequency response, low end
24 lb
weight

The LCR80 pairs two 6-inch McIntosh LD/HP woofers with two 2-inch inverted titanium-dome midranges and a three-quarter-inch titanium-dome tweeter in a sealed cabinet. The high-frequency array sits on a machined alloy plate that rotates, so it can be set correctly whether the speaker lies horizontally or stands vertically. Hardware for horizontal, vertical and shelf mounting is included, and the terminals are McIntosh Solid Cinch binding posts.

Its flexibility makes it a good fit for home theaters built around a screen, or for on-wall stereo where floorstanders won't fit. Its response starts at 80 Hz, so plan on a subwoofer such as the McIntosh PS1K and use bass management. McIntosh recommends 75 to 300 W, and at 81 dB sensitivity it benefits from a capable amplifier.

Key technologies

  • Flexible placement. Horizontal, vertical or shelf mounting, with hardware included.
  • Rotatable tweeter array. Machined alloy plate turns to suit horizontal or vertical use.
  • LD/HP woofers. Two 6-inch woofers with McIntosh's patented magnetic circuit.
  • Titanium domes. Inverted titanium-dome midranges and a titanium-dome tweeter.
  • Solid Cinch binding posts. McIntosh's gold-plated terminals.

Finishes

  • Black
  • Red Walnut (limited quantities)

Black knit cloth magnetic grille. Ask us to confirm the finish in stock before ordering.

Specifications
Type Sealed 3-way, flexible placement
Woofers 2 × 6 in cast frame, LD/HP poly cone
Midranges 2 × 2 in inverted titanium dome
Tweeter 1 × ¾ in titanium dome
Frequency response 80 Hz – 45 kHz
Sensitivity 81 dB SPL (2.8 V, 1 m)
Impedance 8 Ω nominal
Power rating 75 – 300 W
Crossover points 500 Hz, 8 kHz
Dimensions (W × H × D) 24 × 8 × 8.4 in (61 × 20.3 × 21.3 cm), incl. angled wall brackets
Weight 24 lb (10.9 kg)
Sold as Single speaker

McIntosh LCR80 brochure (PDF)

Where it sits in the range

For screen walls, on-wall stereo and home theater. Use with a subwoofer.

  • XRT2.1K: flagship line array, 81 drivers per speaker
  • XRT1.1K: line array, 70 drivers per speaker
  • XCS1.5K: center channel for the XRT models
  • ML1 Mk II: sealed 4-way, 12 in woofer, stand included
  • LCR80 (this model)
  • PS2K: 4 × 13 in, 2,000 W
  • PS1K: 2 × 13 in, 1,000 W

Plan your LCR80 system with Pearl Audio

Pearl Audio is an authorized McIntosh dealer. We can help with room placement, amplifier matching, delivery and setup, and arrange a listening appointment. Call (503) 222-2599 or email sales@pearlaudio.com.
