Pass Labs · XA Series
$15,675 per pair
On demonstration in our Portland showroom

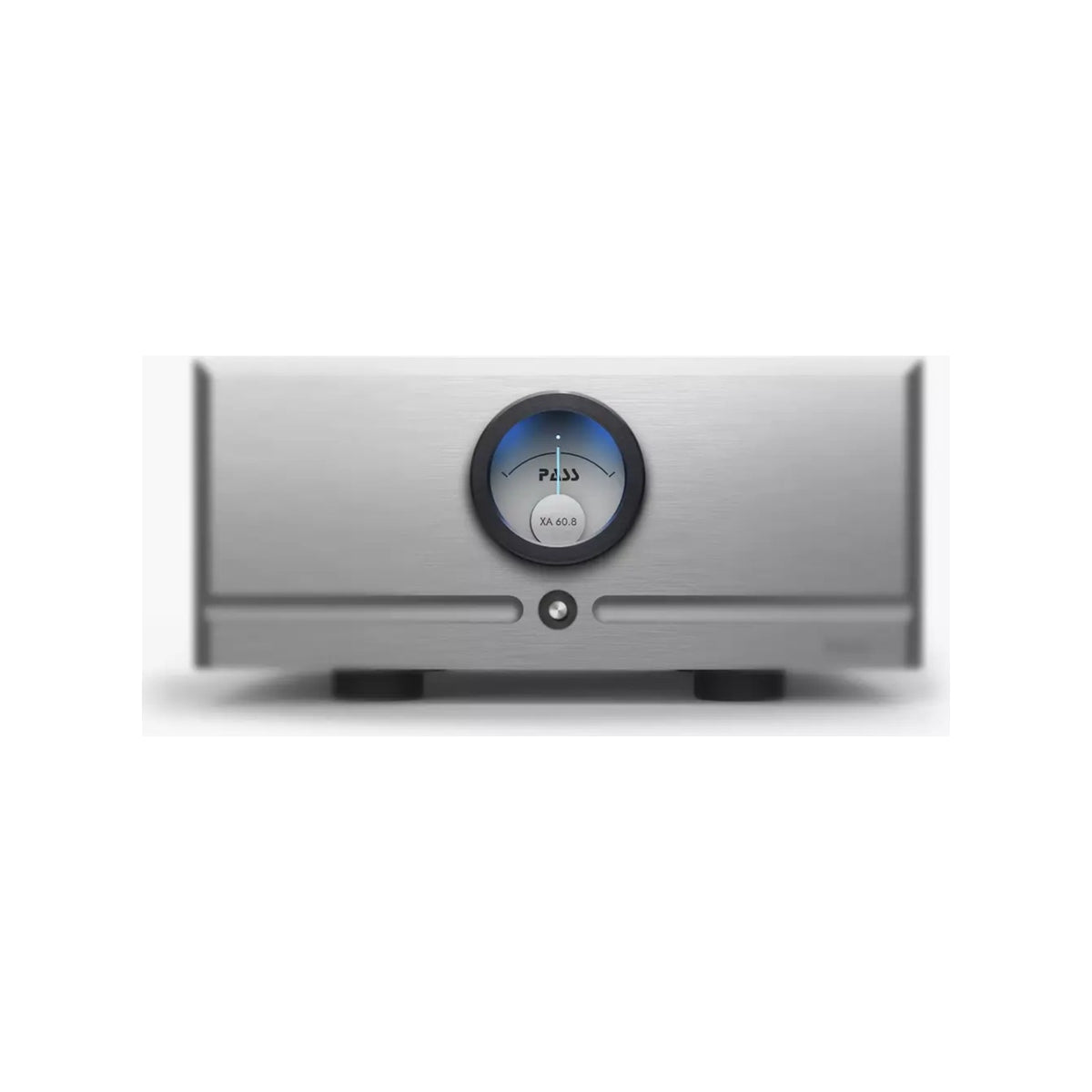

Pass Labs · XA Series
The smallest Class A monoblocks in the Pass Labs line: 60 watts each with a dedicated power supply per channel, in the same chassis as the XA30.8.
Price is for a pair of mono amplifiers.
Authorized Pass Labs dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The XA60.8 takes the XA30.8 chassis and gives each channel its own power supply, circuit and enclosure. The output stage is 40 power MOSFETs biased into Class A to the rated 60 W into 8 Ω, with the .8 series front end of constant-current sources, precise voltage references and current feedback ahead of it. Gain is 26 dB, the input impedance 100 kΩ balanced, and each chassis draws 370 W at idle.
Stereophile's Jim Austin found that the XA60.8s produced a much larger and more precisely defined soundstage than the amplifiers they replaced in his system, with images vivid enough that visitors noticed on walking in, and noted that they ran noticeably cooler than his Lamm monoblocks. Stereophile named the XA60.8 a joint Amplification Component of the Year for 2018. At 88 lb each they need floor space or a sturdy stand, and they are heavy for one person to move.
Sixty Class A watts per side, with the separation of mono amplification, suits a wide range of loudspeakers in medium-sized rooms. The XP-22 is the natural preamplifier. For more Class A power the XA100.8 adds output devices and a taller chassis; for the same money the X260.8 monos trade Class A bias for 260 W of Class AB.
Silver is the standard finish shown. Black is available to order at additional cost; ask us for a quote.
| Type | Mono power amplifier |
| Class of operation | Class A to rated power, then Class AB |
| Power output (8 Ω) | 60 W (Class A rating) |
| Power output (4 Ω) | Not published by Pass Labs |
| Gain | 26 dB |
| Input for full power (26 dB gain) | 1.10 V |
| Frequency response | 1.5 Hz – 100 kHz (Pass Labs spec) |
| Input impedance | 50 kΩ single-ended; 100 kΩ balanced |
| Damping factor | 150 |
| Output devices | 40 per amplifier |

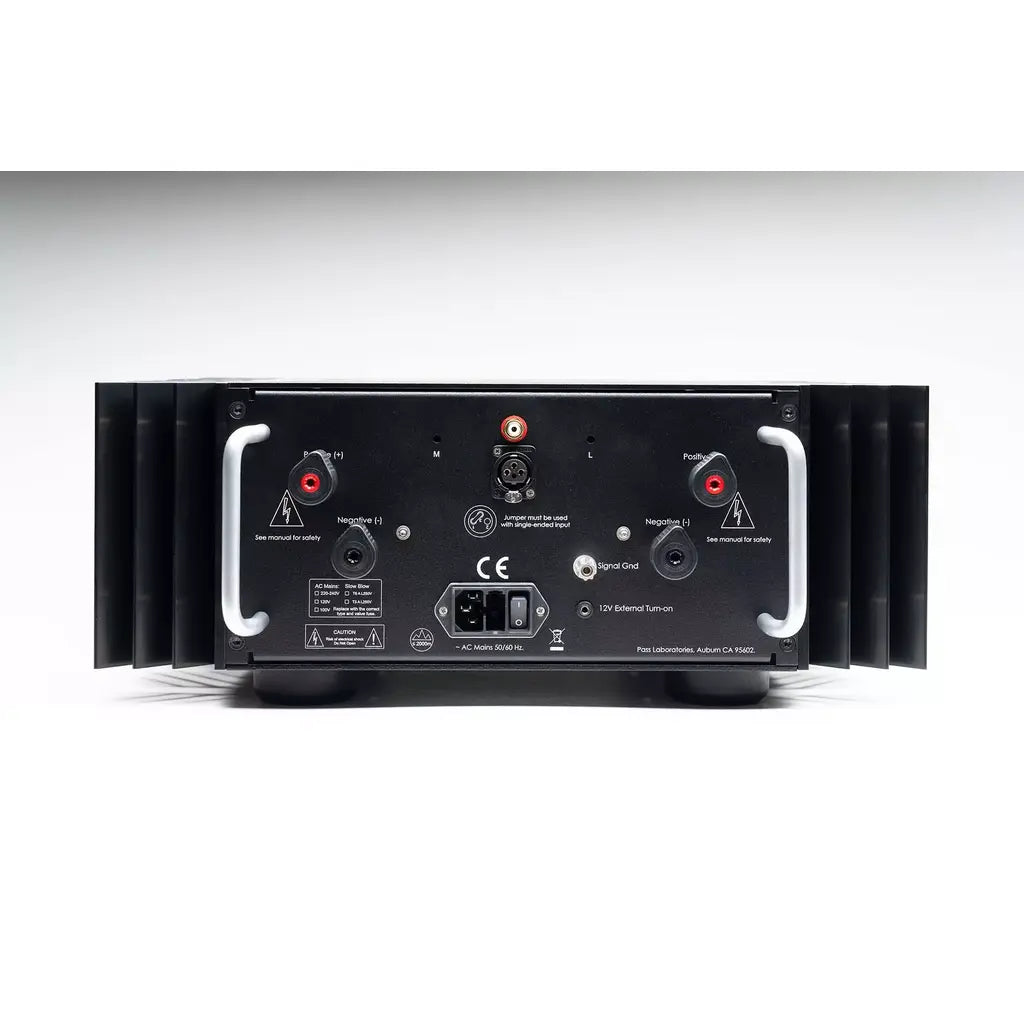

| Inputs | Balanced XLR and single-ended RCA |
| Outputs | Speaker binding posts |
| Power consumption at idle | 370 W each |
| Standby power | Less than 1 W |
| Dimensions (W × D × H) | 19 × 21.25 × 7.5 in each |
| Weight | 88 lb each |
| Sold as | Pair |
The smallest of the Class A monoblocks.
The matching preamplifier is the Pass Labs XP-22.
