Pass Labs · XP Series
$10,973
Pass Labs · XP Series
A two-chassis line preamplifier with the power supply in its own box, a larger and higher-biased output stage from the Xs Preamp, and a residual noise of 2 µV.

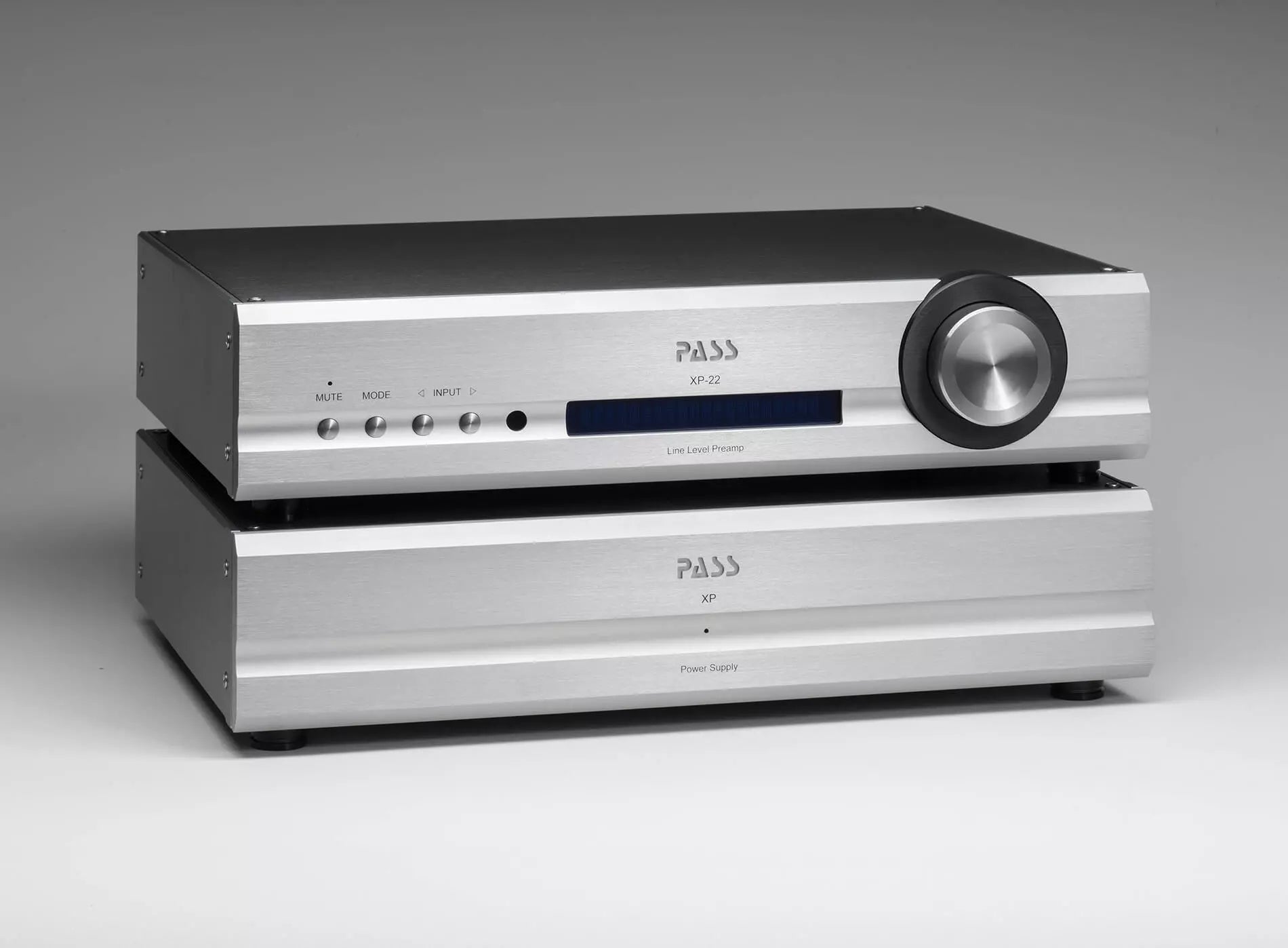

Two chassis: control unit plus separate power supply, linked by an umbilical. Stereophile's Amplification Component of 2019.
Authorized Pass Labs dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The XP-22 separates the audio from its power supply. The control chassis holds the gain and volume circuitry; the second chassis holds two toroidal transformers, each electrostatically and Mu-metal shielded, vacuum impregnated and epoxy filled, with additional filtering, linked to the audio by an umbilical. The gain circuit uses Toshiba transistors with a larger, higher-biased output stage drawn from the Xs Preamp, with auto bias, which lets it drive long or multiple cable runs and simplified the single-ended output. The volume control is the Xs single-stage attenuator: 100 steps of about 1 dB over more than 90 dB, read by a microcontroller from an optical encoder so the two balanced channels track precisely.
Pass specifies 2 µV of residual noise, -125 dB referenced to maximum output, a response within ±0.05 dB from 10 Hz to 20 kHz, crosstalk better than 100 dB and output impedances of 25 Ω single-ended and 50 Ω balanced. There are five inputs, two XLR and three RCA plus a tape loop, with one balanced and two single-ended output pairs. Stereophile's Jim Austin reported designer Wayne Colburn's description of the changes over the XP-20 as making it quieter and more dynamic, and Stereophile named the XP-22 Amplification Component of 2019. Part-Time Audiophile gave the XP-22 and XP-27 a Reviewer's Choice for their neutrality and silence.
The XP-22 is the preamplifier at the center of most Pass separates systems, from the X250.8 to the XA160.8 monos, with the XP-27 as its phono partner. The three-chassis XP-32 goes further by giving each channel its own enclosure.
Silver is the standard finish shown. Black is available to order at additional cost; ask us for a quote.
| Type | Line preamplifier, two chassis (control unit and power supply) |
| Gain | 9.6 dB balanced (Pass Labs manual; product page states 9.3 dB) |

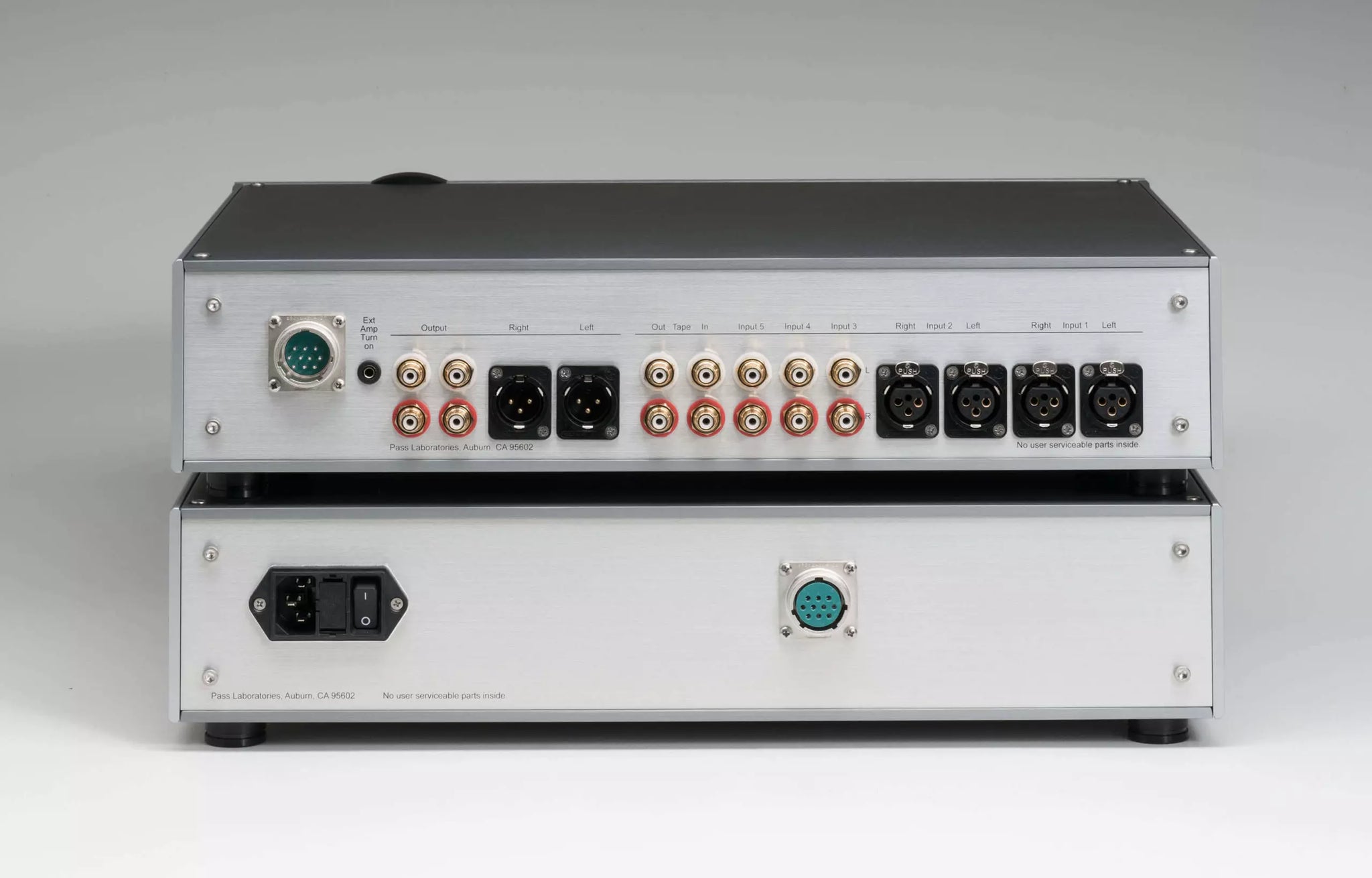

| Inputs / outputs | 5 inputs (2 XLR, 3 RCA) plus tape loop; 1 balanced and 2 single-ended output pairs |
| Volume control | Single-stage attenuator, 100 steps of about 1 dB, range over 90 dB; remote supplied |
| Frequency response | ±0.05 dB, 10 Hz – 20 kHz; -2 dB at 150 kHz |
| Input impedance | 22 kΩ |
| Output impedance | 25 Ω RCA; 50 Ω XLR |
| Crosstalk | Better than 100 dB |
| Residual noise | 2 µV RMS; -125 dB referenced to maximum output |
| Distortion | Less than 0.001% at 1 V, 1 kHz |
| Power consumption | 40 W |
| Dimensions (W × D × H) | 17 × 12.5 × 4 in, each of two chassis |
| Weight | 40 lb total |
The two-chassis Pass Labs line preamplifier.
The matching phono preamplifier is the Pass Labs XP-27.
