Pass Labs · XA Series
$31,460 per pair
On demonstration in our Portland showroom
Pass Labs · XA Series

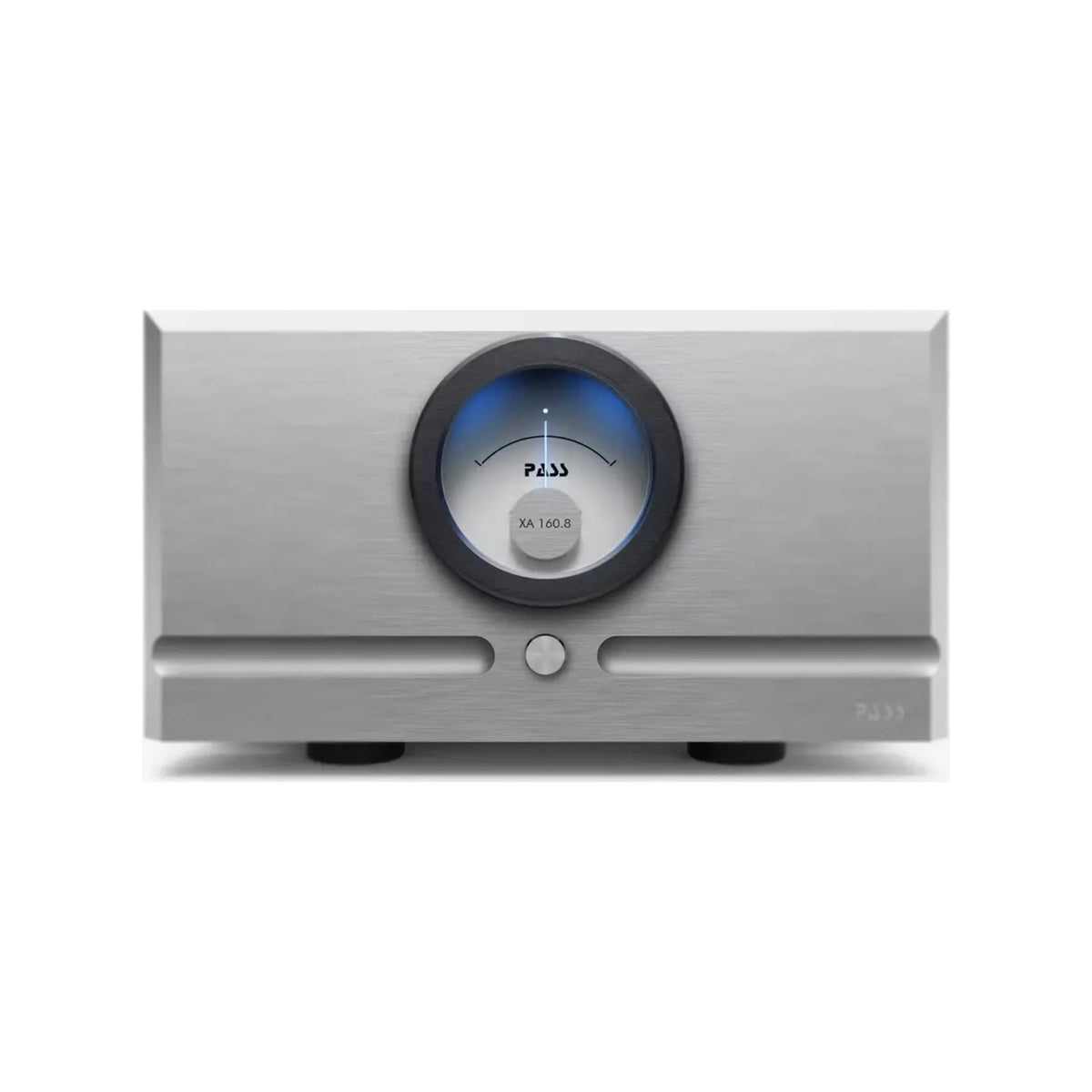

A 160-watt Class A monoblock with 72 output MOSFETs and a larger supply, which Pass says can deliver more than 320 watts of Class A peaks per channel.
Price is for a pair of mono amplifiers. Each amplifier weighs 123 lb.
Authorized Pass Labs dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The XA160.8 has more of everything than the XA100.8: 72 power MOSFETs per chassis, a higher-capacity power supply that draws 600 W at idle, and an 11-inch-tall heatsink array. Pass rates it at 160 W per channel in Class A into 8 Ω and says the supply allows more than 320 W of Class A peaks, with a damping factor of 200. The front end is the .8 series balanced circuit with constant-current sourcing and precise voltage references, and the inputs are XLR and RCA at 100 kΩ and 50 kΩ.
Future Audiophile's Jerry Del Colliano called the XA160.8 as good an amplifier as he had heard at any price, and set out the costs plainly: heat, electricity and weight. At 123 lb each the XA160.8s are a two-person lift and need a ventilated floor position. This is the amplifier Pass positions for large rooms and loudspeakers that want Class A current without the full scale of the XA200.8.
The XP-22 or XP-32 are the matching preamplifiers. The X600.8 uses the same chassis and device count in Class AB for 600 W per channel at the same price, and the XA200.8 is the top of the Class A line.
Silver is the standard finish shown. Black is available to order at additional cost; ask us for a quote.
| Type | Mono power amplifier |
| Class of operation | Class A to rated power, then Class AB |
| Power output (8 Ω) | 160 W (Class A rating) |
| Power output (4 Ω) | Not published by Pass Labs |
| Gain | 26 dB |
| Input for full power (26 dB gain) | 1.79 V |
| Frequency response | 1.5 Hz – 100 kHz (Pass Labs spec) |
| Input impedance | 50 kΩ single-ended; 100 kΩ balanced |
| Damping factor | 200 |
| Output devices | 72 per amplifier |
| Inputs | Balanced XLR and single-ended RCA |
| Outputs | Speaker binding posts |
| Power consumption at idle | 600 W each |
| Standby power | Less than 1 W |
| Dimensions (W × D × H) | 19 × 21.5 × 11 in each |
| Weight | 123 lb each |
| Sold as | Pair |
The second-largest of the Class A monoblocks.
