Magnepan · X Series Magneplanar
The .7 panel with Magnepan's premium X crossover, wiring and connections: the same room-friendly size, with more resolution and refinement.
Price is for a pair. Made in White Bear Lake, Minnesota.
The .7x is the factory X version of the .7. The panel, size and two-way quasi-ribbon layout are unchanged. What changes is the crossover and wiring: copper-rich polypropylene capacitors and Magnepan-wound air-core coils, each tested and sorted so the left and right speakers match, heavier solid-copper wiring with shorter runs, and silver-soldered connections throughout. X versions also offer extra stile finishes.
The .7x needs the same care as the .7: a powerful, high-current amplifier for its 4 Ω load, about 3 feet free behind each panel to start, and toe-in toward the listening seat. Bought new from a certified dealer, it carries Magnepan's 3-year limited warranty.

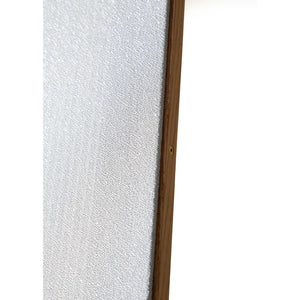

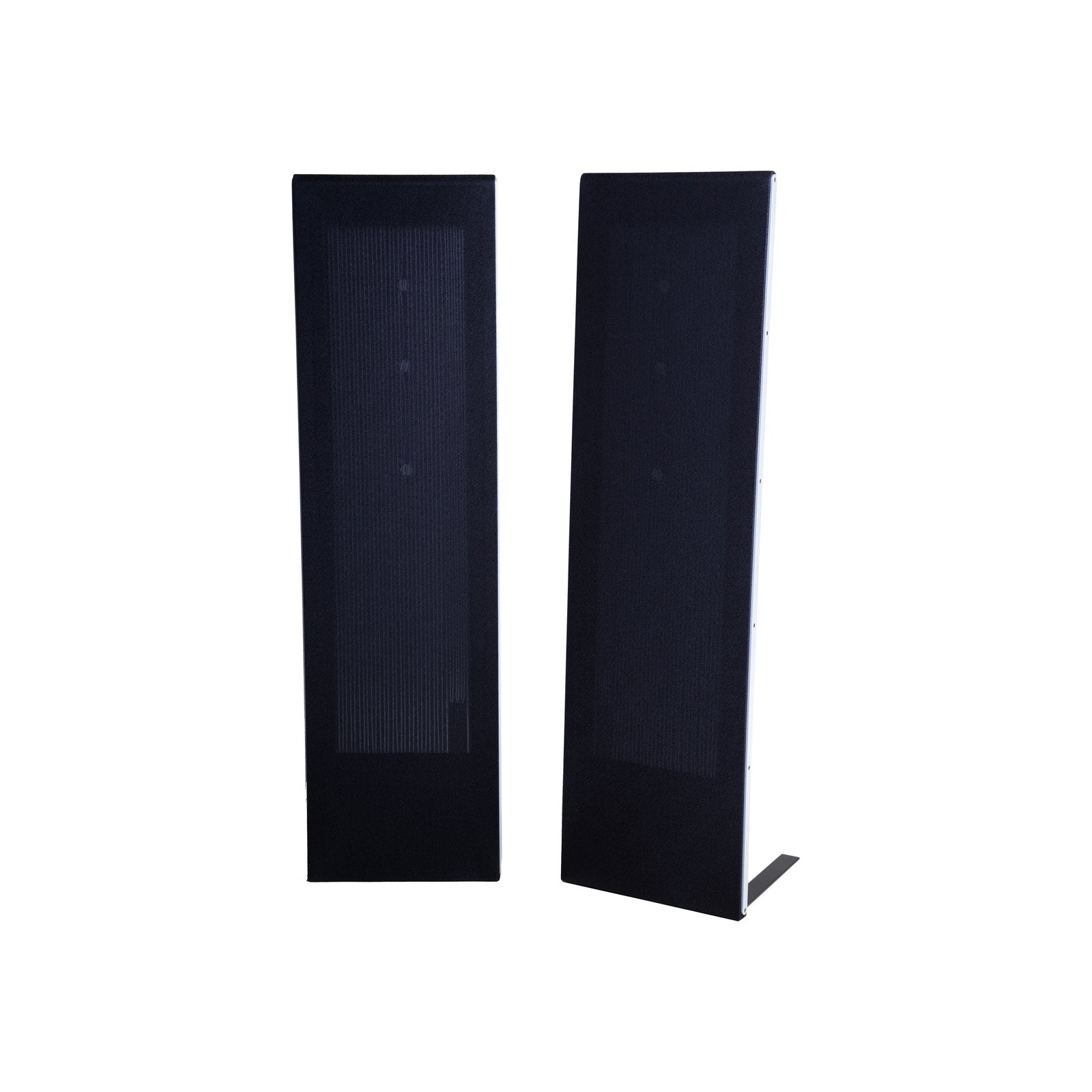

The stile is the frame trim; Red Aluminum and Black Wood are X-only options. Fabric: Black, Grey, Off White or Cherry White. Photos show the standard .7; the .7x is the same size and shape.
| Type | X version of the .7: 2-way, full-range quasi-ribbon planar-magnetic dipole |
| Tweeter | Quasi-ribbon |
| Midrange/bass | Quasi-ribbon bass/midrange |
| Crossover | Copper-rich polypropylene capacitors and Magnepan-wound air-core copper coils, tested and matched left to right |

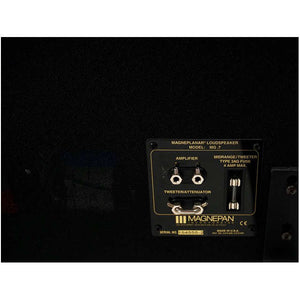

| Internal wiring | 15-gauge or heavier solid copper, silver-soldered connections |
| Frequency response (standard .7) | 45 Hz – 22 kHz ±3 dB |
| Sensitivity (standard .7) | 86 dB (500 Hz, 2.83 V, 1 m) |
| Impedance (standard .7) | 4 Ω nominal |
| Dimensions (H × W × D) | Same as the .7: 54.25 × 15.25 × 1.25 in (1378 × 387 × 32 mm), per panel |
| Warranty | 3-year limited, when bought new from a Magnepan certified dealer |
| Sold as | Pair |
The X version of the entry panel. Best in small and medium rooms with about 3 feet free behind the speakers.
Plan your Magnepan system with Pearl Audio
Pearl Audio is an authorized Magnepan dealer. We can help with room placement, amplifier matching, delivery and setup, and arrange a listening appointment. Call (503) 222-2599 or email sales@pearlaudio.com.
