Magnepan 3.7i
Magnepan 3.7x floorstanding loudspeaker system
Magnepan 3.7i, second detail view
Magnepan 3.7i, detail view

Magnepan

3.7x

$13,000

Magnepan · X Series Magneplanar

The 3.7i's full-size True Ribbon three-way with Magnepan's premium X crossover, wiring and connections.

Price is for a pair. Made in White Bear Lake, Minnesota.

86 dB
sensitivity (standard model)
4 Ω
nominal impedance
Matched
L/R crossover parts, tested and sorted
3 years
limited warranty, new from a dealer

The 3.7x keeps the 3.7i's 71-inch panel, True Ribbon tweeter and separate quasi-ribbon midrange and bass, and rebuilds the signal path with Magnepan's X parts: copper-rich polypropylene capacitors and Magnepan-wound air-core coils, tested and matched left to right, heavier solid-copper wiring with shorter runs, and silver-soldered connections throughout. X versions also offer extra stile finishes.

It asks for what the 3.7i asks for: a powerful, high-current amplifier, a medium-to-large room and at least 3 feet behind the panels to start. Tweeter level and inside/outside placement adjust as on the standard model. Bought new from a certified dealer it carries Magnepan's 3-year limited warranty.

Key technologies

  • Matched crossover capacitors. Copper-rich polypropylene capacitors, individually tested and sorted so left and right match closely.
  • Magnepan-wound coils. Air-core copper coils wound in-house, tested and paired.
  • Heavier, shorter wiring. 15-gauge or heavier solid copper bus wire, with excess runs removed.
  • Silver-soldered connections. Mechanical connections are kept to a minimum; nameplate parts are gilded.
  • Same panel. Identical size and shape to the standard model, so placement advice carries over.

Finishes

  • Dark Cherry wood stile
  • Natural Oak wood stile
  • Black Aluminum aluminum stile
  • Silver Aluminum aluminum stile
  • Gold Aluminum aluminum stile
  • Acorn Oak wood stile
  • Bamboo wood stile
  • Red Aluminum aluminum stile
  • Black Wood wood stile

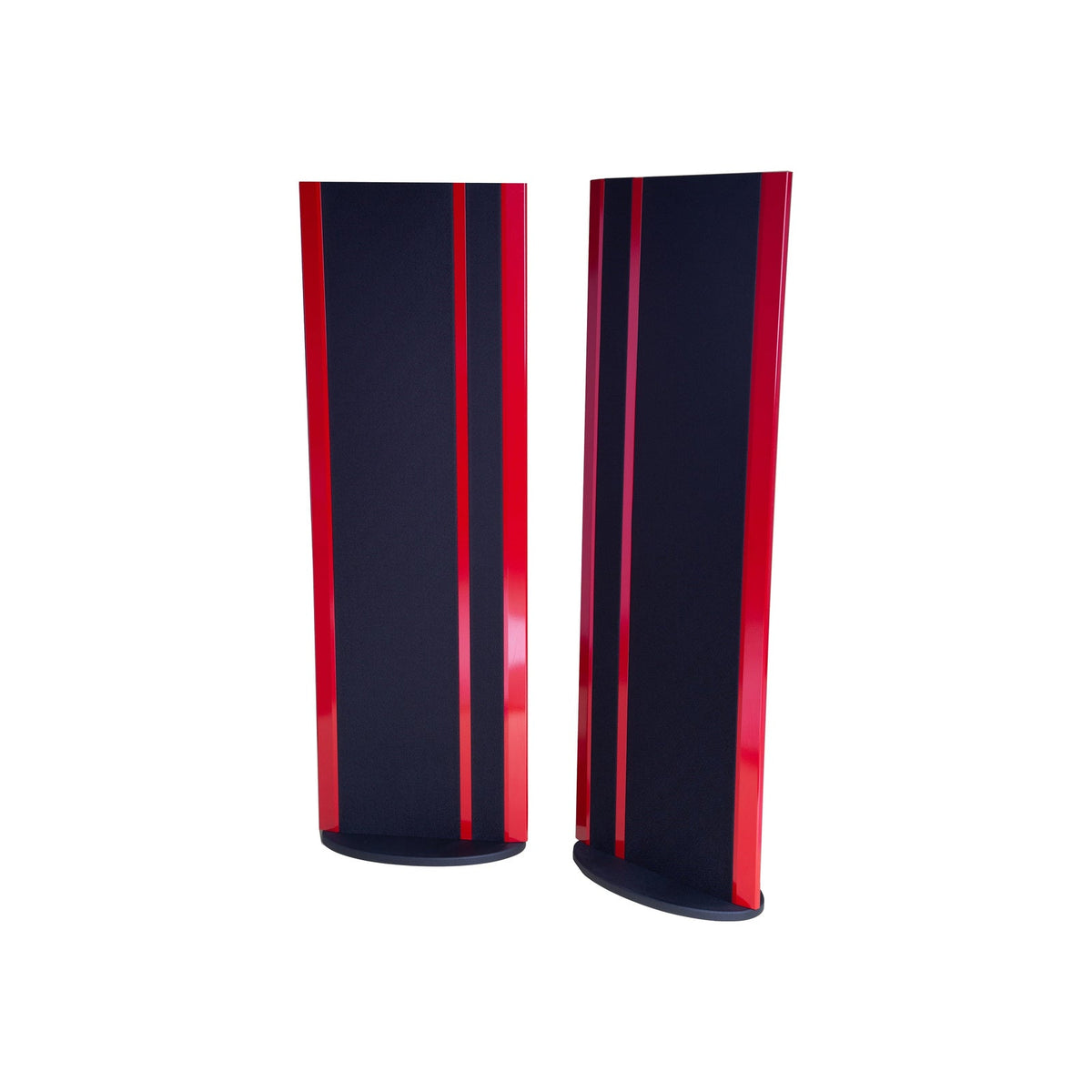

The stile is the frame trim; Acorn Oak, Bamboo, Red Aluminum and Black Wood are X-only options. Fabric: Black, Grey, Off White or Cherry White. Photos show the standard 3.7i; the 3.7x is the same size and shape.

Specifications
Type X version of the 3.7i: 3-way, full-range planar-magnetic dipole
Tweeter True Ribbon
Midrange/bass Quasi-ribbon midrange and quasi-ribbon bass
Crossover Copper-rich polypropylene capacitors and Magnepan-wound air-core copper coils, tested and matched left to right
Internal wiring 15-gauge or heavier solid copper, silver-soldered connections
Frequency response (standard 3.7i) 35 Hz – 40 kHz
Sensitivity (standard 3.7i) 86 dB (500 Hz, 2.83 V, 1 m)
Impedance (standard 3.7i) 4 Ω nominal
Dimensions (H × W × D) Same as the 3.7i: 71 × 24 × 1.625 in (1803 × 610 × 41 mm), per panel
Warranty 3-year limited, when bought new from a Magnepan certified dealer
Sold as Pair

Magnepan X Series details · Magnepan 3.7i product page

Where it sits in the range

The X version of the 3.7. Best in medium-to-large rooms with at least 3 feet free behind the speakers.

  • .7: two-way quasi-ribbon
  • .7x: X version of the .7
  • 1.7i: three-way quasi-ribbon
  • 1.7x: X version, two-way
  • 2.7i: True Ribbon three-way
  • 2.7x: X version of the 2.7i
  • 3.7i: True Ribbon three-way, 71 in
  • 3.7x (this model)
  • 20.7: True Ribbon three-way, 79 in
  • 20.7x: X version of the 20.7
  • 30.7: four-panel flagship
  • 30.7x: X version of the 30.7
