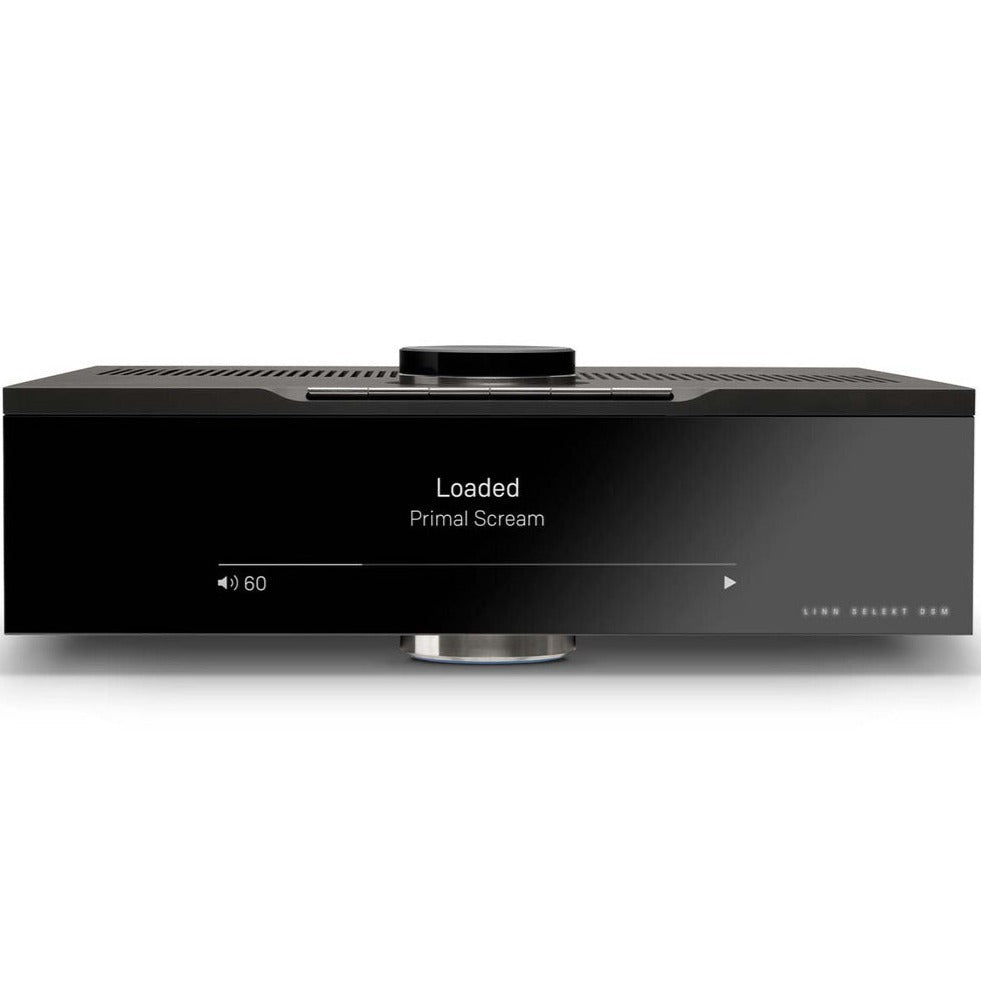

Linn · Selekt DSM
The machined Edition Hub configured as a streamer and preamplifier with Linn's Katalyst DAC and RCA and balanced XLR outputs, for a system built around your own amplifiers.
Configured as Edition Hub + Stereo Line Out cartridge + Katalyst DAC; the DAC can be upgraded to Organik later.
Authorized Linn dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The Edition Hub is the premium enclosure for Linn's modular Selekt platform. The whole chassis is machined from aluminum with concealed joins, a lid vented in a wave pattern of angled apertures, a control dial that turns on a stainless-steel bearing inside a photo-etched steel ring lit by 100 LEDs, six extruded-aluminum smart buttons and an all-glass fascia whose mirrored front hides the display until it is needed. Linn's purpose is rigidity and isolation as much as appearance. Inside are the same three cartridge slots as the Classic Hub: a Line Out, Power Out, Hybrid or Mono Line Out cartridge sets the output, a Standard, Katalyst or Organik DAC module sets the conversion, and HDMI switching and surround modules are optional. A Utopik power supply is standard.
This configuration fits the Stereo Line Out cartridge and the Katalyst DAC module in the Edition Hub. Katalyst brought Linn's Klimax DS conversion architecture to the Selekt, with separate analog and digital supplies and a precision reference; the Line Out cartridge gives RCA outputs at 2 V and balanced XLR at 4 V, switchable between variable and fixed level for a power amplifier or a preamplifier.
Whatever the configuration, every Selekt DSM streams from TIDAL, Qobuz, Deezer and Spotify Connect, supports AirPlay 2 and Roon, plays files to 24-bit/384 kHz and DSD256, and has a built-in MM/MC phono stage, a line input, two Toslink, two S/PDIF, USB and HDMI ARC, a 1/4-inch headphone output, and RCA subwoofer outputs for bass reinforcement. Two Exakt Link sockets connect Linn Exakt speakers, an Exaktbox or an LP12 with Urika II, and Space Optimisation corrects the system for your room. Reviews of the Edition Hub have centered on the Organik configurations: StereoNET found it "sounds and performs like a far more expensive collection of discrete components." The Katalyst version shares the hub, inputs and outputs and can be brought to Organik by changing the module.
This is the entry Edition Hub configuration at Pearl Audio. The Stereo Organik and dual-mono Organik streamers sit above it; the Classic Hub with Katalyst offers the same electronics in the folded-aluminum chassis.
Both finishes are the same price.
| Type | Modular network music player and preamplifier |
| Hub | Edition Hub: Enclosure machined from aluminum with wave-pattern vented lid, stainless-steel dial bearing, extruded aluminum smart buttons, glass fascia |
| Output cartridge | Stereo Line Out cartridge: RCA 2 V / 300 Ω and balanced XLR 4 V / 600 Ω, configurable for a preamplifier or direct to power amplifiers |
| DAC module | Stereo Katalyst DAC |
| Analog inputs | 1 pair RCA line (1, 2 or 4 V sensitivity, 50 kΩ); MM phono (47 kΩ, 100 pF, +40 dB); MC phono (100 Ω, 470 pF, +54 dB); ADC 24-bit/192 kHz |
| Digital inputs | 2 × Toslink; 2 × S/PDIF (one configurable as output); 1 × USB-B Audio Class 2; 1 × HDMI ARC; optional HDMI switching module |
| Network | Ethernet 100Base-T; Wi-Fi 802.11ac; Bluetooth 4.2; 2 × Exakt Link |
| Other outputs | 2 × RCA subwoofer (bass reinforcement or redirect); S/PDIF; 1/4 in headphone jack |
| Formats and resolution | FLAC, WAV, ALAC, AIFF, MP3, AAC, OGG, WMA, DSD; PCM to 24-bit/192 kHz (384 kHz with Organik DAC); DSD64/128/256 |
| Streaming | TIDAL, Qobuz, Deezer, Spotify Connect, AirPlay 2, Roon Ready, TuneIn, airable, Calm Radio; UPnP from local storage |
| Room correction | Space Optimisation |
| Display | 1600 × 480 TFT |
| Power supply | Utopik; 15 W sleep, up to about 200 W continuous depending on cartridges; 100–120 / 200–240 V auto-ranging |
| Dimensions (W × H × D) | 14.0 × 4.7 × 14.0 in (355 × 119 × 355 mm) |
| Weight | 20.9–27.1 lb (9.5–12.3 kg) depending on fitted cartridges (Linn 2024 fact sheet) |
| Finish | Silver or black anodized aluminum |
| Upgrade path | DAC module and output cartridges can be changed or added at Pearl Audio |
Linn Selekt DSM: Edition Hub product page and specifications
Pearl Audio's Selekt DSM configurations in order of price; every one can be re-configured later, and the Klimax DSM sits above them all.
Speakers: the 119 and 150 can be driven directly and run in Exakt. Turntable: a Majik or Selekt LP12 into the built-in phono stage, or a Urika II over Exakt Link.
Both reviews tested the Edition Hub with dual-mono Organik DACs.
