Linn · LP12 upgrades
From $566
Linn · LP12 upgrades
Linn's screened, low-capacitance tonearm cable: a twisted pair with a 5-pin DIN at the arm and RCA or balanced XLR at the phono stage, in 1.2 m or 1.7 m, the cable supplied with the Ekos SE.
Choose length and termination; price varies by length, not by connector.
Authorized Linn dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story

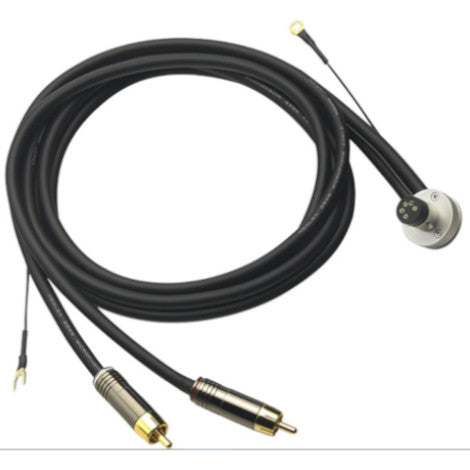

The tonearm cable carries the smallest signal in the system, a few hundred microvolts from a moving coil, so noise picked up here is amplified by everything that follows. T-Kable is a shielded twisted pair with very low capacitance, terminated at the arm with a Linn 5-pin DIN plug and at the other end with RCA phono plugs or balanced XLRs; Linn developed the DIN connector to maximize contact area. It is 6 mm in diameter and comes in 1.2 m and 1.7 m lengths. Linn supplies it with the Ekos SE, and the Krane and Arko take the same DIN connection.
Choose XLR to run balanced into a phono stage with balanced inputs, such as the Uphorik, or RCA for a conventional single-ended input. The 1.7 m length is for a phono stage on a different shelf; most installations use 1.2 m. Linn describes T-Kable as compatible with most tonearms using the 5-pin DIN standard.
| Fits | Linn tonearms (Ekos SE, Arko, Krane) and most arms with a 5-pin DIN socket |
| Construction | Shielded twisted pair, low capacitance; 6 mm outer diameter |
| Tonearm end | Linn 5-pin DIN |
| Phono stage end | RCA phono plugs or balanced XLR |
| Lengths | 1.2 m (3.9 ft) or 1.7 m (5.6 ft) |
| Supplied with | Ekos SE tonearm |
| Capacitance | Not published by Linn |
T-Kable connects any of Linn's three tonearms to a phono stage.
Pair the XLR version with the Uphorik for a balanced path.
