Accuphase · E Series
$13,975
Accuphase · E Series

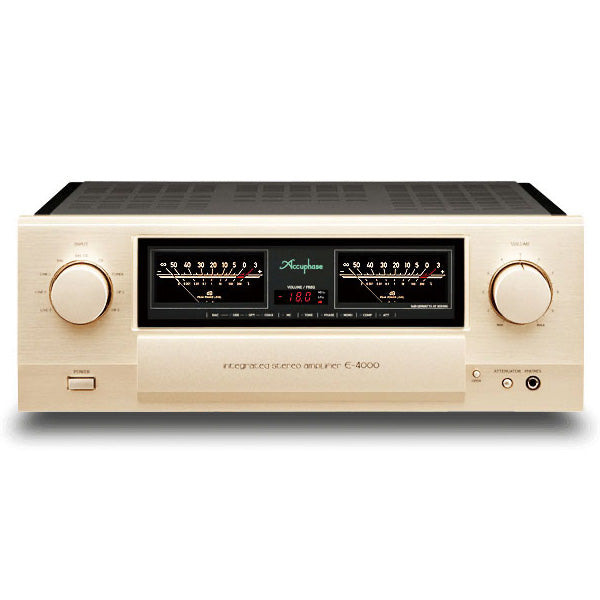

The E-4000 is Accuphase's 180-watt integrated amplifier: balanced AAVA with ANCC noise cancelling, a four-fold parallel push-pull Class AB output stage, and the power to drive most speakers in most rooms.
Price is for one unit.
Authorized Accuphase dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The E-4000 brings separates technology into one chassis. Its volume control is Accuphase's balanced AAVA, with the ANCC circuit cancelling the residual noise and distortion of the volume amplifier, so the quietest passages keep their detail. The power stage is an instrumentation amplifier with four-fold parallel push-pull transistors in Class AB, current-feedback topology and balanced remote sensing, behind a toroidal transformer and two 40,000 µF/80 V filter capacitors. A damping factor of 800 keeps bass drivers under control.
Five line inputs, two balanced inputs, a recorder loop, balanced and line pre-outs and main-ins, a dedicated headphone amplifier and tone and loudness controls make it a complete system hub, and two option slots accept the DAC-60 digital board or the AD-60 phono board. With 180 watts into 8 ohms and 260 into 4, the E-4000 is the Accuphase integrated we recommend most often for medium and large rooms and full-range speakers.
Accuphase builds every component in a single finish, so there is nothing to choose. The champagne-gold front panel has been the house signature since 1972.
| Type | Integrated stereo amplifier, Class AB |
| Rated output (20 Hz–20 kHz, both channels) | 180 W/ch into 8 Ω; 260 W/ch into 4 Ω |
| Output stage | Four-fold parallel push-pull transistors, instrumentation-amplifier configuration |
| Total harmonic distortion | 0.05% (4–16 Ω) |
| Frequency response | 20 Hz–20 kHz, +0/−0.5 dB (line); 3 Hz–150 kHz, +0/−3 dB (main in, 1 W) |
| Damping factor | 800 |
| Inputs | 5 line (RCA), 2 balanced (XLR), main in (balanced and line), recorder play; 2 option slots (DAC-60 / AD-60 / LINE-10) |
| Outputs | Pre out (balanced and line) 1.51 V / 50 Ω, recorder rec, headphones (8 Ω or higher), speakers |
| Signal-to-noise ratio | 109 dB line, 102 dB balanced (A-weighted, input shorted) |
| Power supply | Toroidal transformer; 2 × 40,000 µF / 80 V filter capacitors |
| Power consumption | 54 W idle; 248 W (IEC 62368-1) |
| Dimensions (W × H × D) | 18.3 × 7.1 × 16.9 in (465 × 181 × 428 mm) |
| Weight | 55 lb (24.9 kg) |
| Sold as | Single unit |
The high-power Class AB integrated in the middle of the range. The E-6000 adds more power; the E-700 and E-800S trade watts for pure Class A.
Add the DAC-60 board for digital inputs or the AD-60 board for phono. For a dedicated phono stage, see the C-57.
Plan your Accuphase system with Pearl Audio
Pearl Audio is an authorized Accuphase dealer in Portland, Oregon. We can help with system matching, delivery and setup, and arrange a listening appointment. Call (503) 222-2599 or email sales@pearlaudio.com.
The Pearl Audio experience
A system at this level should be heard, thoughtfully matched, and properly set up. From the first audition to long-term ownership, you work with the same people, in person.
Hear the E-4000 Integrated by appointment in one of our two purpose-designed demonstration rooms, with your own music and time to compare without pressure.
We deliver and install throughout the Portland area, taking care of placement, connections, ventilation and system configuration ourselves.
We support everything we sell for as long as you own it, whether the answer comes by phone, in your home, or through factory service.
Trade-in assistance and qualifying 100% Trade-Up options give you flexibility when your listening priorities or your system change.
