Bowers & Wilkins · 800 Series Diamond D5
The 800 Series in its purest form: a Diamond Dome tweeter and a single Continuum Cone driver in a compact, beautifully finished cabinet.
Price is for a pair. New for 2026; replaces the 805 D4.

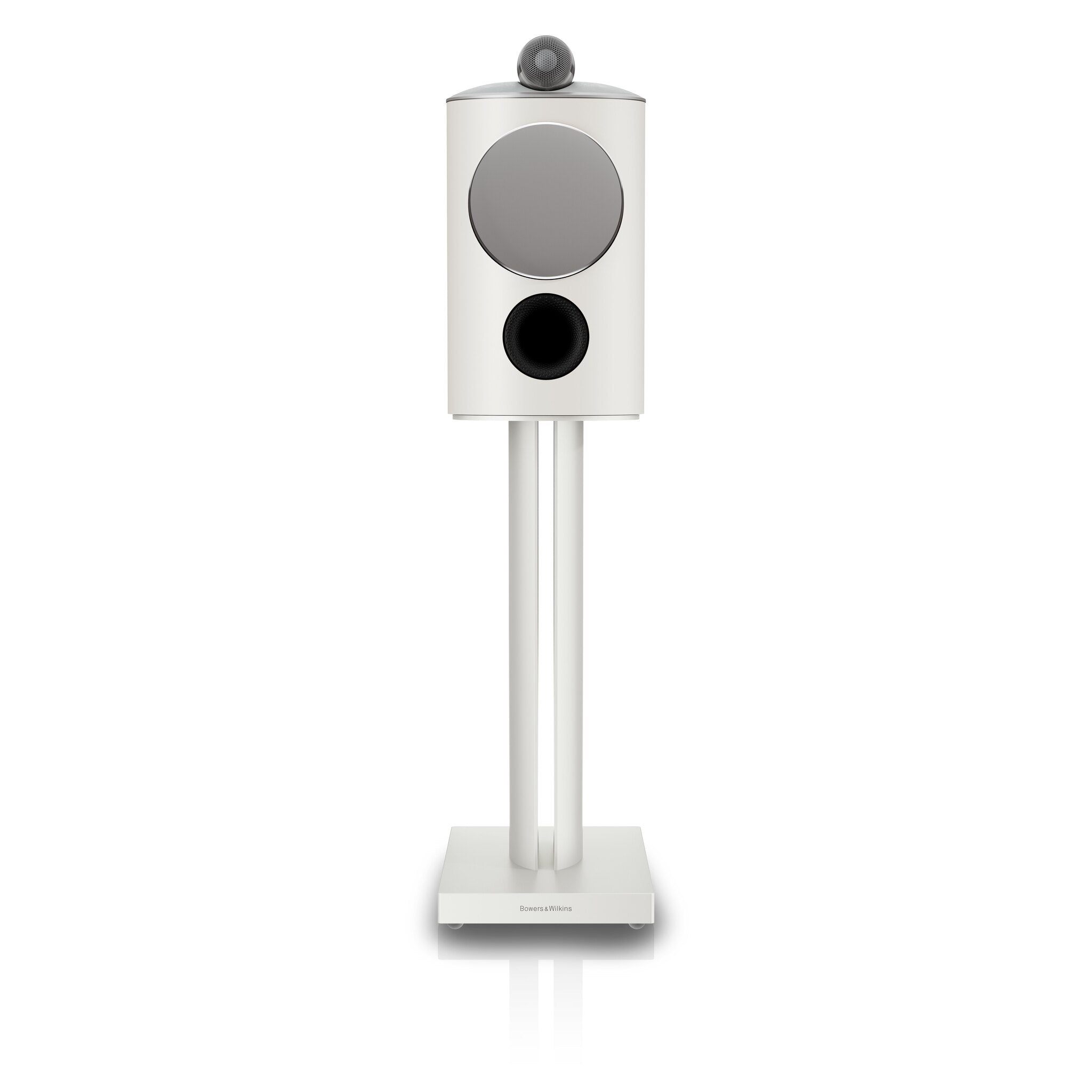

The 805 D5 is the only two-way speaker in the range. A 6.5-inch Continuum Cone bass/midrange covers everything below the Diamond Dome tweeter, which sits on top in its own solid aluminum housing. D5 brings Signature-derived drive-unit and crossover parts, a stiffer internal Matrix and the new, more open tweeter grille. The curved Reverse Wrap cabinet is finished to the same standard as the floorstanders.
With a single driver handling the whole midrange, the 805 has a seamless, coherent sound, and it disappears into the soundstage in a way few speakers this size can. It reaches 34 Hz at −6 dB; in larger rooms, or for films, pair it with a B&W DB Series subwoofer. Its 4.6 Ω minimum is the easiest load in the range, and B&W recommends 50 to 120 W, so it suits a wide range of high-quality amplifiers. Mount it on the matching FS-805 stand (black or titanium, sold separately).

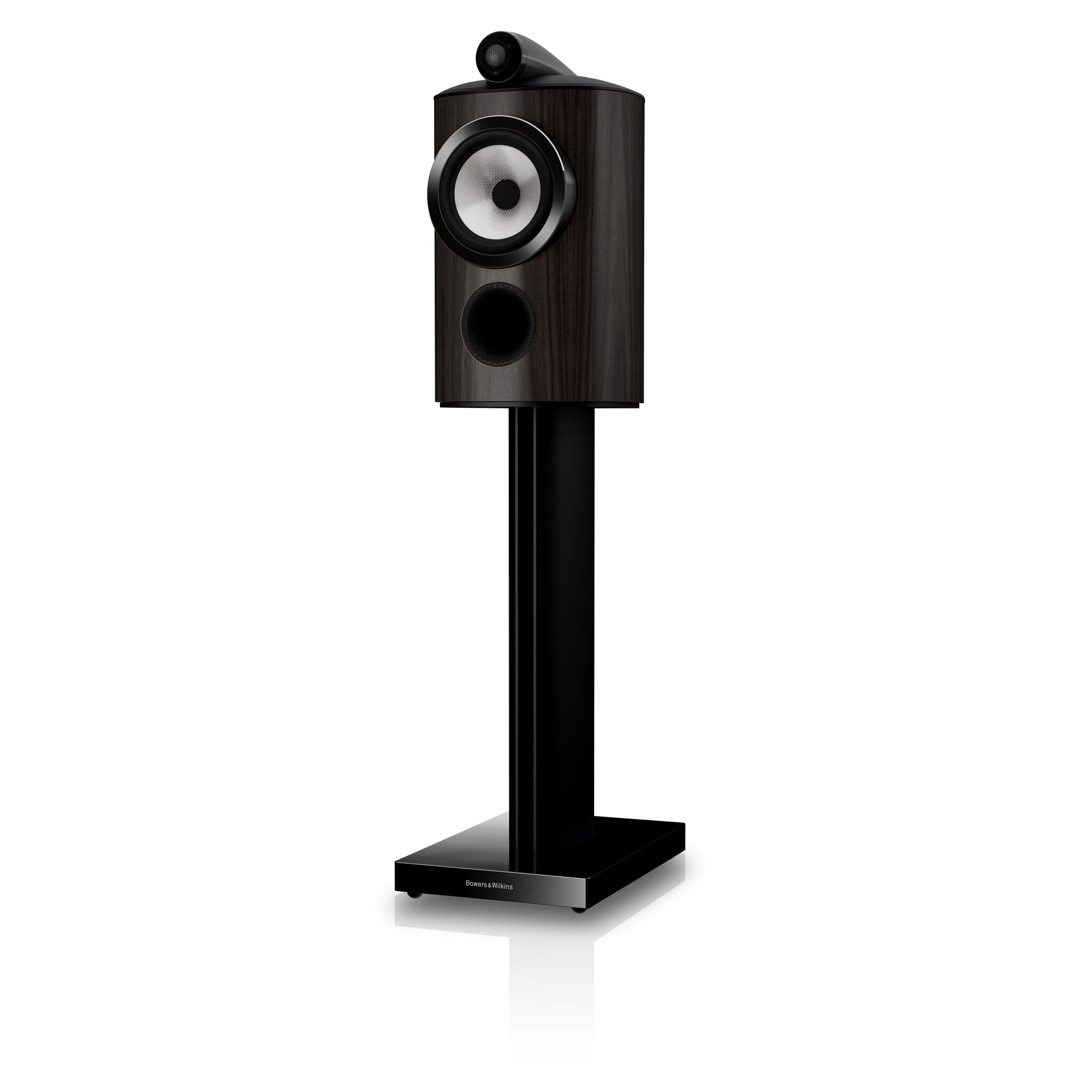

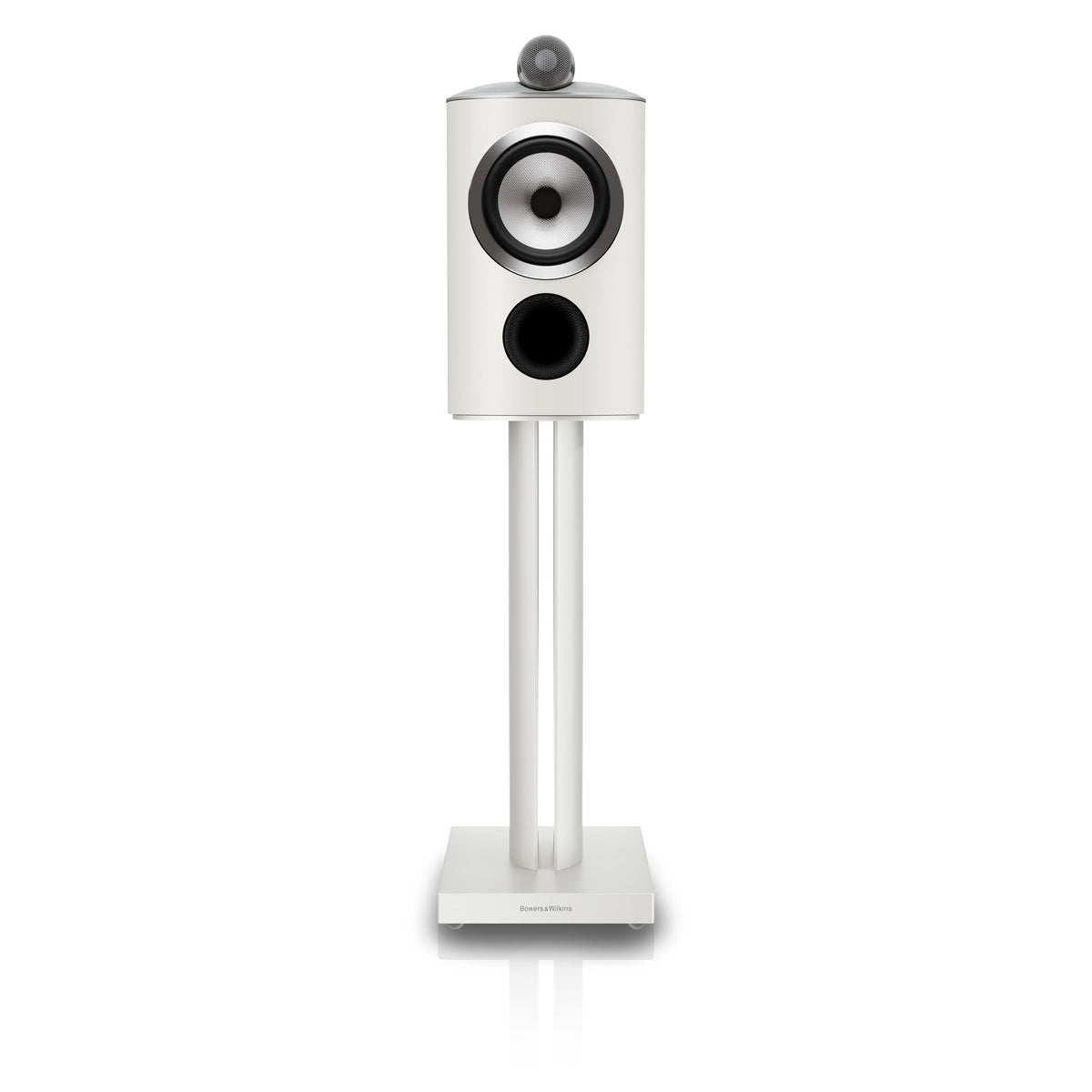

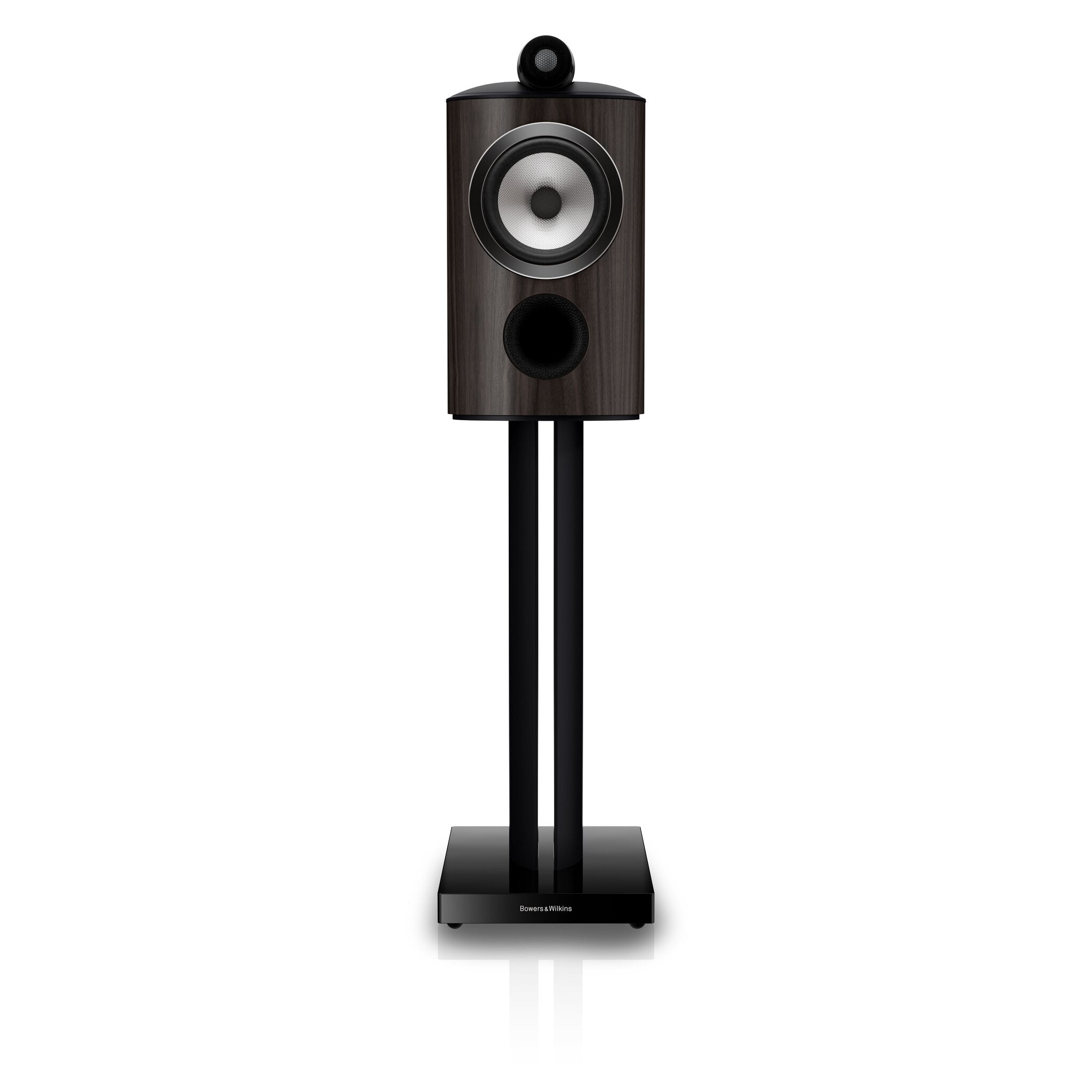

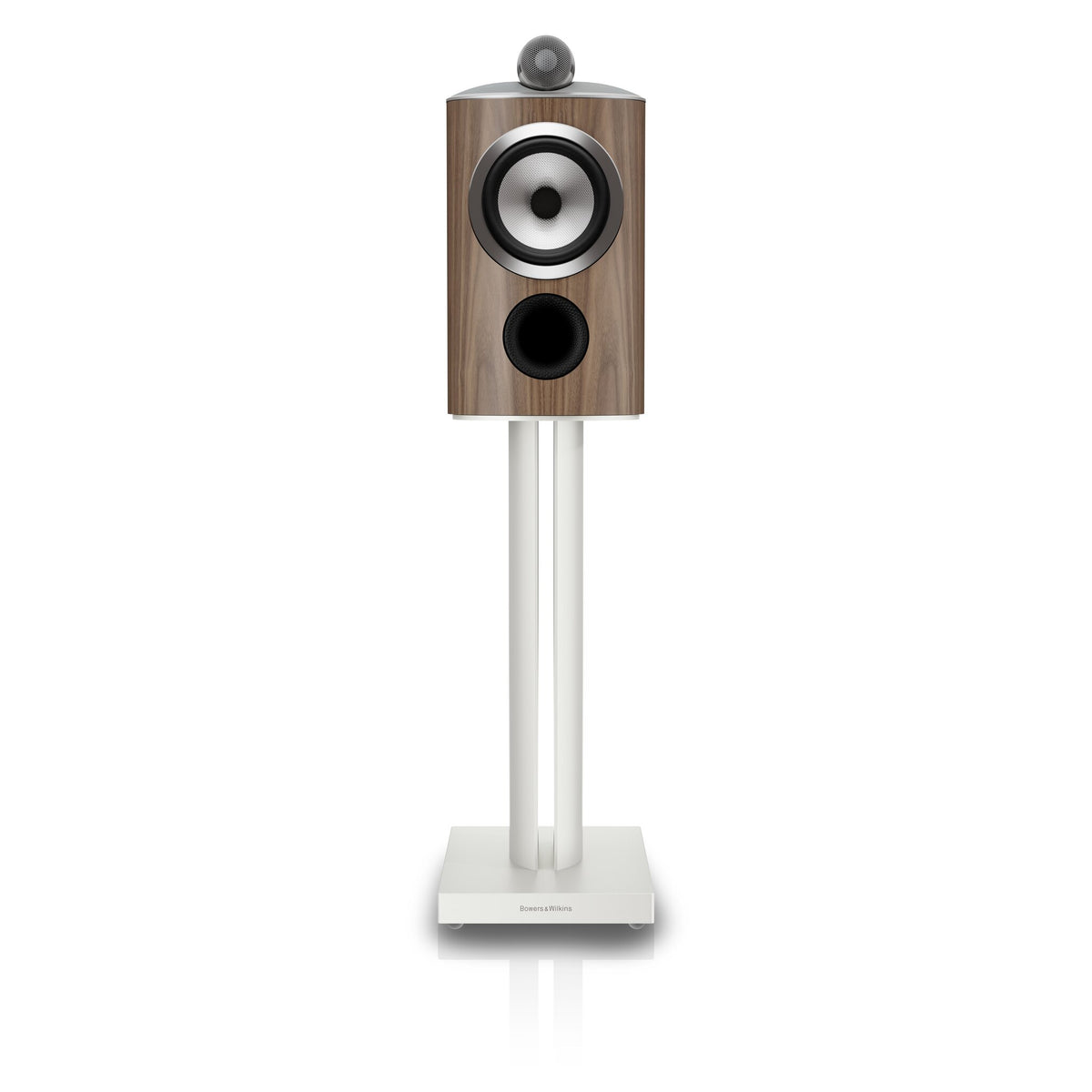

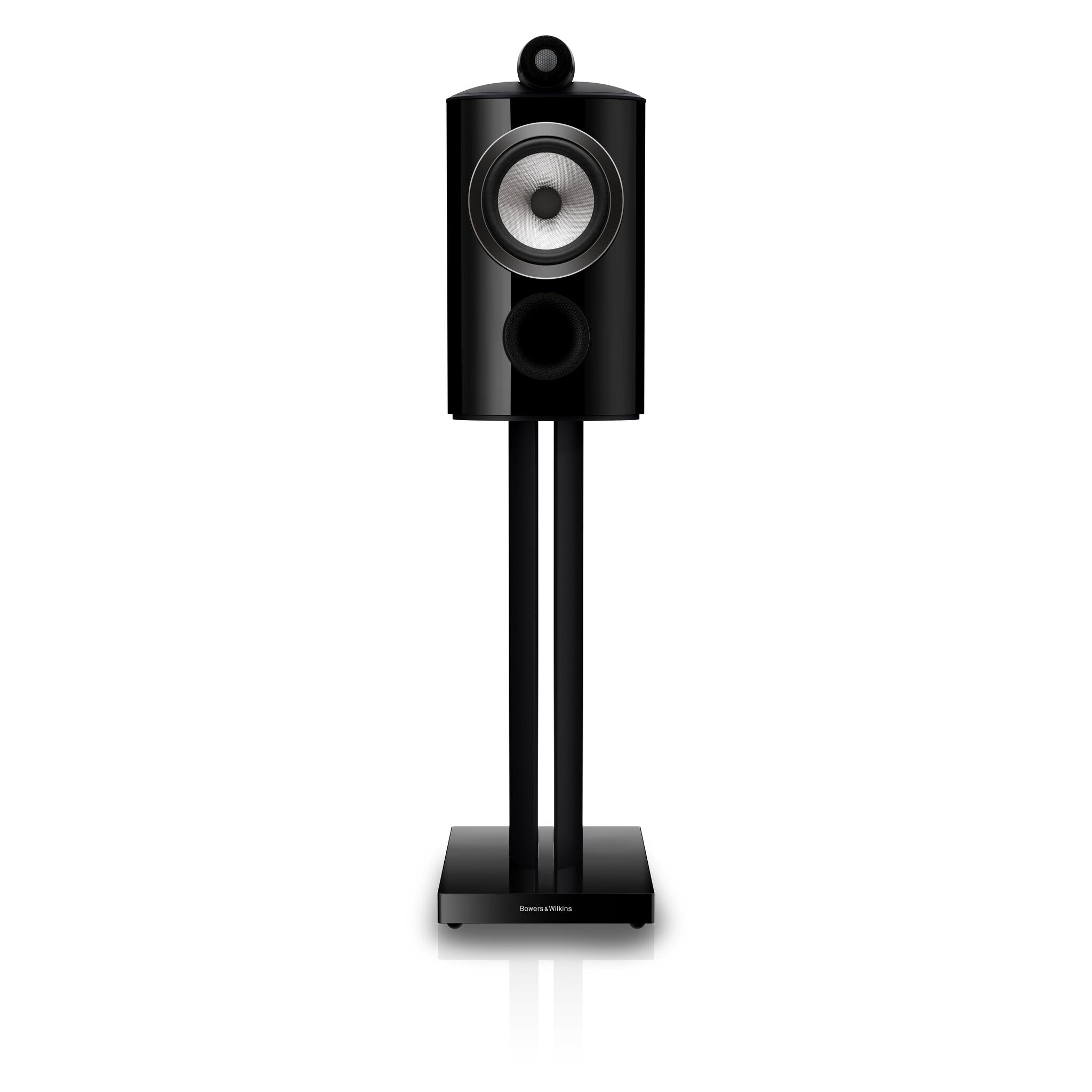

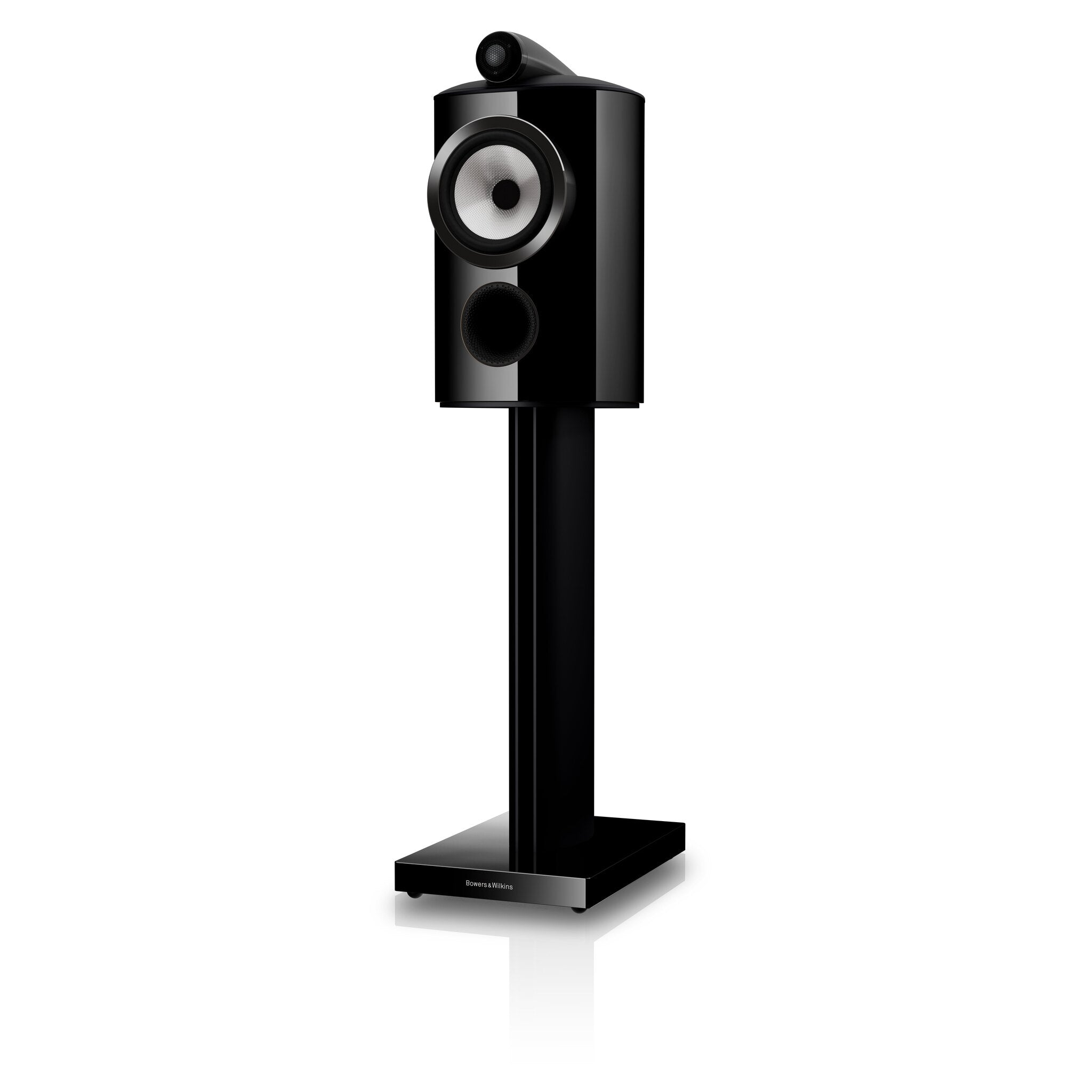

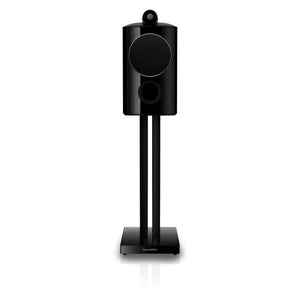

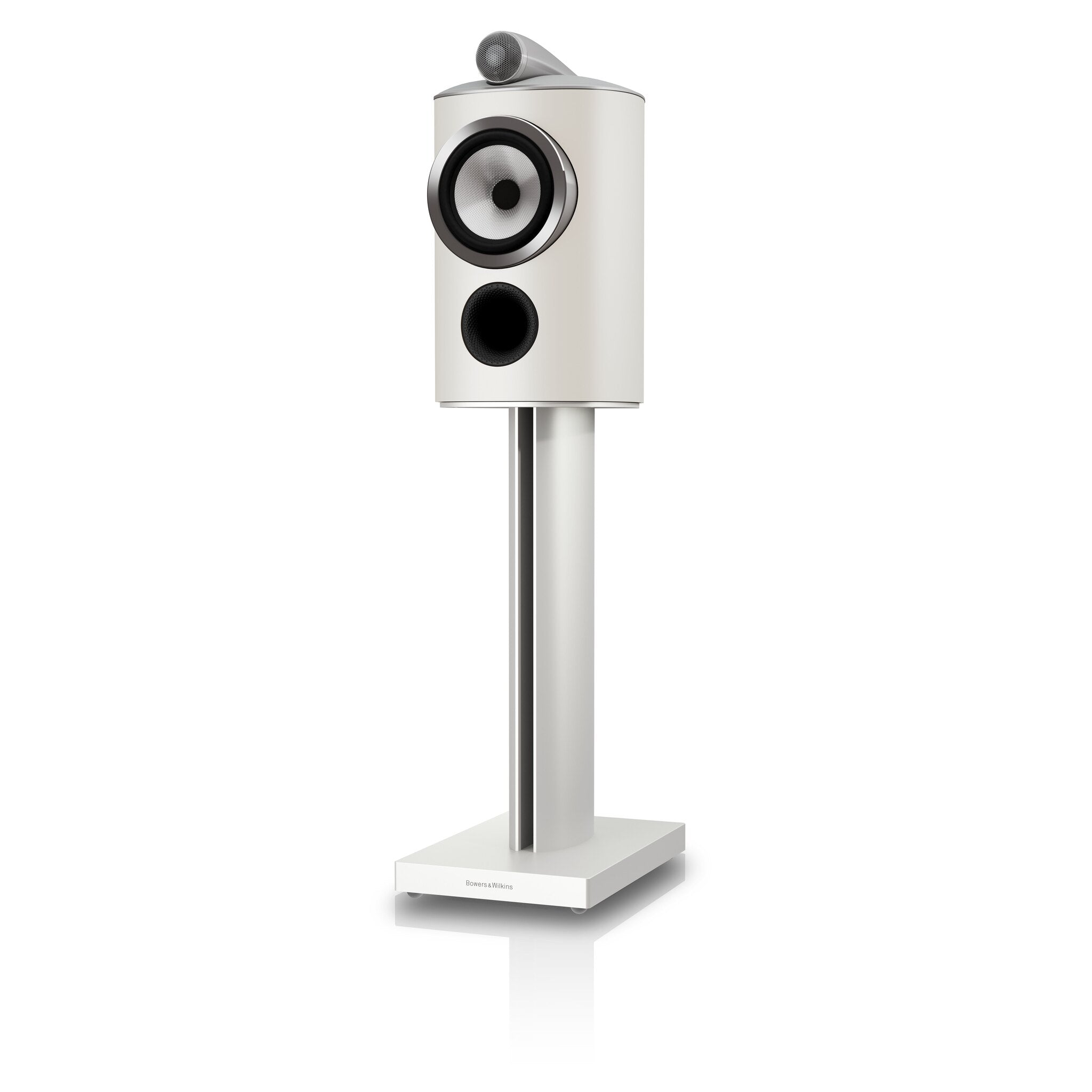

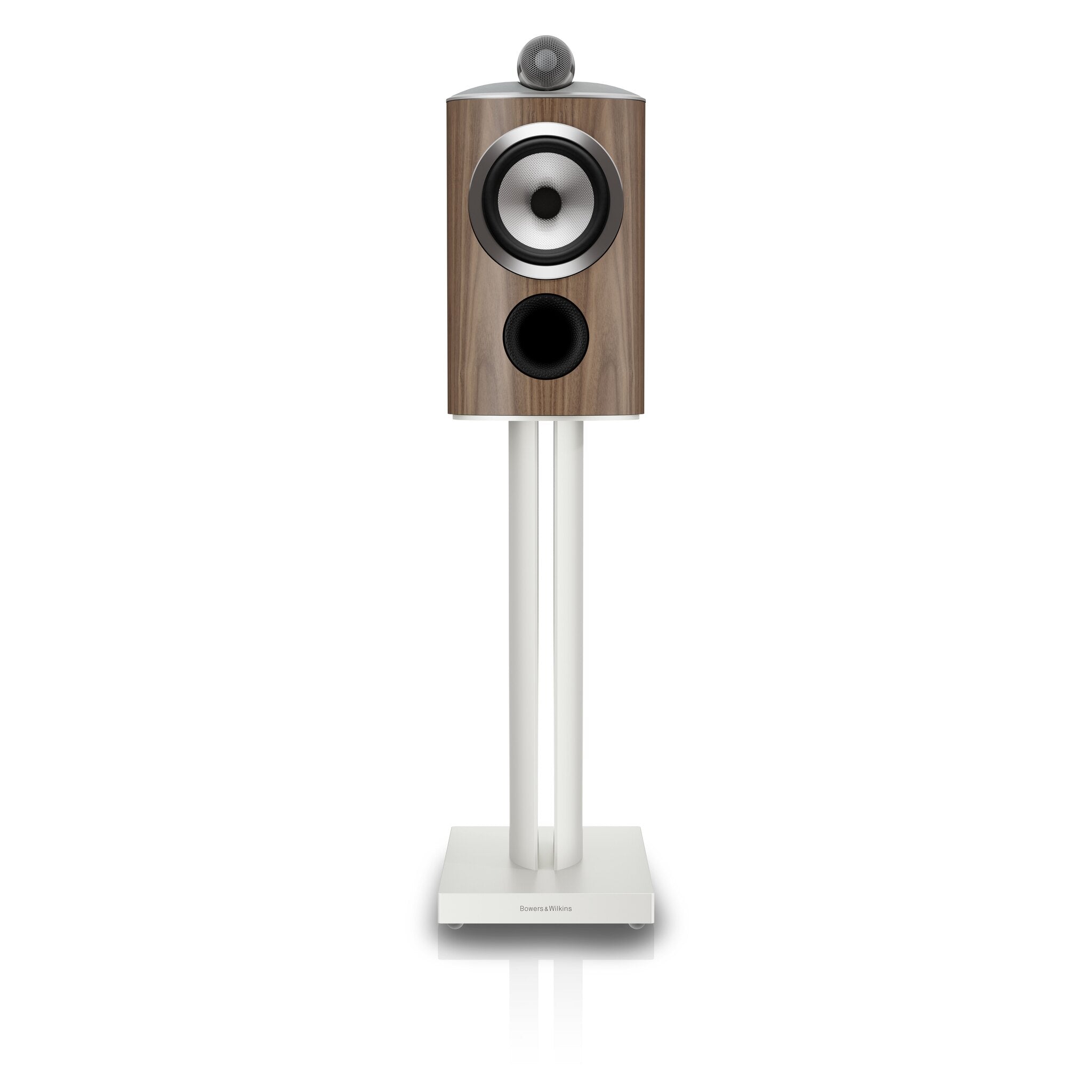

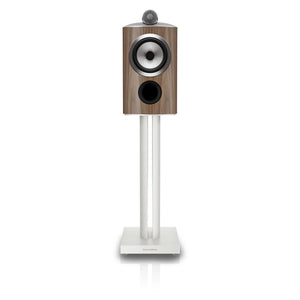

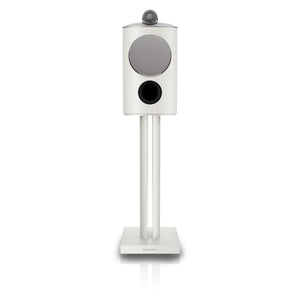

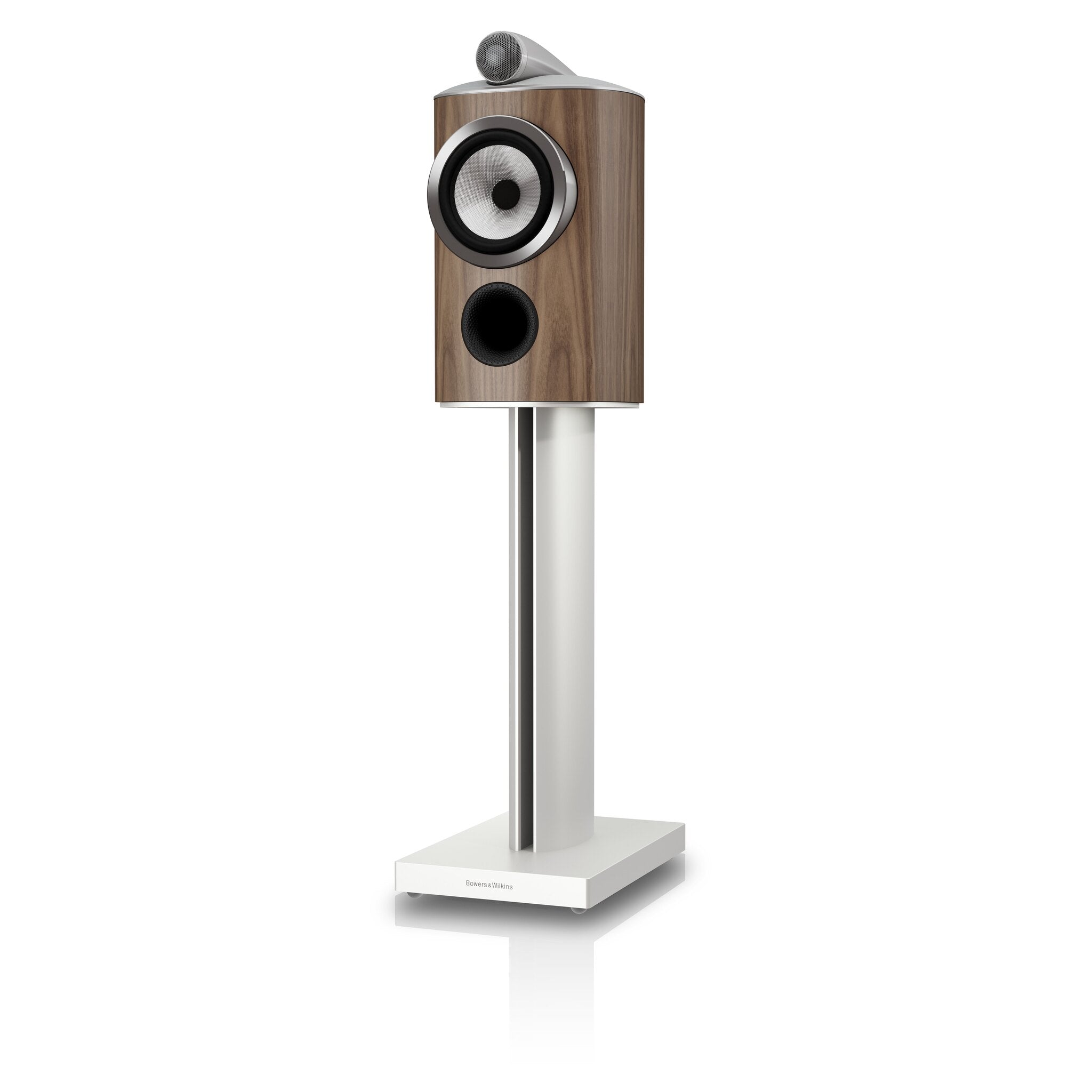

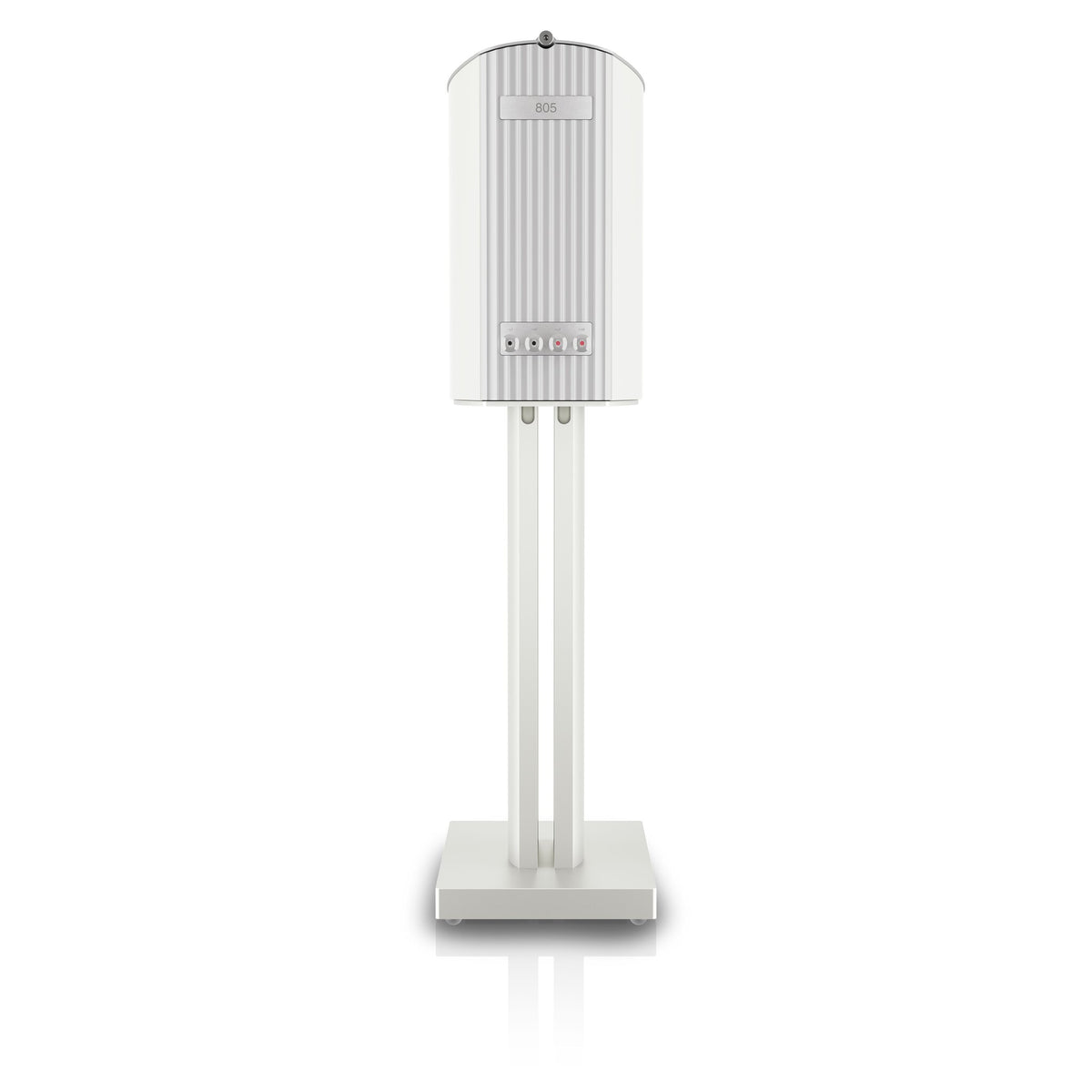

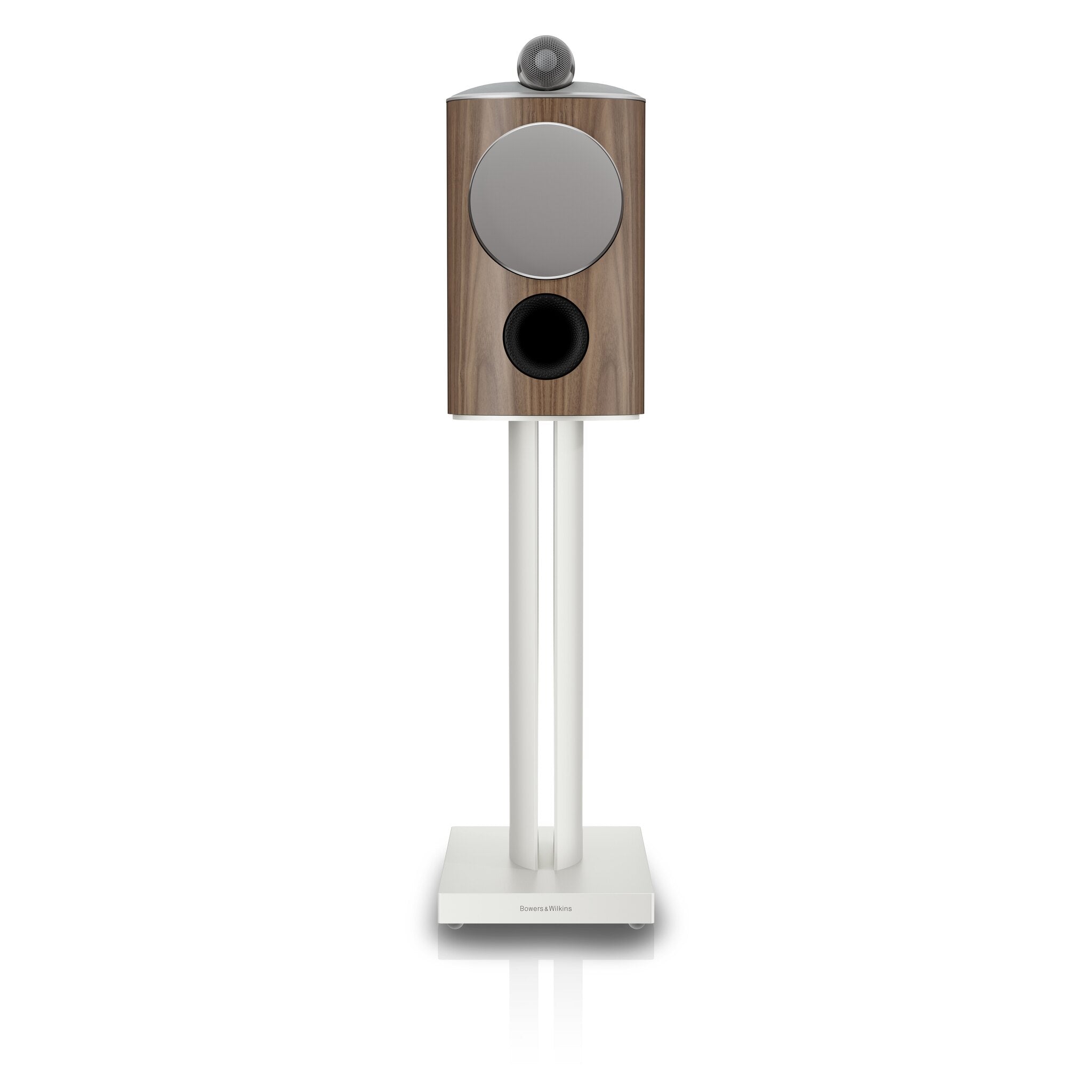

The top plate is trimmed in Leather by Connolly: black on Stealth Black and Dark Walnut, light grey on Warm White and Light Walnut.
| Type | 2-way vented-box standmount loudspeaker |
| Tweeter | 1 in (25 mm) Diamond Dome, Solid Body Tweeter-on-Top |
| Bass/midrange | 6.5 in (165 mm) Continuum Cone |
| Frequency range (−6 dB) | 34 Hz – 35 kHz |
| Frequency response (±3 dB) | 42 Hz – 28 kHz |
| Sensitivity | 88 dB (2.83 V, 1 m) |
| Impedance | 8 Ω nominal, 4.6 Ω minimum |
| Recommended amplifier | 50 – 120 W into 8 Ω |
| Harmonic distortion | < 1% 90 Hz – 20 kHz; < 0.3% 120 Hz – 8 kHz |
| Dimensions (H × W × D) | 17.3 × 9.5 × 14.3 in (439 × 241 × 363 mm) |
| Weight | 36.0 lb (16.4 kg) each |
| Sold as | Pair |
