Pass Labs · Integrated

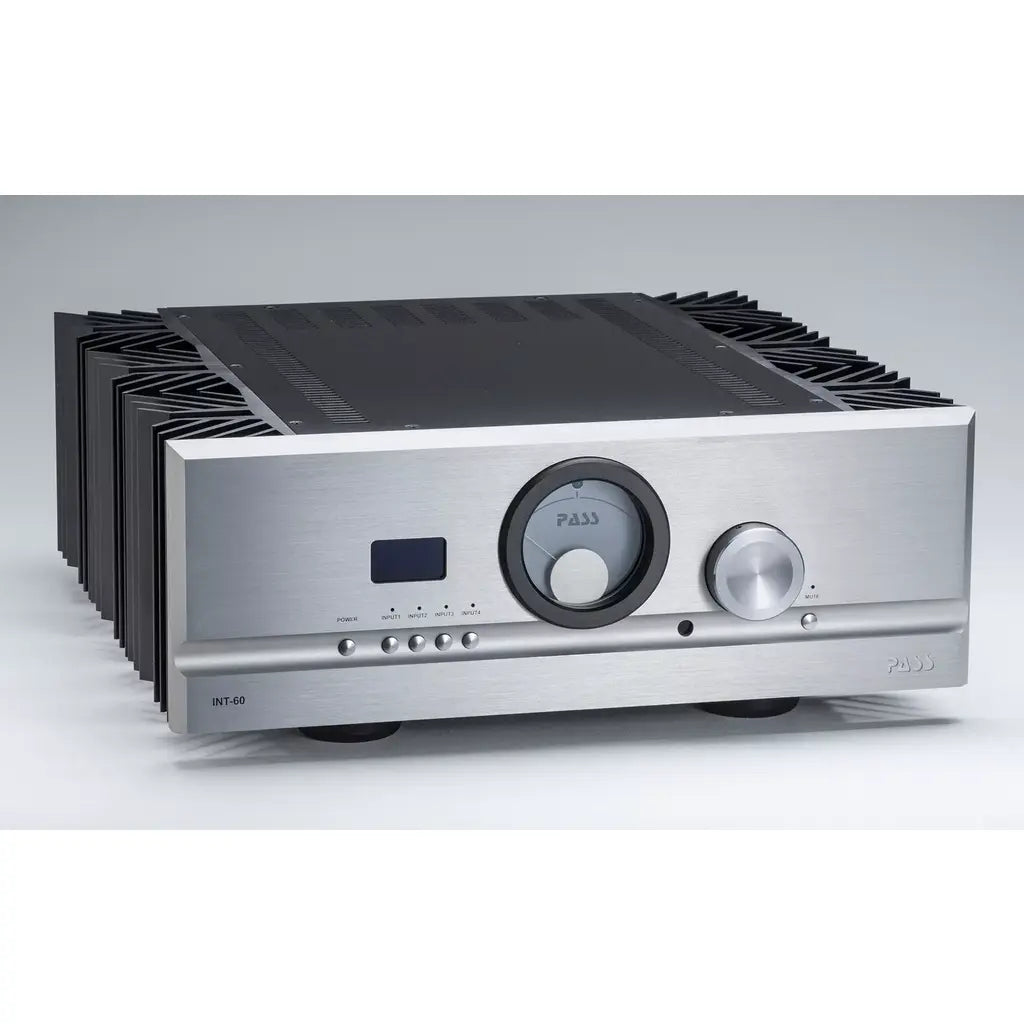

A 60-watt integrated amplifier that stays in Class A for its first 30 watts, built on the .8 series power supply and output stage with a simplified preamplifier in front.
First 30 W in Class A (Pass Labs). Remote control supplied.
Authorized Pass Labs dealer · Delivery and installation by Pearl Audio · Trade-ins welcome
The story
The INT-60 builds on the power supply and output stage of the .8 series amplifiers and adds a simplified preamplifier and an electronic volume control. Its high bias keeps the amplifier in Class A for the first 30 W, which is where most listening happens, and it is rated at 60 W per channel into 8 Ω and 120 W into 4 Ω with a damping factor of 150. A toroidal transformer with electrostatic and Mu-metal shielding, vacuum impregnation and epoxy fill feeds a supply with additional filtering. A microcontroller reads an optical encoder to set the volume in 1 dB steps over 63 dB, with the digital circuits run from a supply isolated from the analog section so control signals never touch the audio path.
There are four inputs, two of them XLR/RCA and two RCA, with preamplifier outputs, a remote, and selectable gain of 30 or 36 dB. Stereophile's reviewer found that the INT-60 softened the extra energy between 2 and 8 kHz on Zu loudspeakers and gave the bass more muscle, and that with Magnepan .7s it added slam and a lushness that occasionally went too far. Part-Time Audiophile wrote that it got him more involved and closer to the musical experience. Both speaker terminals are live and the black terminal is not a ground, which matters when connecting a subwoofer.
The INT-60 is the one-box Pass Labs system for loudspeakers of reasonable sensitivity in medium rooms, with the Class A character of the XA amplifiers. The INT-250 is the alternative for larger, less efficient loudspeakers, and a phono stage such as the XP-17 completes an analog system.
Silver is the standard finish shown. Black is available to order at additional cost; ask us for a quote.
| Type | Stereo integrated amplifier |
| Class of operation | Class AB; Class A to 30 W (Pass Labs) |
| Power output (8 Ω) | 60 W per channel |
| Power output (4 Ω) | 120 W per channel |
| Distortion | 1% at 60 W, 8 Ω, 1 kHz |
| Gain | 30 or 36 dB, selectable |
| Frequency response | -6 dB at 80 kHz (Pass Labs manual) |
| Input impedance | 45 kΩ |
| Damping factor | 150 |
| Output noise | Below 250 µV, unweighted, 20 Hz – 20 kHz |
| Inputs | 4: two XLR/RCA, two RCA |
| Outputs | Speaker binding posts; preamplifier outputs |
| Volume control | Electronic, 63 dB range in 1 dB steps; remote supplied |
| Power consumption | 375 W; about 3 A at 120 V idle; standby under 1 W |
| Dimensions (W × D × H) | 19 × 21.25 × 7.6 in |
| Weight | 93 lb |
The Class A-biased Pass Labs integrated amplifier.
