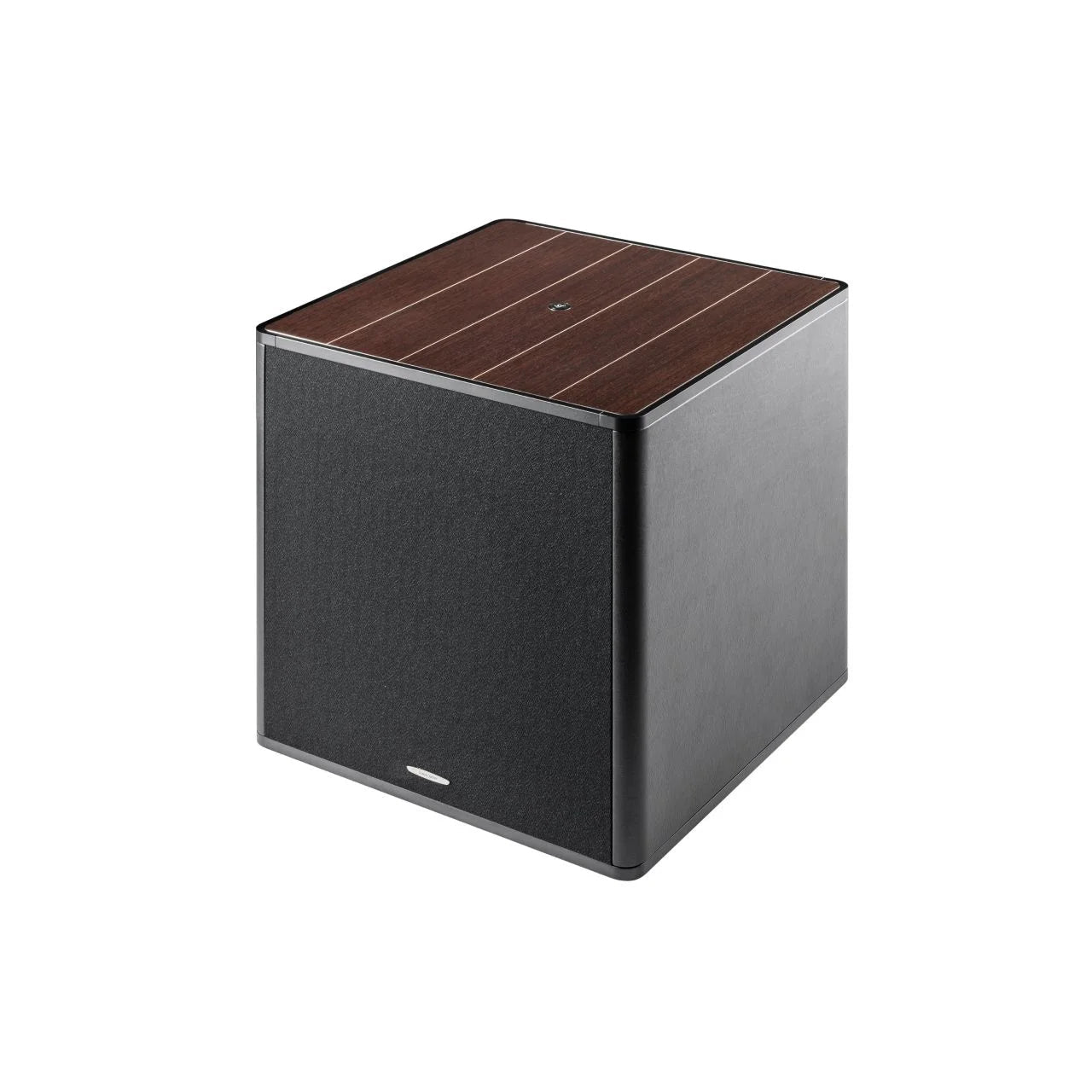

Gravis V

Sonus Faber

Gravis V

$6,000

Sonus faber · Gravis Subwoofers

A sealed 12.6-inch subwoofer with 850 W, app control and room calibration, matched to the Homage collection.

Price is for one subwoofer.

12.6 in
sealed long-throw woofer
850 W
RMS, Class AB
20 Hz
low-frequency extension (−6 dB)
Auto
room calibration via app

Gravis V uses a single 12.6-inch long-throw woofer with a honeycomb sandwich cone in a sealed cabinet, driven by an 850 W RMS (1,200 W peak) Class AB amplifier. The Sonus faber app gives you four presets, a 40 to 150 Hz crossover, continuously variable phase, delay, up to eight parametric EQ filters and automatic room calibration. Two balanced XLR inputs, two RCA inputs and a Speakon high-level input cover almost any system.

Sonus faber matches Gravis V to the Homage collection in sound and design. It is the step up from Gravis III when you need more output and deeper extension in a larger room, and the square cabinet is easier to place than the twin-driver Gravis VI.

Key technologies

  • App control. Four presets, crossover, phase, delay and level from your phone.
  • Room calibration. Automatic calibration plus up to eight parametric EQ filters.
  • Sealed box. A 12.6-inch honeycomb-cone woofer in a sealed cabinet.
  • Dual balanced inputs. Two XLR, two RCA and a Speakon input.

Finishes

  • Wenge high gloss, black leather
  • Red high gloss, black leather
  • Piano Black high gloss, black leather

Also offered with a 45-degree grain top and inlaid Sonus faber logo in Red, Wenge, Graphite or Piano Black; ask us for these.

Specifications
Type Sealed-box, single-driver active subwoofer
Woofer 12.6 in (320 mm) long-throw, sandwich honeycomb cone
Frequency response 20 Hz – crossover frequency (−6 dB)
Amplifier 850 W RMS (1,200 W peak), Class AB
Inputs 2 × RCA line (L/R, LFE), 2 × XLR balanced, high level (Neutrik Speakon)
Controls Master volume; via app: 4 presets, crossover 40 – 150 Hz (24 dB/oct), phase 0 – 360°, delay 1 – 20 ms, 8 parametric EQ filters, automatic room calibration
Dimensions (H × W × D) 17.9 × 17.6 × 17.6 in (455 × 448 × 448 mm)
Weight 70.5 lb (32 kg)
Sold as Single subwoofer

Sonus faber Gravis V technical specifications

Where it sits in the range

Pick the Gravis model by room size and by the speakers it supports.

  • Gravis I: 8.3 in, 150 W, for Lumina and small Sonetto
  • Gravis II: 10.2 in + passive radiator, 350 W, for Sonetto
  • Gravis III: 9.8 in sealed, 600 W, app control
  • Gravis V (this model)
  • Gravis VI: 2 × 12.6 in, 1,700 W, for Reference

Reviews

Plan your Gravis V system with Pearl Audio

Pearl Audio is an authorized Sonus faber dealer. We can help with room placement, amplifier matching, delivery and setup, and arrange a listening appointment. Call (503) 222-2599 or email sales@pearlaudio.com.
