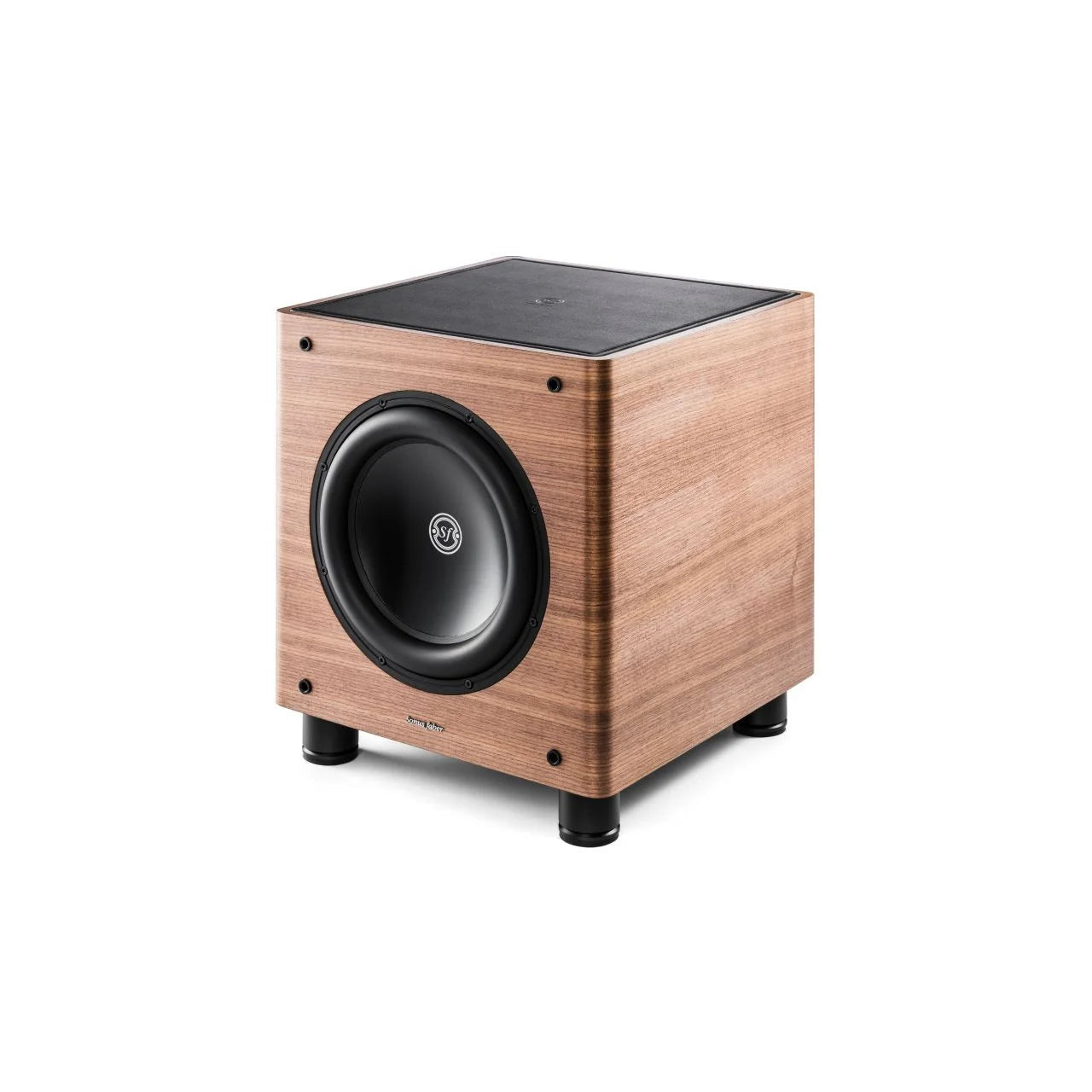

Sonus faber · Gravis Subwoofers
A 10.2-inch driver and matching passive radiator in a compact cabinet, voiced to match the Sonetto collection.
Price is for one subwoofer.
Gravis II pairs a 10.2-inch very-long-throw woofer with a 10.2-inch passive radiator, driven by a 350 W RMS (700 W peak) Class AB amplifier. The passive radiator extends the bass. Controls include separate master and LFE levels, a 30 to 120 Hz crossover (24 dB/octave), a phase switch and auto on/off, and it accepts line, LFE and speaker-level (Speakon) connections.
Sonus faber designed Gravis II as the visual and sonic match for the Sonetto collection. Sound & Vision used one with a Lumina surround system to add the bass weight the small speakers lacked on bass-heavy music. It suits medium rooms for both music and movies.
| Type | Active subwoofer with passive radiator (bass-reflex loading) |
| Woofer | 10.2 in (260 mm) very long throw, treated paper cone |
| Passive radiator | 10.2 in (260 mm) |
| Frequency response | 25 Hz – crossover frequency (−6 dB) |
| Amplifier | 350 W RMS (700 W peak), Class AB |
| Inputs | LFE (RCA), line (RCA), high level (Neutrik Speakon) |
| Controls | Master and LFE level, crossover 30 – 120 Hz (24 dB/oct), phase 0/180°, auto on/off |
| Dimensions (H × W × D) | 15.9 × 14 × 16 in (404 × 356 × 408 mm) |
| Weight | 42.1 lb (19.1 kg) |
| Sold as | Single subwoofer |
Pick the Gravis model by room size and by the speakers it supports.
Plan your Gravis II system with Pearl Audio
Pearl Audio is an authorized Sonus faber dealer. We can help with room placement, amplifier matching, delivery and setup, and arrange a listening appointment. Call (503) 222-2599 or email sales@pearlaudio.com.
