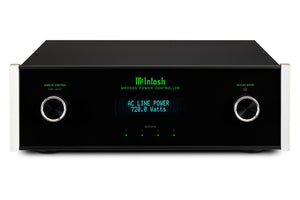

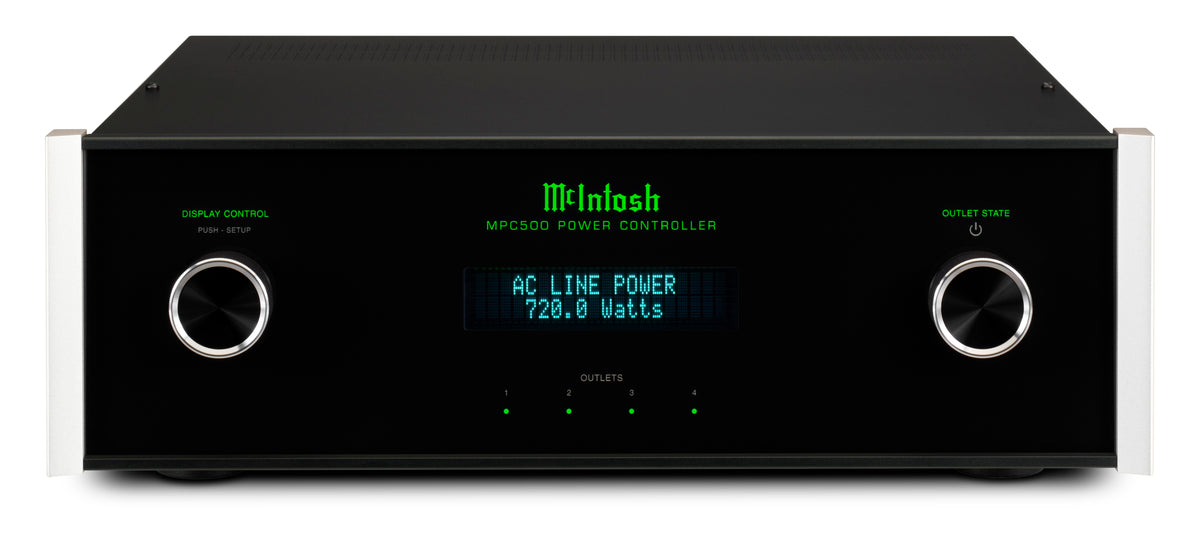

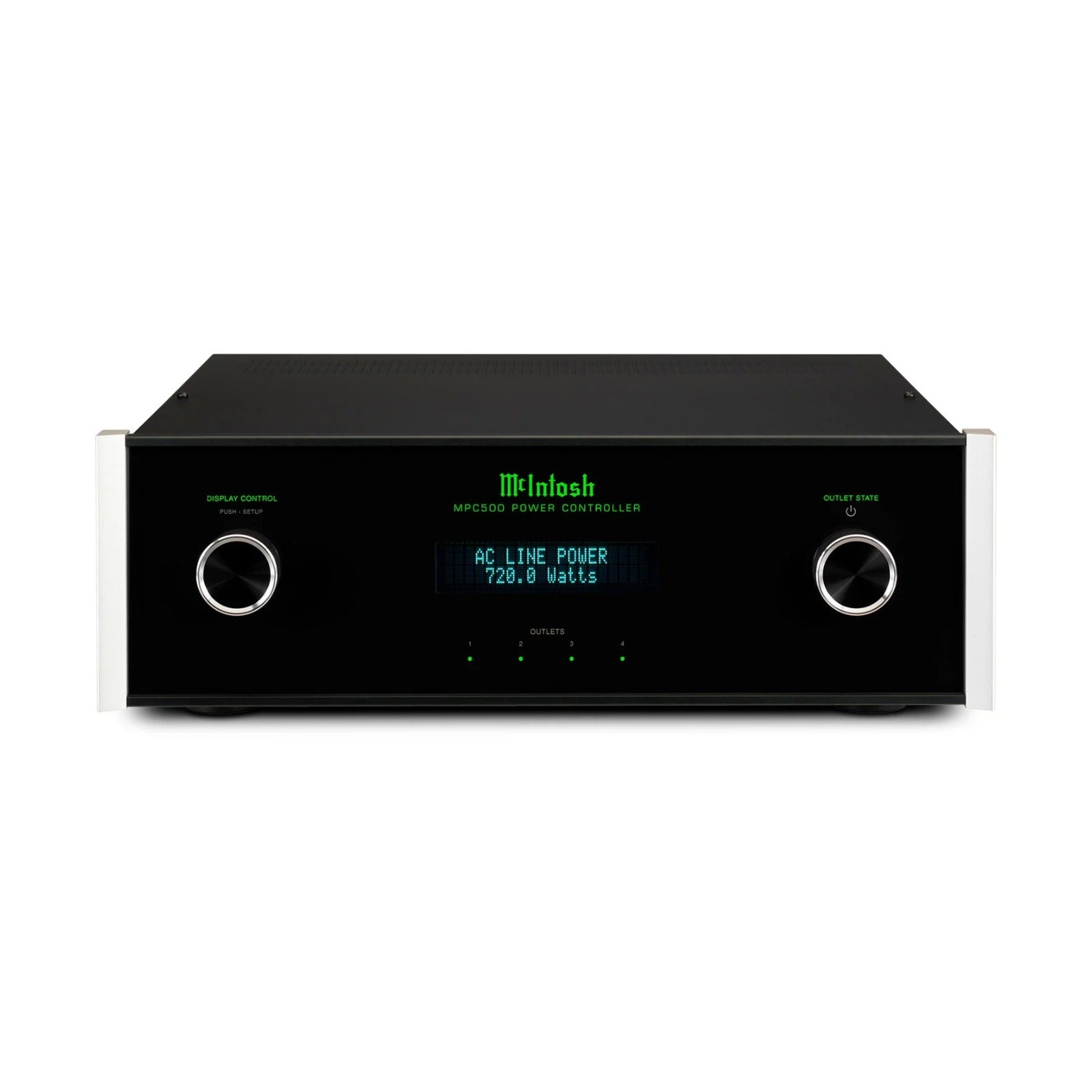

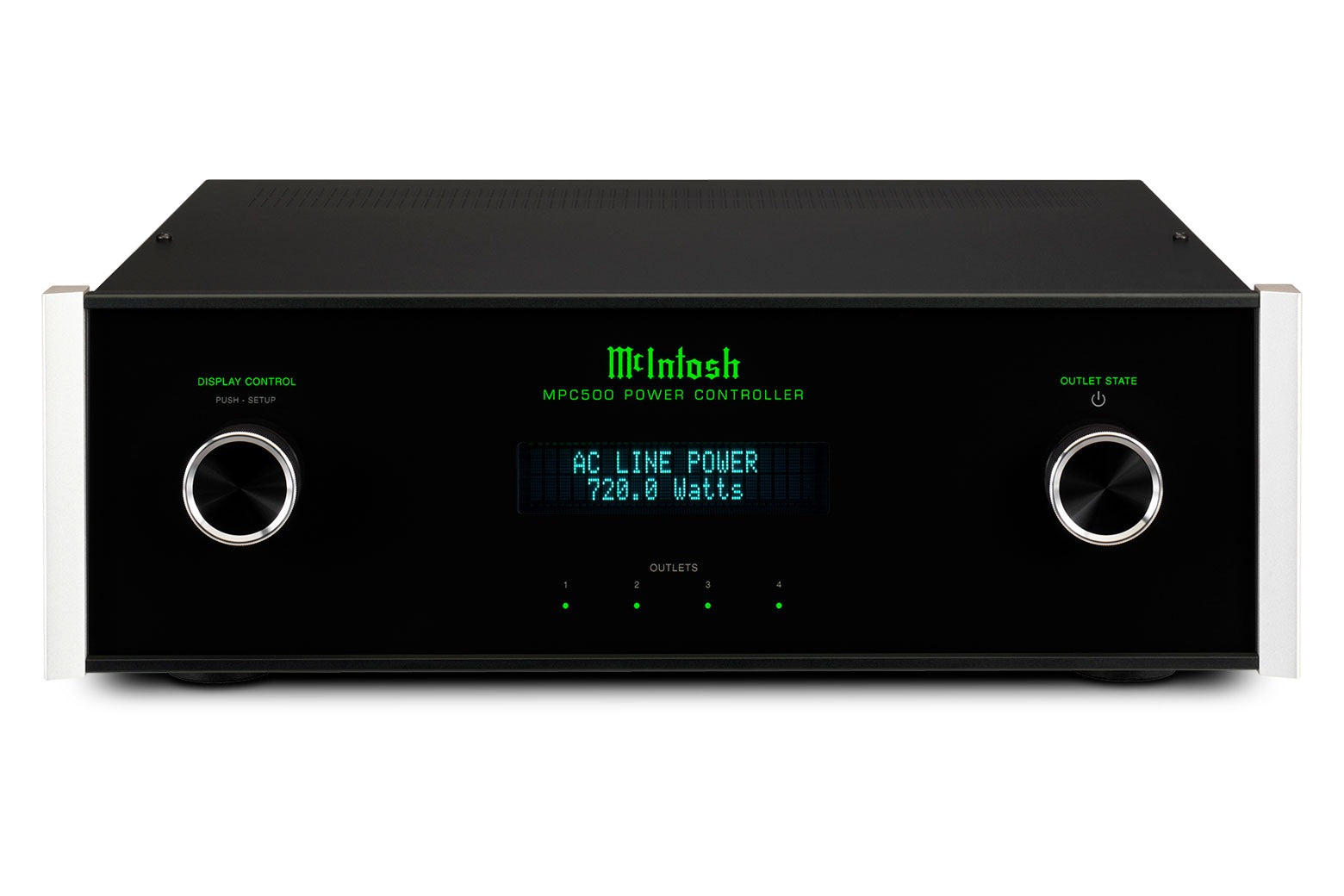

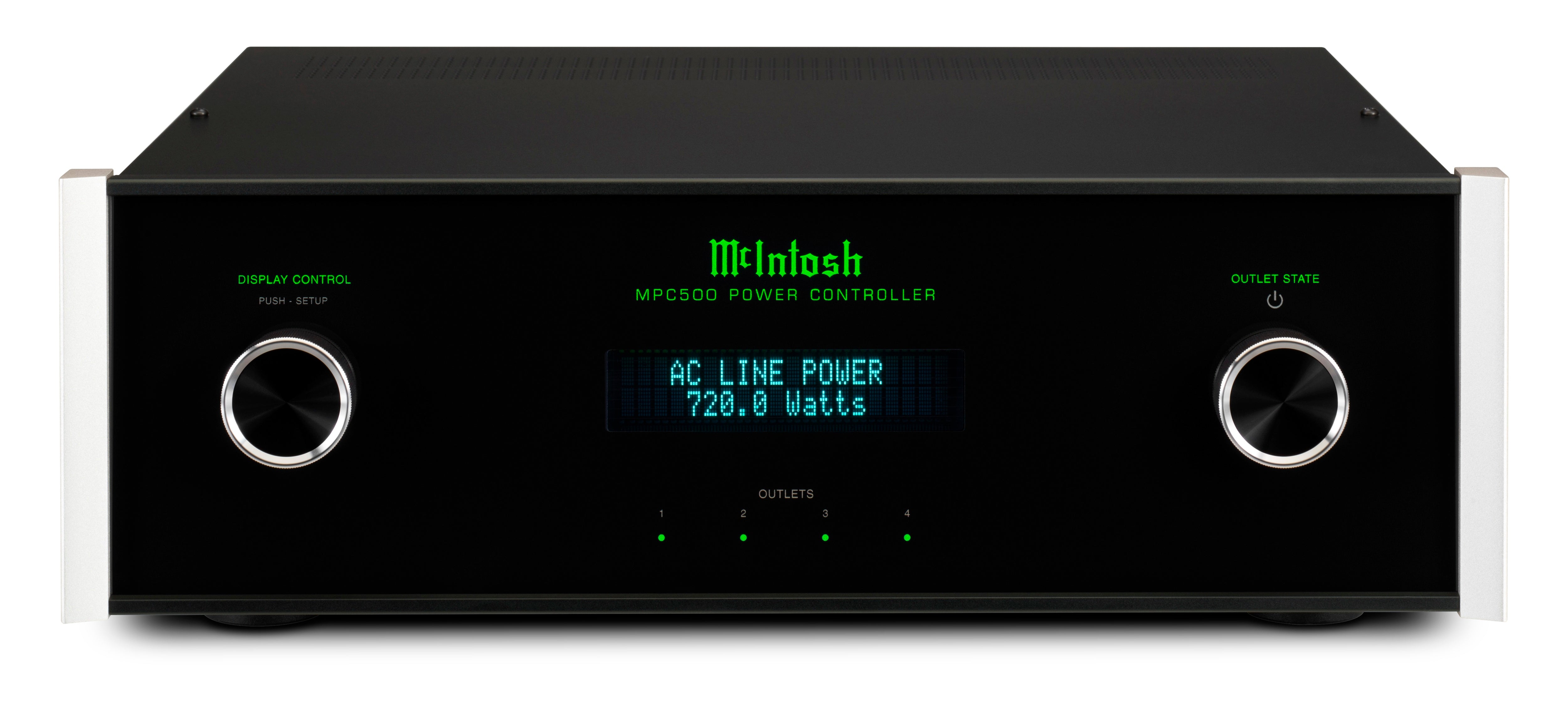

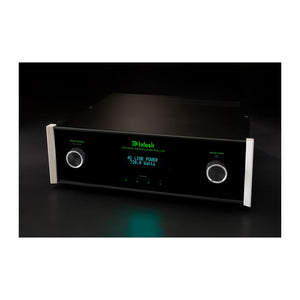

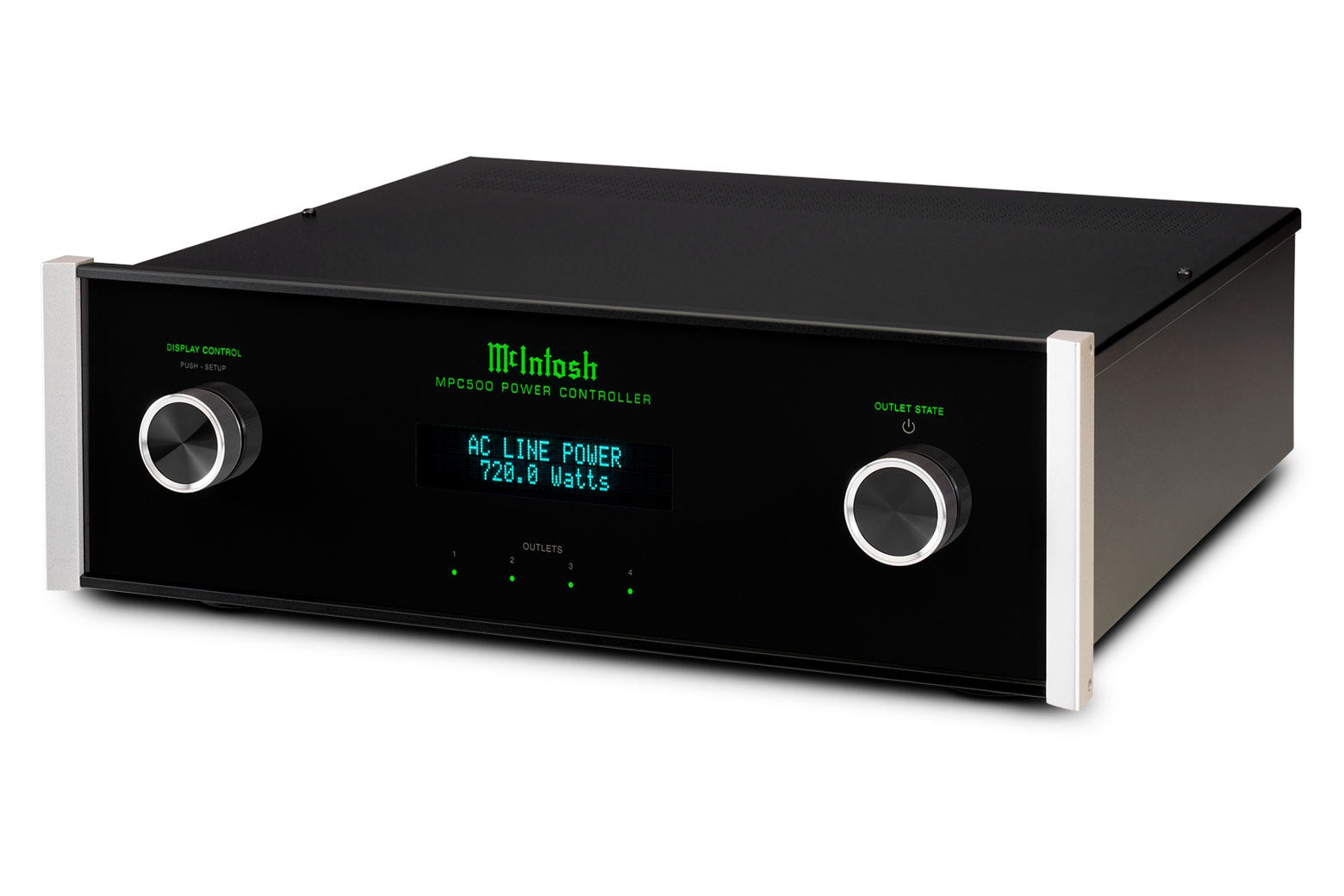

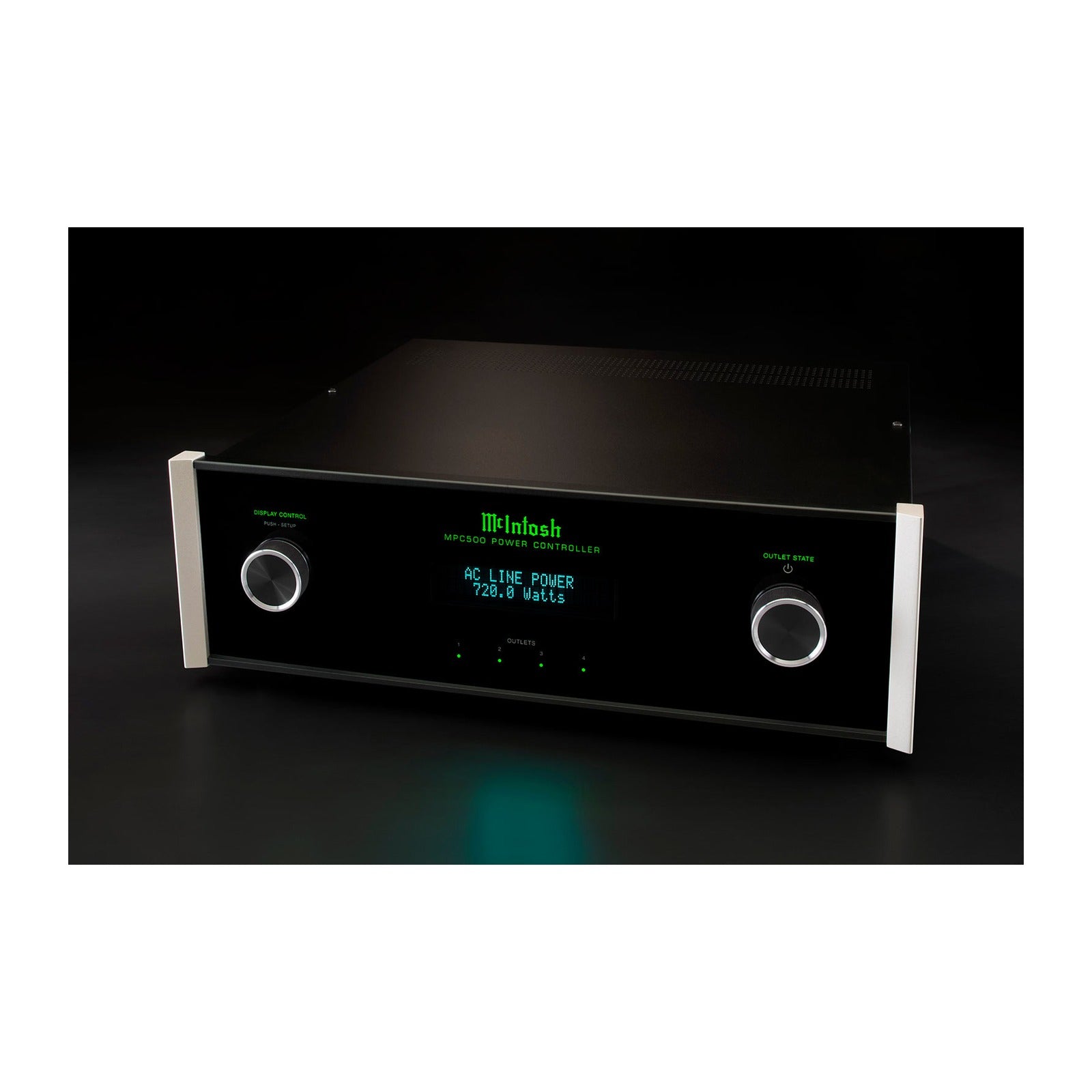

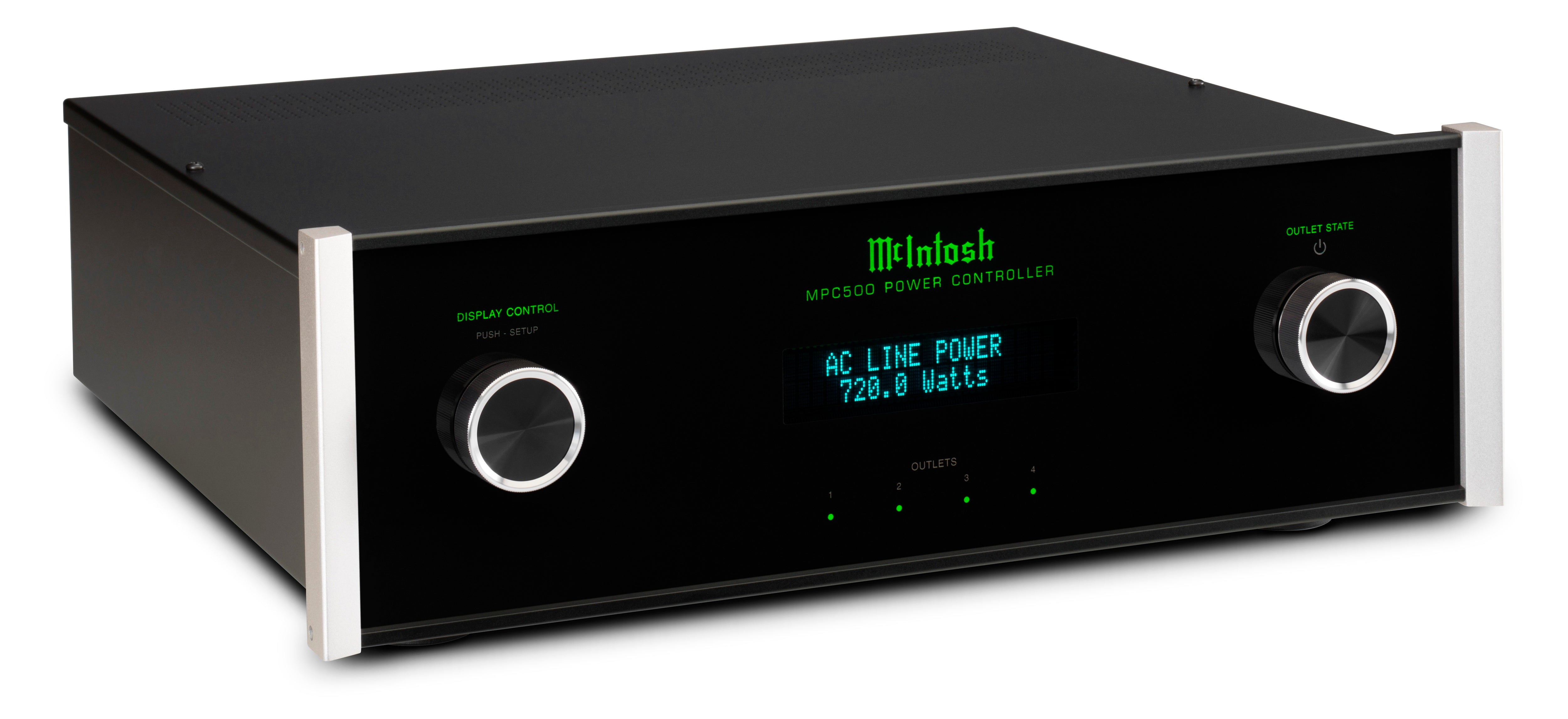

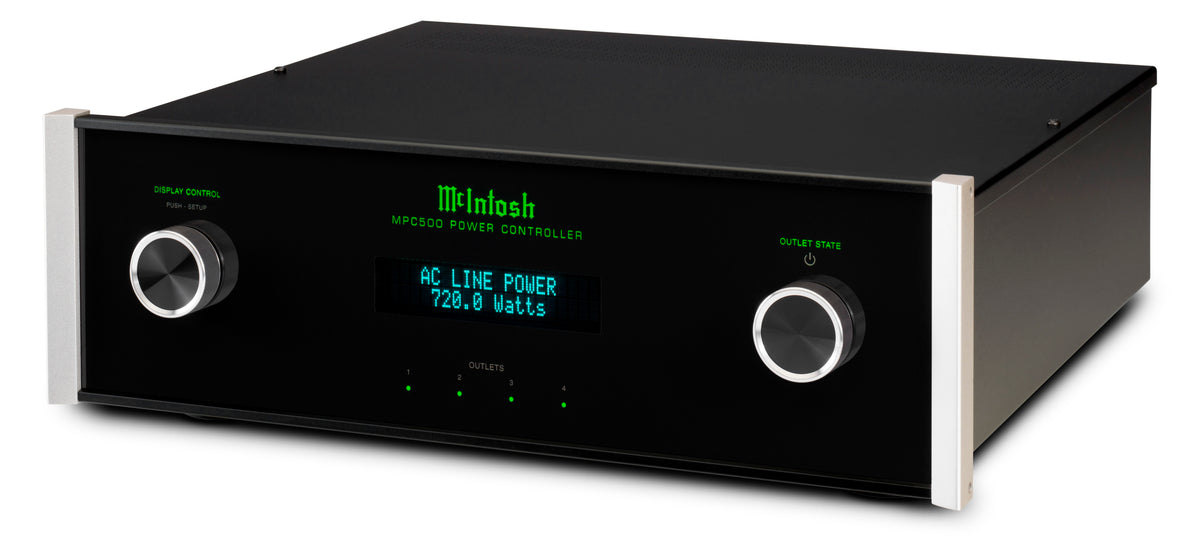

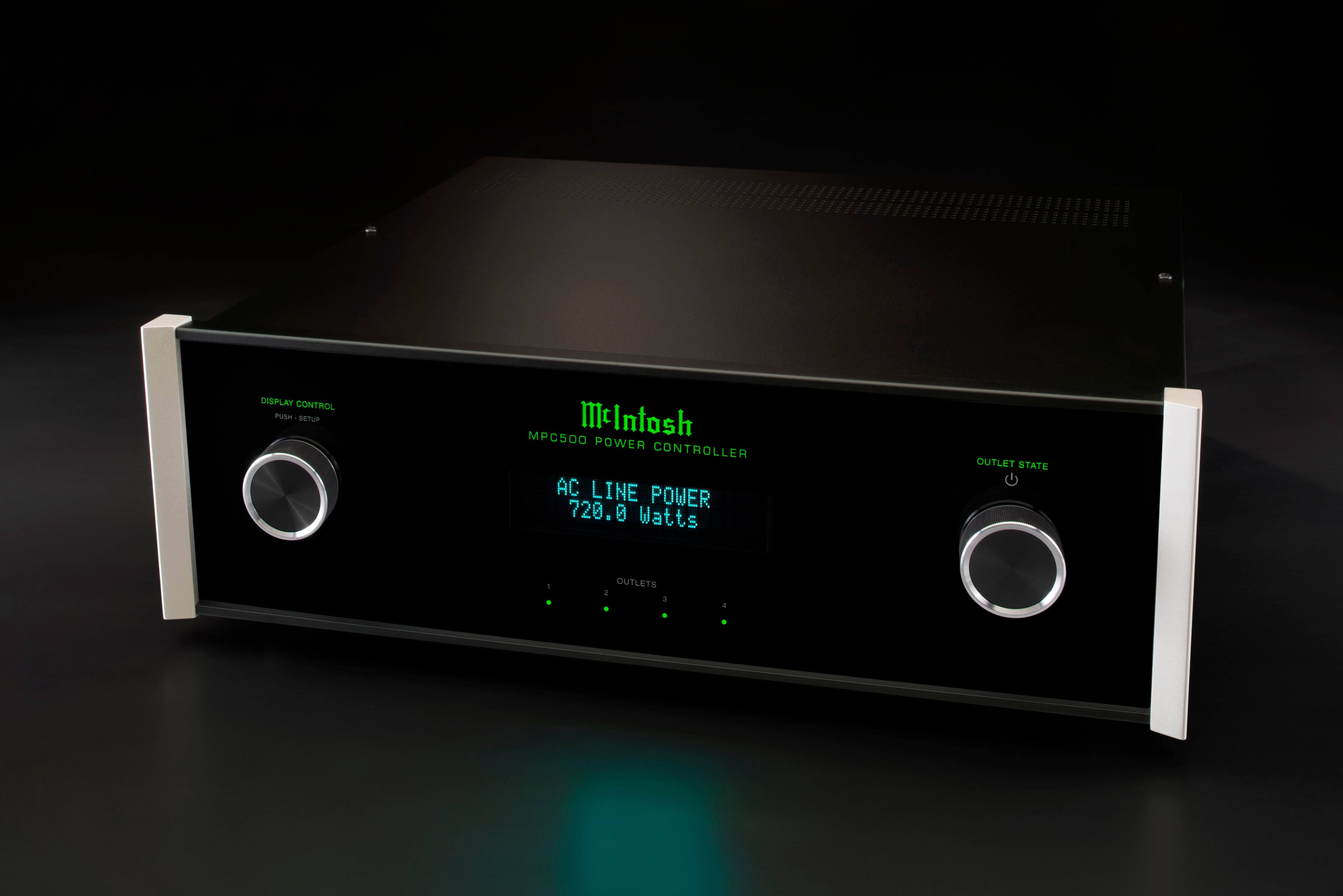

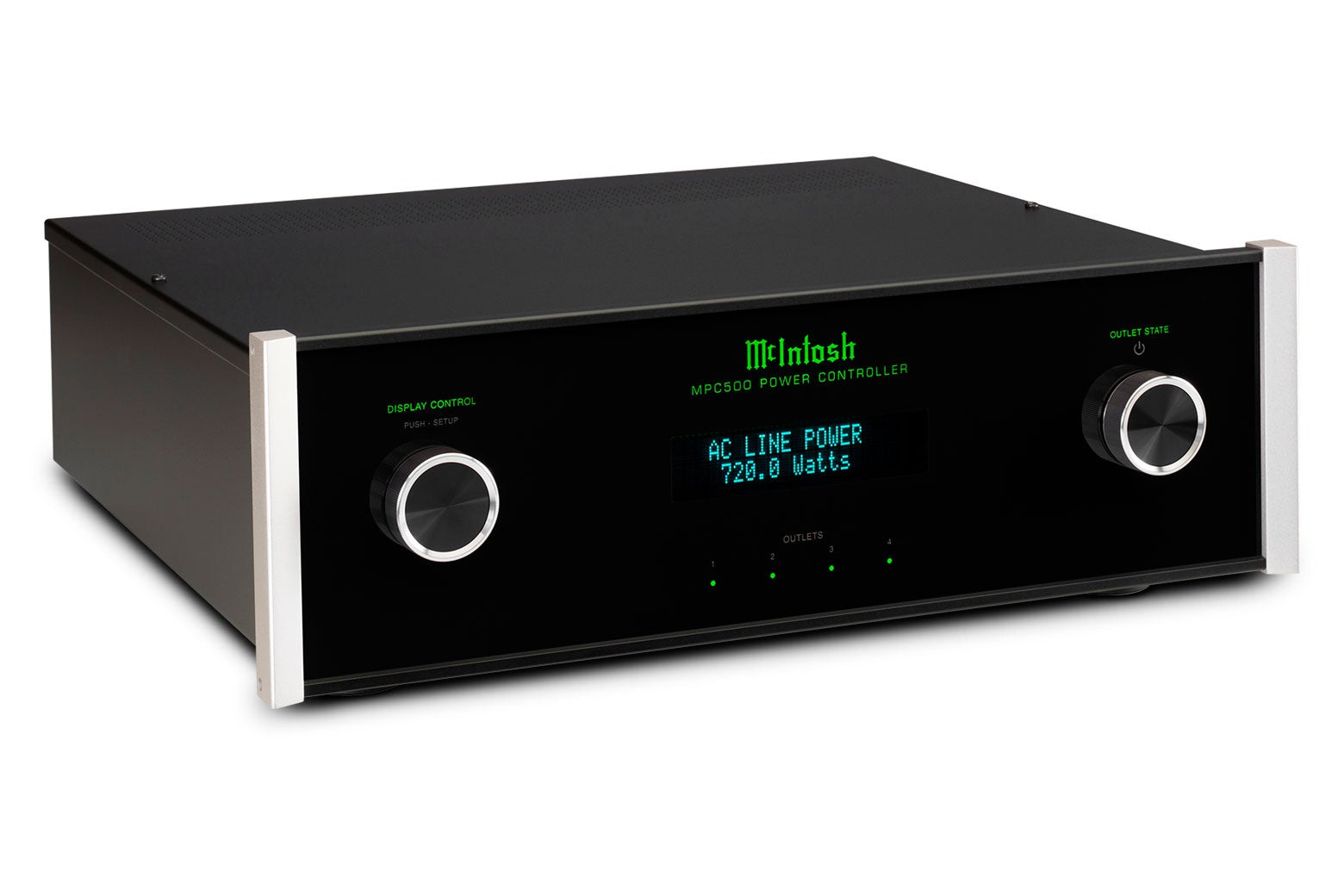

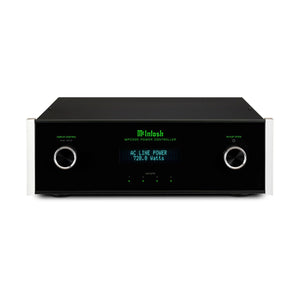

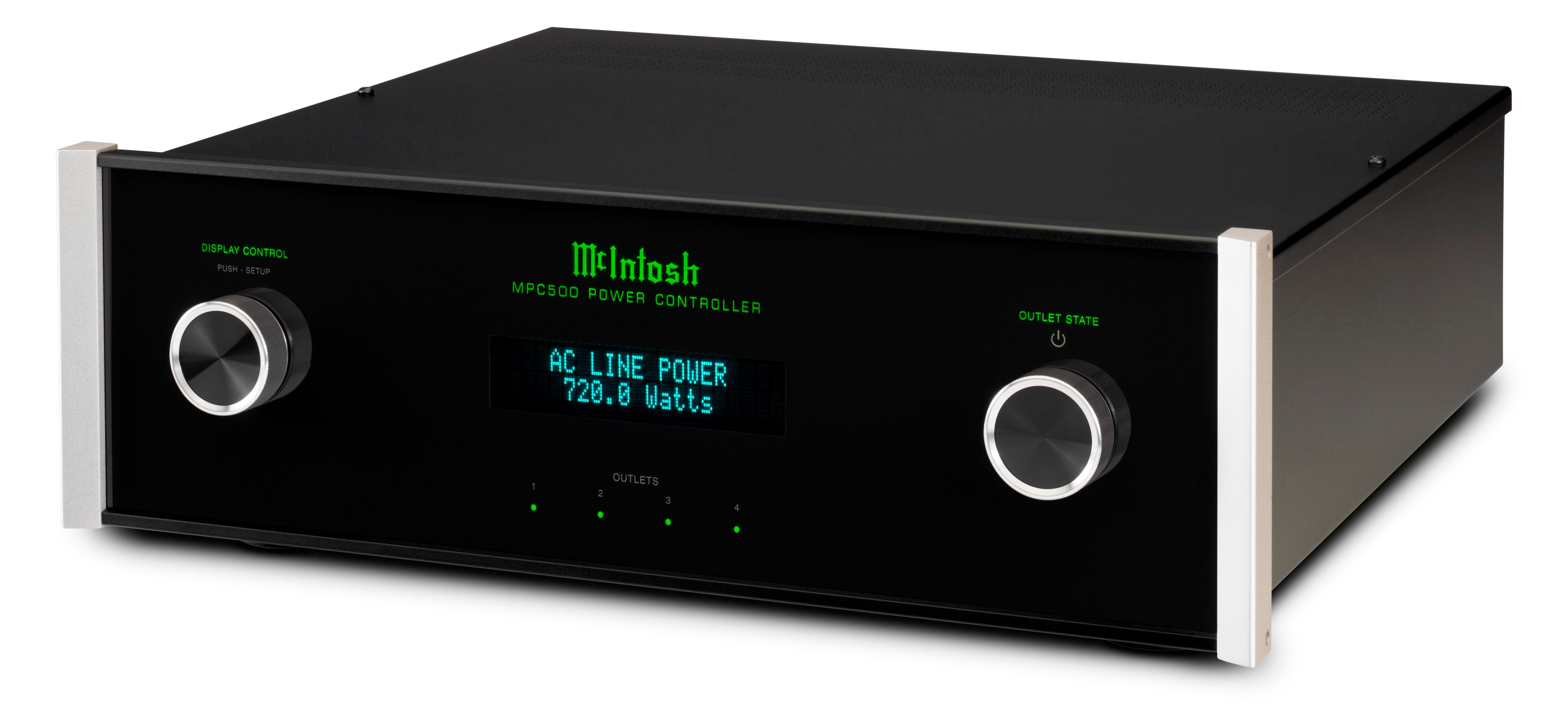

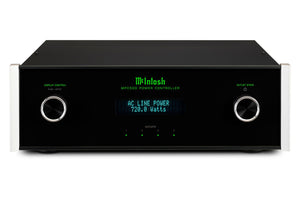

The MPC500 Power Controller safeguards audio components with cascaded surge protection. Its thermally protected metal-oxide varistor ensures Line to Neutral protection, while Gas Discharge Tubes and Transient Voltage Suppression components protect low voltage connections. The unit features electromagnetic interference filtering and over/under voltage protection, with configurable receptacle control via rear panel ports or front panel interface.

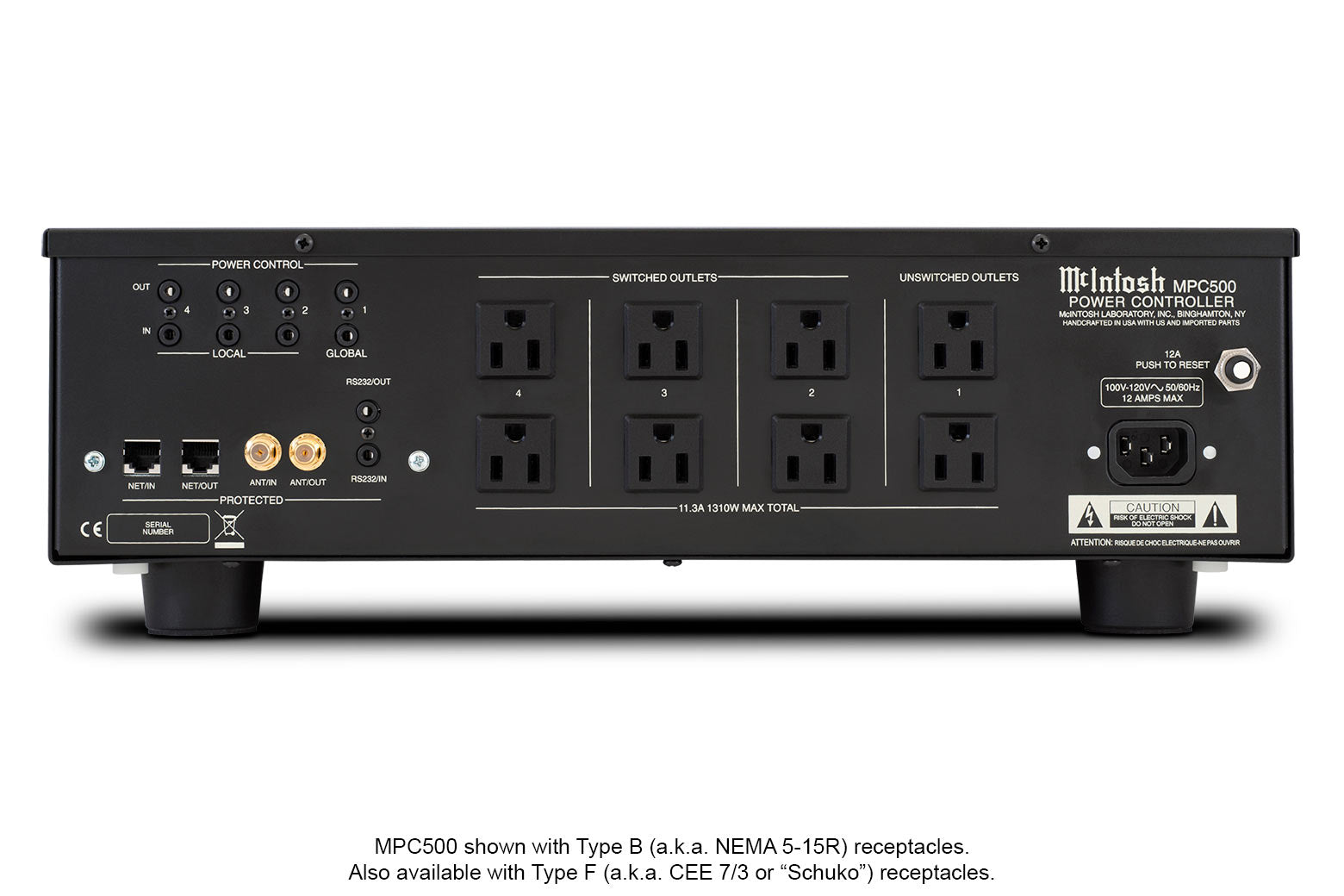

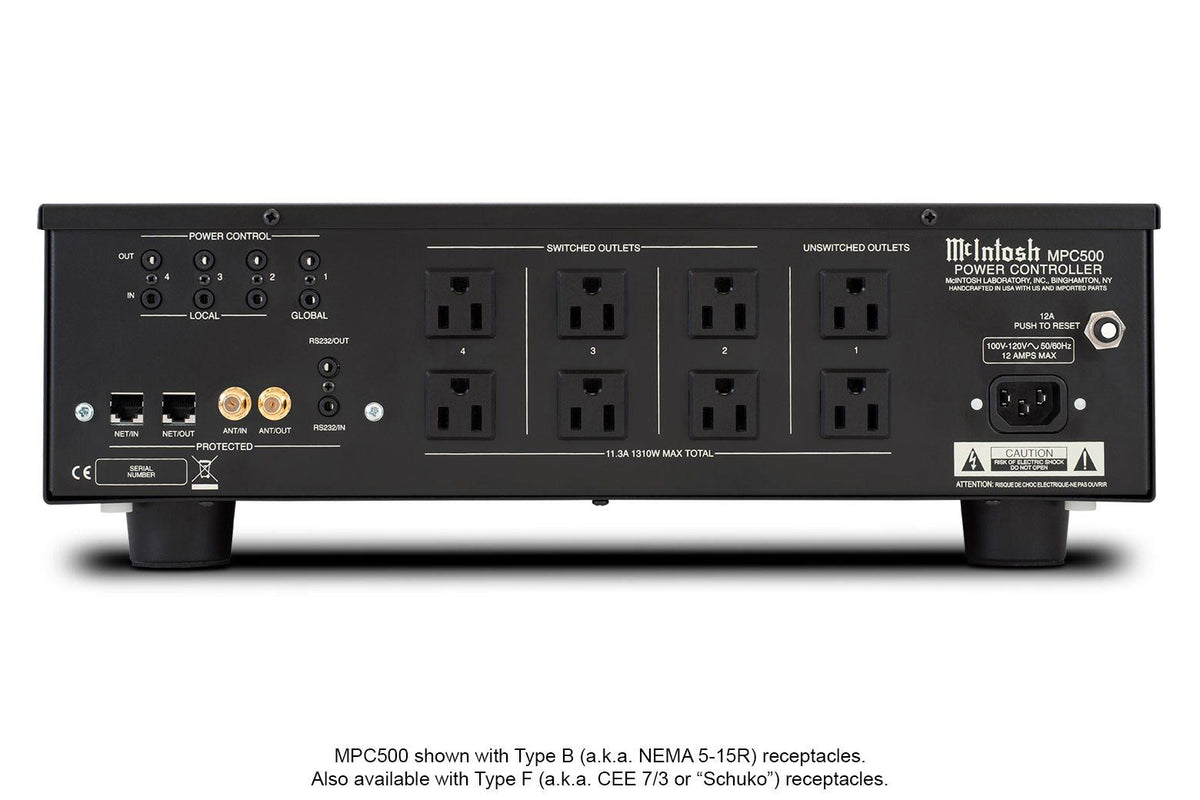

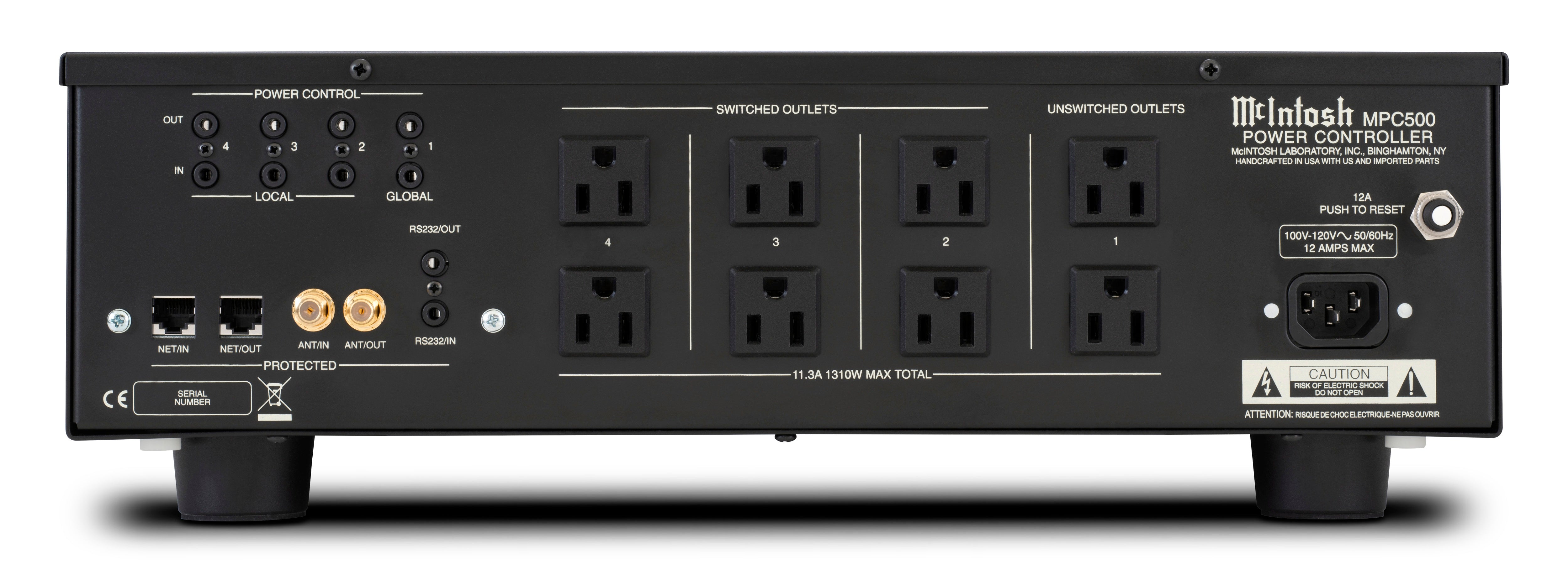

| Output Voltage (US) | 120 Volts AC Nominal (8 Type B/NEMA 5-15R receptacles) |

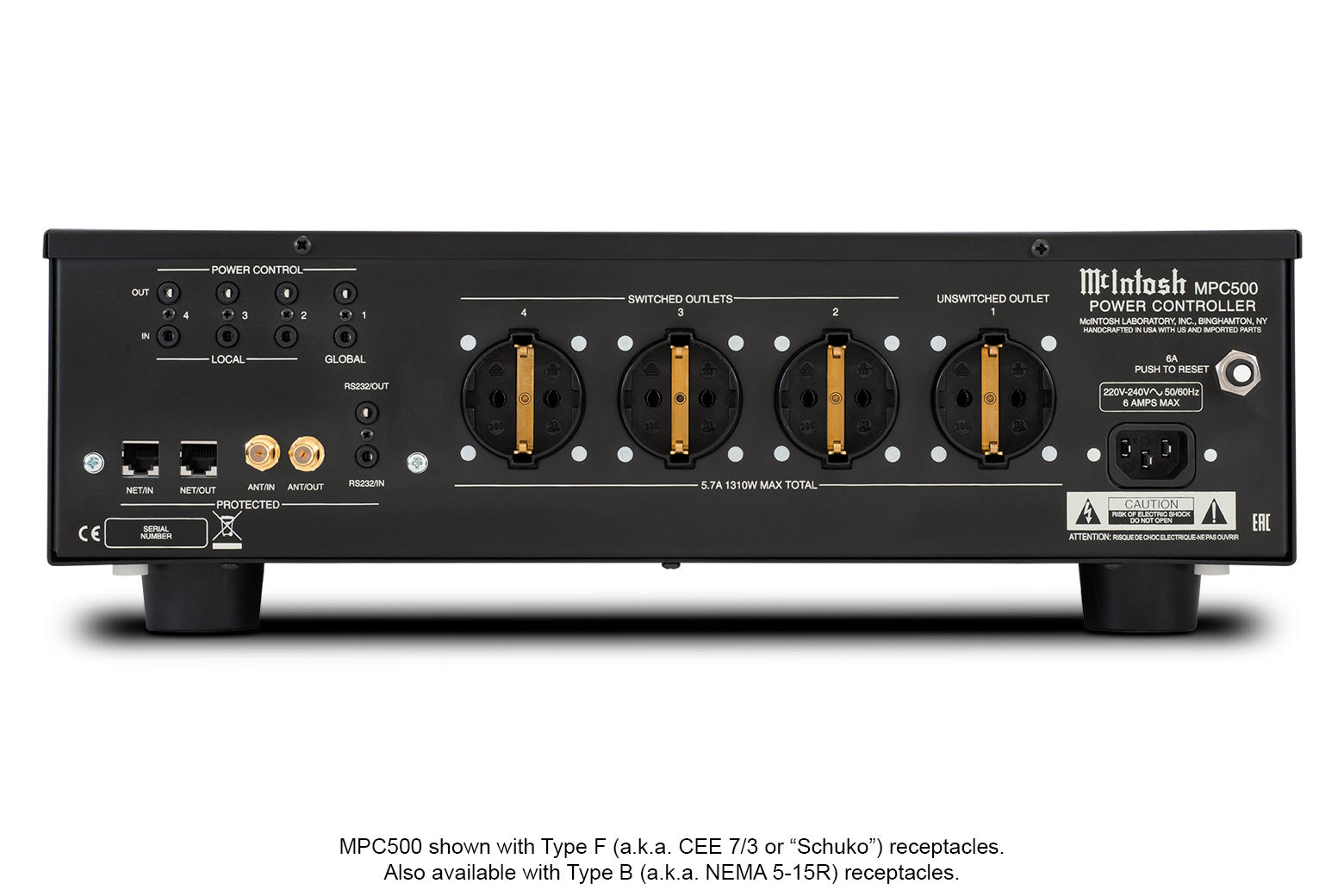

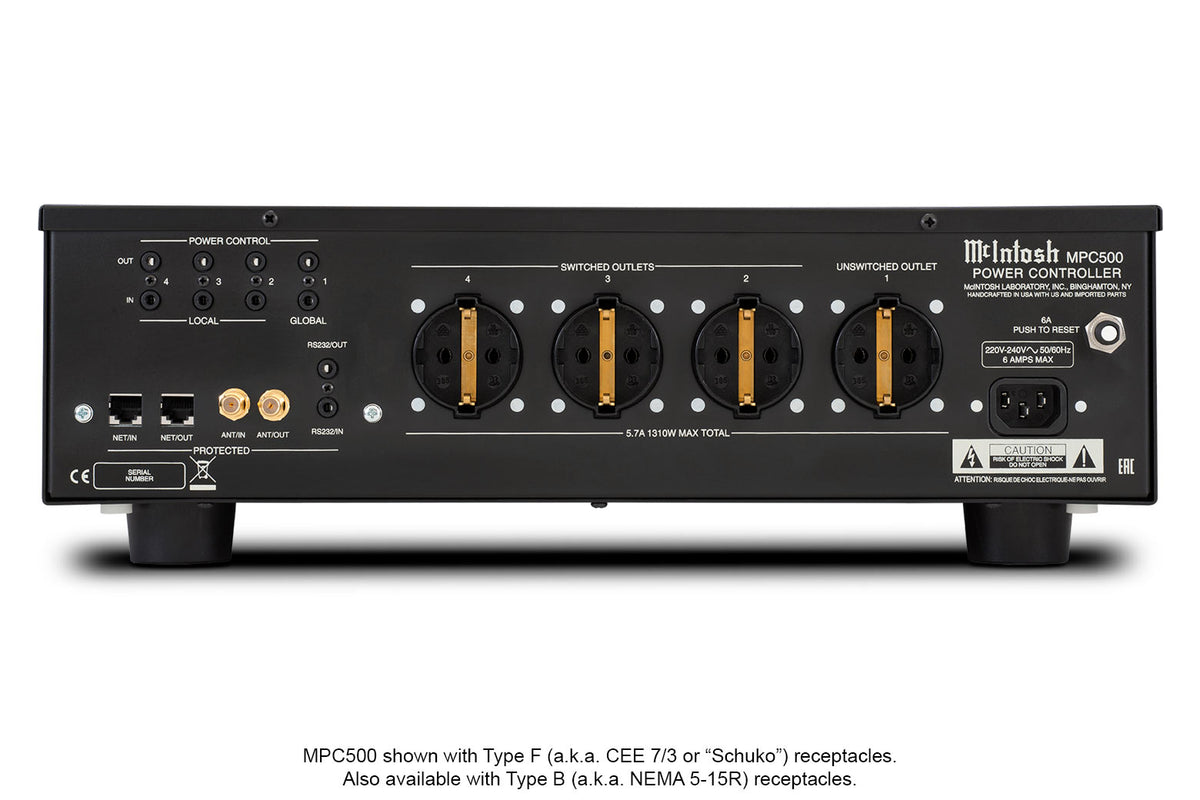

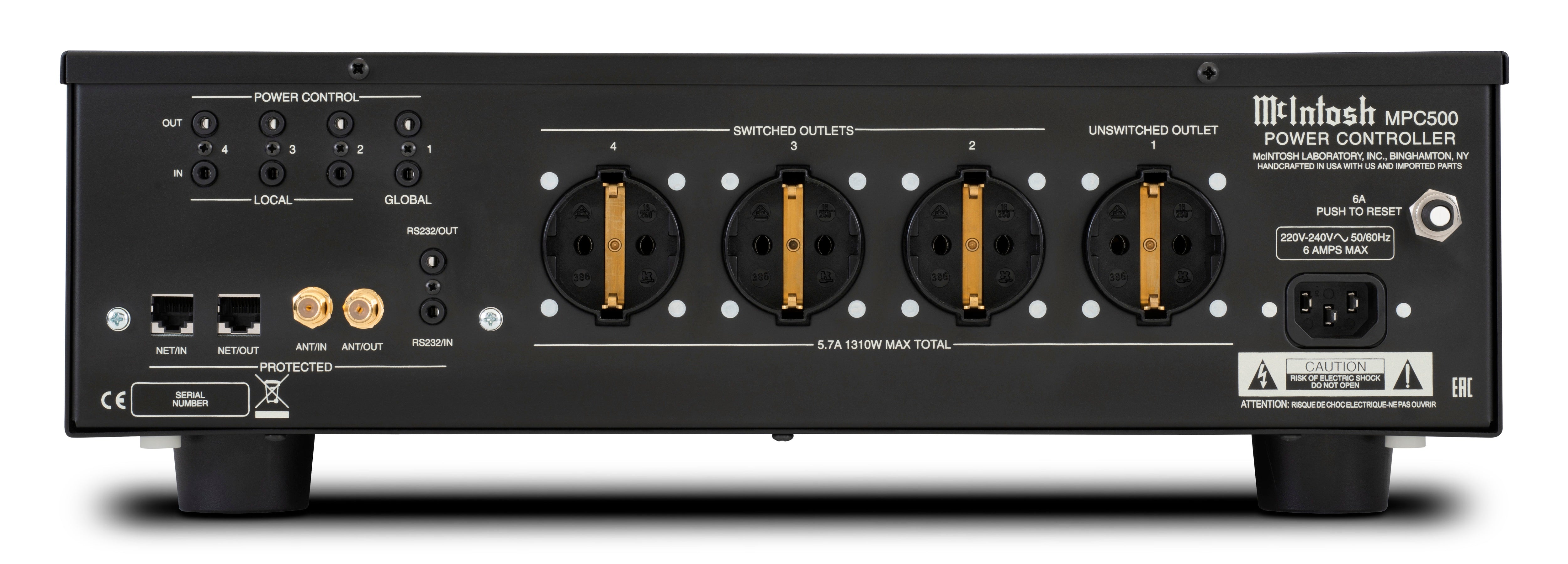

| Output Voltage (EU) | 240 Volts AC Nominal (4 Type F/CEE 7/3 receptacles) |
| Power Requirement (US) | 120V, 50/60Hz, 12A max (1440W) |
| Power Requirement (EU) | 240V, 50Hz, 6A max (1440W) |
| AC Protection | Thermally protected metal-oxide varistor (TPMOV) |
| Secondary Protection | GDTs, PTC thermistors, TVS components |
| Dimensions | 17.5" x 6" x 19" (44.45 x 15.2 x 48.26 cm) |
| Weight | 18.5 lbs (8.39 kg) |
