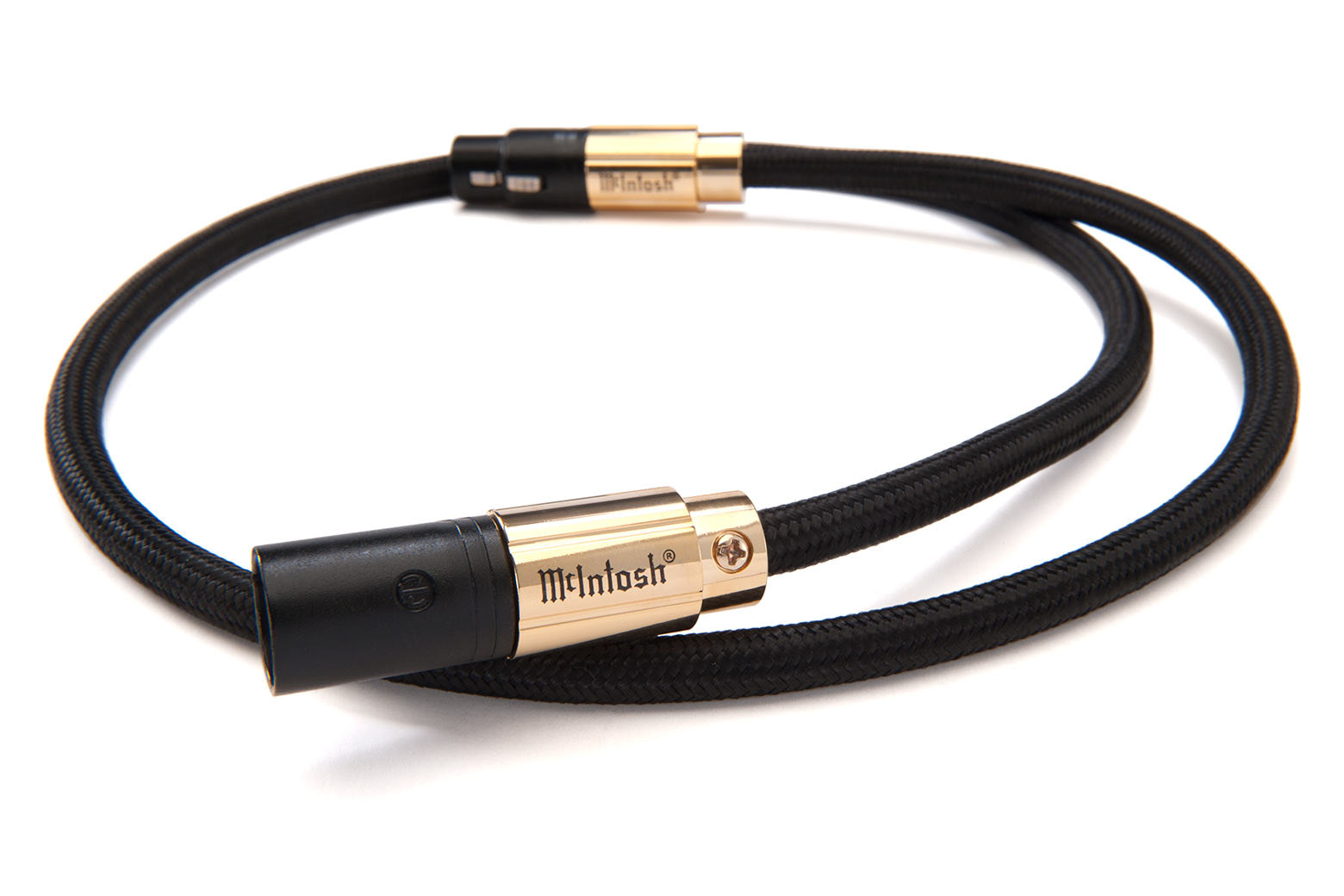

McIntosh Balanced Audio Cable (XLR)

McIntosh Balanced Audio Cables carry a balanced signal between McIntosh components with XLR connections, such as a preamplifier and a power amplifier. They are built to preserve the low-noise performance McIntosh electronics are designed for. Each cable uses two 22 AWG oxygen-free copper conductors in a twisted pair with a separate ground, wrapped in copper foil and a 95% coverage copper braid, with a PVC jacket under black nylon webbing and gold-plated solid brass XLR connectors.

Sold as a single cable. Longer custom lengths are available to order (McIntosh charges per additional metre), and Pearl Audio will confirm the right length for your system before ordering.

Important features

  • Twisted-pair balanced conductors with a separate ground, keeping signal ground isolated from chassis ground
  • Copper foil shield plus 95% coverage copper braid
  • Gold-plated solid brass XLR connectors
  • PVC jacket with black nylon webbing
  • Packed in a cloth bag and box
  • Lifetime limited warranty

Specifications

  • Configuration: twisted pair plus ground
  • Conductors: 22 AWG oxygen-free copper
  • Insulation: low-density polyethylene
  • Shielding: copper foil and 95% coverage copper braid
  • Connectors: gold-plated brass XLR
  • Outside diameter: 9 mm
  • Stock lengths: 1, 2, 3 and 4 m; custom lengths available in 1 m increments
  • Sold as: one cable
