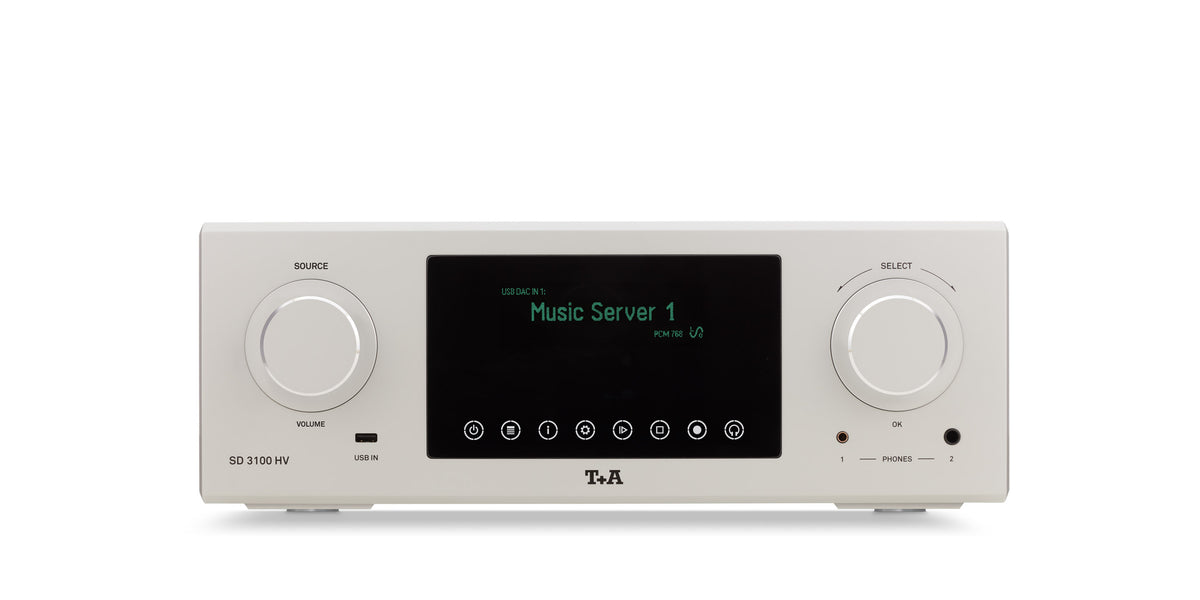

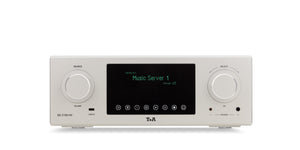

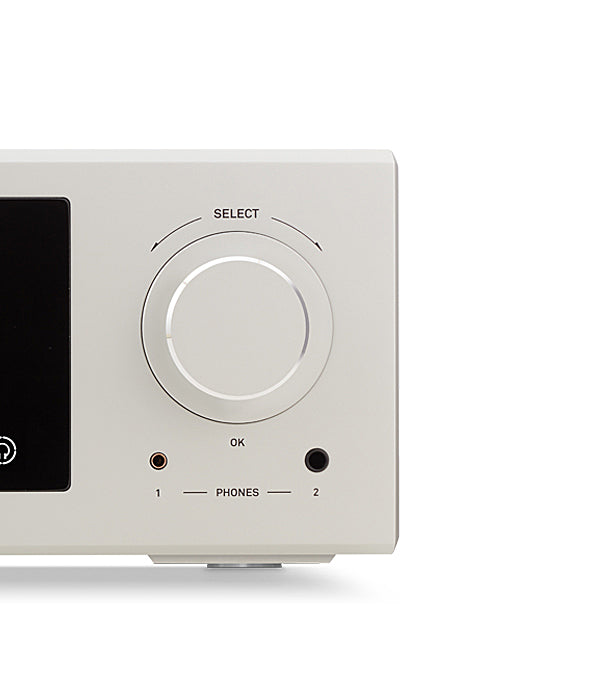

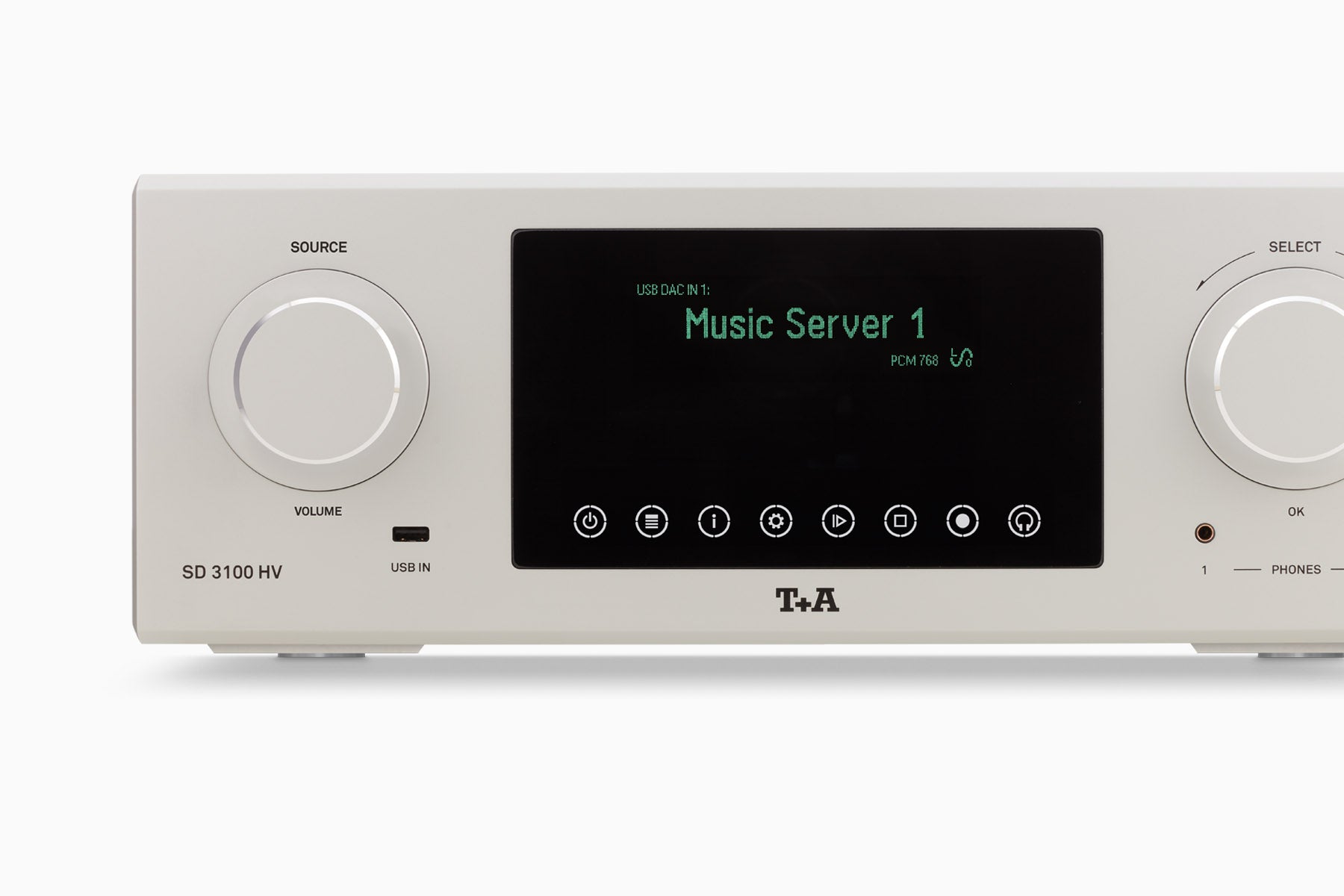

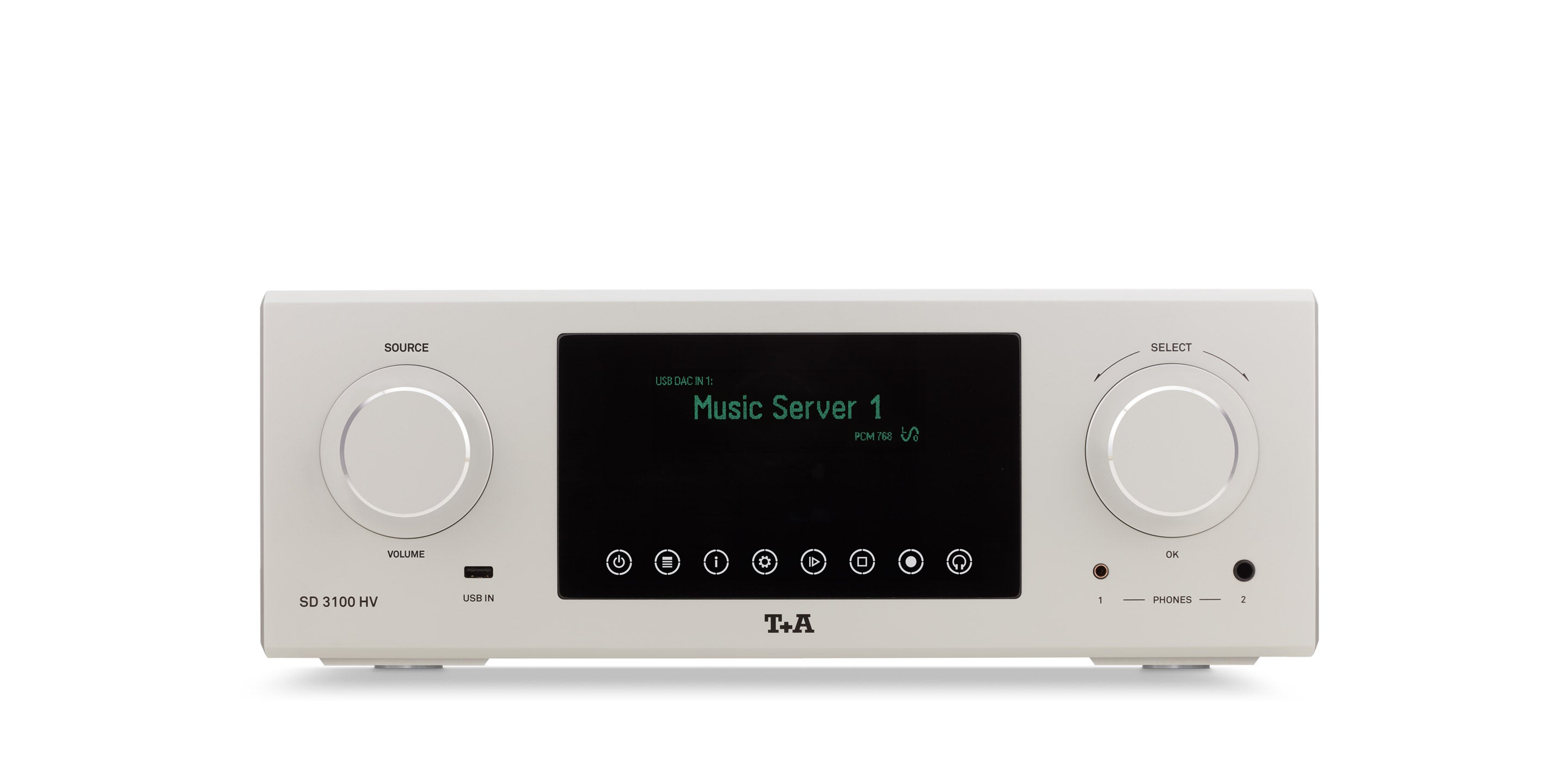

The SD 3100 HV is a purist streaming DAC delivering ultra-high quality playback for all digital sources. It features Class A high-performance headphone amplification with support for 6.3 mm and 4.4 mm outputs. Constructed entirely from pure aluminum, it isolates components in separated compartments for optimal sound clarity. Advanced digital inputs support PCM up to 768 kSps and native DSD 1024 processing with asynchronous USB transfer. Network connectivity includes Gigabit LAN and Wi-Fi supporting major streaming services like Tidal, Deezer, and Qobuz. Gapless playback and comprehensive digital filters ensure precise, natural sound reproduction for audiophiles.
| Headphone output |
6.3 mm jack (20 Ohm) and 4.4 mm Pentaconn (8 Ohm) |

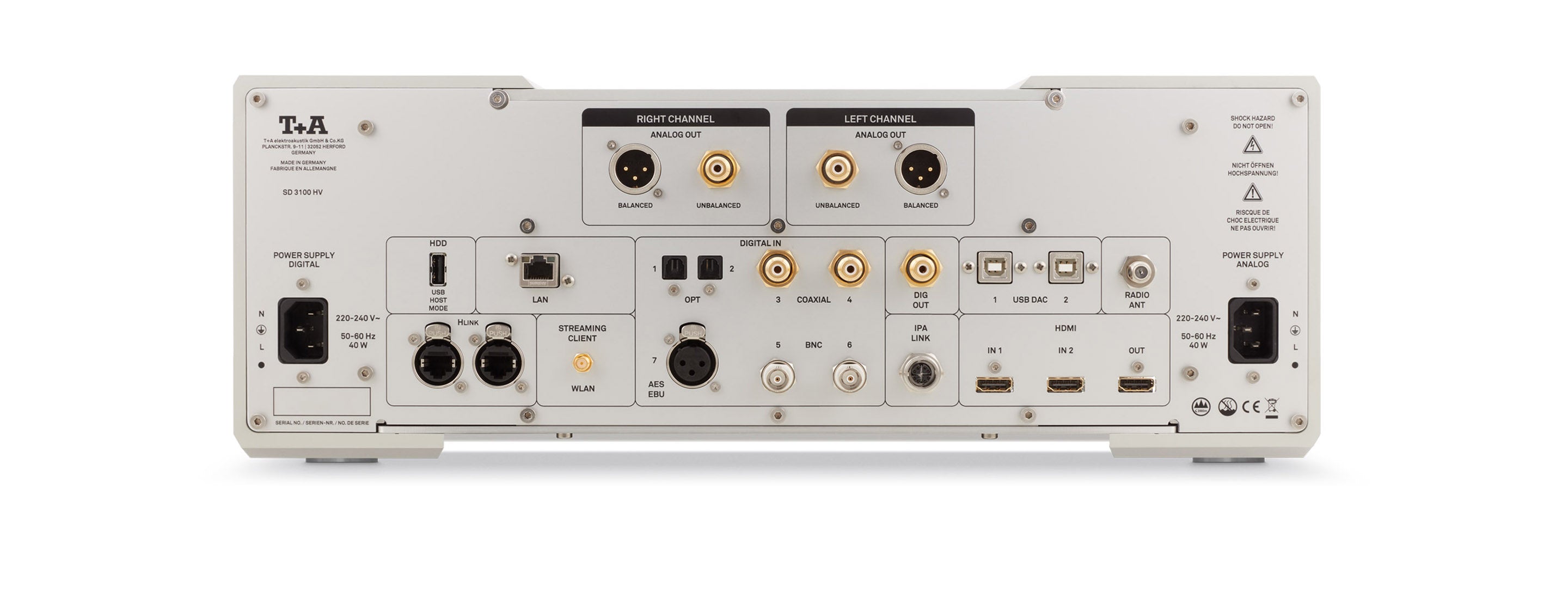

| Digital inputs |
1x AES-EBU, 6x S/P-DIF including Coax, BNC, Optical TOS-Link |
| USB DAC support |
Device mode max 768 kSps PCM and DSD 1024, asynchronous transfer |
| Network |
Gigabit Ethernet LAN, Wi-Fi 802.11 b/g/n |
| Frequency response |
2 Hz – 120 kHz (PCM up to 768 kSps, DSD 1024 native) |
| Dimensions (H x W x D) |
6.7 x 18.1 x 18.1 inches |
| Weight |
57.3 lbs |
