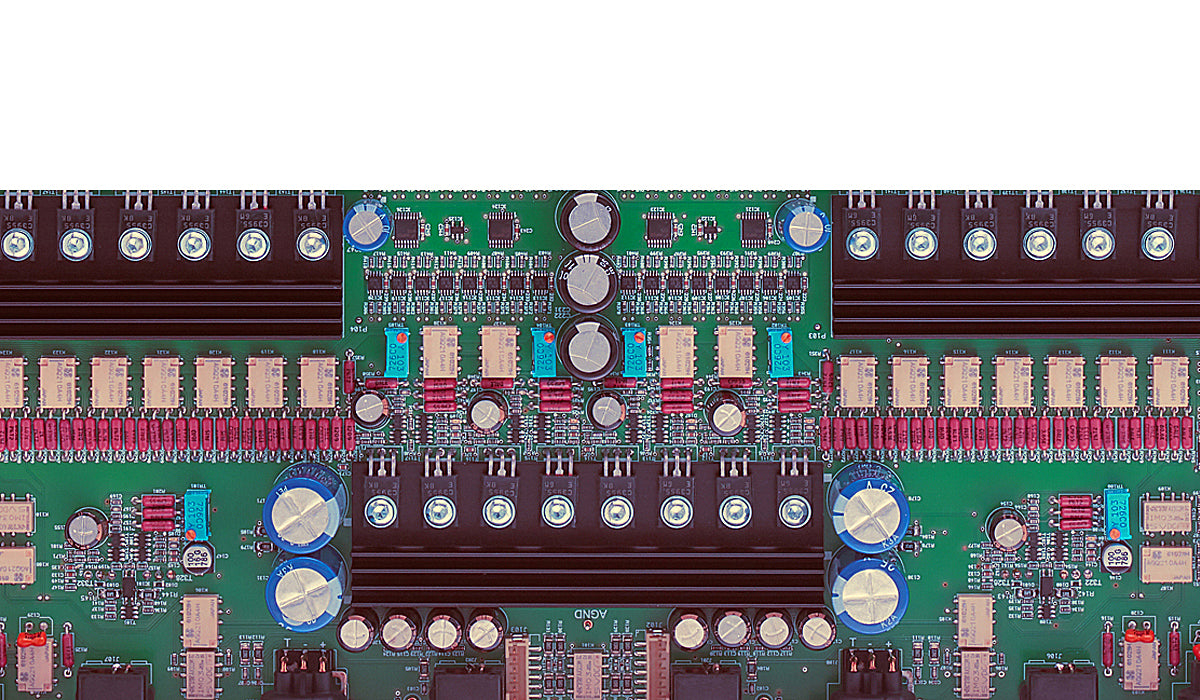

The PSD 3100 HV combines audiophile-grade pre-amplifier performance with advanced digital streaming capabilities. It supports multiple digital inputs including AES/EBU, BNC, optical, coaxial, HDMI, and USB, handling PCM up to 768 kSps and DSD up to 512. Integrated streaming services like Tidal, Qobuz, and Deezer offer high-resolution audio directly from the network with intuitive background management. The device features a Class-A discrete pre-amplifier with balanced outputs, relay-controlled volume, and a high-performance headphone amplifier for dynamic headphone control. Unique Path Separation Technology employs dedicated PCM and DSD converters for pristine audio fidelity. Its robust build and versatile connectivity make it a universal control center for high-end audio systems.
| Frequency Response |
0.5 Hz - 300 kHz (+0 / -3 dB) |
| Signal-to-Noise Ratio |
108 / 112 dB |
| Total Harmonic Distortion |
<0.001% |
| Headphone Output |
4.4 mm Pentaconn (6 Ohms) |

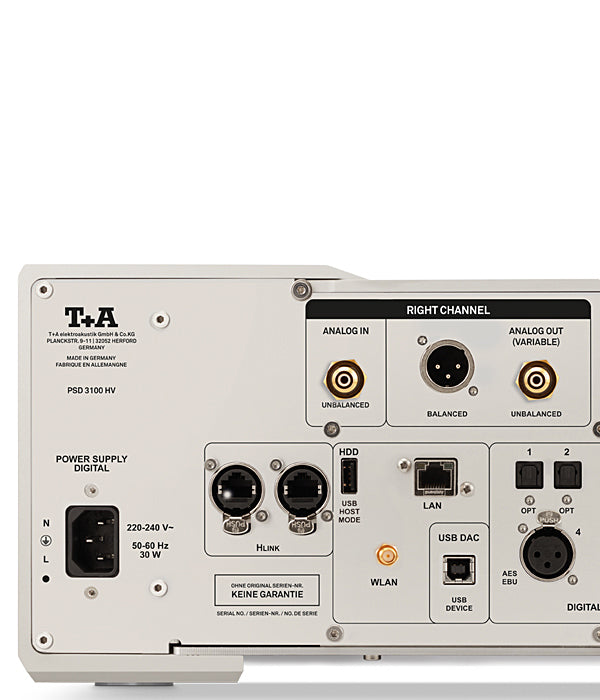

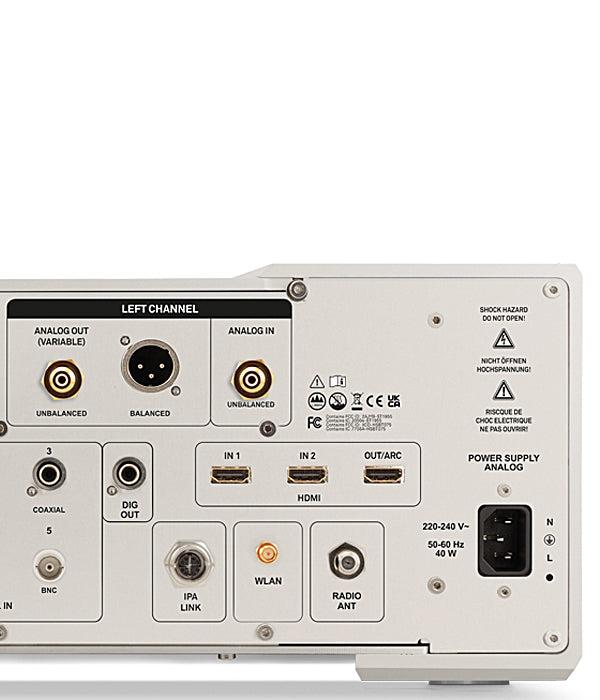

| Digital Inputs |
AES/EBU, BNC, Optical, Coaxial SP/DIF, HDMI, USB DAC |
| Streaming |
Tidal, Qobuz, Deezer, Airable Internet Radio, FM, FM-HD, DAB+ |
| Power Consumption |
30 W digital / 40 W analogue operation |
| Dimensions (HxWxD) |
6.7 x 18.1 x 18.1 inches |
| Weight |
57.3 lbs |
