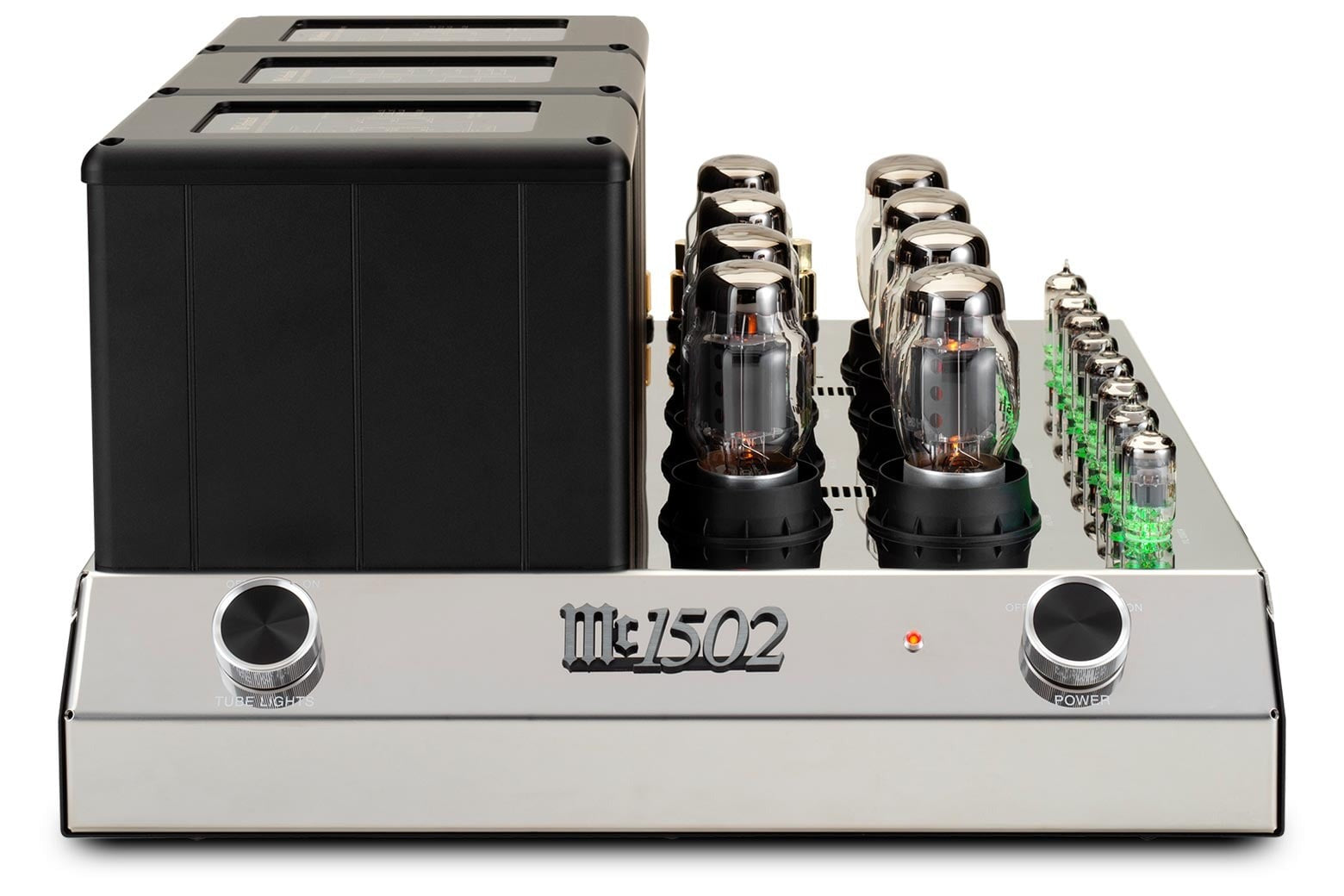

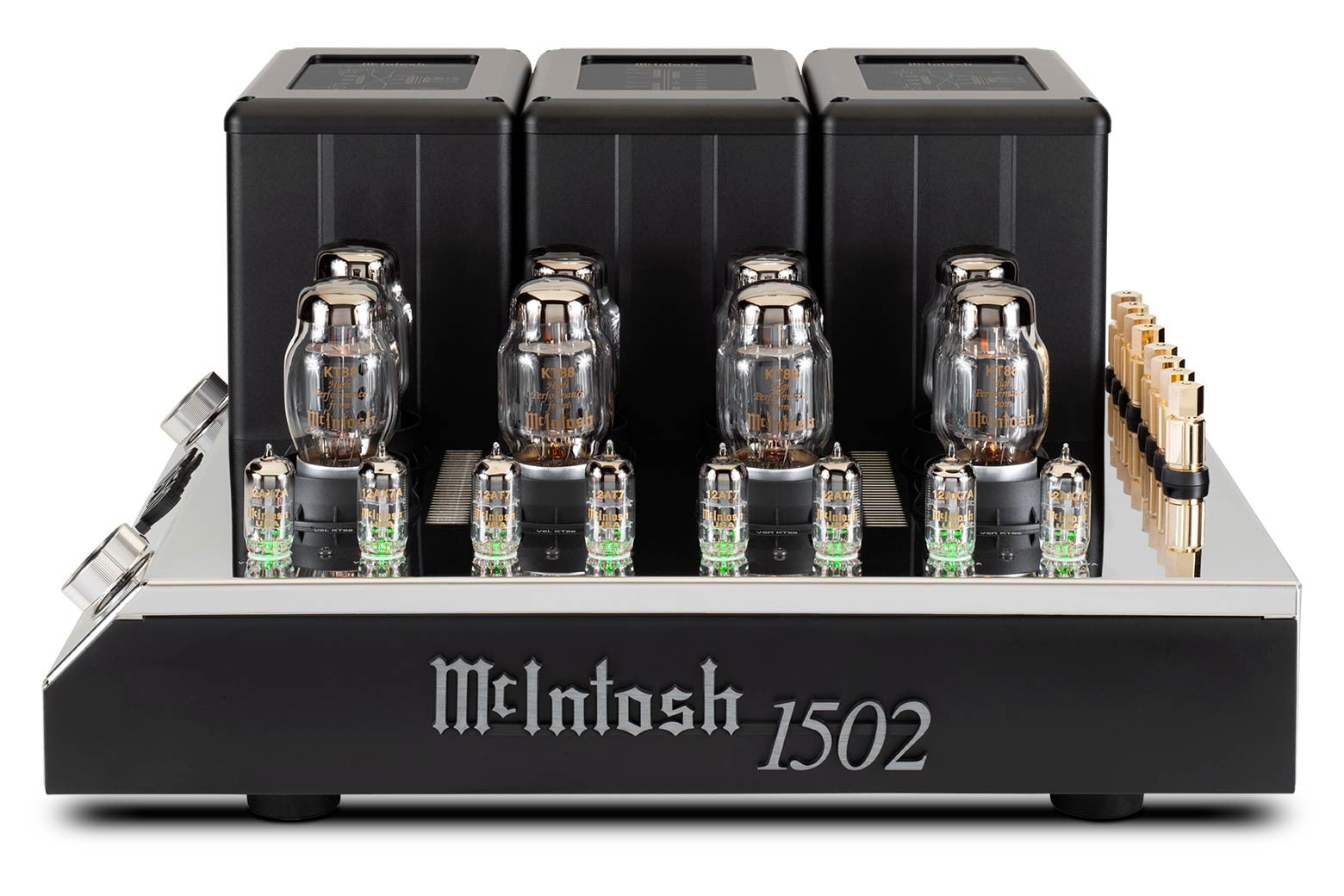

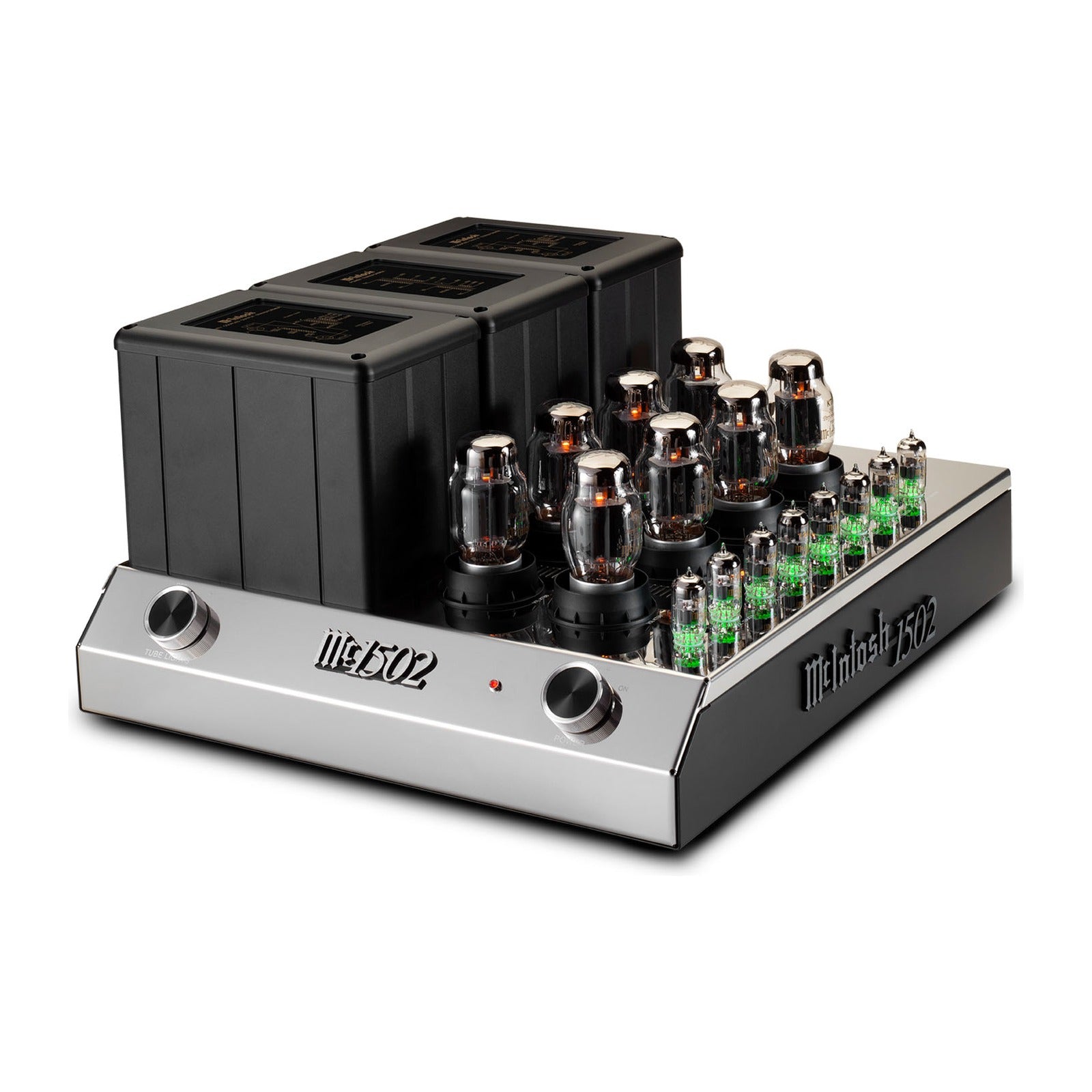

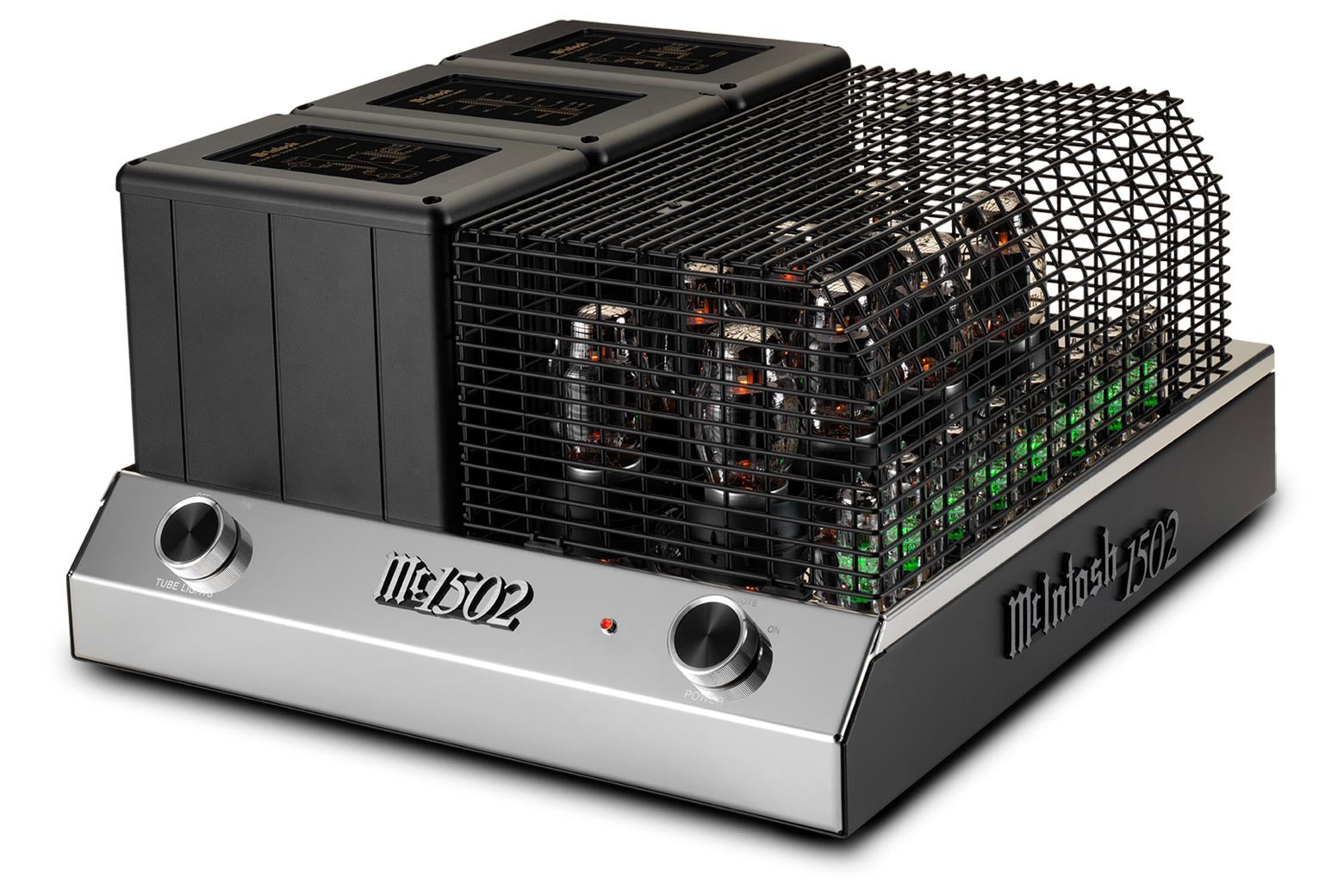

The McIntosh MC1502 is a two-channel vacuum-tube power amplifier rated at 150 watts per channel. Eight KT88 output tubes work through McIntosh Unity Coupled Circuit Output Transformers, providing the rated output at dedicated 2-, 4-, or 8-ohm connections.
The small-signal stage uses four 12AX7A tubes for balanced and input functions and four 12AT7 tubes for voltage-amplifier and driver functions. Balanced and unbalanced inputs, adjustable meter illumination, and Power Control support integration while the open chassis keeps the complete tube complement visible.
Three Important Features
-
Unity Coupled output stage: McIntosh output transformers provide dedicated 2-, 4-, and 8-ohm loudspeaker connections.
-
Fully visible tube complement: Eight output tubes and eight small-signal tubes are displayed across the chassis.
-
Stereo tube power: One chassis provides 150 watts to each of two channels.
Three Important Specifications
-
Tube complement: Output: eight KT88; balanced/input: four 12AX7A; voltage-amplifier/driver: four 12AT7.
-
Power output: 150 watts per channel into 2, 4, or 8 ohms.
-
Frequency response: +0/-0.25dB from 20Hz to 20kHz; +0/-3dB from 10Hz to 70kHz.
