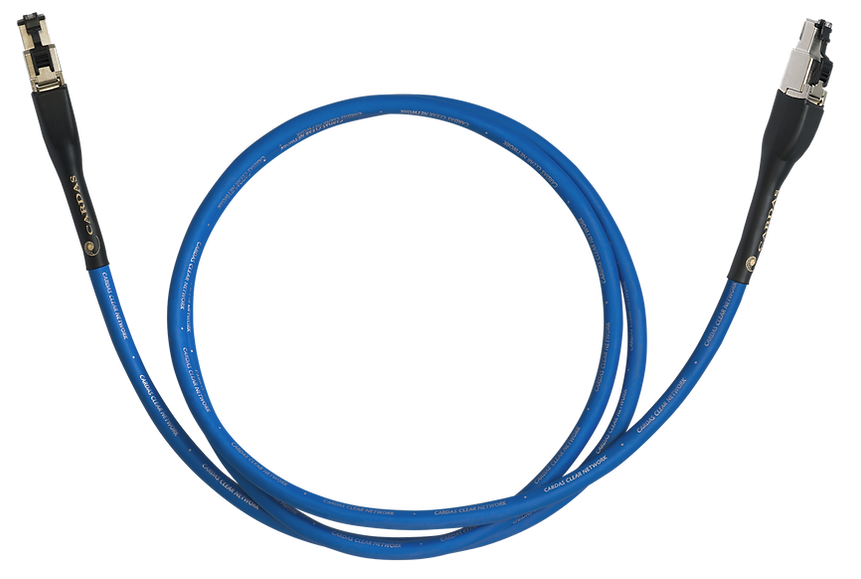

Cardas Clear Network CAT-7

Cardas

Clear Network CAT-7

$260 - $620

Cardas · Clear Digital

A shielded CAT-7 Ethernet cable in Cardas copper with Telegärtner RJ45 plugs, for streamers, network players and switches.

Price is for one hand-terminated cable.

Build your cable

CAT-7
shielded pairs with drain wires
8 × 24 AWG
Cardas copper
Telegärtner
RJ45 plugs
0.5–4.5 m
standard lengths, any length to order

Clear Network uses eight 24 AWG conductors of Grade 1, 99.9999% pure Cardas copper arranged as four shielded pairs, each pair with its own drain wire. The bundle is wrapped in a foil shield and then a braided shield, and jacketed in flexible TPR.

With network drives and high-resolution streaming now the norm, Cardas built it for more speed and bandwidth and less noise between switch, router and streamer. It is terminated with Telegärtner RJ45 plugs in Bandon, Oregon.

Key technologies

  • Ultra Pure Cardas Copper. Grade 1, 99.9999% pure oxygen-free copper, drawn and annealed slowly through silver dies, then given a single poly-nylon coat to prevent oxidation and crosstalk between strands.
  • Made in Bandon, Oregon. Every Cardas cable is built and hand terminated at the Cardas factory on the southern Oregon coast, and carries a transferable lifetime warranty.

Choosing length and terminations

  • Measure from the switch or router to the streamer along the real path and round up; long runs to another room can be ordered beyond 4.5 m.
  • Shielded RJ45 plugs ground the shield at both ends; most streamers and audiophile switches accept them.
Specifications
Type Ethernet cable, CAT-7
Conductors 8 × 24 AWG; Grade 1, 99.9999% OFC
Geometry Four shielded pairs, each with its own drain wire; the bundle wrapped in a foil shield and then a braided shield
Outside diameter 0.315 in (8.0 mm)
Terminations Telegärtner RJ45 (shielded)
Lengths 0.5 m to 4.5 m standard (see selector); any length to order
Sold as Single cable

cardas.com · Specifications and pricing from the Cardas Spring 2025 Retail Catalog. Cable lengths are metric; Cardas builds any length to order.

Where it sits in the range

Cardas digital cables: Clear-range AES/EBU, S/PDIF coax, USB and Ethernet with Matched Propagation or Cardas copper conductors, plus the Parsec Digital coax.

We stock or demo select Cardas lines and can order anything in the catalog, from Iridium to Clear Beyond.

Plan your cabling with Pearl Audio

Pearl Audio is an authorized Cardas dealer in Portland, Oregon, a short drive from the Cardas factory in Bandon. We can measure your runs, recommend terminations for your components, and special-order custom lengths and connector options. Call (503) 222-2599 or email sales@pearlaudio.com.
