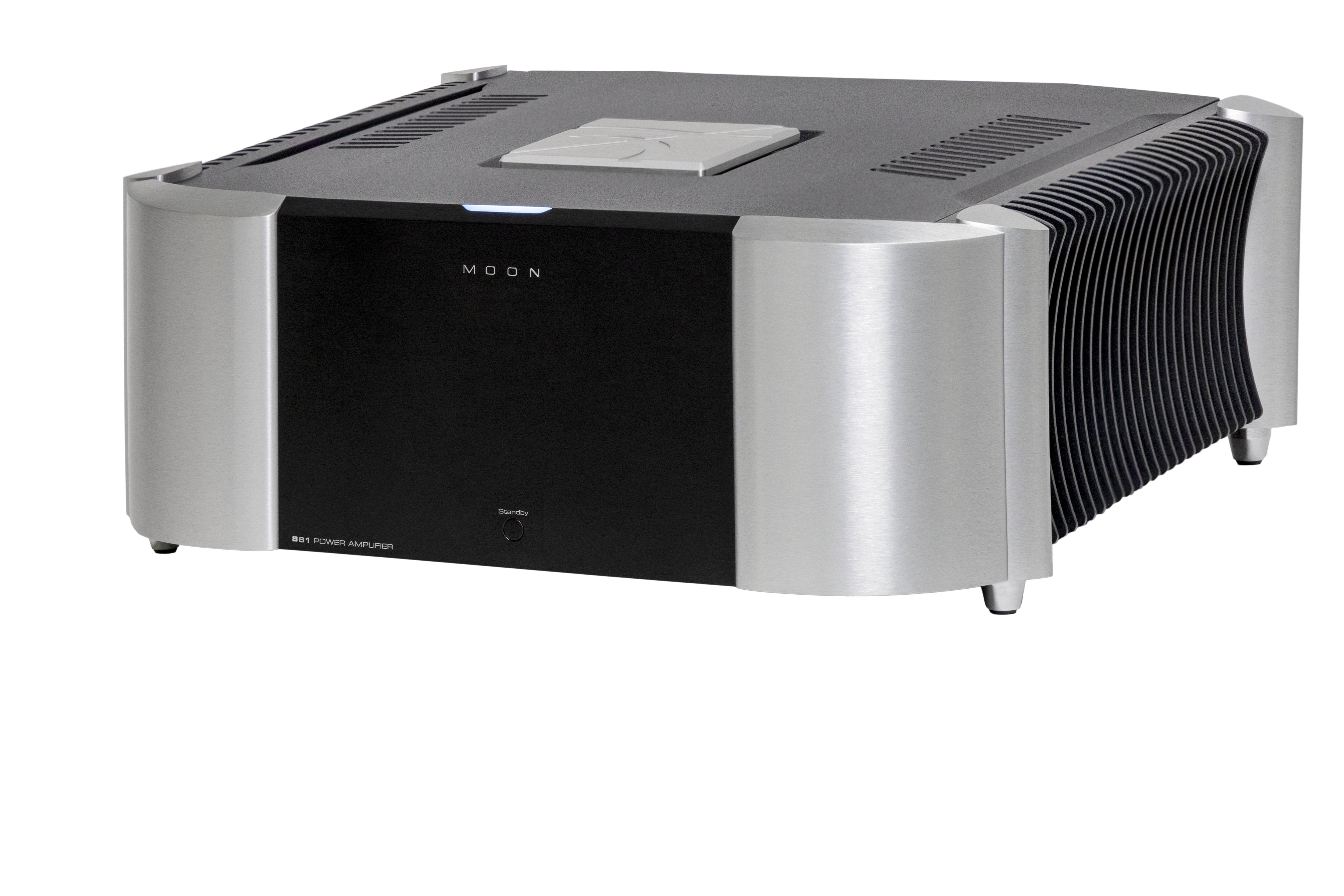

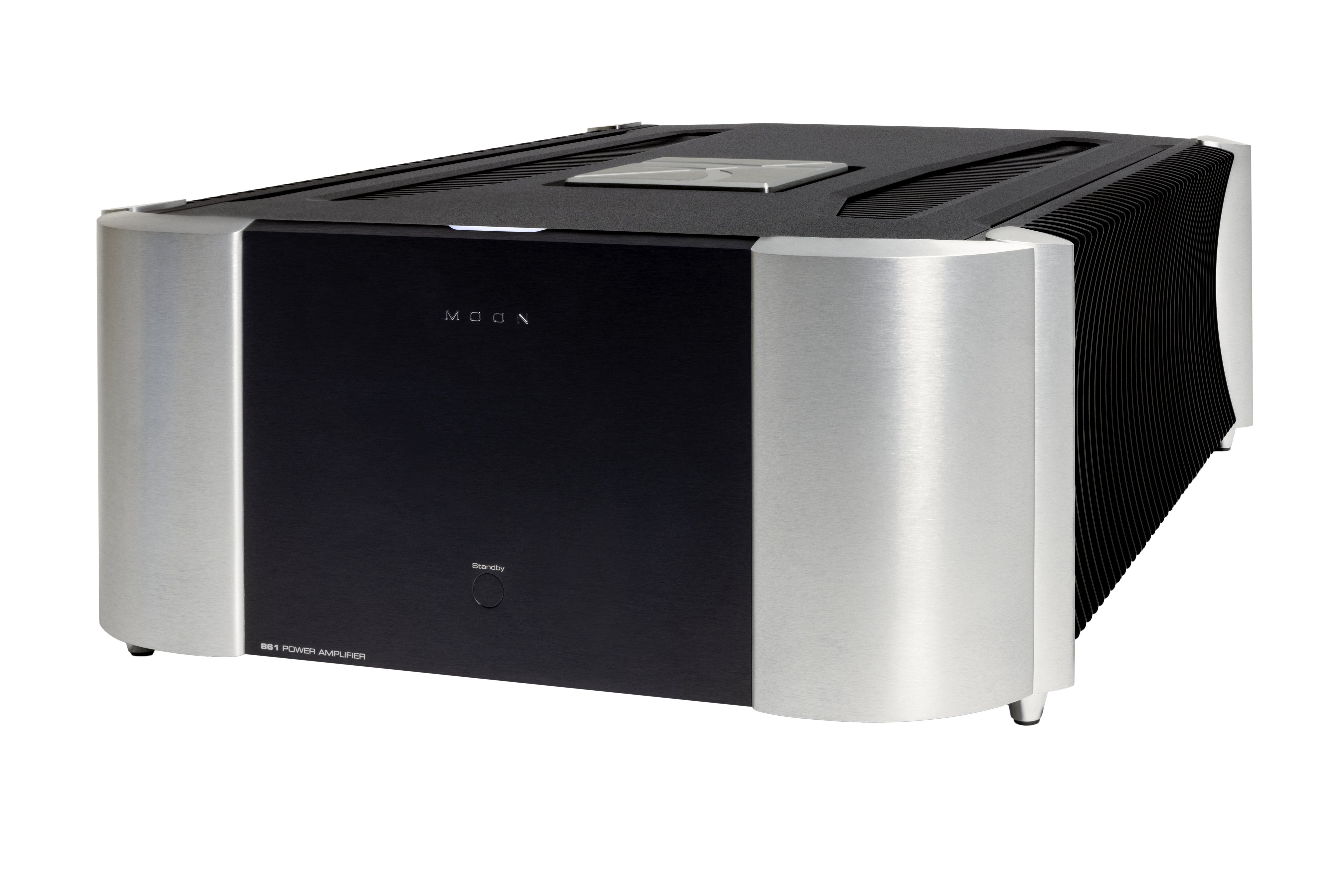

861 Power Amplifier

The MOON 861 is a dual-mono North Collection power amplifier drawing on the engineering of the reference 888. Its MDCA circuit is designed for low noise and distortion, supported by two 1,500 VA low-noise transformers and 228,000 µF of power-supply capacitance.

The 861 delivers 300 watts per channel into 8 ohms, 600 watts per channel into 4 ohms, or 800 watts into 8 ohms in bridged-mono mode. A damping factor of 900 and MOONLink communication support loudspeaker control and coordinated operation with compatible MOON components. Schedule an audition at Pearl Audio, call (503) 222-2599, or email Pearl Audio to request an audition or more information.

Features

• Dual-mono MDCA amplifier architecture
• Two 1,500 VA low-noise transformers
• 228,000 µF power-supply capacitance
• Stereo and bridged-mono operation
• MOONLink communication

Specifications

• Output power: 300 W per channel into 8 Ω; 600 W per channel into 4 Ω
• Bridged output power: 800 W into 8 Ω
• Frequency response: 2 Hz–100 kHz (+0/−3 dB)
• Damping factor: 900; signal-to-noise ratio: 119 dB
• Dimensions (W × H × D): 18.95 × 8.26 × 24 in; packaged weight: 125 lb
