MAC7200 Receiver

The McIntosh MAC7200 combines a 200-watt-per-channel solid-state integrated amplifier, an AM/FM tuner, and broad analog and digital source control. McIntosh Autoformers deliver the rated power into 2-, 4-, or 8-ohm loudspeakers, making the receiver suitable for a substantial two-channel system.

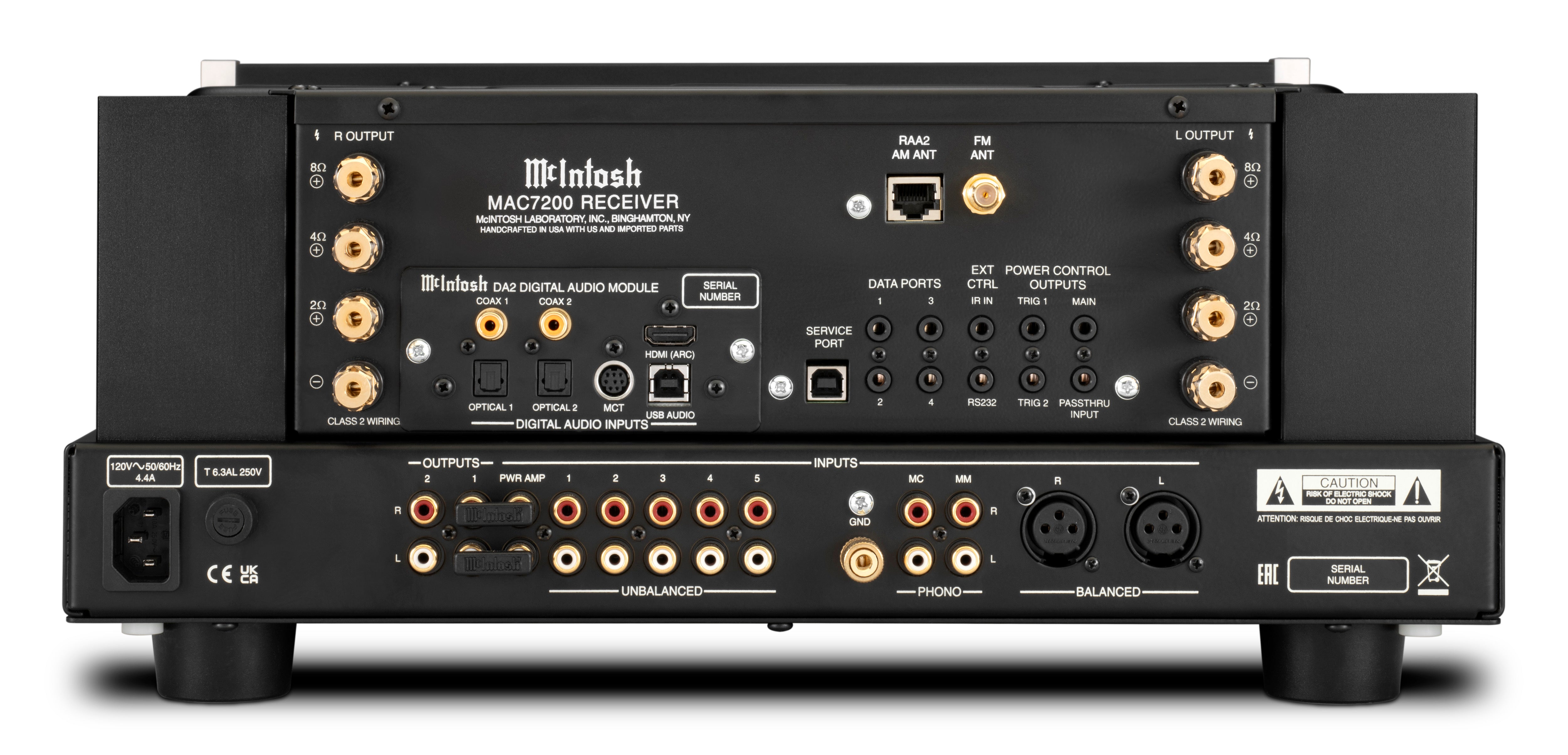

Fifteen analog and digital inputs include moving-coil and moving-magnet phono connections and the DA2 Digital Audio Module. The built-in tuner, bass and treble controls, balanced and unbalanced outputs, a subwoofer output, and Home Theater PassThru give the MAC7200 a particularly complete set of system functions in one chassis.

Three Important Features

• Integrated AM/FM tuner: Radio reception is built into the same chassis as the preamplifier and power amplifier.
• Load-independent rated output: Autoformers provide 200 watts per channel into 2-, 4-, or 8-ohm loudspeakers.
• DA2 digital module: Seven digital inputs support files through 24-bit/192kHz and DSD512.

Three Important Specifications

• Power output: 200 watts per channel into 2, 4, or 8 ohms.
• Analog inputs: One balanced, five unbalanced, one moving-coil phono, and one moving-magnet phono.
• Rated power band: 20Hz to 20kHz.
