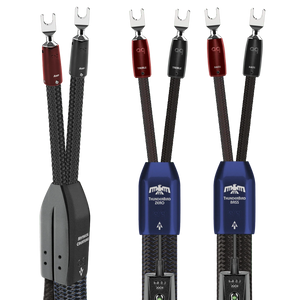

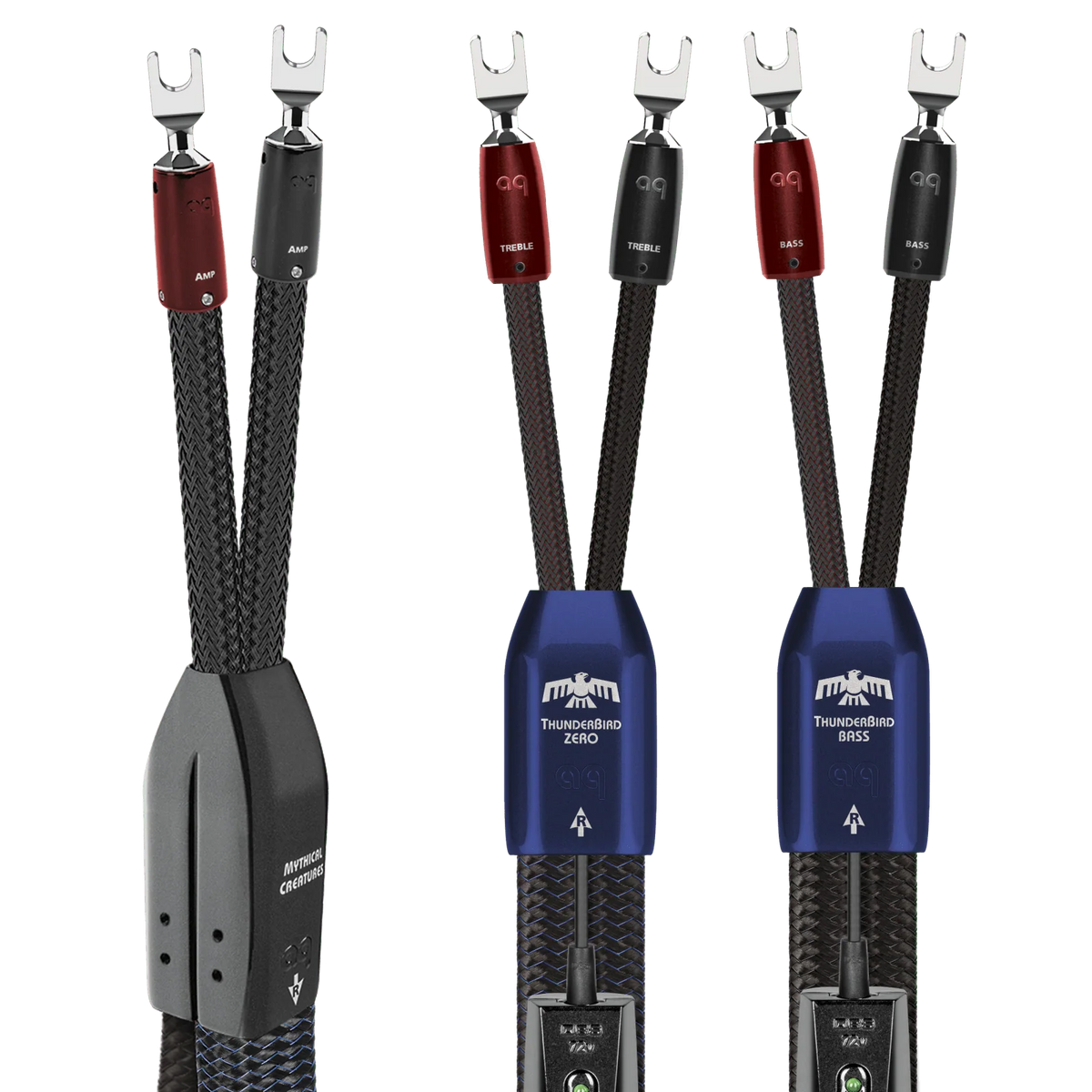

ThunderBird ZERO BiWire COMBO

Solid Perfect-Surface Copper+ (PSC+) Conductors
Solid conductors prevent strand-interaction, a major source of dynamic distortion. Extreme-purity PSC+ solid copper minimizes distortion caused by grain boundaries, and, when direction-controlled for surface asymmetry, facilitates crucial Radio-Frequency Noise-Dissipation.

Carbon-Based Linearized Noise-Dissipation System (NDS)
AQ’s comprehensive Linearized Noise-Dissipation System combines multiple shields and a carbon-based linearized resistive network that turns most of this noise into heat. By "linearized," we mean that the system is equally effective across extremely wide bandwidth, rather than at selected frequencies only, as is more common. The remaining bad energy is effectively drained away from the sensitive amplifier circuits via directionally controlled signal and shield conductors.

ZERO-Tech
The only complete way to eliminate characteristic-impedance mismatches between a cable and the attached source and load is for the cable not to have any fixed characteristic-impedance value. ZERO-Tech accomplishes this by eliminating interaction between the insulation (dielectric) and the cable’s conductors—enabling uncompressed current transfer. All-important transient current is unrestricted, and RF Noise-Dissipation is linearized (consistent octave to octave).

RF/ND-Tech (BASS CABLE ONLY)
Though a cable’s ground leads are integral to a component’s signal transmission, they also act as an antenna. Thus, they are subject to induced Radio-Frequency (RF) noise. RF noise is a parasitic signal that is typically coupled directly into a system’s most sensitive audio/video circuits. AudioQuest’s RF-on-ground Noise-Dissipation (RF/ND-Tech) greatly reduces resulting distortion and signal masking, yielding unprecedented levels of Noise-Dissipation across the widest bandwidth (range) of radio frequencies possible. Our unique circuit topology uses a common-mode phase-cancelling array, providing linear Noise-Dissipation across the entire length of the cable (US Patent # 8,988,168).

72v Dielectric-Bias System (DBS) with Level-X RF Noise-Trap
Insulation is also a dielectric that acts like a shunt-filter. Properly biasing the dielectric linearizes the filter, significantly improving the cable’s wide-bandwidth ability to dissipate induced noise. The DBS pack’s Level-X Noise-Trap “pulls” RF Noise out of the cable, further reducing attached audio circuit misbehavior.

ThunderBird Bi-Wiring
When possible, running separate cables to the treble and bass “halves” of a speaker significantly reduces distortion. Bi-Wiring keeps the large magnetic fields associated with bass energy out of the treble cable, allowing the delicate upper frequencies to travel a less magnetically disturbed path, like taking the waves out of the water when you swim.

AudioQuest’s RF/ND-Tech (patented RF-Canceling Ground-Noise-Dissipation) attracts RF energy away from the amplifier’s output. When properly implemented, Bi-Wiring has always been a cost-effective way to get better performance for the same or less money. With RF/ND-Tech, the advantage of Bi-Wiring is much more dramatic. Because RF/ND-Tech is so effective, BASS model cables are only for 10KHz and below; do not use a BASS cable full-range or on treble.

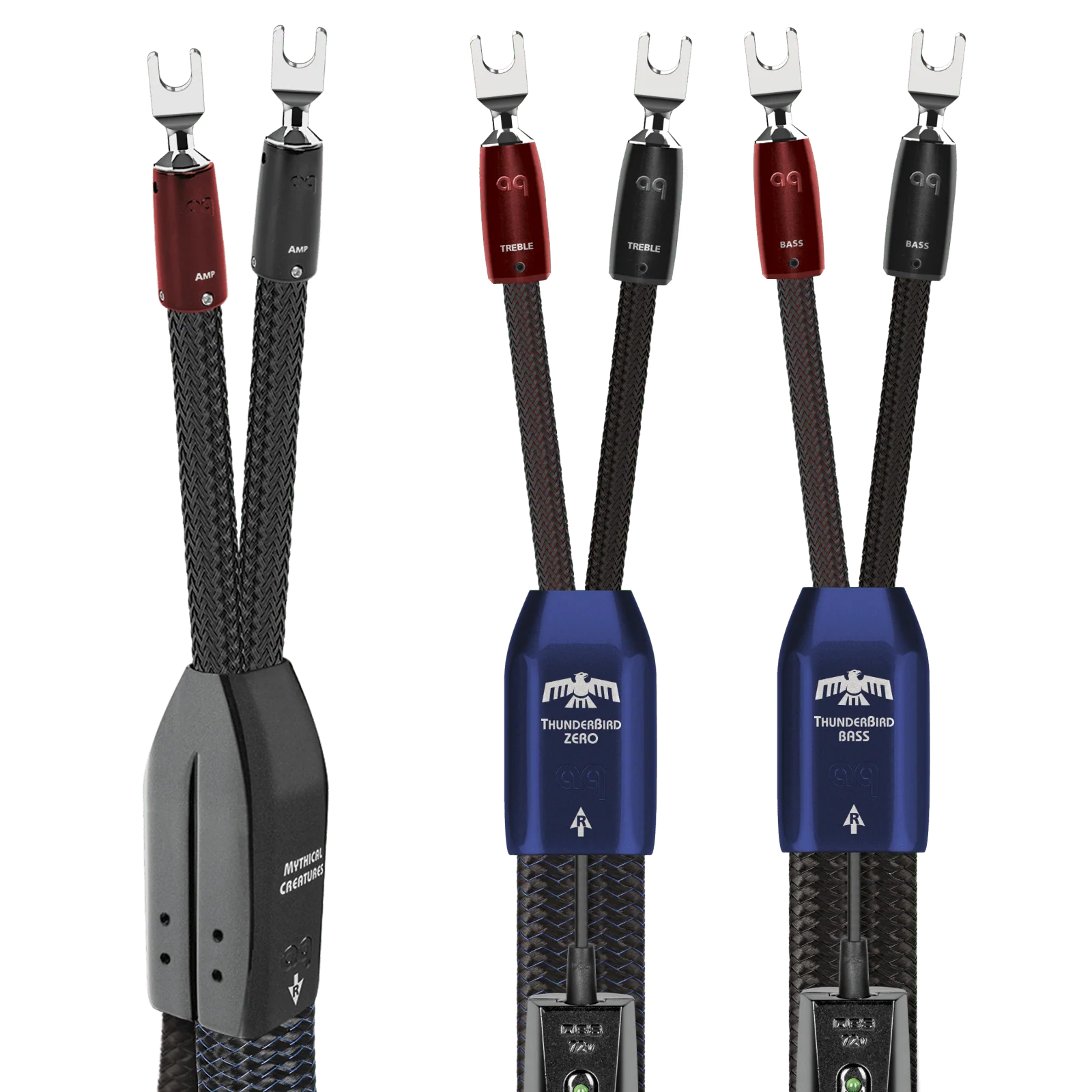

ThunderBird BASS cable is ideal with ThunderBird ZERO. A Bi-Wire COMBO with BASS and ZERO cables joined together at the amplifier is usually most convenient. When Tri-Wiring, use BASS cables on the Midrange and Bass inputs.

Caution: Do not Bi-Wire with two ZERO cables. ZERO cables in-parallel can create a very high-frequency resonant peak (ringing), and resulting poor sound. Only use a ZERO plus a BASS cable (whether or not joined as a COMBO). Second best is a single ZERO with AQ Bi-Wire jumpers.

• Solid conductors prevent strand-interaction, a major source of dynamic distortion in cables.
• AudioQuest's best copper. To the greatest extent presently possible, extreme-purity Perfect-Surface Copper+ (PSC+) conductors minimize distortion caused by grain boundaries.
• Alternating layers of metal and carbon-loaded synthetics "shield the shield," minimizing RF noise before it reaches the layer attached to ground.
• ZERO-Tech eliminates the electrostatic field between the cable’s high and low signal conductors, enabling linear Radio Frequency (RF) Noise-Dissipation, and uncompressed transients.
• RF/ND-Tech minimizes circuit misbehavior by cancelling induced RF noise.
• 72v Dielectric-Bias System (DBS) saturates and polarizes insulation, allowing clear, dynamic sound against a quiet “black” background.
• All internal conductors are Direction-Controlled to reduce RF noise.

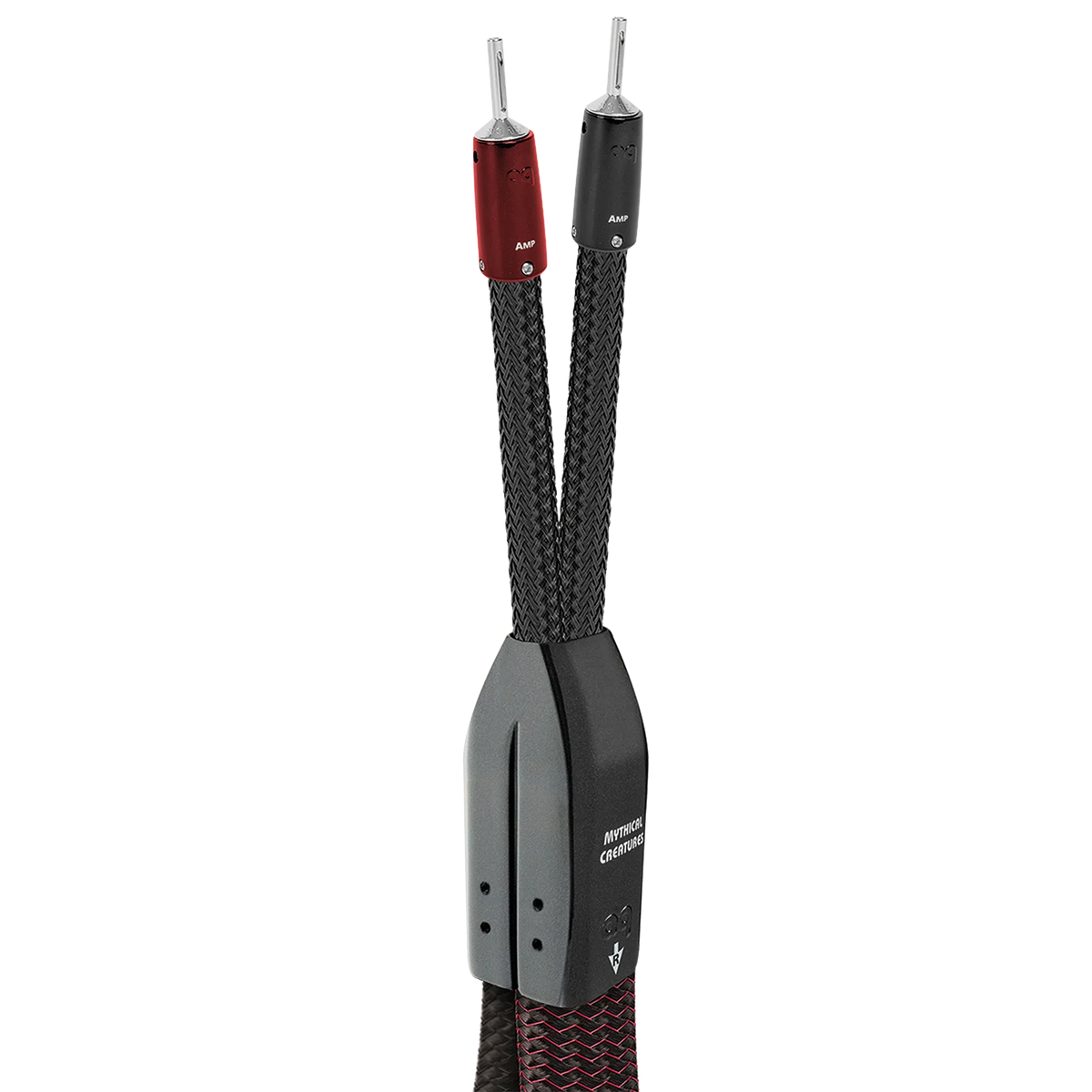

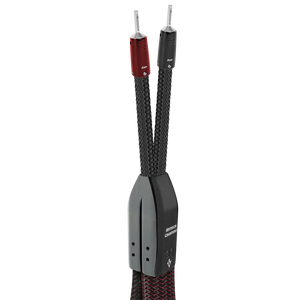

Amplifier-End Connector: Multi-Spade, Banana, U-Spade, or V-Spade

Often, the choice between terminating your speaker cables with spade lugs or banana plugs will come down to personal preference. However, the EU-compliant isolated binding posts used on some power amplifiers often makes it difficult if not impossible to tighten spade lugs with high torque or pressure. In these applications, the AudioQuest banana connector is the superior choice, and may be the only choice.

AudioQuest has conducted a fairly extensive survey of contemporary amplifier manufacturers to determine whether spades or bananas will be most appropriate for a given brand and model of amplifier. Please contact us, provide the brand and model of the amplifier, and we’ll respond with the optimal connector type.

Given the girth and weight of our Mythical Creature Series speaker cables, a spade may be better capable of fully supporting the cable. This is particularly a concern with binding posts that do not allow a banana connector to fully seat into the post. The EU-compliant posts will neither accept our V-Spade nor allow our Multi-Spade to be fully seated. For these applications (or when you’re not certain), we highly recommend the U-Spade, as it can accommodate any binding post. The V-Spade is a specialty spade connector that works well with large wingnut binding posts (such as the Mundorf ), as it allows extra clearance.

Speaker-End Connector: Spade or Banana

Here we typically recommend the U-Spade or banana connector. However, even though there is less weight and pressure on this side of the cable (particularly for BiWire sets), it is nevertheless important to note the binding post’s design. If a banana connector cannot seat all the way into the binding post, we recommend one of our spade connectors.
