Niagara 7000 takes a holistic, science-based approach to AC power technology and represents a comprehensive solution to the ever-increasing noise that plagues our power lines.
In the Niagara 7000, you’ll find optimized radio-frequency lead directionality, run-in capacitor forming technologies developed by Jet Propulsion Laboratories and NASA, and AC inlet and outlet contacts with heavy silver plating over extreme-purity copper assuring the tightest grip possible.
The Niagara 7000 uses our patented AC Ground-Noise-Dissipation, the world’s first Dielectric-Biased AC Isolation Transformers, and the widest bandwidth-linearized noise-dissipation circuit in the industry. Our unique passive/active Transient Power Correction Circuit features an instantaneous current reservoir of over 90 amps peak, specifically designed for today’s current-starved power amplifiers. Most AC power products featuring “high-current outlets” merely minimize current compression; the Niagara 7000 corrects it.
With an AudioQuest Niagara 7000, music lovers can finally experience the clarity, dimensionality, frequency extension, dynamic contrast, and grip their A/V systems have been capable of delivering—if only the power had been right!
- Patented Dielectric-Biased Symmetrical Power Isolation Transformers: 2 for source component outlet banks
- Transient Power Correction: 90 amps peak. Provides a current reservoir for any power amplifier (up to 25mS)
- Level-X Ultra-Linear Noise-Dissipation Technology: More than 23 octaves differential-mode filtering (3kHz–1GHz in excess of 24dB reduction) and 20 octaves common-mode filtering (60Hz–100MHz in excess of 30dB reduction) with linear response, optimized for varying line and load impedance
- Patented Ground Noise-Dissipation System (All outlets): 6 banks of direction-controlled ground noise-dissipation
- Non-Sacrificial Surge Protection: Withstands multiple AC surges and spikes up to 6000V/3000A without sustaining damage–sonically non-invasive
- Maximum RMS Input Current: 20 Amps (RMS)
- Maximum RMS Current per Source Component Output Bank: 5 Amps (RMS)

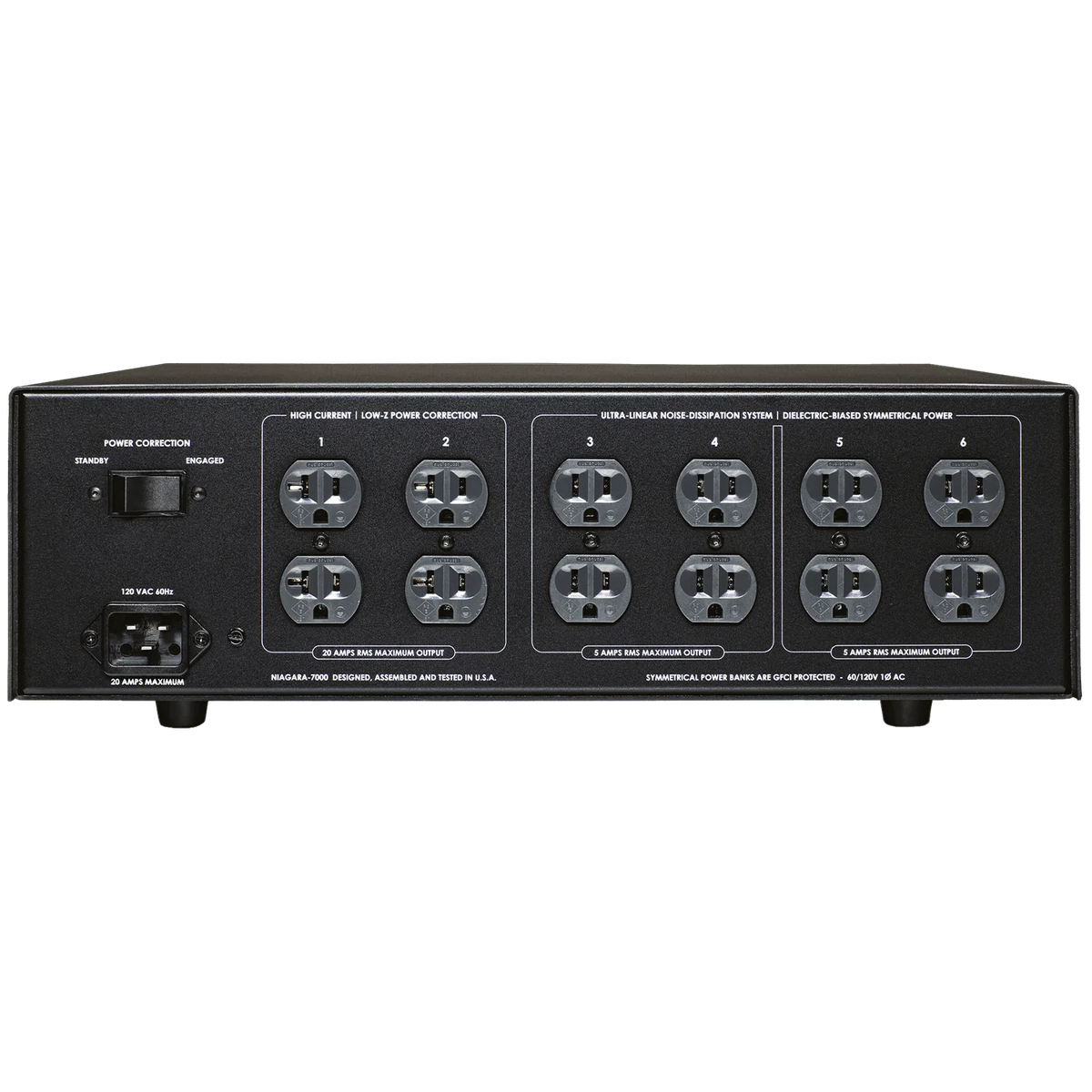

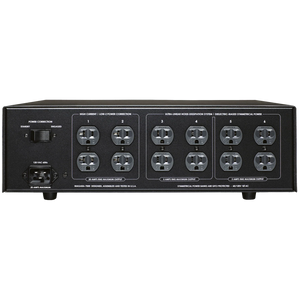

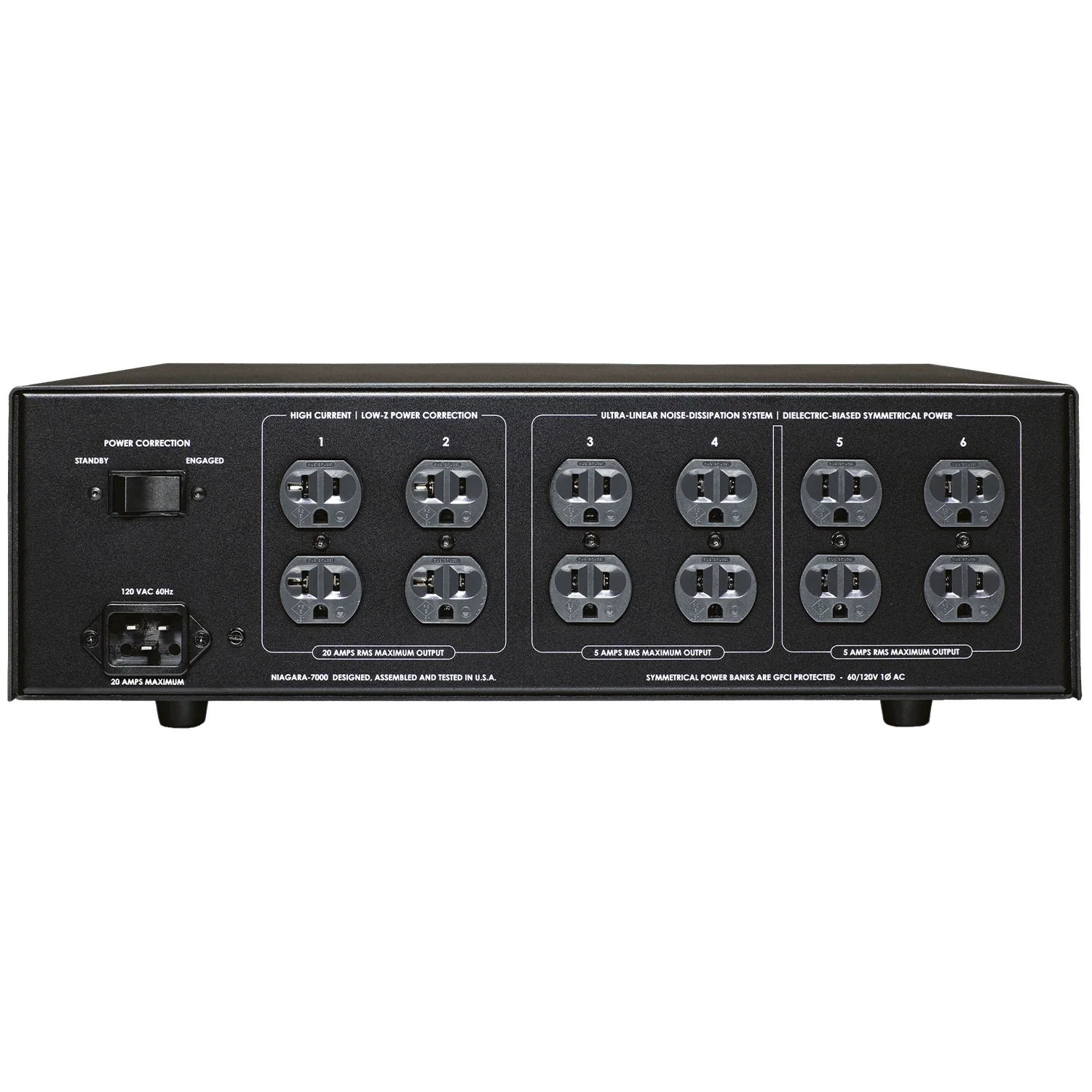

- Outlets: Source (8); High-Current (4)
- Dimensions: 17.5” W x 5.875” H (5.24” H without feet) x 17.2” D (3-RU Rack Mount Kits Optional)
- Weight: 92lbs. (US); 41.7kg.
- Niagara Transient Power Correction: Transient Power Correction: Provides over 90 amps peak instantaneous current reservoir with reduced line impedance for current-starved power amplifiers, whether they incorporate linear or switching power supplies.

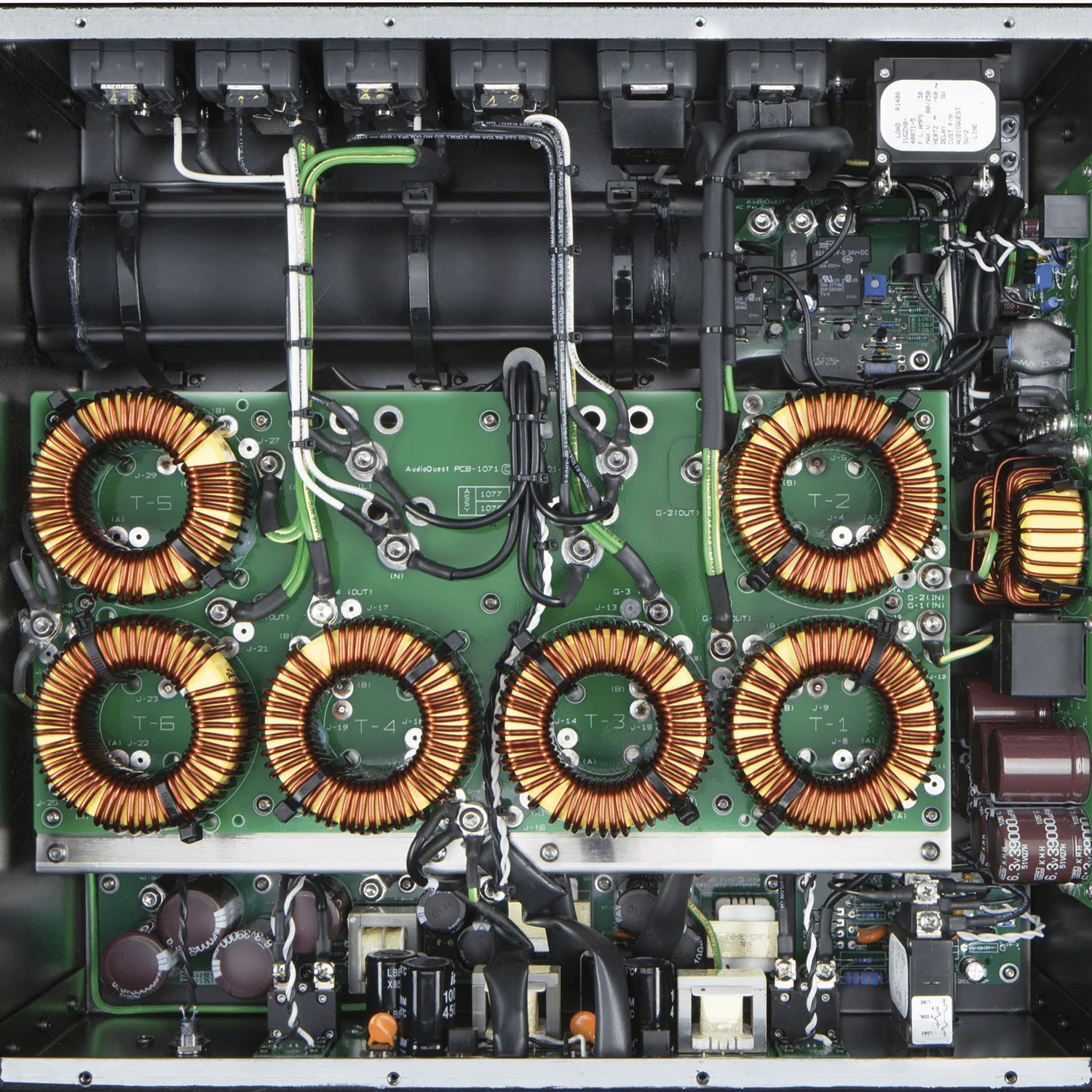

- Niagara 7000 Transformer: Dielectric-Biased AC Isolation Transformers: AQ’s patented technology greatly reduces non-linear distortions that have previously plagued even the finest magnetic-based systems, all the while increasing the bandwidth and efficiency of the transformers’ Noise-Dissipation.
- Level X Ultra Linear Noise-Dissipation Technology: More than 23 octaves differential-mode filtering (3kHz–1GHz in excess of 24dB reduction) and 20 octaves common-mode filtering (60Hz–100MHz in excess of 30dB reduction) with linear response, optimized for varying line and load impedance.
- Non-Sacrificial Surge Protection: Withstands multiple AC surges and spikes up to 6000V/3000A without sustaining damage–sonically non-invasive.
| Outlets |
12 total: (8) Source / (4) High-Current |
| Noise-Dissipation |
Linear Noise-Dissipation and Patented Ground-Noise-Dissipation- 6 Banks (all outlets) |
| DBS Symmetrical Power Isolation Transformer |
Yes |
| Maximum RMS Current |
20 Amps (RMS) @ 120V |
| Transient Power Correction |
90 amps peak (up to 25mS) |
| Product Dimensions |
17.5" W x 5.24" H x 17.2" L |
