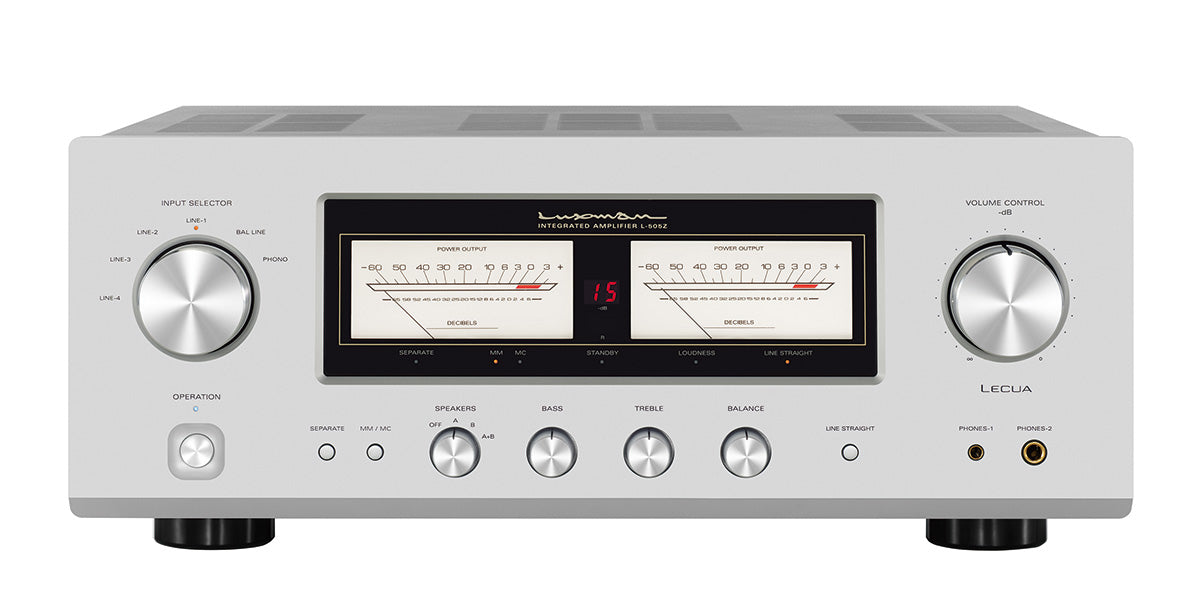

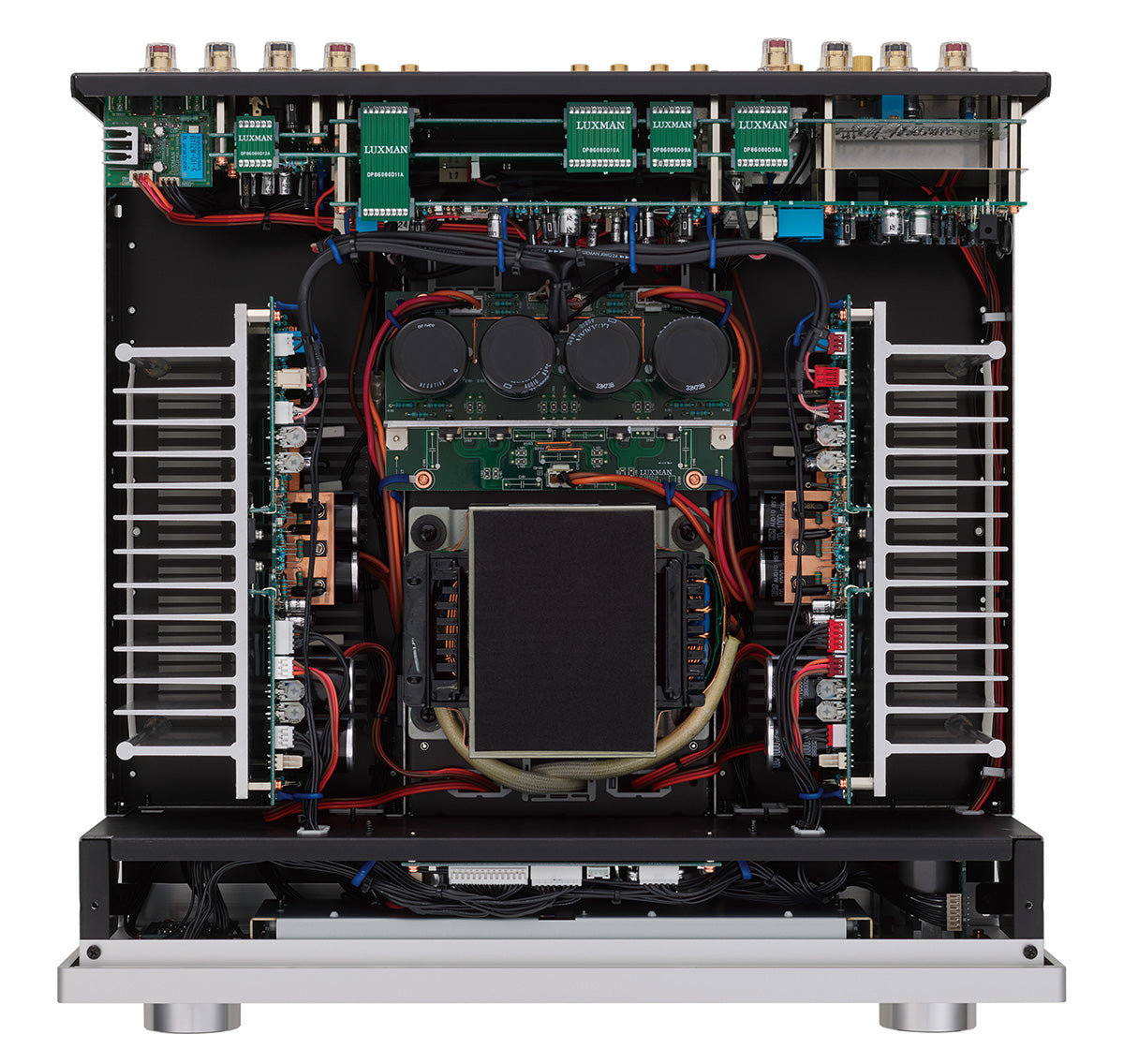

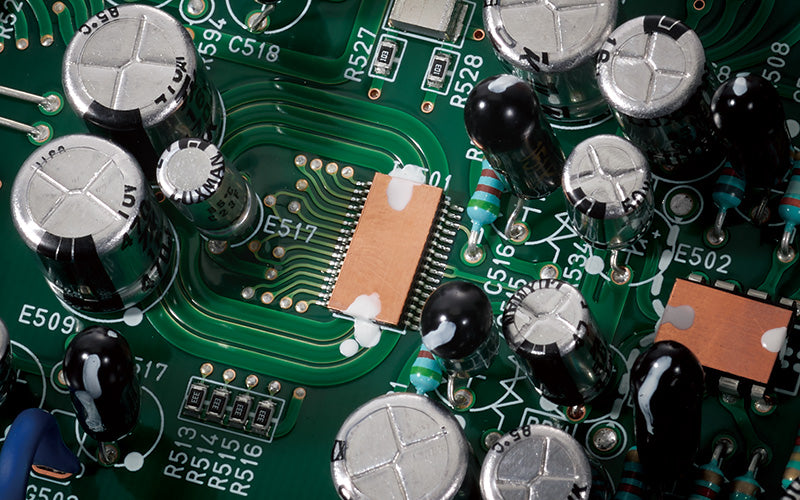

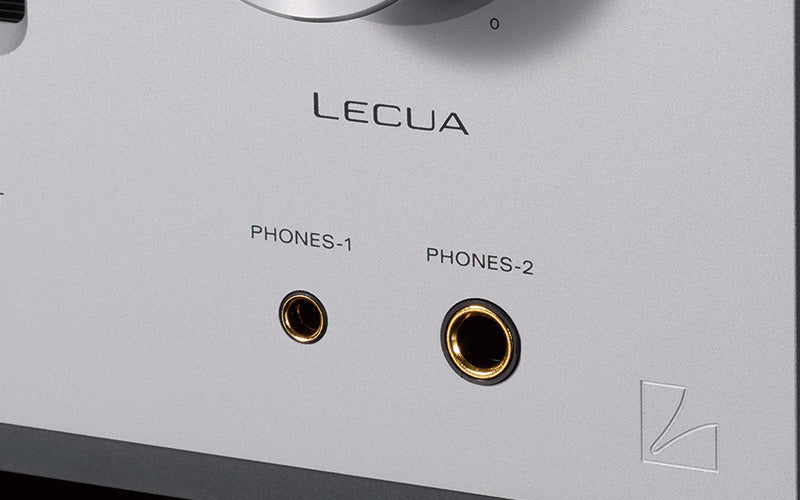

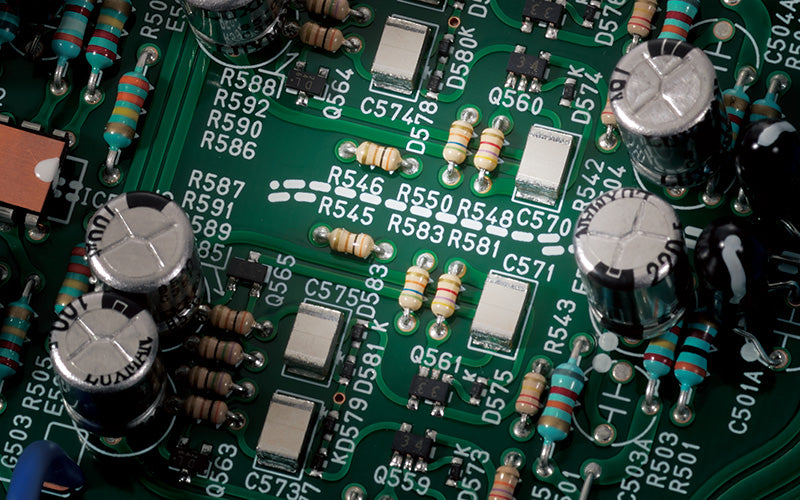

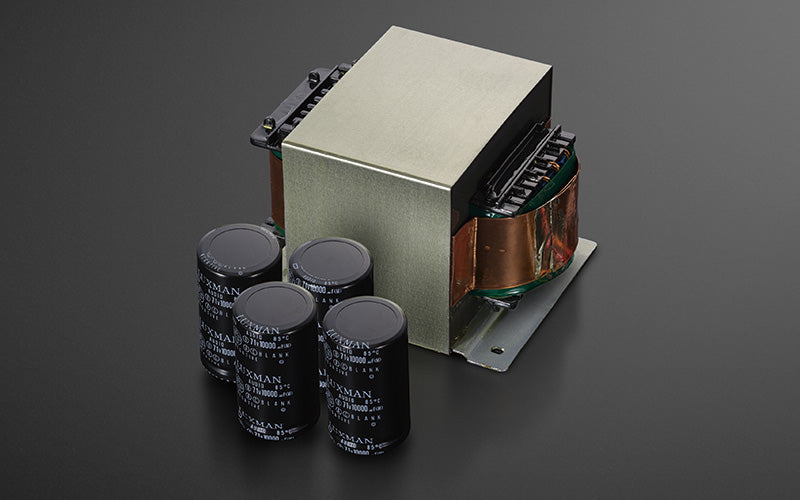

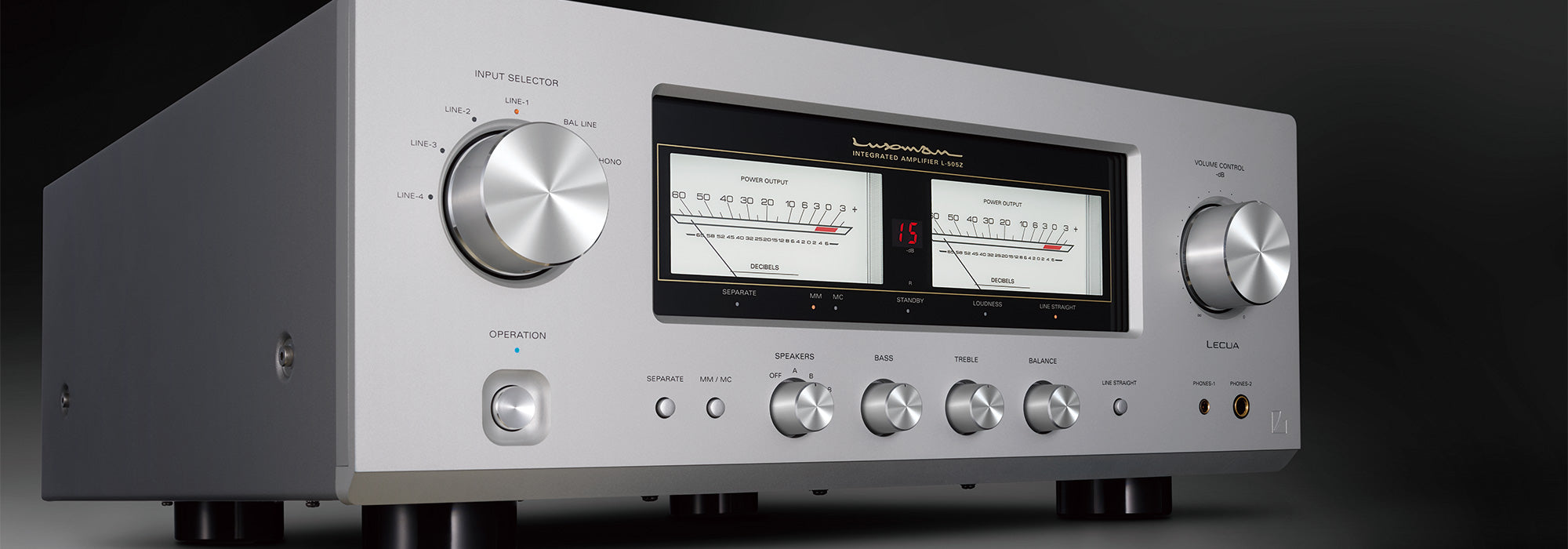

The L-505Z integrated amplifier honors the legacy of the L-505 while introducing the LIFES Version 1.0 feedback engine for superior sound quality. It delivers 100W per channel into 8Ω with a highly regulated 540VA power supply ensuring dynamic stability. The unit features the LECUA electronically controlled attenuator for precise volume management and discrete buffer circuitry for the preamp stage. High-fidelity MM/MC phono EQ and independent headphone grounding support versatile high-end audio configurations. Robust construction includes Bee-Line wiring and a loop-less chassis to minimize signal interference.
- Rated Output: 100W + 100W (8Ω), 150W + 150W (4Ω)
- Frequency Response: 20Hz to 100kHz (LINE, -3dB)
- Total Harmonic Distortion: 0.009% or less (1kHz, 8Ω)
- Signal-to-Noise Ratio: 104dB or more (LINE, IHF-A)
- Damping Factor: 200
- Dimensions: 440mm (W) x 178mm (H) x 454mm (D)
- Weight: 22.5kg
- Power Consumption: 330W (Max), 0.5W (Standby)
- Phono Input Sensitivity: 2.5mV (MM), 0.3mV (MC)
- Technology: LIFES 1.0, ODNF, LECUA
