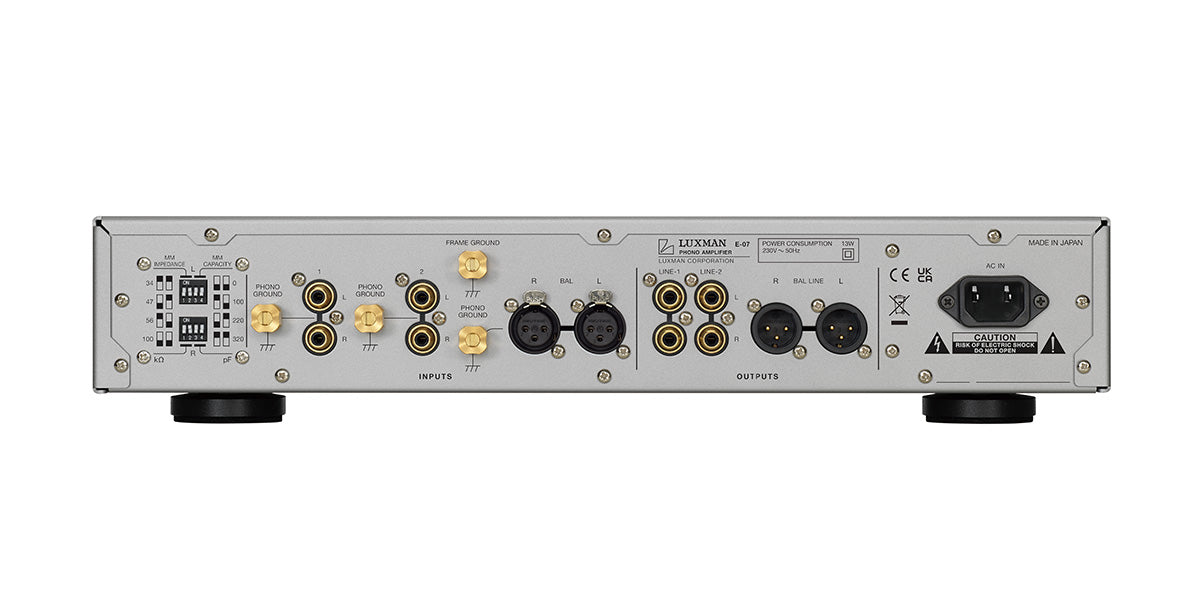

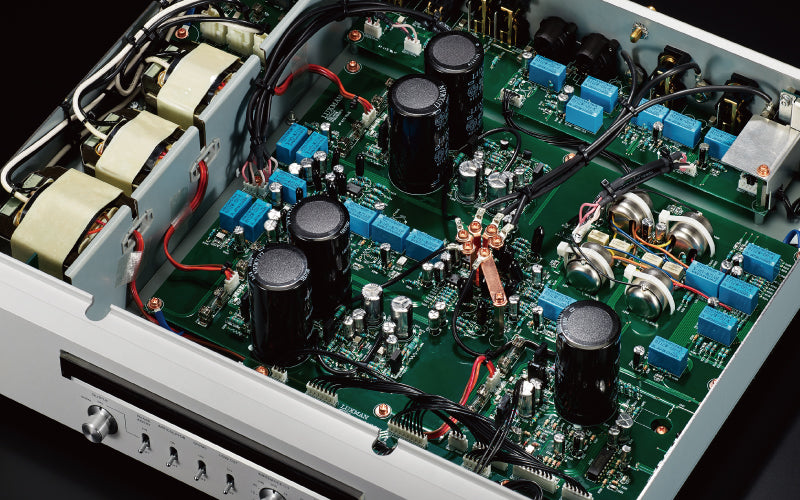

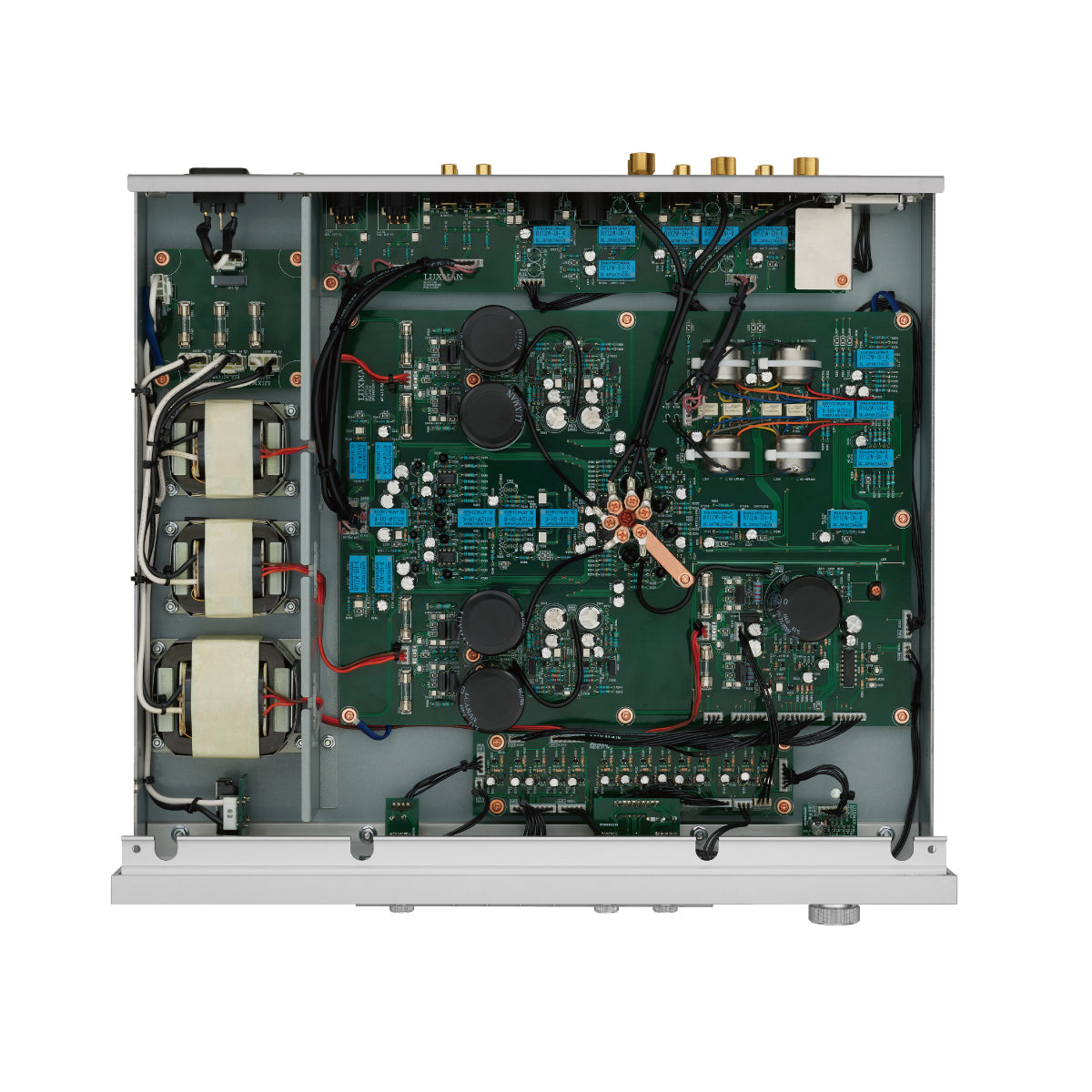

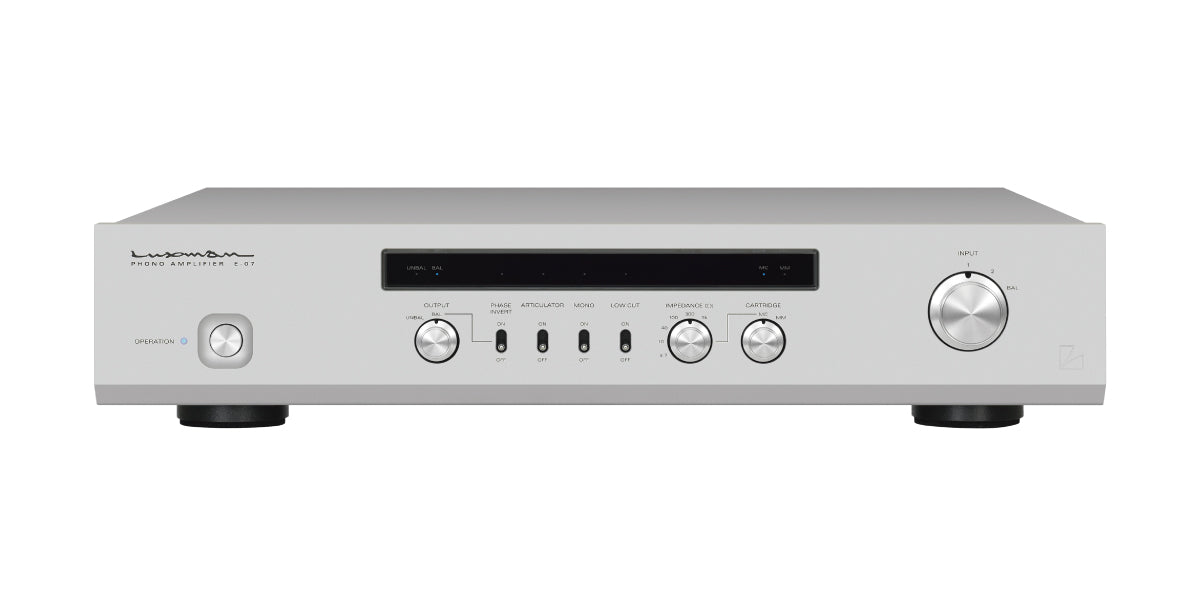

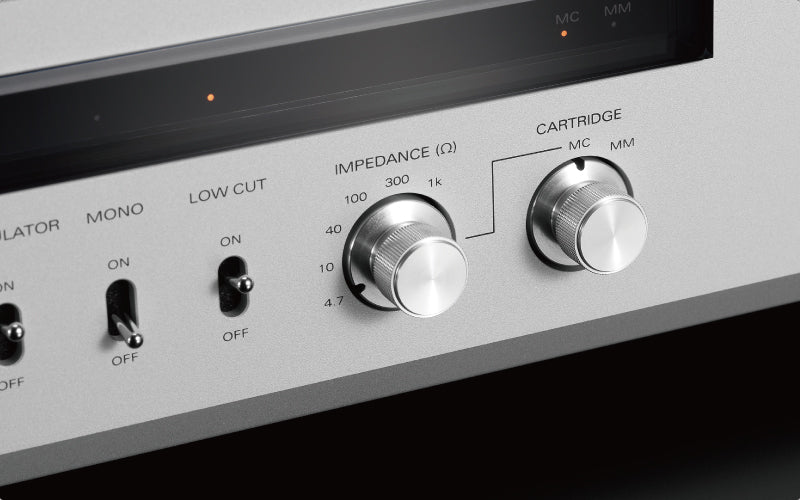

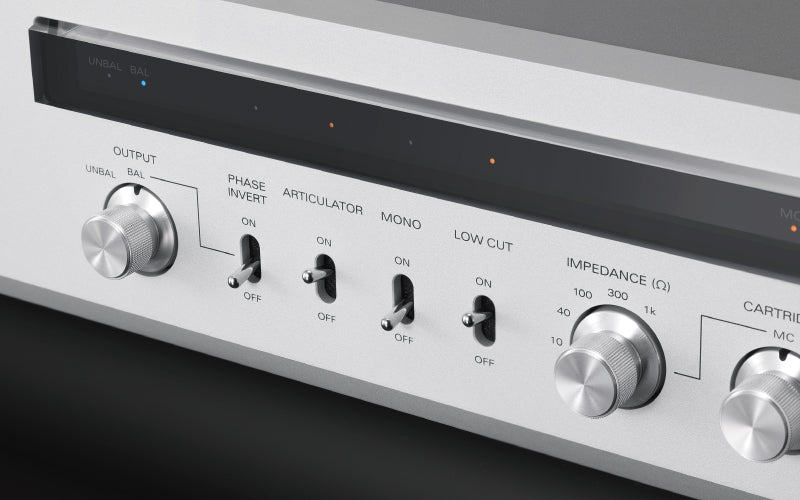

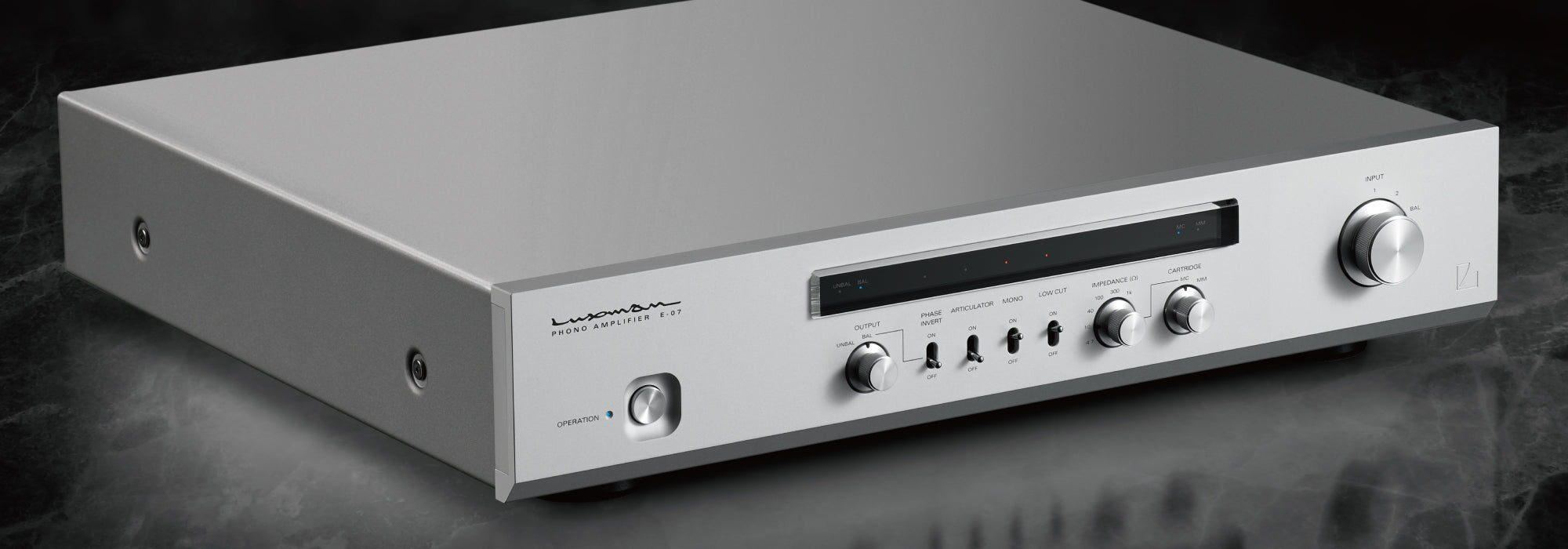

The E-07 is an all-solid-state phono equalizer amplifier that sets a new benchmark in performance and sound quality, celebrating LUXMAN's 100th anniversary. This unit features a high S/N ratio, MM/MC compatible RIAA curve, and high-quality NF-type transistors. The chassis employs a loopless structure that isolates the power supply from the amplifier sections while minimizing ground impedance. The design features gold-plated, reversed AC inlet that supports heavy IEC cable weight across the terminals. The E-07 features a six-position rotary load impedance selector for MC cartridges on the front panel. The unit is equipped with excellent, independent power supply regulation that yields an extremely stable current supply.
- Circuit Configuration: Non-feedback type phono equalizer (RIAA, first stage four parallel FET)

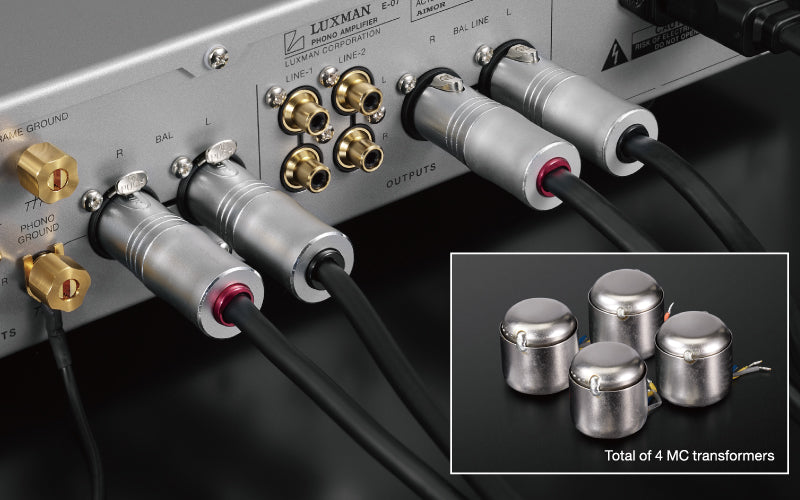

- MC Step-up Transformer: Super permalloy core x 4 (L/R channel, L/H impedance independent)
- Input Sensitivity: MM 3.2mV, MC-H 0.37mV, MC-L 0.12mV
- Rated Output: 250mV
- Output Impedance: Unbalanced 300Ω, Balanced 600Ω
- Gain: MM 38dB, MC-H 57dB, MC-L 66dB
- RIAA Response: MM 20Hz to 20kHz (±0.1dB), MC 20Hz to 20kHz (±0.3dB)
- Total Harmonic Distortion: 0.003%
- S/N Ratio (IHF-A): MM 88dB, MC-H 81dB, MC-L 78dB
- Channel Separation: 80dB or more

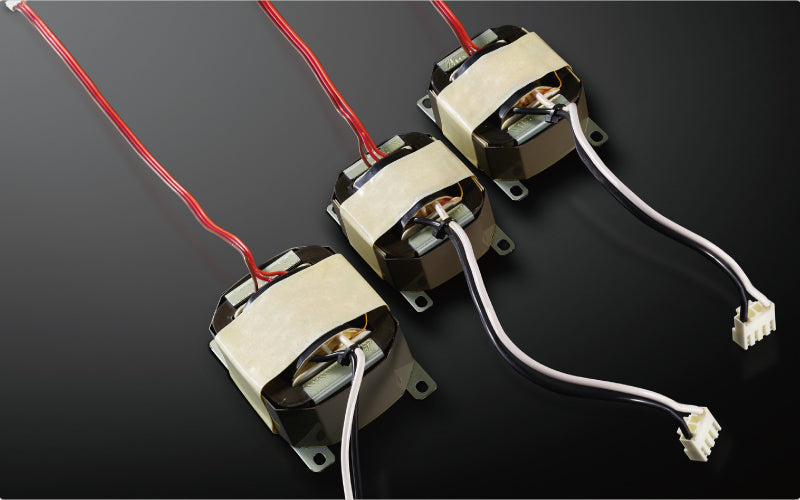

- Power Transformer: OI type x 3 (L/R independent + Peripheral circuit)
- Power Supply: 230V~(50Hz) / 115V~(60Hz)
- Power Consumption: 13W
- External Dimensions: 440(W) x 92(H) x 407(D) mm
- Net Weight: 13.2kg
