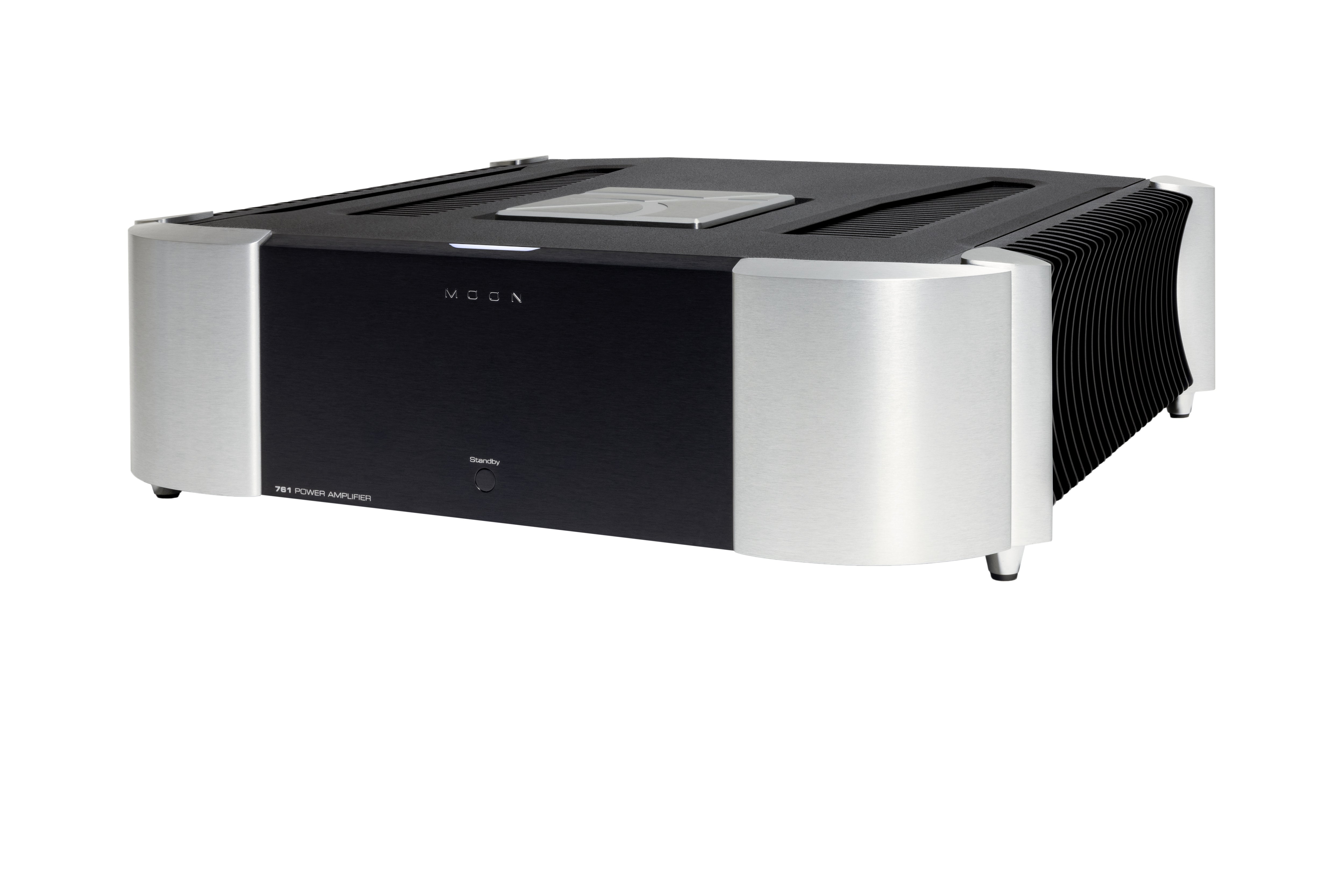

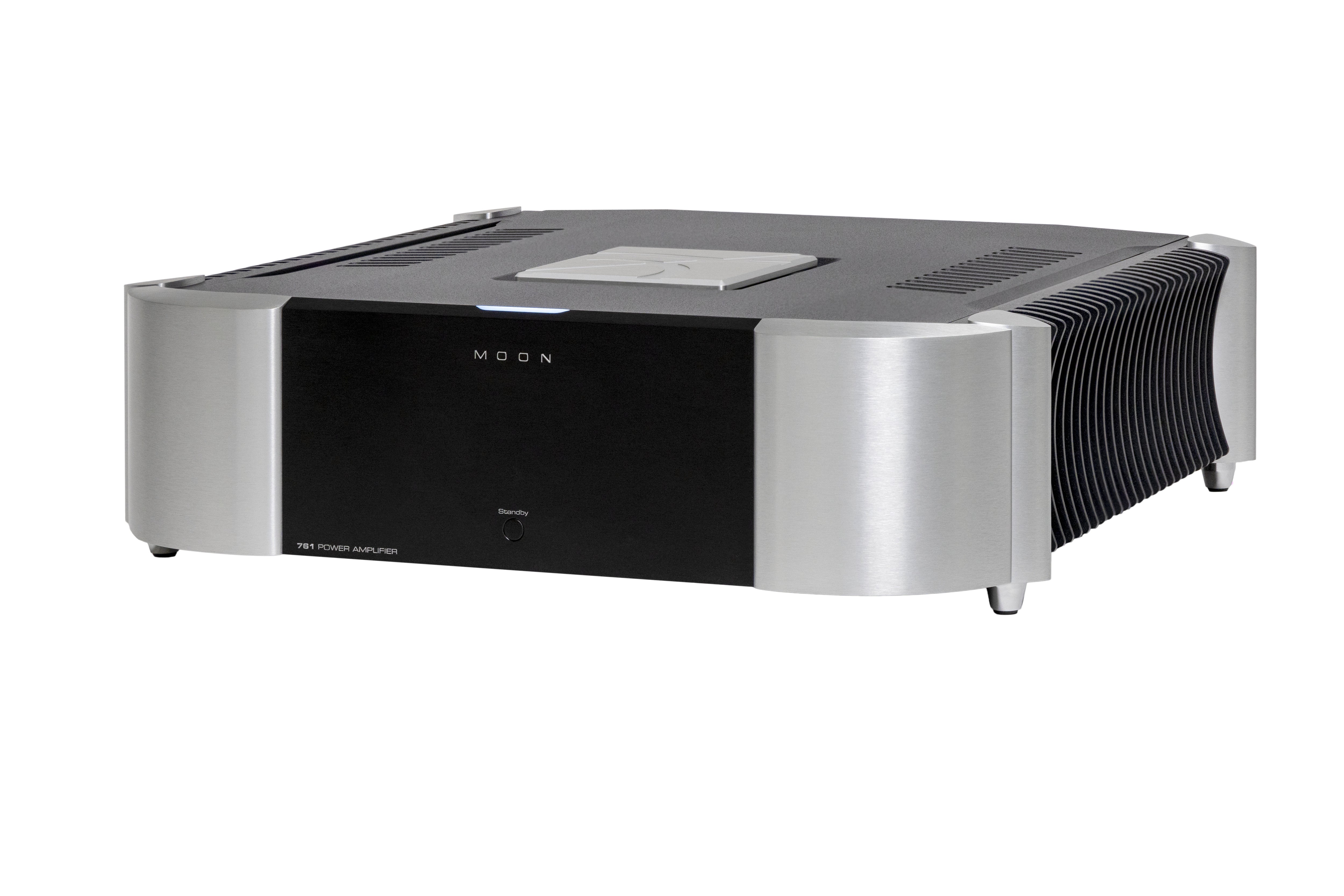

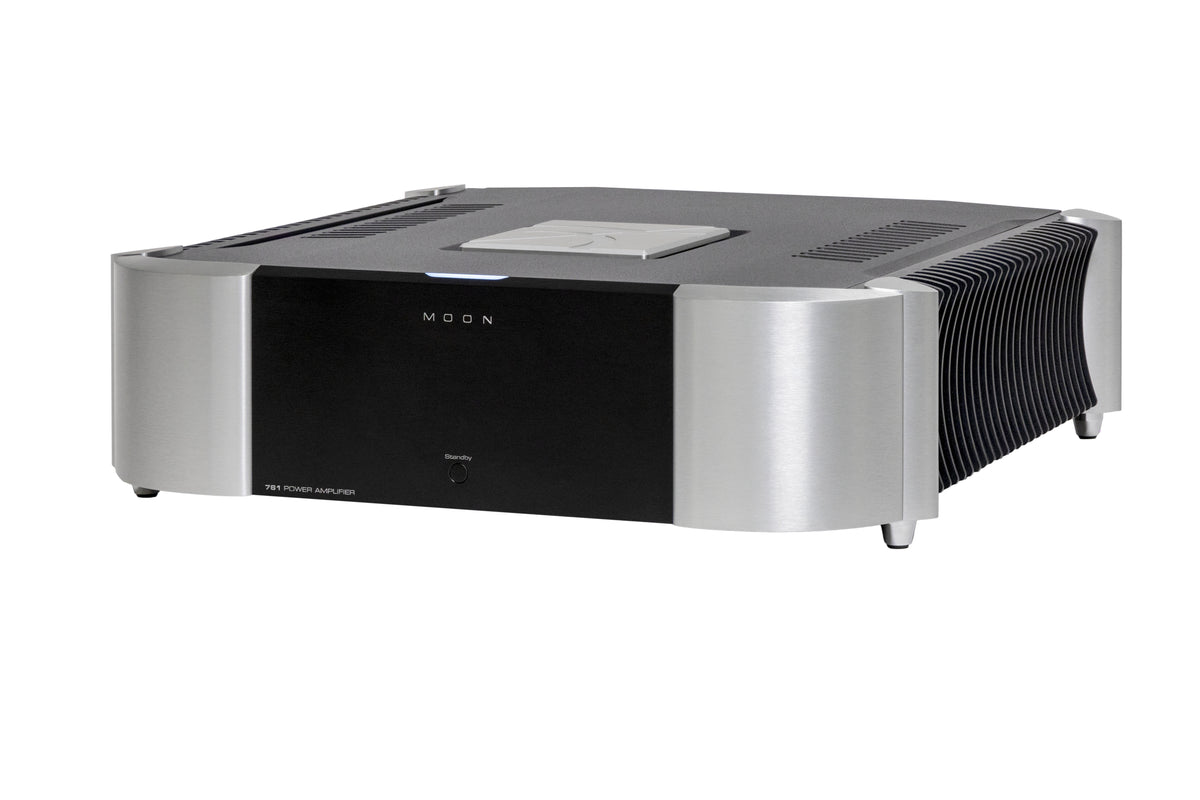

761 Power Amplifier

The MOON 761 is a dual-mono power amplifier built to transfer a preamplifier signal to loudspeakers with control and transparency. Its MDCA architecture reduces distortion without global feedback, while two custom low-noise 700 VA transformers and 152,000 µF of capacitance support stable current delivery.

The 761 produces 200 watts per channel into 8 ohms, doubles that output into 4 ohms, and can be switched to bridged-mono operation for 600 watts into 8 ohms. MOONLink allows coordinated operation with compatible MOON components. Schedule an audition at Pearl Audio, call (503) 222-2599, or email Pearl Audio to request an audition or more information.

Features

• Dual-mono topology
• MDCA distortion-cancelling amplifier architecture

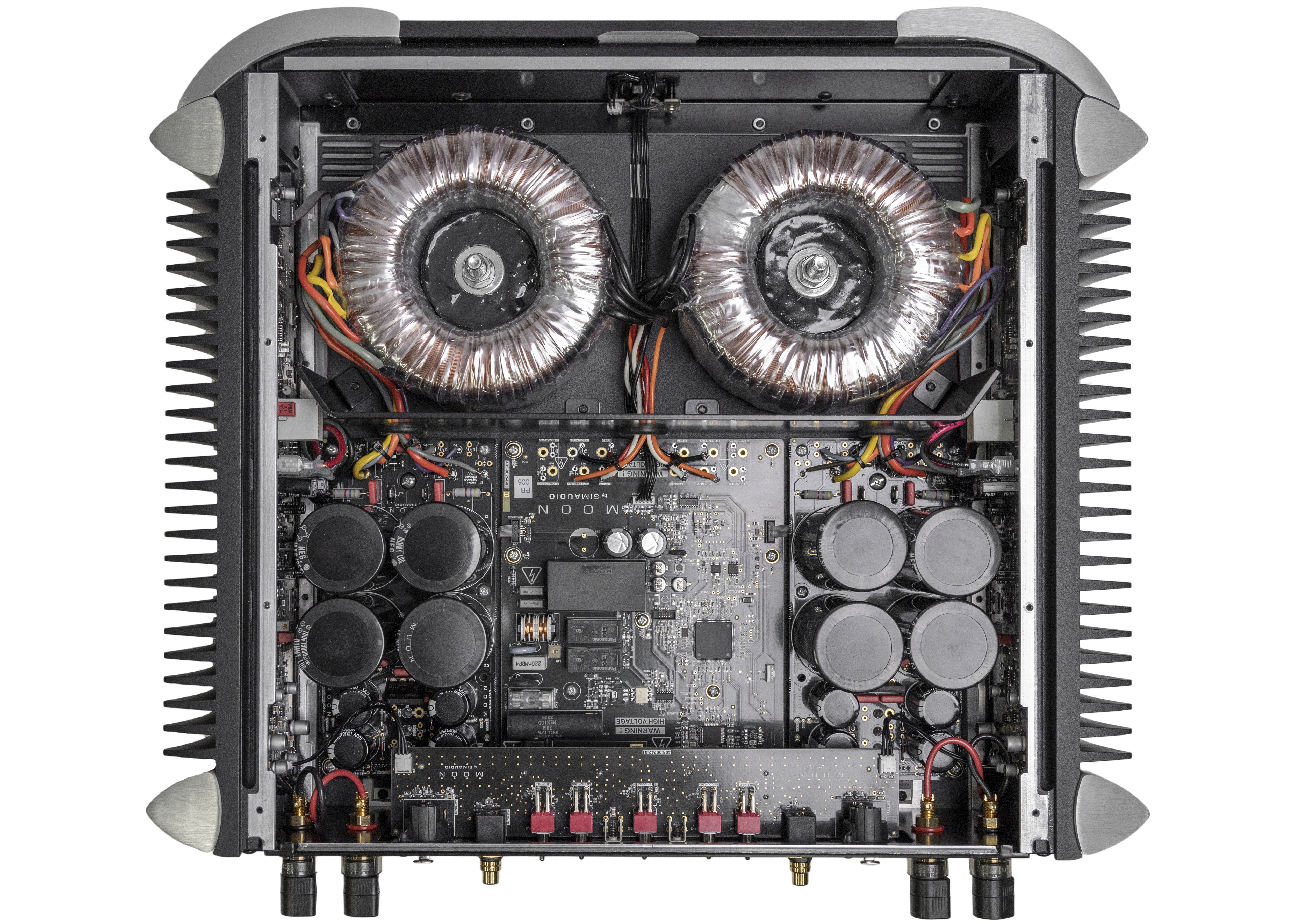

• Two custom 700 VA transformers
• 152,000 µF power-supply capacitance

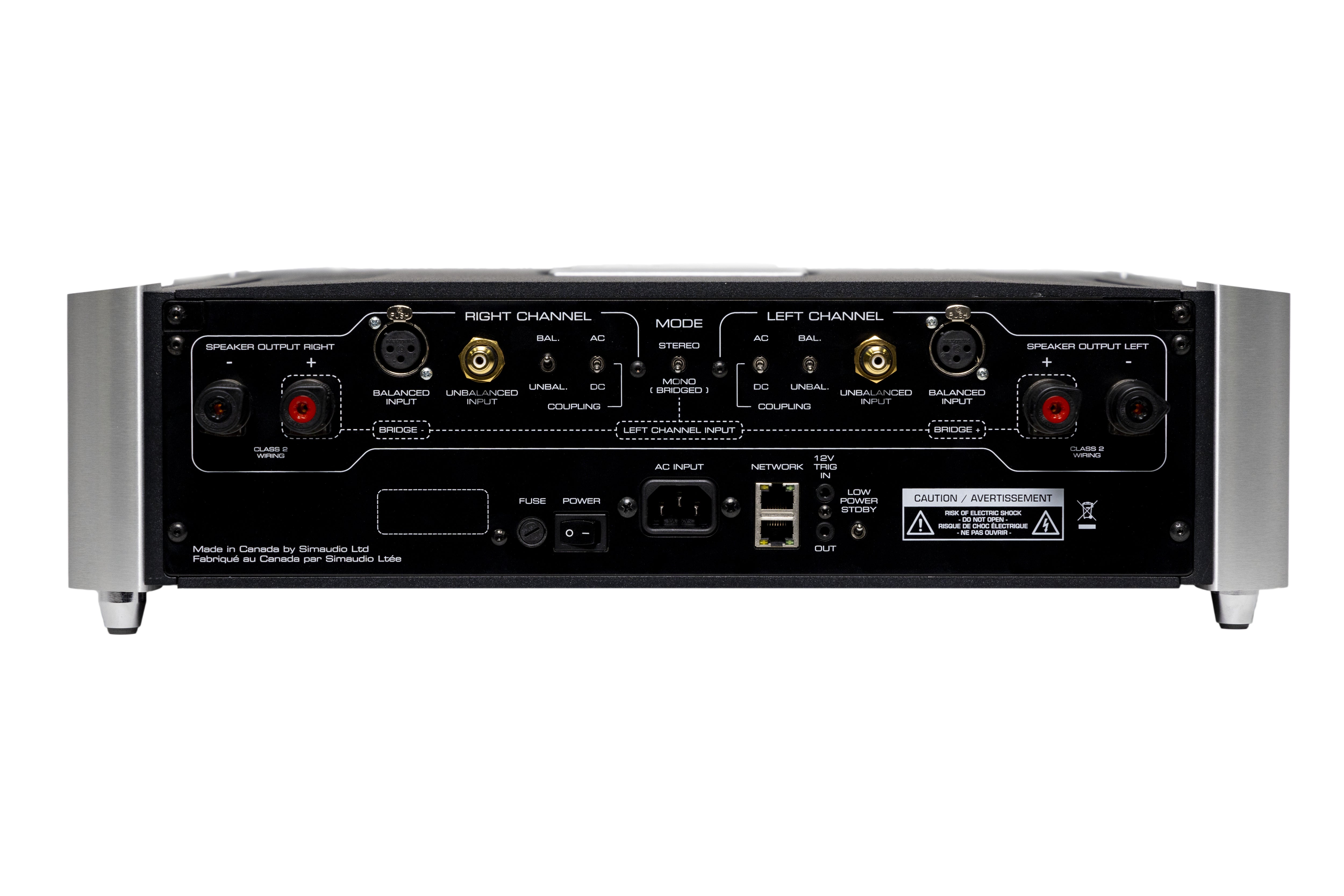

• Stereo and bridged-mono operation
• MOONLink communication

Specifications

• Output power: 200 W per channel into 8 Ω; 400 W per channel into 4 Ω
• Bridged output power: 600 W into 8 Ω
• Frequency response: 2 Hz–100 kHz (+0/−3 dB)
• Damping factor: 800; signal-to-noise ratio: 117 dB
• Dimensions (W × H × D): 18.95 × 5.53 × 17.53 in; packaged weight: 79 lb

Watch the official MOON North Collection product introduction (30 seconds).
