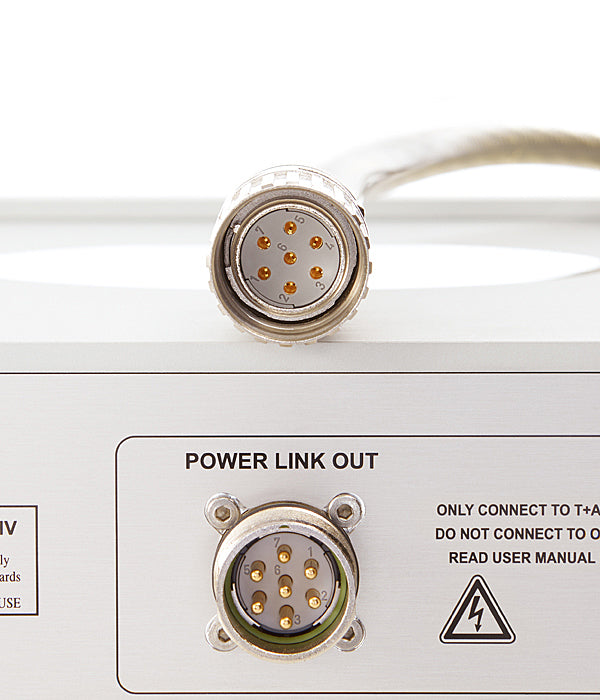

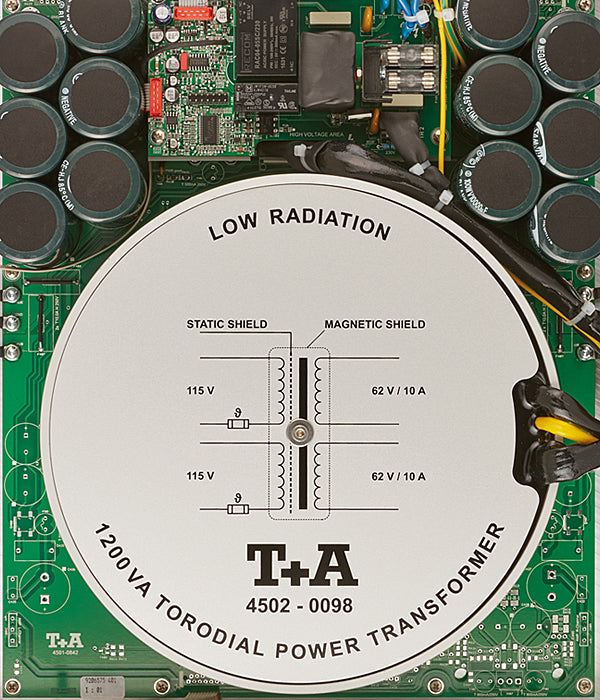

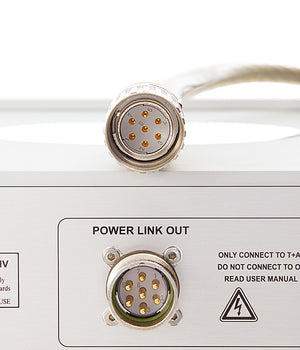

The PS 3000 HV is an external power supply designed to enhance the performance of the A 3000 HV and PA 3100 HV amplifiers. It delivers a substantial 1200 VA output with double the reservoir capacity, significantly improving current delivery stability and sound quality. Featuring a encapsulated 1200 VA transformer mounted on a vibration-absorbing base, it minimizes mechanical noise and interference. The unit includes 24 high-performance capacitors totaling 240,000 µF reservoir capacity for near-instant energy delivery during rapid peaks. A soft-start function ensures smooth power ramp-up to protect household fuses and avoid transformer hum. The PS 3000 HV is controlled via a digital bus and connects through a specialized PowerLink, isolating the amplifier from load currents and mains interference.
| Output Power | 1200 VA |
| Reservoir Capacity | 240,000 µF |
| Mains Voltage | 110-120 V/60 Hz or 220-240 V/50 Hz |
| Power Consumption | 1800 W |
| Dimensions (H x W x D) | 6.7 x 18.1 x 18.1 inches |
| Weight | Estimated 28 lbs |
| Finish | Silver lacquer or titanium lacquer case, black heat sink |
